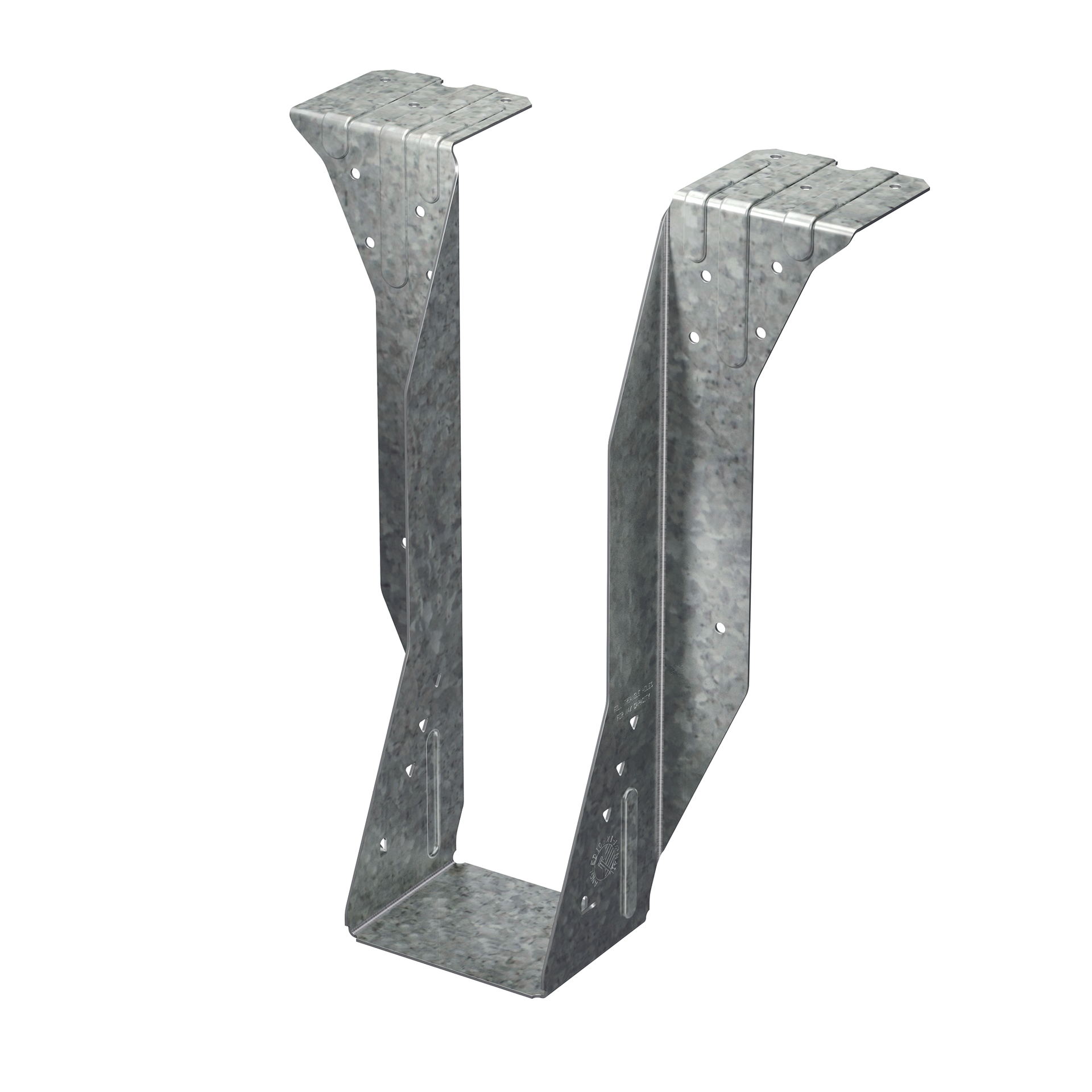

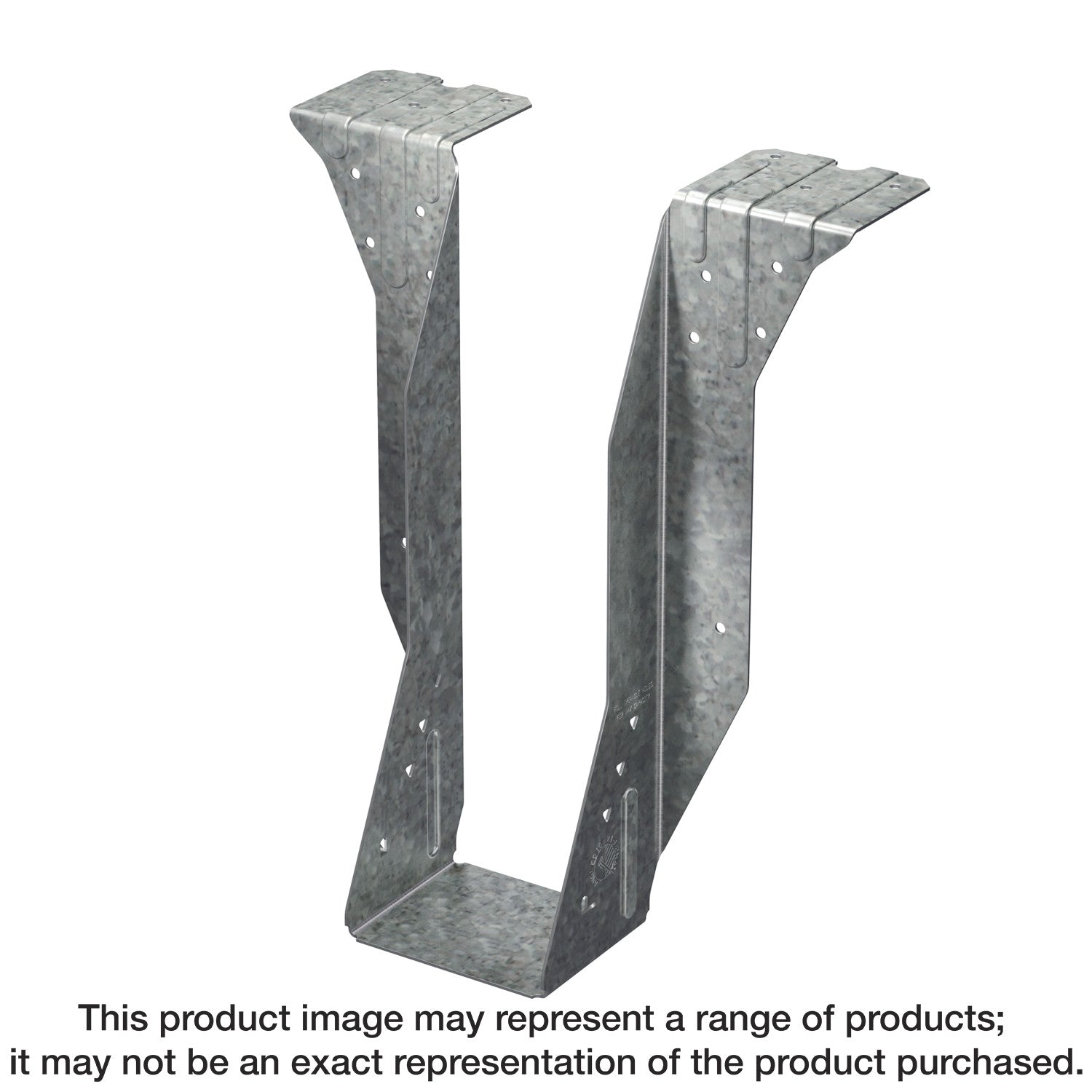

Simpson Strong-Tie BA1.81/9.25 BA Top-Flange Joist Hanger for 1-3/4 in. x 9-1/4 in. Engineered Wood

Simpson Strong-Tie BA1.81/9.25 BA Top-Flange Joist Hanger for 1-3/4 in. x 9-1/4 in. Engineered Wood

The BA series of top-flange hangers are a cost-effective option for engineered wood and solid sawn lumber applications. They are designed to carry medium loads with solid sawn lumber and higher loads with engineered wood products. They feature min./max. nailing options for design versatility.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• The two-level embossment at the top flange provides increased stiffness
• The full-height joist flange captures the top chord of the joist to prevent rotation and eliminate the need for web stiffeners
• Minimum nailing targets moderate load demands, whereas maximum nailing allows higher loads
• Available for special order to accommodate sloped and/or skewed members
• Actual joist size: 1-3/4 in. x 9-1/4 in.
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: BA1.81/9.25
• UPC: 707392002017
• GTIN: 707392002017
• Feature 01: The two-level embossment at the top flange provides increased stiffness
• Feature 02: The full-height joist flange captures the top chord of the joist to prevent rotation and eliminate the need for web stiffeners
• Feature 03: Minimum nailing targets moderate load demands, whereas maximum nailing allows higher loads
• Feature 04: Available for special order to accommodate sloped and/or skewed members
• Feature 05: Actual joist size: 1-3/4 in. x 9-1/4 in.
• Feature 06: Made from 12-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Install With: Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist
• Assembled Depth - Imperial: 5.599
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 9.41675
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 8.0105
• Assembled Width UOM - Imperial: in.
• Base Product ID: BA_Hanger
• Base Product Name: BA
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 12
• GUID: 210669549805403569078382058435161805137
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 1-3/4 in. x 9-1/4 in.
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 1.72
• Short Product Name: TOP FLANGE HANGER FOR 1-3/4 JOIST
• Strongtie.com URL: https://www.strongtie.com/topflangehangers_engineeredwoodconnectors/ba_hanger/p/ba
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers for Engineered Wood
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
