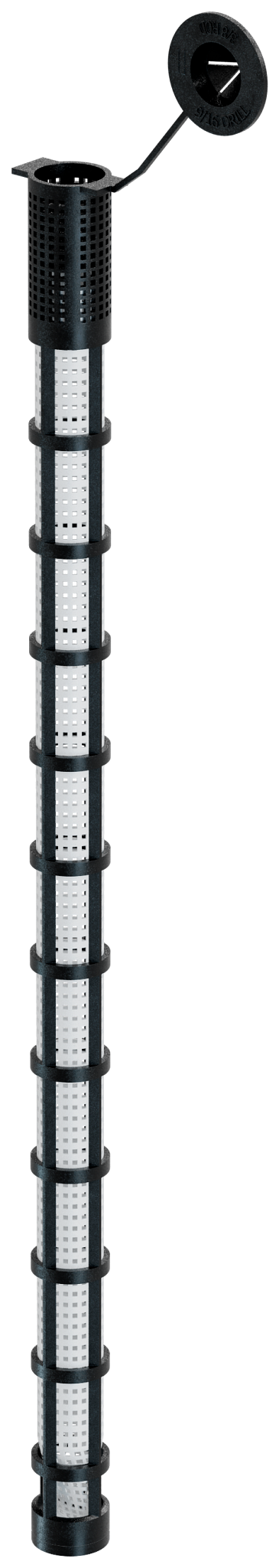

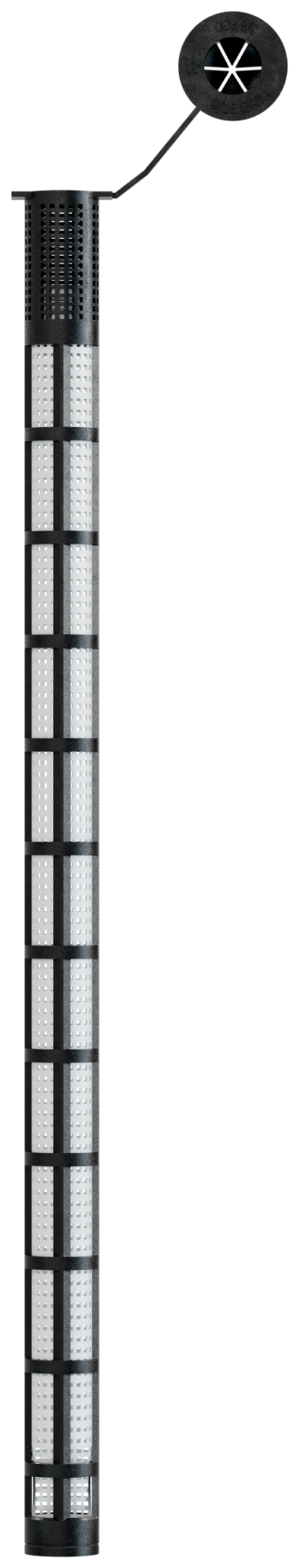

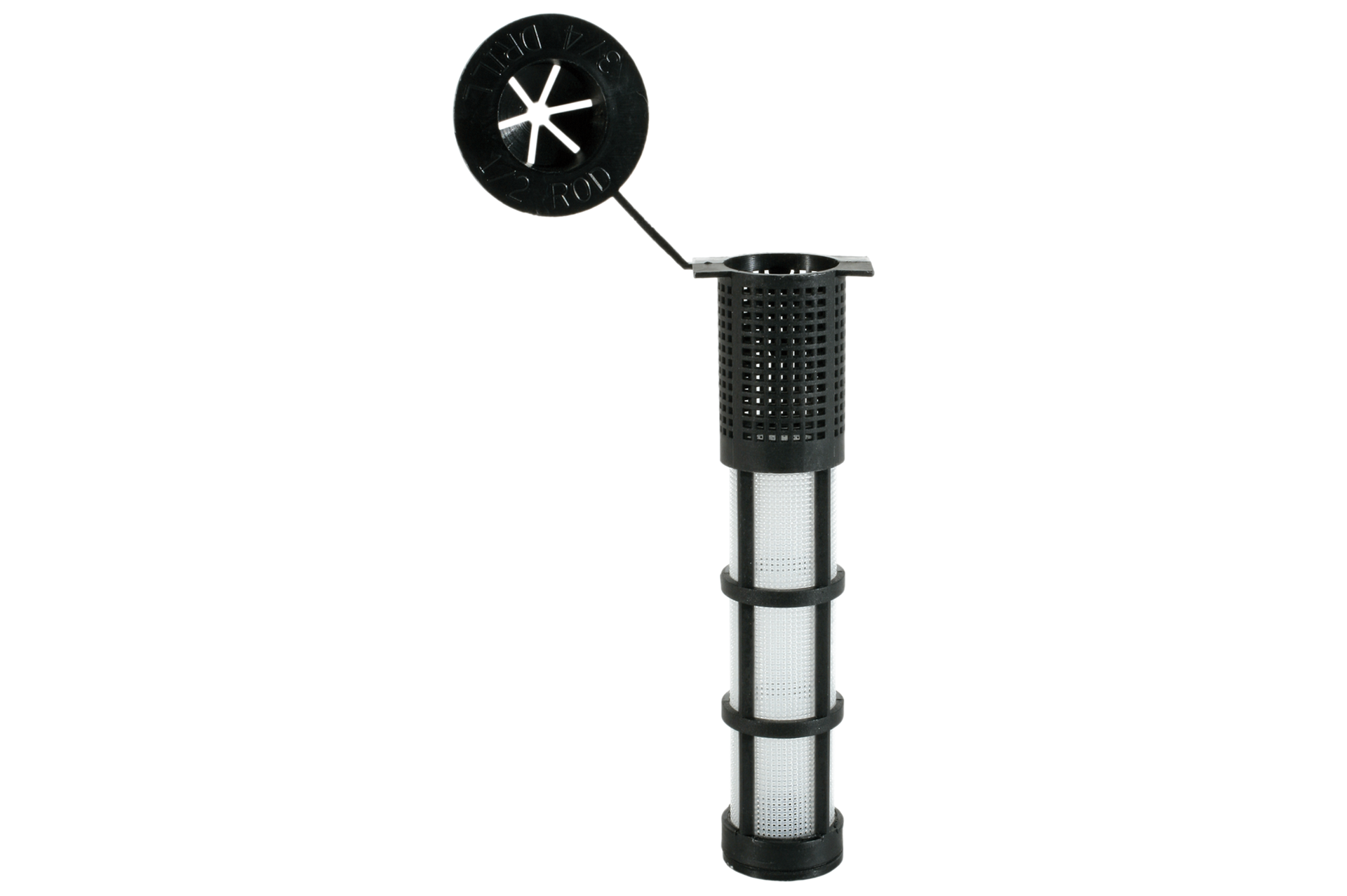

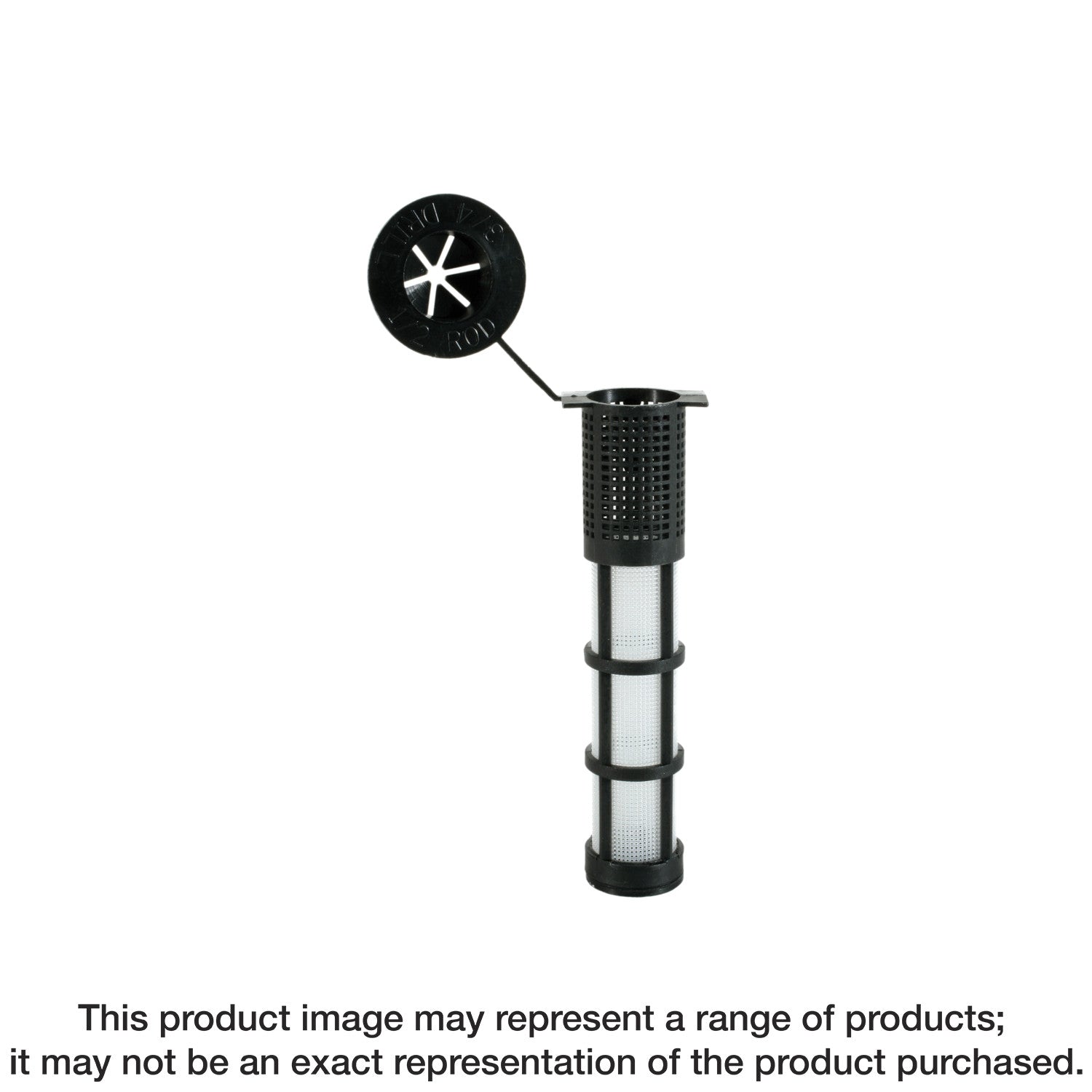

Simpson Strong-Tie AWS3710P Opti-Mesh 10 in. Acrylic Adhesive Plastic Screen Tube for 3/8 in. Rod for AT-XP

Simpson Strong-Tie AWS3710P Opti-Mesh 10 in. Acrylic Adhesive Plastic Screen Tube for 3/8 in. Rod for AT-XP

Simpson Strong-Tie makes dispensing adhesives easier than ever by providing a variety of manual and pneumatic tools as well as accessories designed to make dispensing adhesive as efficient as possible. Screen tubes are vital to the performance of adhesive anchors in base materials that are hollow or contain voids, such as hollow block and brick. The Simpson Strong-Tie® Opti-Mesh screen tube with woven mesh insert provides the economical advantage of a plastic screen tube while providing superior performance to steel screen tubes and competitive plastic screen tubes.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

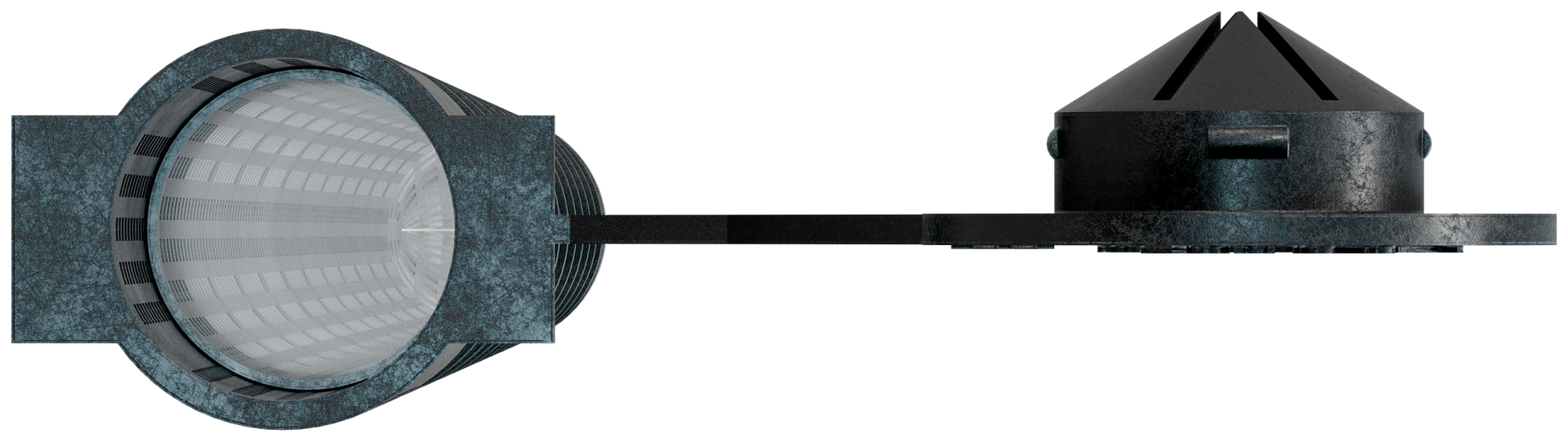

• Integral cap centers the rod and displays drill bit and rod diameter
• Flanges prevent the screen tube from slipping into over-drilled holes
• Formula-specific woven mesh design controls flow of adhesive out of the screen
• Open-mesh collar allows extra adhesive flow in hollow block applications
• Caution: Screen tubes are designed for a specific adhesive type; acrylic screen tubes must be used with AT-XP®
• For rod diameter: 3/8 in.
• Hole size: 9/16 in.
• Length: 10 in.

Specifications

• ERP Part Number: AWS3710P
• UPC: 707392003069
• GTIN: 707392003069
• Feature 01: Integral cap centers the rod and displays drill bit and rod diameter
• Feature 02: Flanges prevent the screen tube from slipping into over-drilled holes
• Feature 03: Formula-specific woven mesh design controls flow of adhesive out of the screen
• Feature 04: Open-mesh collar allows extra adhesive flow in hollow block applications
• Feature 05: Caution: Screen tubes are designed for a specific adhesive type; acrylic screen tubes must be used with AT-XP®
• Feature 06: For rod diameter: 3/8 in.
• Feature 07: Hole size: 9/16 in.
• Feature 08: Length: 10 in.
• Assembled Depth - Imperial: 0.5625
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 10.125
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.5625
• Assembled Width UOM - Imperial: in.
• Base Product ID: OptiMesh_ScreenTube
• Base Product Name: Opti-Mesh Adhesive-Anchoring Screen Tubes
• Bolt/Rod Diameter (in.): 3/8
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Adhesive Anchoring Accessories > Screen Tube
• Color: White
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• GUID: 60406973683259590096638061617840334416
• Hole Diameter (in.): 9/16
• Length (in.): 10
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Plastic
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Screen Tube
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.028
• Short Product Name: 3/8X10 PLASTIC MESH SCREEN FOR AT-XP
• Strongtie.com URL: https://www.strongtie.com/screentubes_adhesiveanchoringaccessories/optimesh_screentube/p/opti-mesh-adhesive-anchoring-screen-tubes
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Adhesive Anchoring Accessories
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392003066
