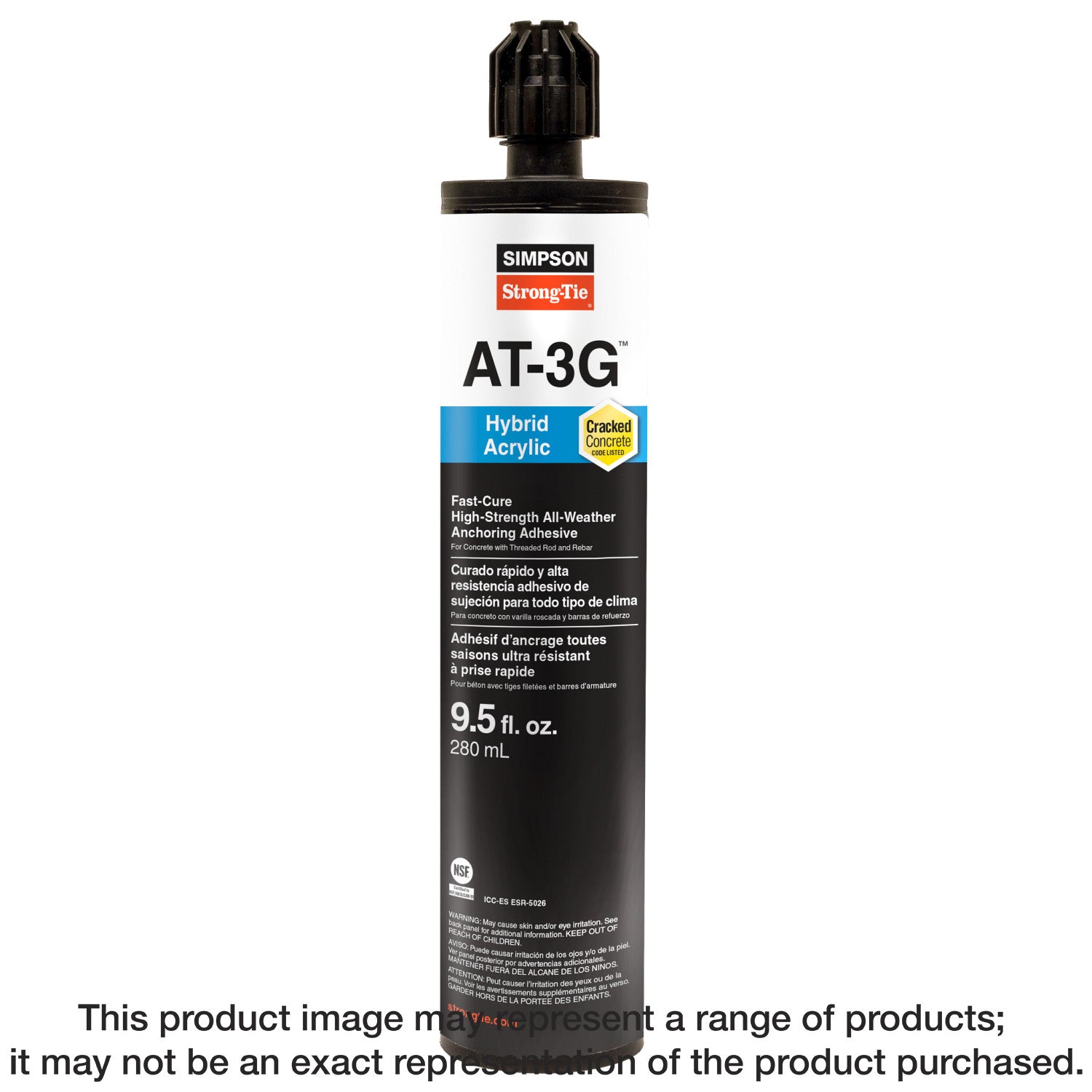

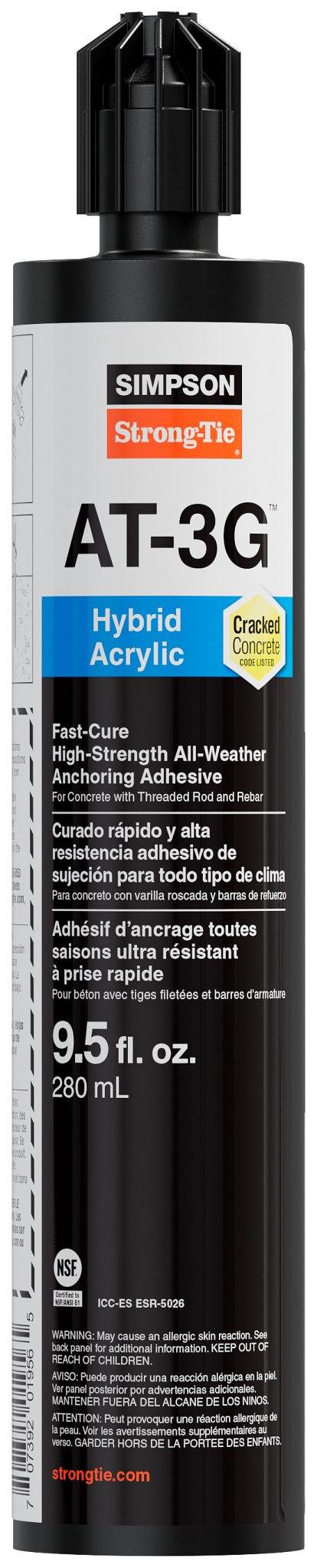

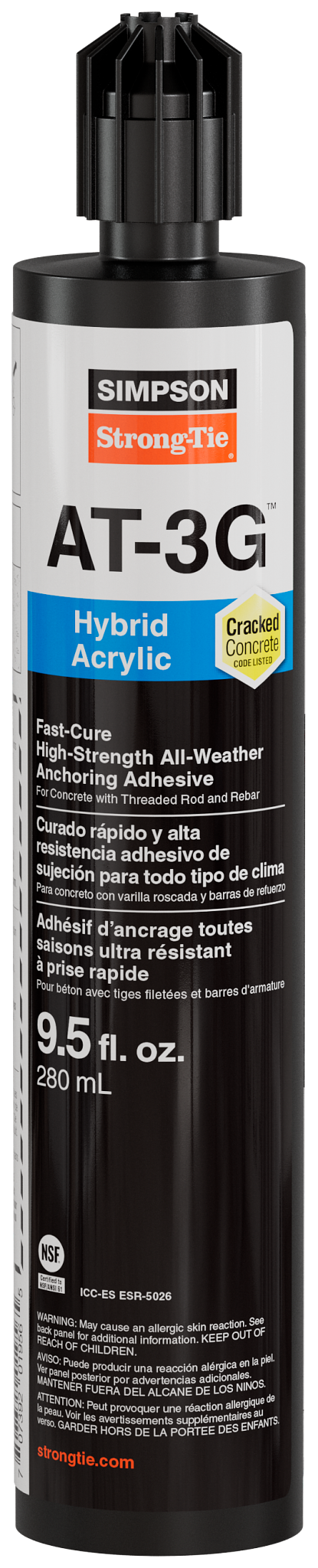

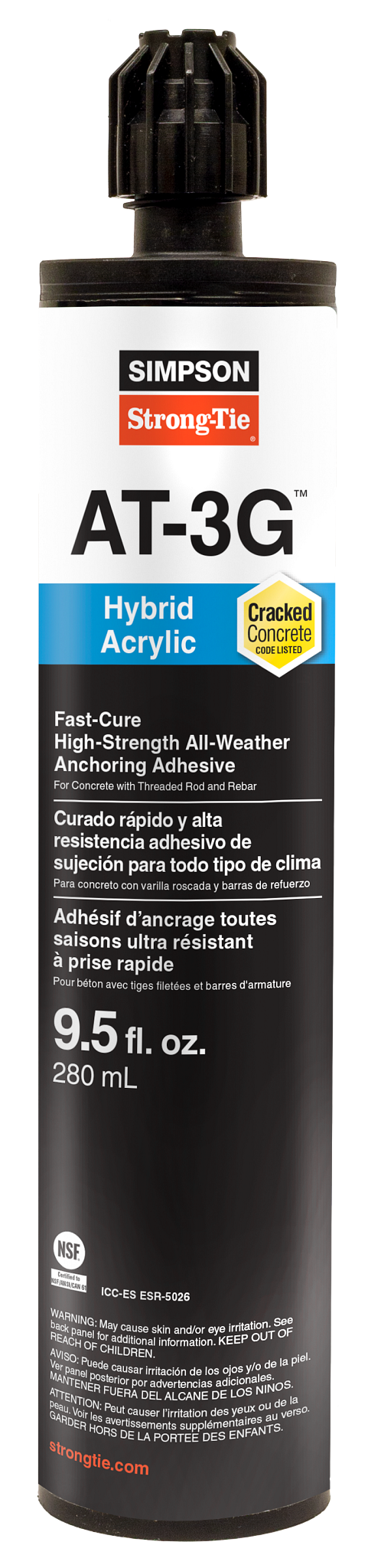

Simpson Strong-Tie AT3G10 AT-3G™ 9.5-oz. High-Strength Acrylic Anchoring Adhesive Cartridge w/ Nozzle (Pack of 576)

Simpson Strong-Tie AT3G10 AT-3G™ 9.5-oz. High-Strength Acrylic Anchoring Adhesive Cartridge w/ Nozzle (Pack of 576)

Simpson Strong-Tie® AT-3G™ is a hybrid, acrylic-based adhesive for anchoring threaded rod and rebar into cracked and uncracked concrete. Ideal for cold weather and wet concrete applications, AT-3G dispenses easily and offers a fast curing time for same-day bolt up. It can be specified for a wide range of in-service temperatures, and maintains its strong bond strength in extreme environments for ultimate design and jobsite flexibility. Tested and code compliant with the IBC and IRC, AT-3G hybrid adhesive is easy to install with the conventional blow-brush-blow hole cleaning method.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Excellent for use in cold weather conditions or applications where fast cure is required
• Recognized per ICC-ES AC308 for threaded rod and rebar anchoring, along with post-installed rebar development and splice length design provisions
• Conventional blow-brush-blow hole cleaning technique using a wire brush — no power brushing required
• Base material installation temperatures down to 0°F (-18°C)
• Use in grout-filled CMU construction
• Use of a vacuum in lieu of compressed air for hole cleaning
• Installation into oversized holes
• Installation in holes drilled with diamond core bits
• 9.5-oz. coaxial cartridge
• Tested in accordance with ICC-ES 308, ACI 355.4 and applicable ASTM test methods

Specifications

• ERP Part Number: AT3G10
• UPC: 50707392019560
• GTIN: 50707392019560
• Feature 01: Excellent for use in cold weather conditions or applications where fast cure is required
• Feature 02: Recognized per ICC-ES AC308 for threaded rod and rebar anchoring, along with post-installed rebar development and splice length design provisions
• Feature 03: Conventional blow-brush-blow hole cleaning technique using a wire brush — no power brushing required
• Feature 04: Base material installation temperatures down to 0°F (-18°C)
• Feature 05: Use in grout-filled CMU construction
• Feature 06: Use of a vacuum in lieu of compressed air for hole cleaning
• Feature 07: Installation into oversized holes
• Feature 08: Installation in holes drilled with diamond core bits
• Feature 09: 9.5-oz. coaxial cartridge
• Feature 10: Tested in accordance with ICC-ES 308, ACI 355.4 and applicable ASTM test methods
• Assembled Depth - Imperial: 2
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 19
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2
• Assembled Width UOM - Imperial: in.
• Base Product ID: AT-3G_Adhesive
• Base Product Name: AT-3G™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Acrylic Anchoring Adhesives > Adhesive
• Country of Origin: DE
• Customer Unit: No
• Display Unit/Measure: PAL
• GUID: 326082694805676287975187654862317220870
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Adhesive
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 576
• Shipping Weight: 743.04
• Short Product Name: 9.5 OZ AT3G W/ NOZZLE
• Strongtie.com URL: https://www.strongtie.com/acrylicanchoringadhesives_adhesives/at-3g_adhesive/p/at-3g
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Acrylic Anchoring Adhesives
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392019562
• EA Reference: 707392019565
• InfoGraphics: https://images.salsify.com/image/upload/s--XUP_CQYm--/613e678fcbf27d14940ef52ea915062f2d3e8a15.png
• InfoGraphics.1: https://images.salsify.com/image/upload/s--MSIJGdk2--/d062eca7d4140774dffeb30419ef045a5744e013.png
• InfoGraphics.2: https://images.salsify.com/image/upload/s--EgY3SDTZ--/c55c286f907047c4090c5861d52fd8f384751cd0.png
• InfoGraphics.3: https://images.salsify.com/image/upload/s--cEhd7Vdf--/dcdc228d502bd7e7b1248da856c11f64026b1509.png
