Simpson Strong-Tie ARC50-RP25 Adhesive Retaining Cap for 5/8 in. Hole Diameter (25-Qty)

Simpson Strong-Tie ARC50-RP25 Adhesive Retaining Cap for 5/8 in. Hole Diameter (25-Qty)

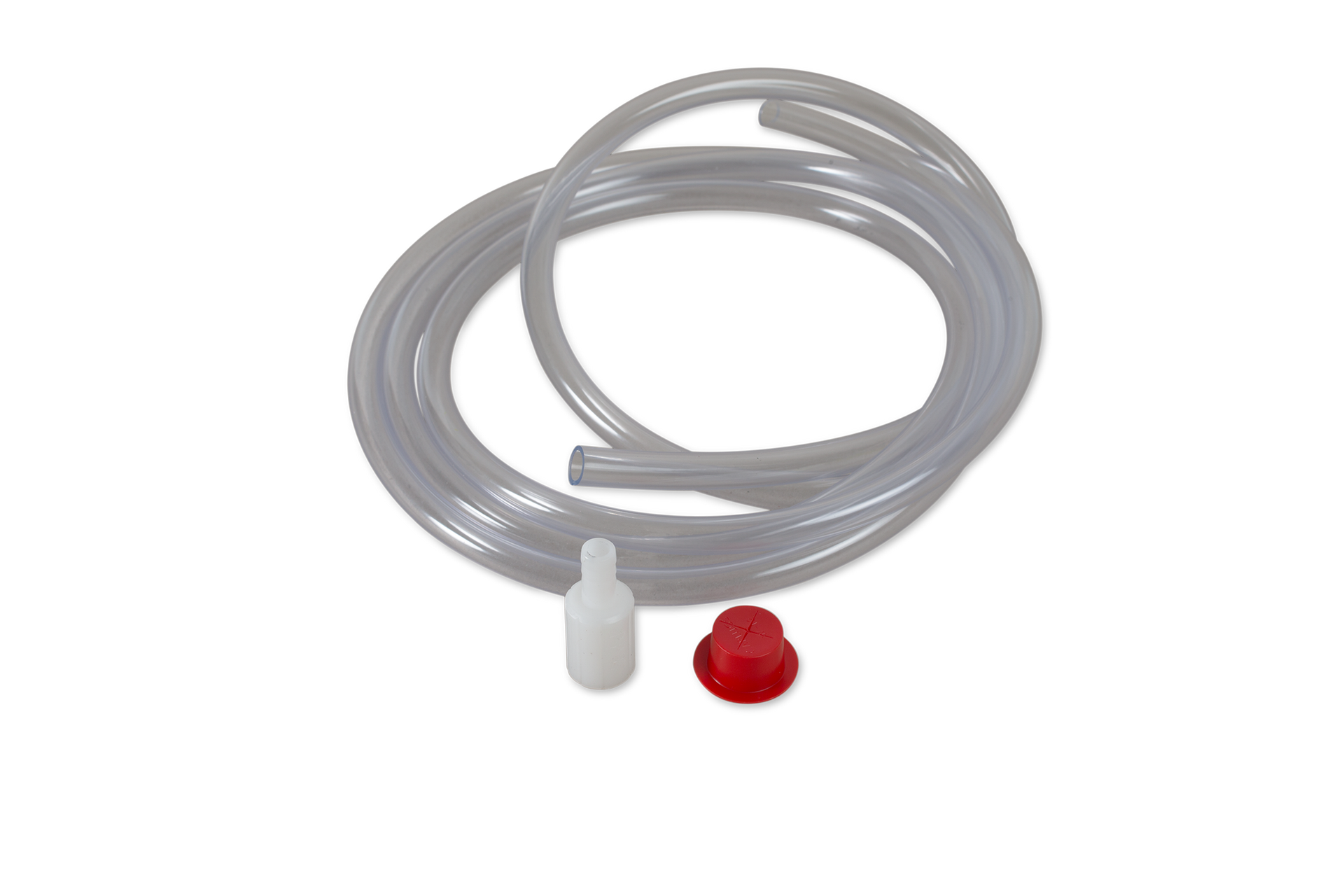

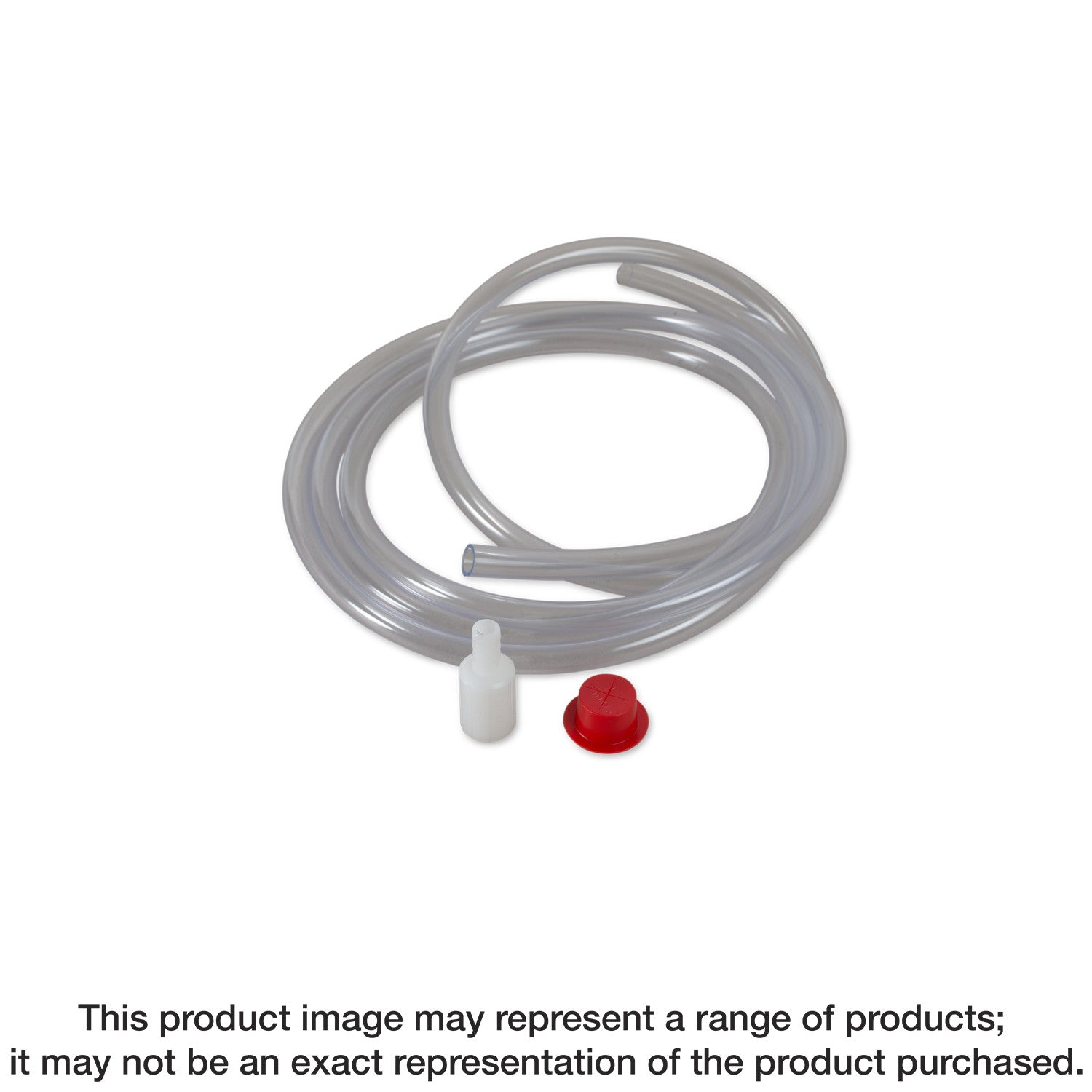

Simpson Strong-Tie® ARC adhesive retaining caps make overhead and horizontal anchor installations easier by preventing the adhesive from running out of the hole. They also center the rod or rebar dowel in the hole, making them ideal for applications where precise anchor placement is required. Adhesive retaining caps are not designed to support the weight of the anchor, so it’s advisable in overhead installations to provide an adequate means of anchor support during cure time. ARC retaining caps may be used in conjunction with the Simpson Strong-Tie Piston Plug Delivery System.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• The slit in the cap allows the insert to pass through while containing the adhesive in the hole
• The cap centers the threaded rod or rebar dowel during insertion into the drilled hole
• Designed for overhead, upwardly inclined and horizontal orientations as well as deep embedments
• Works with any Simpson Strong-Tie anchoring adhesive
• Hole diameter: 5/8 in.
• Drill bit diameter: 5/8 in.
• For 1/2 in. anchor or #4 rebar size
• Quantity: 25 per package

Specifications

• ERP Part Number: ARC50-RP25
• UPC: 707392495208
• GTIN: 707392495208
• Feature 01: The slit in the cap allows the insert to pass through while containing the adhesive in the hole
• Feature 02: The cap centers the threaded rod or rebar dowel during insertion into the drilled hole
• Feature 03: Designed for overhead, upwardly inclined and horizontal orientations as well as deep embedments
• Feature 04: Works with any Simpson Strong-Tie anchoring adhesive
• Feature 05: Hole diameter: 5/8 in.
• Feature 06: Drill bit diameter: 5/8 in.
• Feature 07: For 1/2 in. anchor or #4 rebar size
• Feature 08: Quantity: 25 per package
• Assembled Depth - Imperial: 1.03
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 0.53
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 1.03
• Assembled Width UOM - Imperial: in.
• Base Product ID: ARC_Cap
• Base Product Name: ARC
• Bolt/Rod Diameter (in.): 1/2, #4
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Adhesive Anchoring Accessories > Retaining Cap
• Color: Red
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: PAC
• Drill Bit Diameter (in.): 5/8
• GUID: 30198271301579766433675198391171875174
• Hole Diameter (in.): 5/8
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Plastic
• Measurement Unit Text: Pack
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 1.03
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 9
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 6
• Package Width UOM - Imperial: in.
• Packaging Quantity: 25
• Packaging Type: Bag
• Product Class: Retaining Cap
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.063
• Short Product Name: ADHESIVE RETAINING CAP 5/8IN HOLE DIA
• Strongtie.com URL: https://www.strongtie.com/miscadhesiveaccessories_adhesiveanchoringaccessories/arc_cap/p/arc
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Adhesive Anchoring Accessories
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392495205
