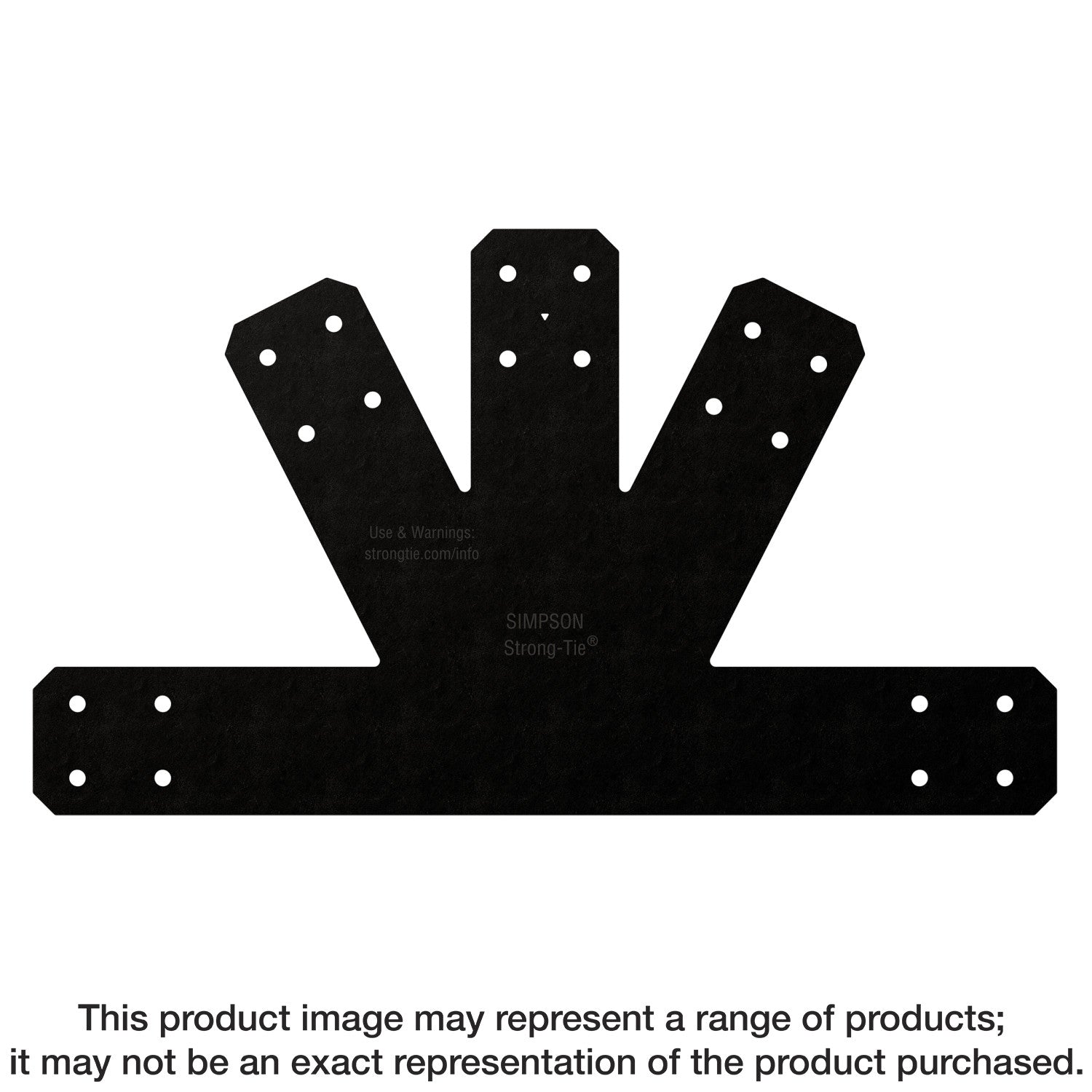

Simpson Strong-Tie APVGP612 Outdoor Accents® Avant Collection™ 6:12 Pitch, Black Powder-Coated Gable Plate

Simpson Strong-Tie APVGP612 Outdoor Accents® Avant Collection™ 6:12 Pitch, Black Powder-Coated Gable Plate

The Simpson Strong-Tie® Outdoor Accents line of decorative hardware features connectors and fasteners that bring beauty and strength to custom outdoor living structures. The Avant Collection features straighter edges for a more contemporary design. These gable plates provide reinforcement for a connection from a wood beam to three angled wood braces. Three sizes are available: 6:12 pitch, 8:12 pitch and 12:12 pitch.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Gable plates are easily installed with Outdoor Accents structural screws and hex-head washers (fasteners sold separately)
• Connectors must be installed in pairs for published load values; for single part installations, use half the listed values
• 6:12 pitch
• For nominal 6x or larger lumber
• Made from 12-gauge steel
• ZMAX® galvanization with a black powder coat offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: APVGP612
• UPC: 707392008194
• GTIN: 707392008194
• Feature 01: Gable plates are easily installed with Outdoor Accents structural screws and hex-head washers (fasteners sold separately)
• Feature 02: Connectors must be installed in pairs for published load values; for single part installations, use half the listed values
• Feature 03: 6:12 pitch
• Feature 04: For nominal 6x or larger lumber
• Feature 05: Made from 12-gauge steel
• Feature 06: ZMAX® galvanization with a black powder coat offers extra corrosion resistance for exterior and treated-wood applications
• Install With: Install with (20) STN22 Outdoor Accents hex-head washers and (20) SDWS22312DBB Outdoor Accents structural wood screws
• Assembled Depth - Imperial: 0.101
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 19.75
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 34.50
• Assembled Width UOM - Imperial: in.
• Base Product ID: APVGP_Plate
• Base Product Name: APVGP
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Angles and Plates > Plate
• Coating: ZMAX®
• Coating.1: Powder Coating, Black
• Color: Black
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: ZMAX® Galvanized with Black Powder Coat
• Gauge: 12
• GUID: 109292008972141866596912574463350332211
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 6x or larger
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 21.44
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 0.26
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 36.25
• Package Width UOM - Imperial: in.
• Packaging Quantity: 1
• Packaging Type: Carton
• Product Class: Plate
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 11.11
• Short Product Name: AVANT ARCH GABLE PLATE 6:12
• Strongtie.com URL: https://www.strongtie.com/avantcollection_outdooraccents/apvgp_plate/p/apvgp
• Subcategory: Wood Construction Connectors
• Subcategory 2: Angles and Plates
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392008191
• PAL Reference: 50707392008199
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
