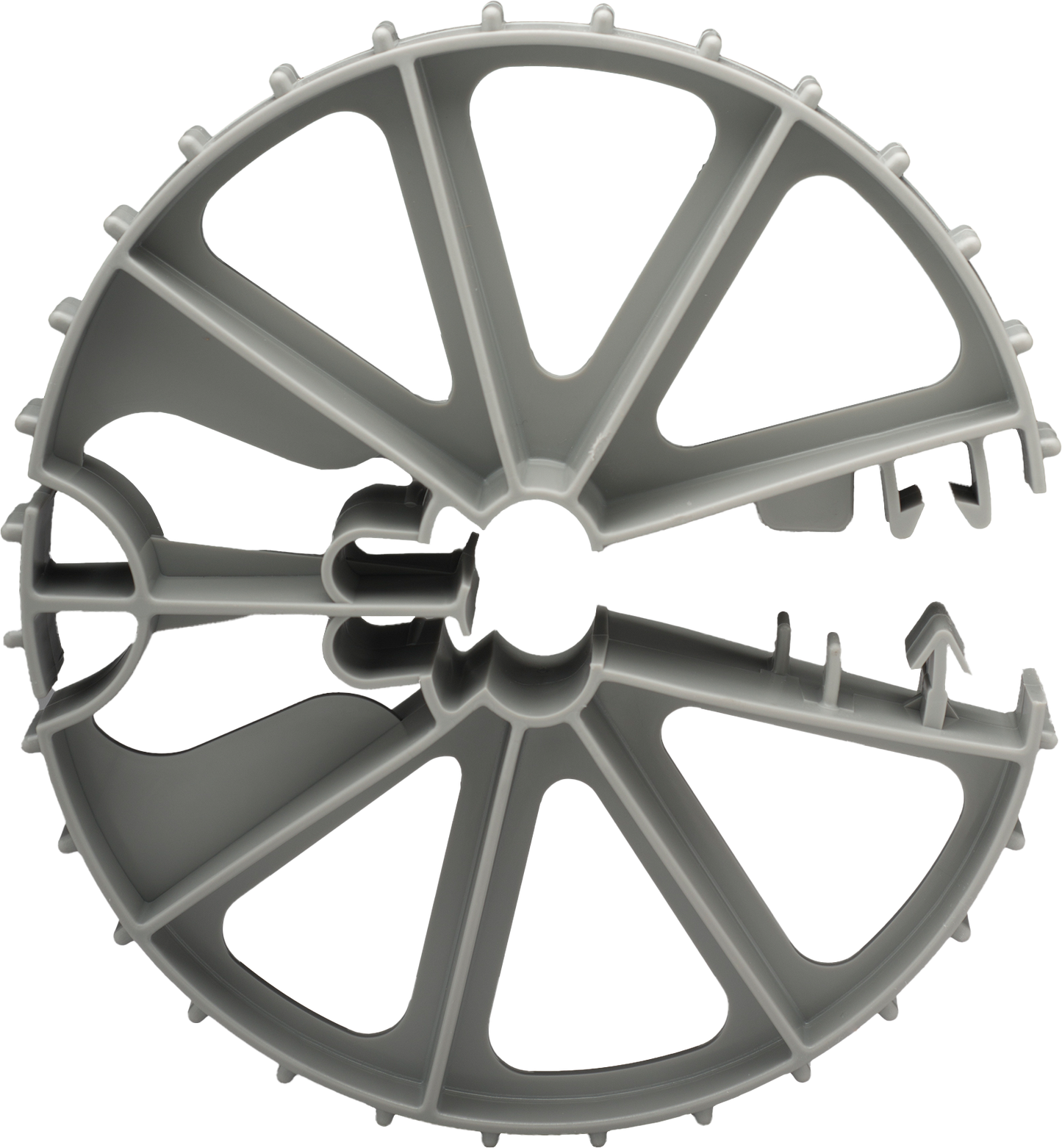

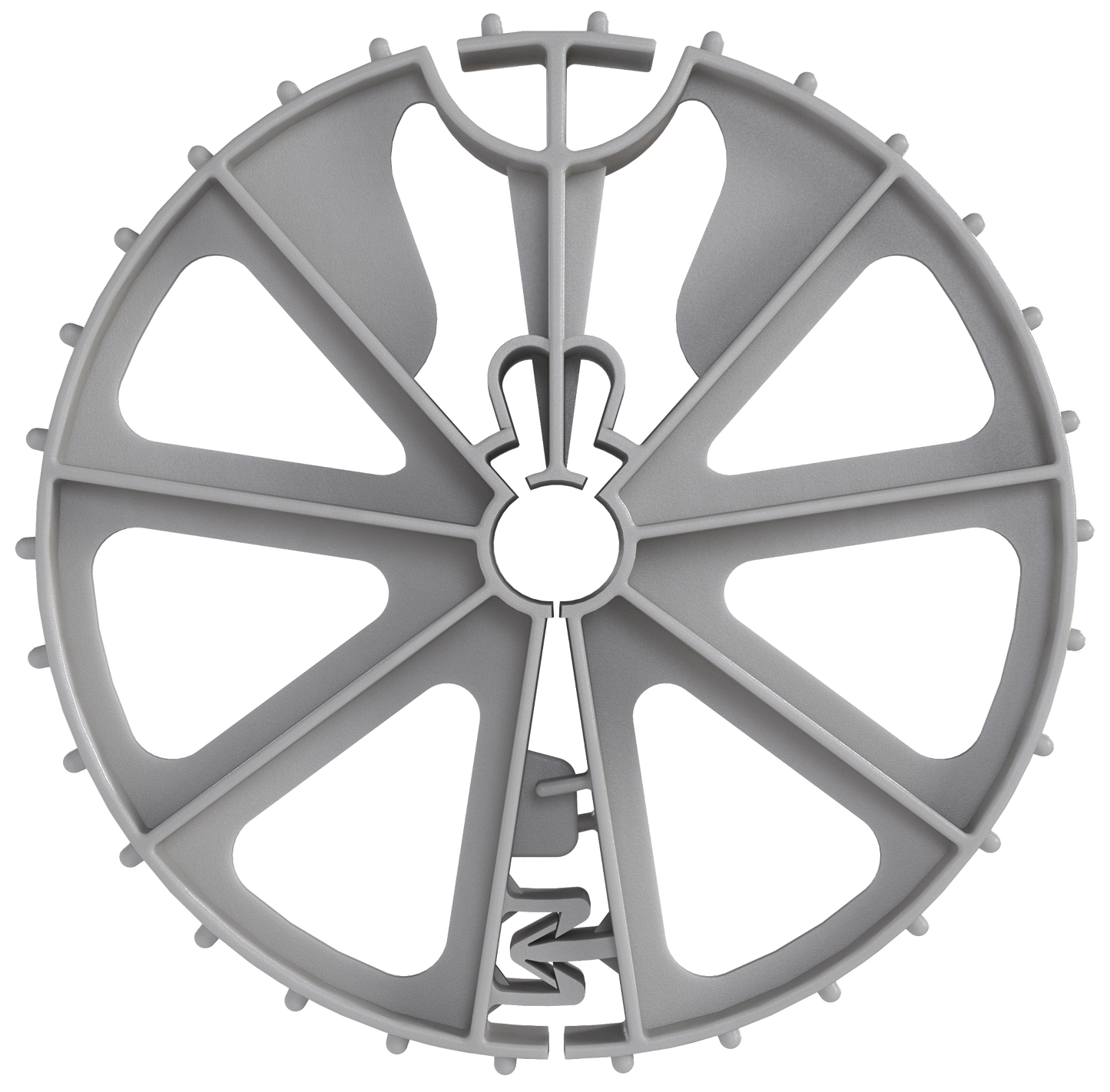

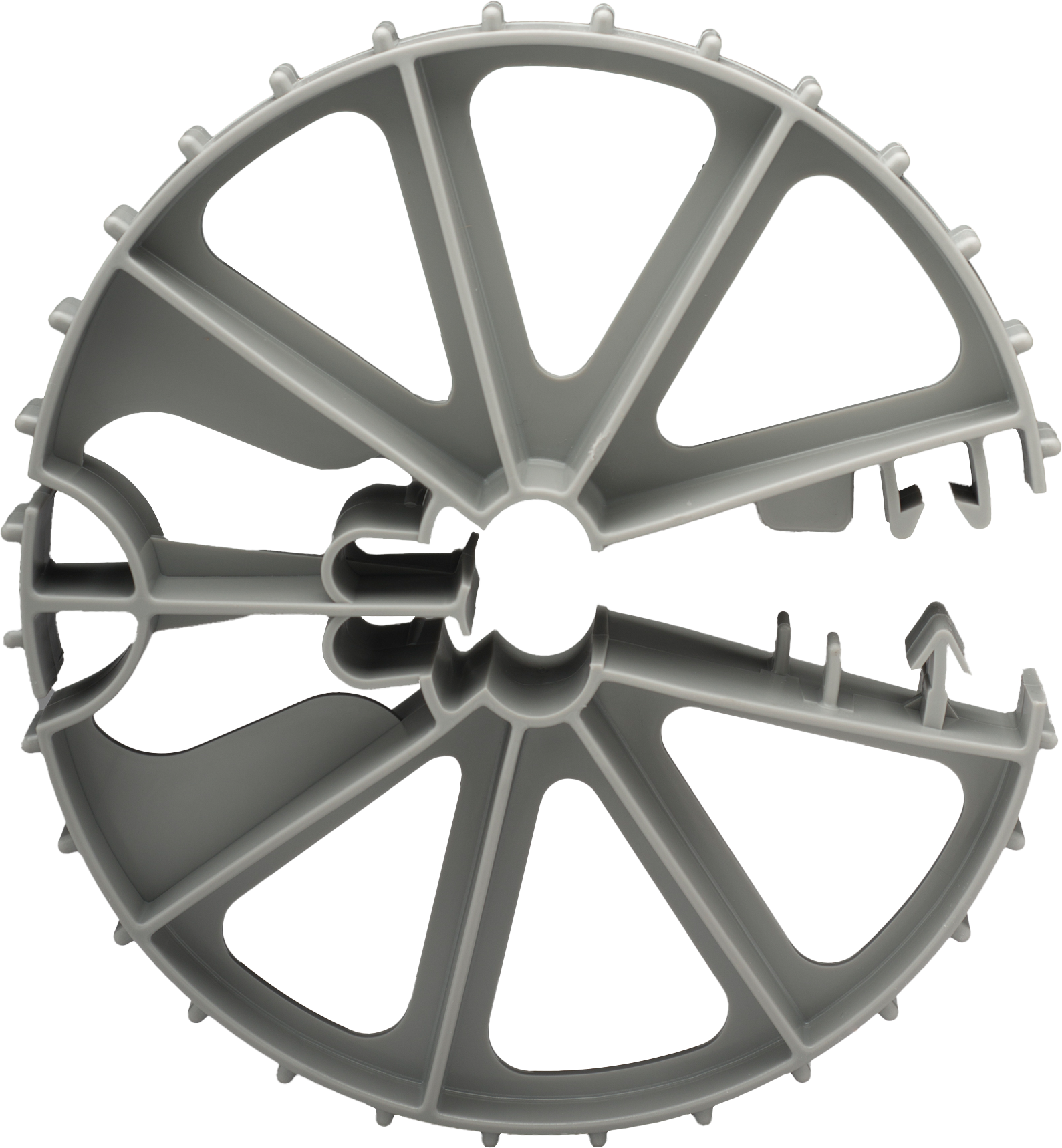

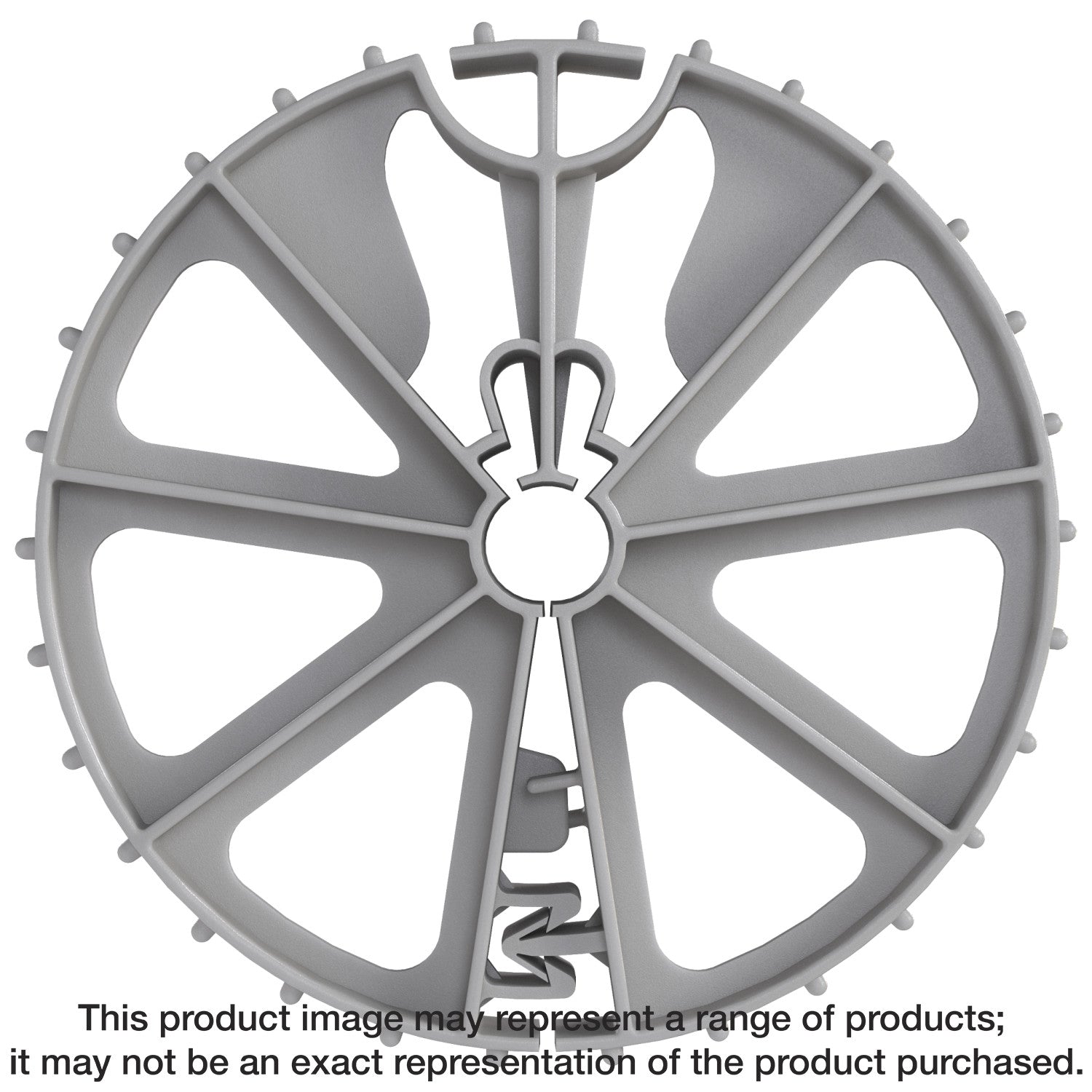

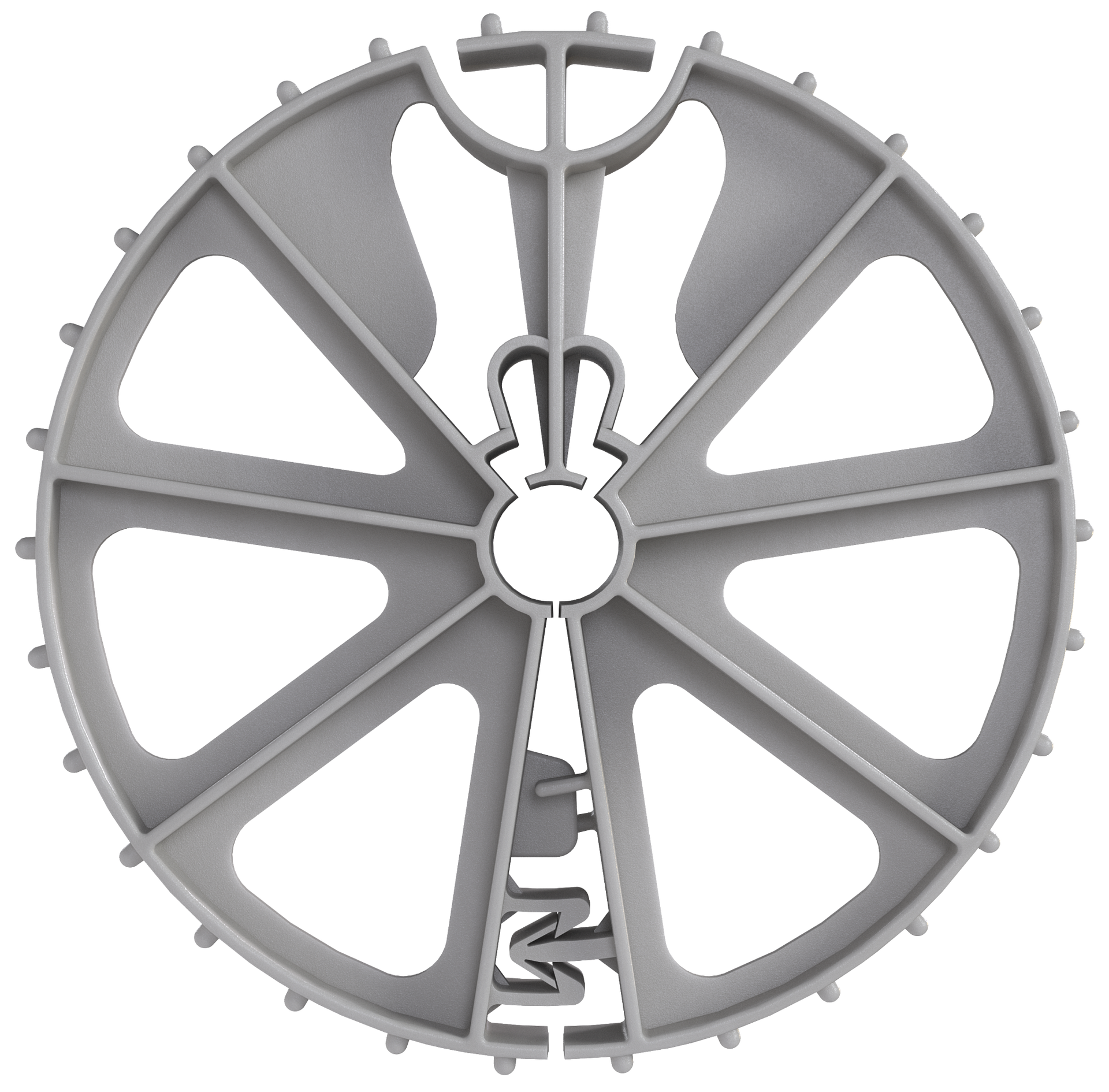

Simpson Strong-Tie 8QLPW Quick-Lock® Pier Wheel — 8-7/8-in. O.D., 4-in. Cover, #3–#7 Rebar Size (30-Qty)

Simpson Strong-Tie 8QLPW Quick-Lock® Pier Wheel — 8-7/8-in. O.D., 4-in. Cover, #3–#7 Rebar Size (30-Qty)

Simpson Strong-Tie® Quick-Lock® pier wheels are designed to properly position a reinforcing steel cage in a drilled shaft with a concrete cover requirement, but also work for other applications where concrete cover must be maintained. The unique one-piece design installs in a snap! All Quick-Lock® pier wheel products are made of durable, noncorrosive plastic.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• One-piece design
• Quick and easy installation; no tools required
• Snaps over the rebar
• Made in the USA with global materials
• Material: High-density polyethylene
• 4-in. concrete cover pier wheel fits rebar sizes #3 through #7
• Outer diameter: 8-7/8 inches
• Quantity: 30 per package

Specifications

• ERP Part Number: 8QLPW
• UPC: 707392024026
• GTIN: 707392024026
• Feature 01: One-piece design
• Feature 02: Quick and easy installation; no tools required
• Feature 03: Snaps over the rebar
• Feature 04: Made in the USA with global materials
• Feature 05: Material: High-density polyethylene
• Feature 06: 4-in. concrete cover pier wheel fits rebar sizes #3 through #7
• Feature 07: Outer diameter: 8-7/8 inches
• Feature 08: Quantity: 30 per package
• Assembled Depth - Imperial: 1.634
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 8.9369
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 9.560
• Assembled Width UOM - Imperial: in.
• Base Product ID: QLPW_Wheel
• Base Product Name: Quick-Lock® Pier Wheel
• Bolt/Rod Diameter (in.): #3 – #7
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Reinforcement Alignment > > Pier Wheel
• Color: Gray
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• GUID: 228686163083092830086806115409229984529
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 24
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 11.25
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 15.5
• Package Width UOM - Imperial: in.
• Packaging Quantity: 30
• Packaging Type: Box
• Product Class: Pier Wheel
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 11.7
• Short Product Name: PR WHL 4" CVR #3-#7 BAR 8-7/8" OD 30pcs
• Strongtie.com URL: https://www.strongtie.com/reinforcementalignment/qlpw_wheel/p/quick-lock-pier-wheel
• Subcategory: Reinforcement Alignment
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 60707392024028
