Simpson Strong-Tie 175-EBTYP EB-TY® TPO15 Hidden Deck Fastener™ for Composite Decking (175-Qty)

Simpson Strong-Tie 175-EBTYP EB-TY® TPO15 Hidden Deck Fastener™ for Composite Decking (175-Qty)

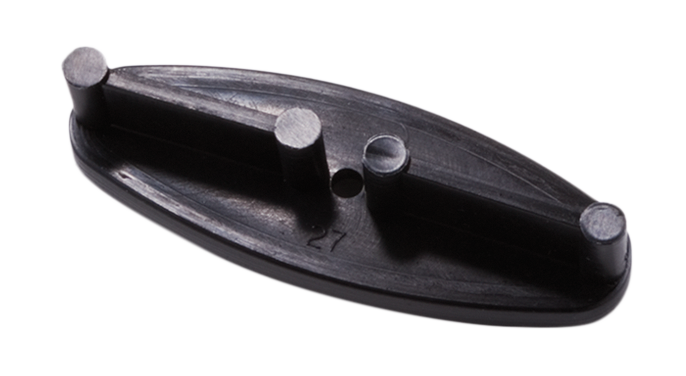

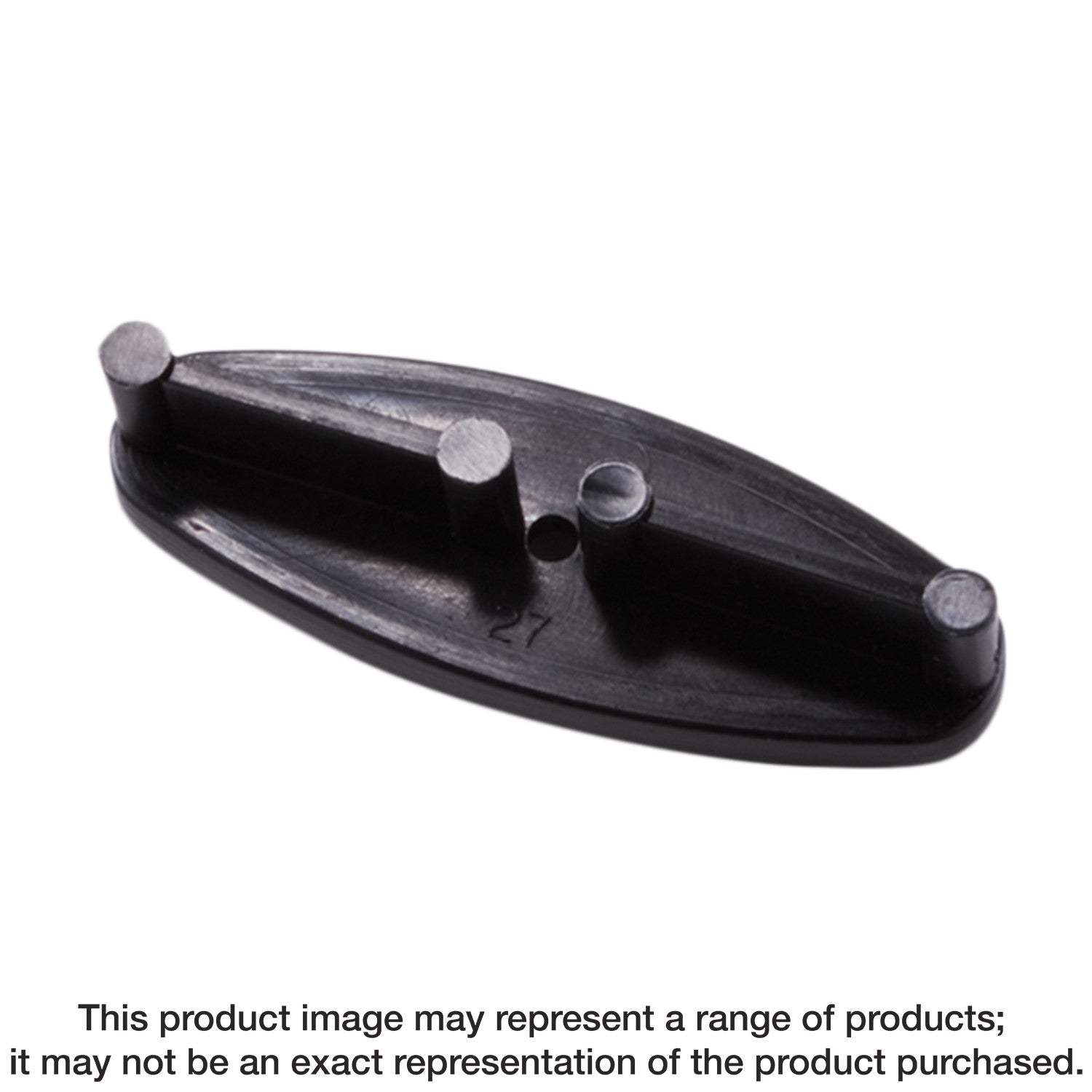

The EB-TY provides a unique method of fastening deck boards that makes the fasteners virtually invisible. Fastening is done into the side of the board, leaving a fastener-free deck surface. The EB-TY is a polypropylene biscuit fastener that fits into a slot the builder cuts into the edge of the deck boards with a standard biscuit joiner. The EB-TY fasteners are inserted and fastened with a screw driven into the joist. Nesting each successive board against the EB-TY automatically ensures consistent spacing and uniform height.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Easy to install since all fastening is done from the top side
• Affords easier deck resurfacing since nail heads are eliminated from the deck surface
• Formed from long-lasting polypropylene to last the life of the deck
• Stainless-steel #7 trim-head screws included (black head, 6-lobe T-15 drive)
• Each EB-TY package includes enough EB-TY fasteners and screws to install 100 square feet of decking
• Quantity: 175

Application

• Decks — Deck Boards Composite
• Decks — Deck Boards Wood
• Dock and Boardwalk

Specifications

• ERP Part Number: 175-EBTYP
• UPC: 744039612604
• GTIN: 744039612604
• Feature 01: Easy to install since all fastening is done from the top side
• Feature 02: Affords easier deck resurfacing since nail heads are eliminated from the deck surface
• Feature 03: Formed from long-lasting polypropylene to last the life of the deck
• Feature 04: Stainless-steel #7 trim-head screws included (black head, 6-lobe T-15 drive)
• Feature 05: Each EB-TY package includes enough EB-TY fasteners and screws to install 100 square feet of decking
• Feature 06: Quantity: 175
• Applications List: Decks — Deck Boards Composite
• Applications List.1: Decks — Deck Boards Wood
• Applications List.2: Dock and Boardwalk
• Base Product ID: EBTY_System
• Base Product Name: EB-TY® Hidden Deck Fasteners™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Hidden Deck Fasteners > Hidden Deck Fastener
• Color: Black
• Country of Origin: US
• Customer Unit: Yes
• Decking Thickness (in.): 3/4 to 1 1/2
• Display Unit/Measure: EA
• EAN category: UC
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Polypropylene
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 7.50
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 6.50
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 8.80
• Package Width UOM - Imperial: in.
• Packaging Quantity: 175
• Packaging Type: Bucket
• Product Class: Hidden Deck Fastener

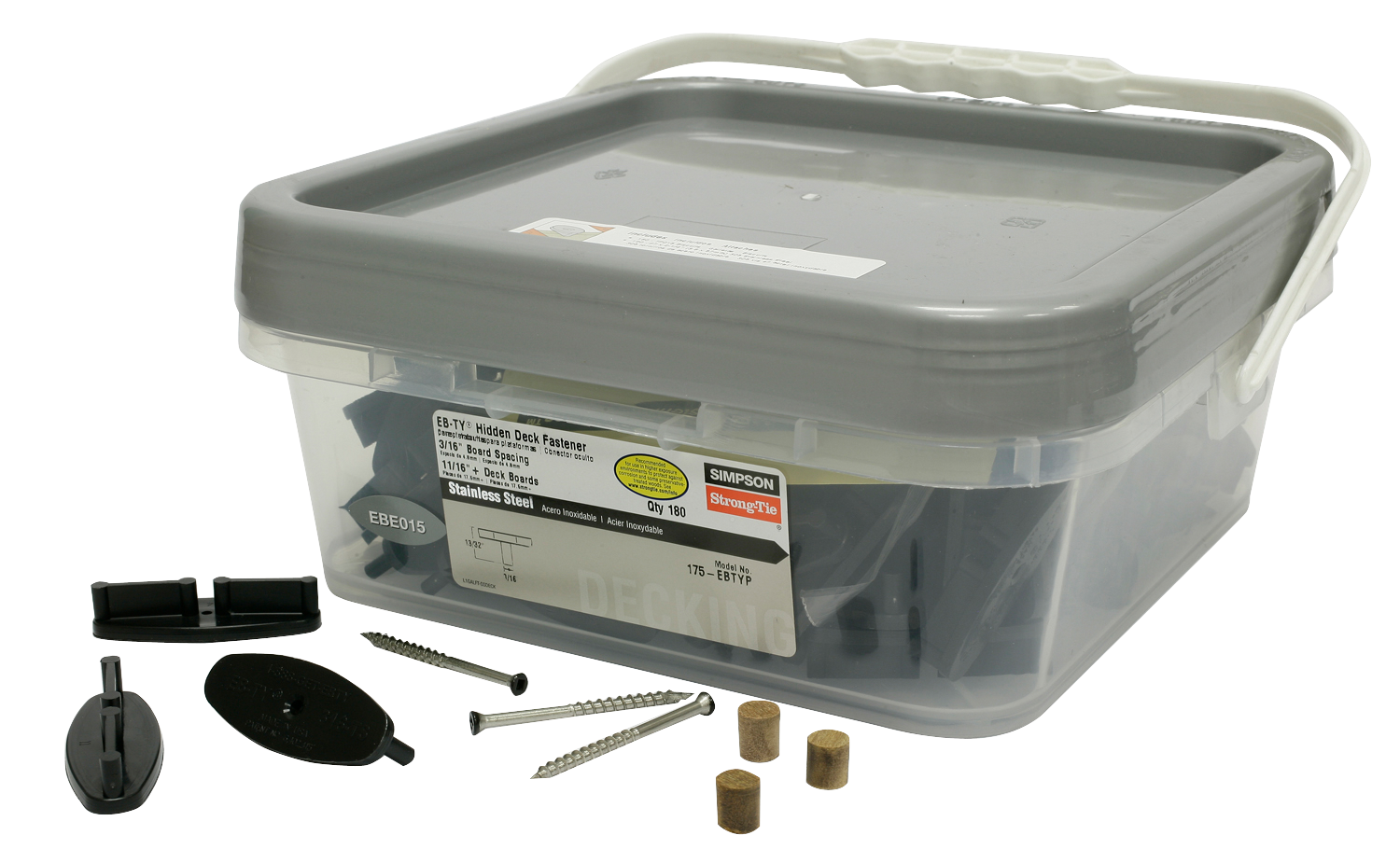

• Product Includes: EB-TY fasteners, 305SS #7 trim head screws, (1) T15 Driver Bit , (10) #10 x 2-3/4" DCU 305SS fasteners for securing starter board and (1) T20 Driver Bit
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 3.81
• Short Product Name: EB TY TS HIDDEN DECK FASTENER 175 PACK
• Spacing Requirement (in.): 3/16
• Strongtie.com URL: https://www.strongtie.com/hiddendeckfasteners_screwsandnails/ebty_system/p/eb-ty-hidden-deck-fasteners
• Subcategory: Fasteners
• Subcategory 2: Hidden Deck Fasteners
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 60744039612606
