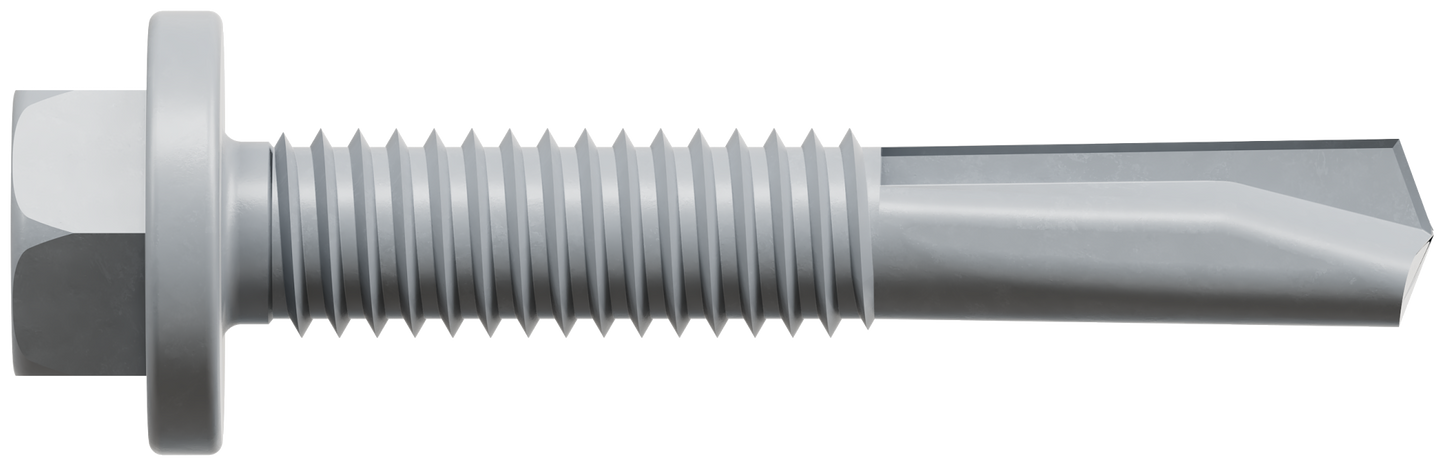

Simpson Strong-Tie XMQ114B1224-2K Strong-Drive® XM MEDIUM-HEAD METAL Screw — #12 x 1-1/4 in. 5/16 Hex (2000-Qty)

Simpson Strong-Tie XMQ114B1224-2K Strong-Drive® XM MEDIUM-HEAD METAL Screw — #12 x 1-1/4 in. 5/16 Hex (2000-Qty)

Strong-Drive metal screws are load tested and code listed, allowing you to get the maximum load values for installation. Comparison testing shows Strong-Drive XM Medium-Head Metal screws are stronger than many alternative fastener types in 33 ksi and 50 ksi steel decking.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• 5/16-in. hex drive — replacement driver bit BITHEXR516-134 (not included)
• 1/2-in. dia. hex washer head is ideal for narrow-channel steel decking
• # 5 drill point
• Quik Guard® coating for use in pressure-treated lumber and provides a level of corrosion resistance that is equivalent to hot-dip galvanization (ASTM A153, Class D) in some exposures
• Machine threads
• Length: 1-1/4 in.
• Quantity: 2,000

Application

• Cold-Formed Steel

Specifications

• ERP Part Number: XMQ114B1224-2K
• UPC: 707392216643
• GTIN: 707392216643
• Feature 01: 5/16-in. hex drive — replacement driver bit BITHEXR516-134 (not included)
• Feature 02: 1/2-in. dia. hex washer head is ideal for narrow-channel steel decking
• Feature 03: # 5 drill point
• Feature 04: Quik Guard® coating for use in pressure-treated lumber and provides a level of corrosion resistance that is equivalent to hot-dip galvanization (ASTM A153, Class D) in some exposures
• Feature 05: Machine threads
• Feature 06: Length: 1-1/4 in.
• Feature 07: Quantity: 2,000
• Applications List: Cold-Formed Steel
• Assembled Depth - Imperial: 0.50
• Assembled Depth UOM - Imperial: in.
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.50
• Assembled Width UOM - Imperial: in.
• Base Product ID: XM_Screw
• Base Product Name: Strong-Drive® XM MEDIUM-HEAD METAL Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Metal Screws > Hand-Drive Screw
• Coating: Quik Guard® Coating
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: 5/16 in. Hex
• EAN category: UC
• Finish: Quik Guard® Coating
• GUID: 120526902412649341433217831037437485157
• Head Diameter (in.): 0.480
• Head Type: Hex Washer Head
• Length (in.): 1 1/4
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Max. Grip Length (in.): 0.53
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 2000
• Packaging Type: Box
• Point Size: 5
• Point Type: Drill Point
• Product Class: Hand-Drive Screw
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Screw Size: #12
• Shipping Weight: 32
• Short Product Name: #12X1 1/4IN 5/16 HEX MED/W #5DP 2M BOX
• Strongtie.com URL: https://www.strongtie.com/strongdrive_metalscrews/xm_screw/p/strong-drive-xm-medium-head-metal-screw
• Subcategory: Fasteners
• Subcategory 2: Metal Screws
• Thread Type: Machine Threads
• TPI: 24
• US Patents: 9,518,599
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392216648
