Simpson Strong-Tie WT12 Wedge Tie for 2x Formboard, 12-in. Thick Walls (250-Qty)

Simpson Strong-Tie WT12 Wedge Tie for 2x Formboard, 12-in. Thick Walls (250-Qty)

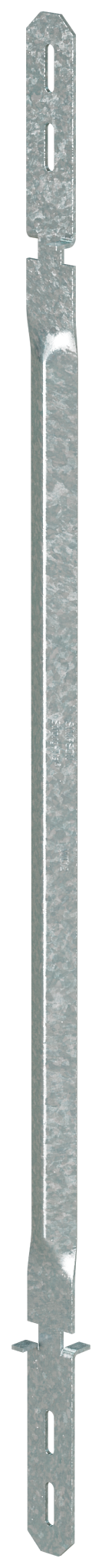

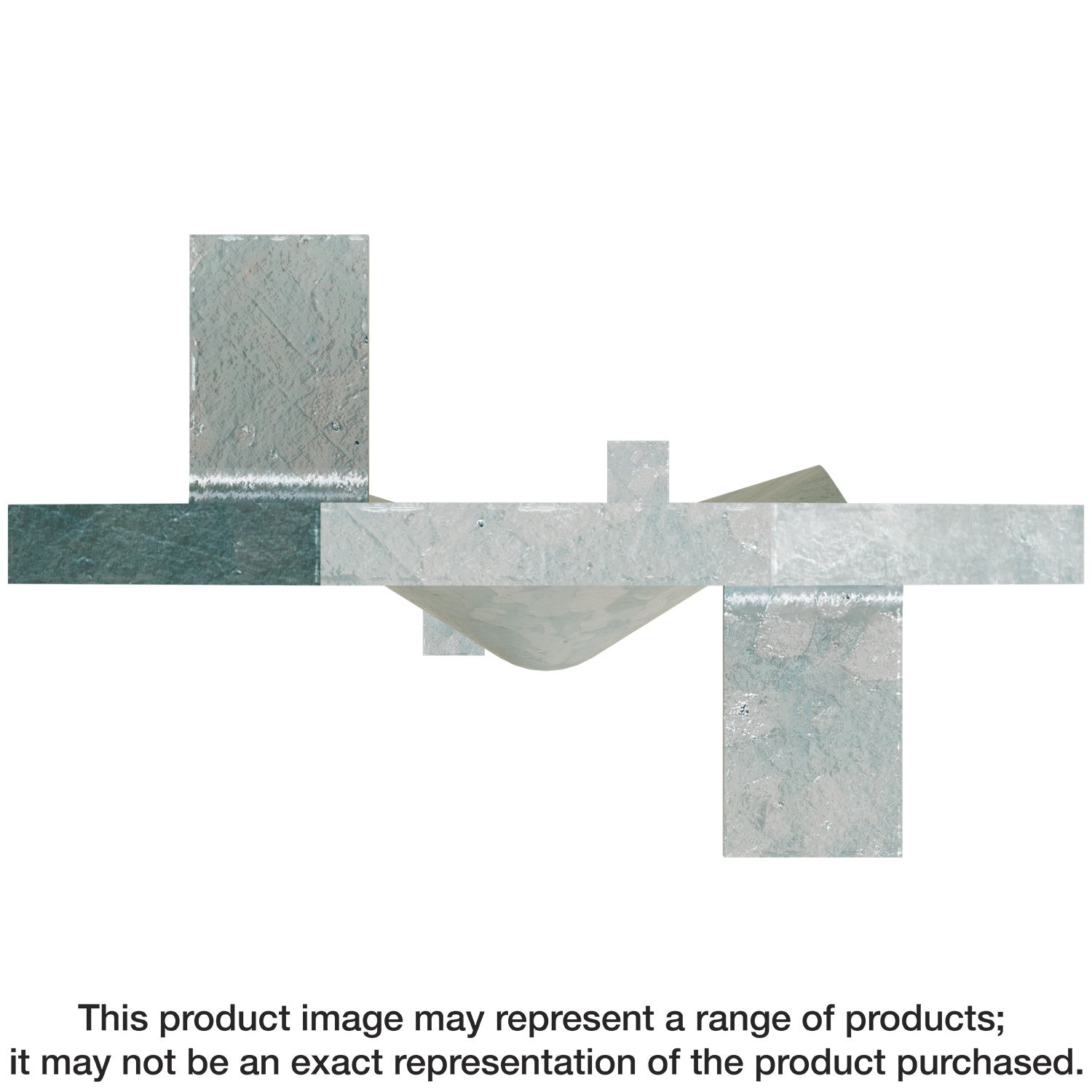

The Simpson Strong-Tie® wedge tie (WT) is a form tie that secures concrete forms in place while the concrete is poured. It easily installs between form boards and accurately spaces the forms. Several models are available for varying wall thickness and types of form boards.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Designed for low foundation wall applications
• 5/8-in. wide formed "V" design for rigidity allows accurate form spacing and support
• Two W1 wedges required for each tie (sold separately)
• Not recommended for wall pours greater than 4 ft. high
• For 12-in. thick walls
• Use with nominal 2x formboard
• Made from 18-gauge steel
• Galvanized (G90) for corrosion resistance
• Quantity: 250

Specifications

• ERP Part Number: WT12
• UPC: 10044315925105
• GTIN: 10044315925105
• Feature 01: Designed for low foundation wall applications
• Feature 02: 5/8-in. wide formed "V" design for rigidity allows accurate form spacing and support
• Feature 03: Two W1 wedges required for each tie (sold separately)
• Feature 04: Not recommended for wall pours greater than 4 ft. high
• Feature 05: For 12-in. thick walls
• Feature 06: Use with nominal 2x formboard
• Feature 07: Made from 18-gauge steel
• Feature 08: Galvanized (G90) for corrosion resistance
• Feature 09: Quantity: 250
• Install With: Two W1 wedges required for each tie (sold separately)
• Assembled Depth - Imperial: 0.625
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 0.546
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 16.625
• Assembled Width UOM - Imperial: in.
• Base Product ID: WT_Tie
• Base Product Name: WT
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Foundation Anchors > Form Tie
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: CAR
• Finish: Zinc Galvanized, G90
• Gauge: 18
• GUID: 173880512593966026550249746042026624725
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Carton
• Member Size: 2x formboard
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 20.63
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 8.00
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 8.00
• Package Width UOM - Imperial: in.
• Packaging Quantity: 250
• Packaging Type: Carton
• Product Class: Form Tie
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 35
• Short Product Name: WEDGE TIE 2X FORMBOARD 12IN WALL THICK
• Strongtie.com URL: https://www.strongtie.com/concrete_miscellaneousconnectors/wt_tie/p/wt
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Foundation Anchors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50044315925103
