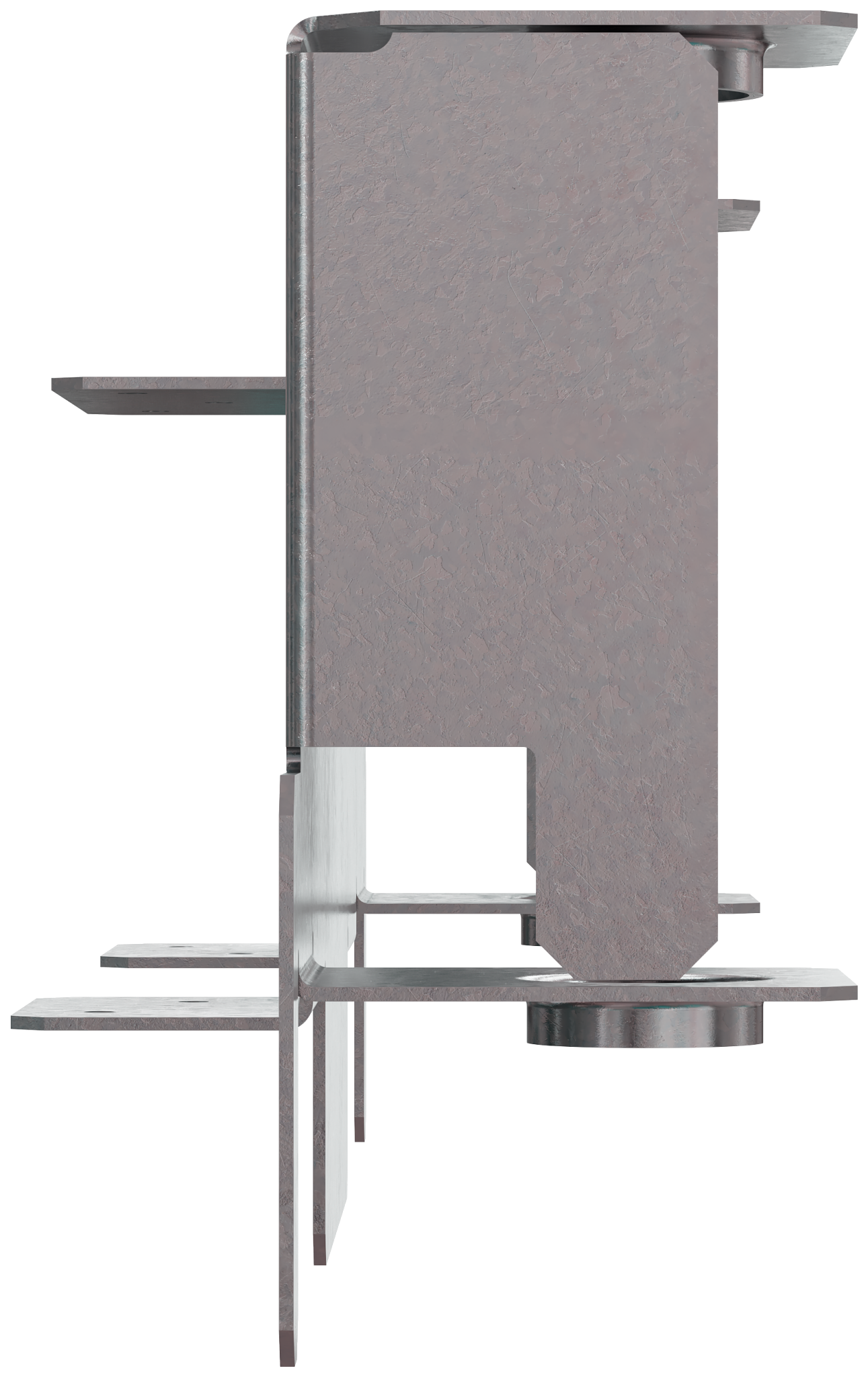

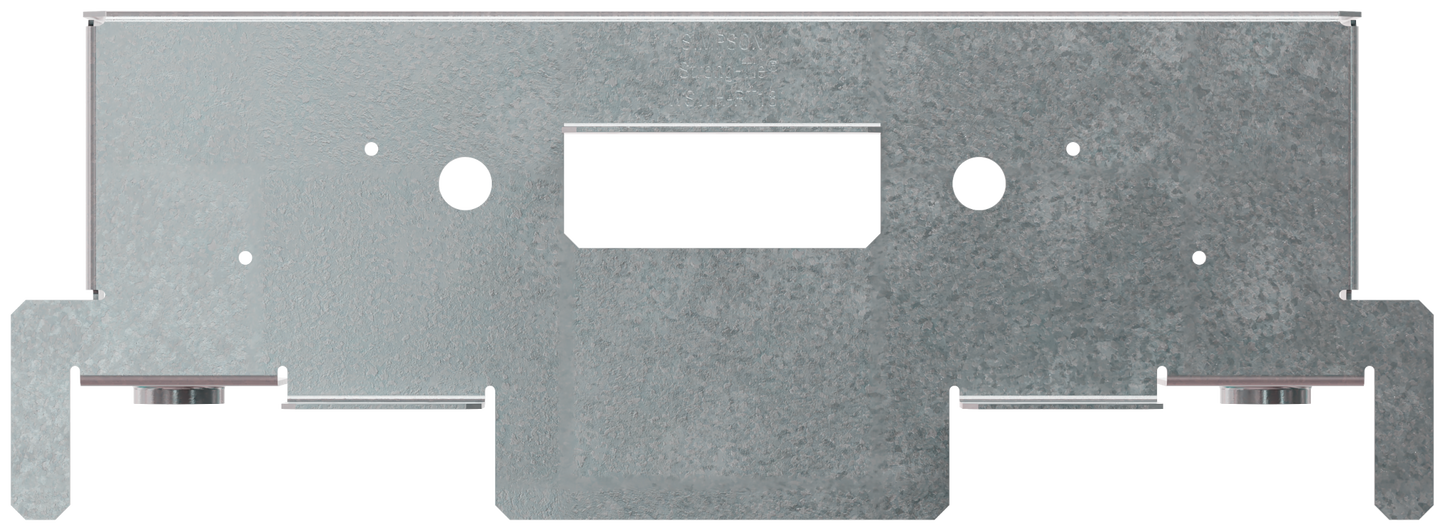

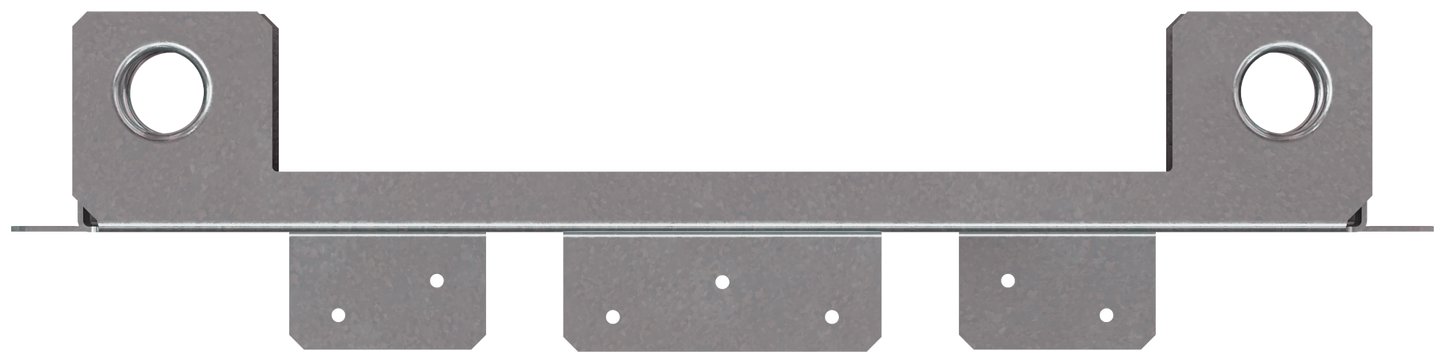

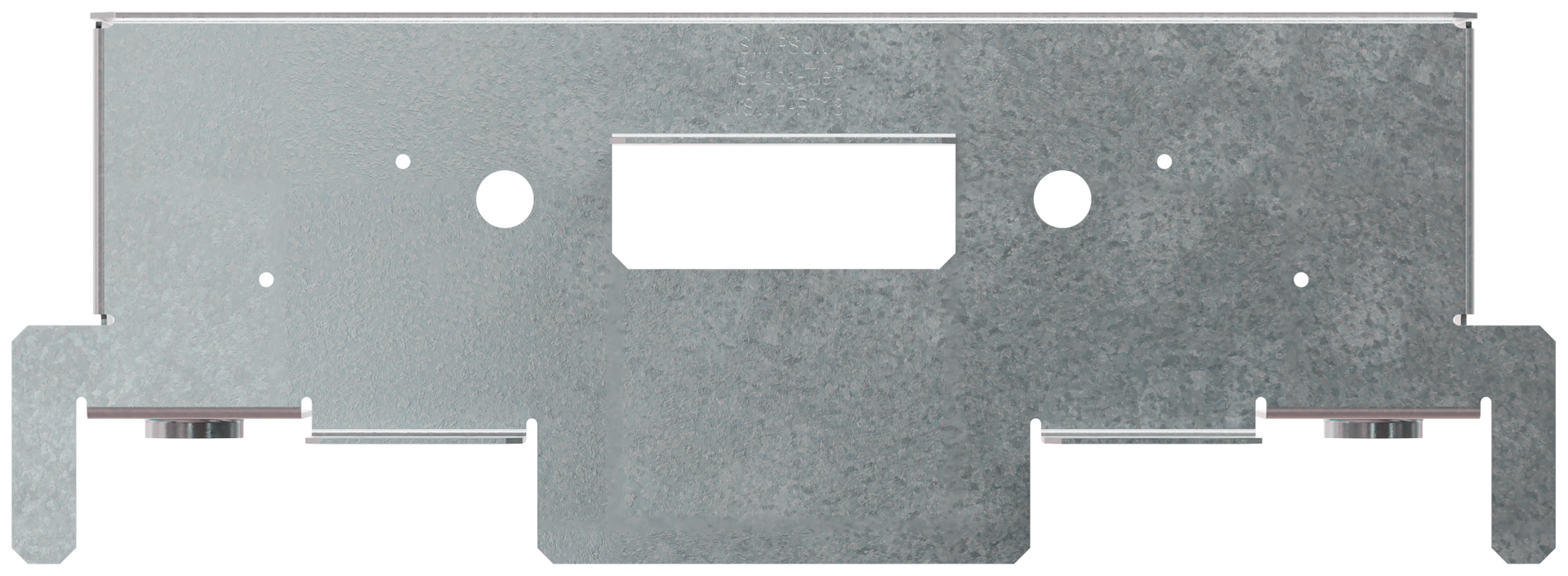

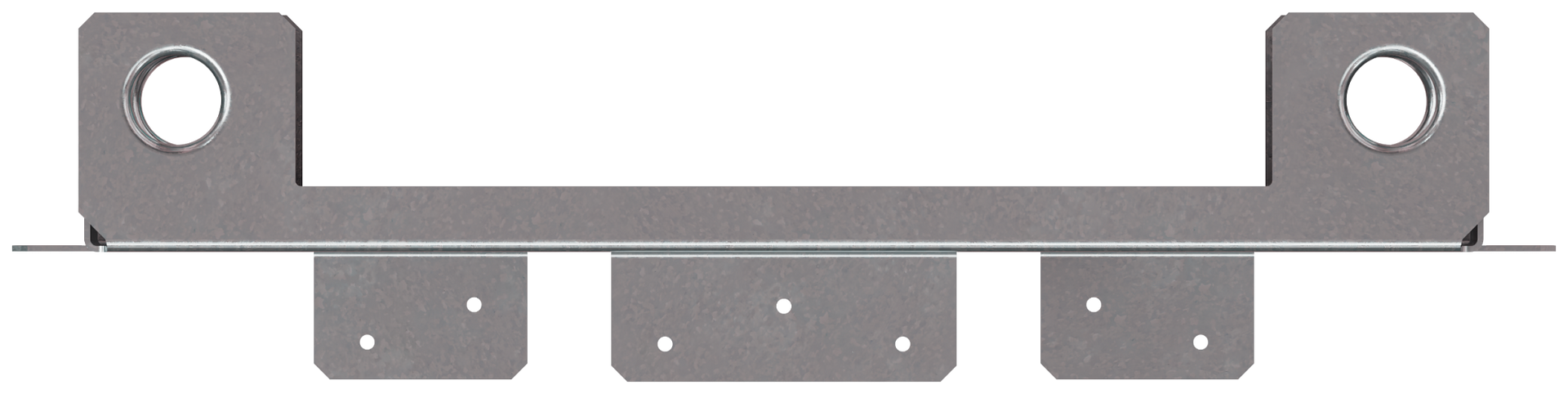

Simpson Strong-Tie WSWH-RT18 Reversible Anchor Bolt Template for 18 in. Strong-Wall® High-Strength Wood Shearwall

Simpson Strong-Tie WSWH-RT18 Reversible Anchor Bolt Template for 18 in. Strong-Wall® High-Strength Wood Shearwall

The WSWH-RT are patented anchor bolt templates designed to ensure accurate anchor bolt placement for Strong-Wall high-strength wood shearwalls (WSWH). These anchor bolt templates simplify installation and greatly reduce the likelihood of voids in the concrete. The templates are reusable and designed to work with the common foundation types used for WSWH panels.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Accurately locates anchor bolts for Strong-Wall high-strength wood shearwalls
• Variety of configuration options to accommodate common concrete foundation types
• Standard templates are reversible and can be used for interior or exterior applications
• Made from 14-gauge steel
• Galvanized, G90
• For use with 18 in. width Strong-Wall high-strength wood shearwall
• WSWH accessories are compatible only with WSWH panels

Specifications

• ERP Part Number: WSWH-RT18
• UPC: 707392015796
• GTIN: 707392015796
• Feature 01: Accurately locates anchor bolts for Strong-Wall high-strength wood shearwalls
• Feature 02: Variety of configuration options to accommodate common concrete foundation types
• Feature 03: Standard templates are reversible and can be used for interior or exterior applications
• Feature 04: Made from 14-gauge steel
• Feature 05: Galvanized, G90
• Feature 06: For use with 18 in. width Strong-Wall high-strength wood shearwall
• Feature 07: WSWH accessories are compatible only with WSWH panels
• Assembled Depth - Imperial: 6.50
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 4.19
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 18.03
• Assembled Width UOM - Imperial: in.
• Base Product ID: WSWH-RT_Templates
• Base Product Name: Strong-Wall® High-Strength Wood Shearwall Anchor Bolt Templates
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Strong-Wall® Shearwalls > Shearwall Kits and Anchorage > Anchor Bolt Template
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Zinc Galvanized, G90
• Gauge: 14
• GUID: 192891601948393917036456137948312664746
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Anchor Bolt Template
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 3.59
• Short Product Name: WSWH18X TEMPLATE EXTERIOR/INTERIOR
• Strongtie.com URL: https://www.strongtie.com/wswhanchorage_strongwallwoodshearwalls/wswh-rt_templates/p/strong-wall-high-strength-wood-shearwall-anchor-bolt-templates
• Subcategory: Strong-Wall® Shearwalls
• Subcategory 2: Shearwall Kits and Anchorage
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
