Simpson Strong-Tie TSP TSP 16-Gauge Galvanized Stud-Plate Tie

Simpson Strong-Tie TSP TSP 16-Gauge Galvanized Stud-Plate Tie

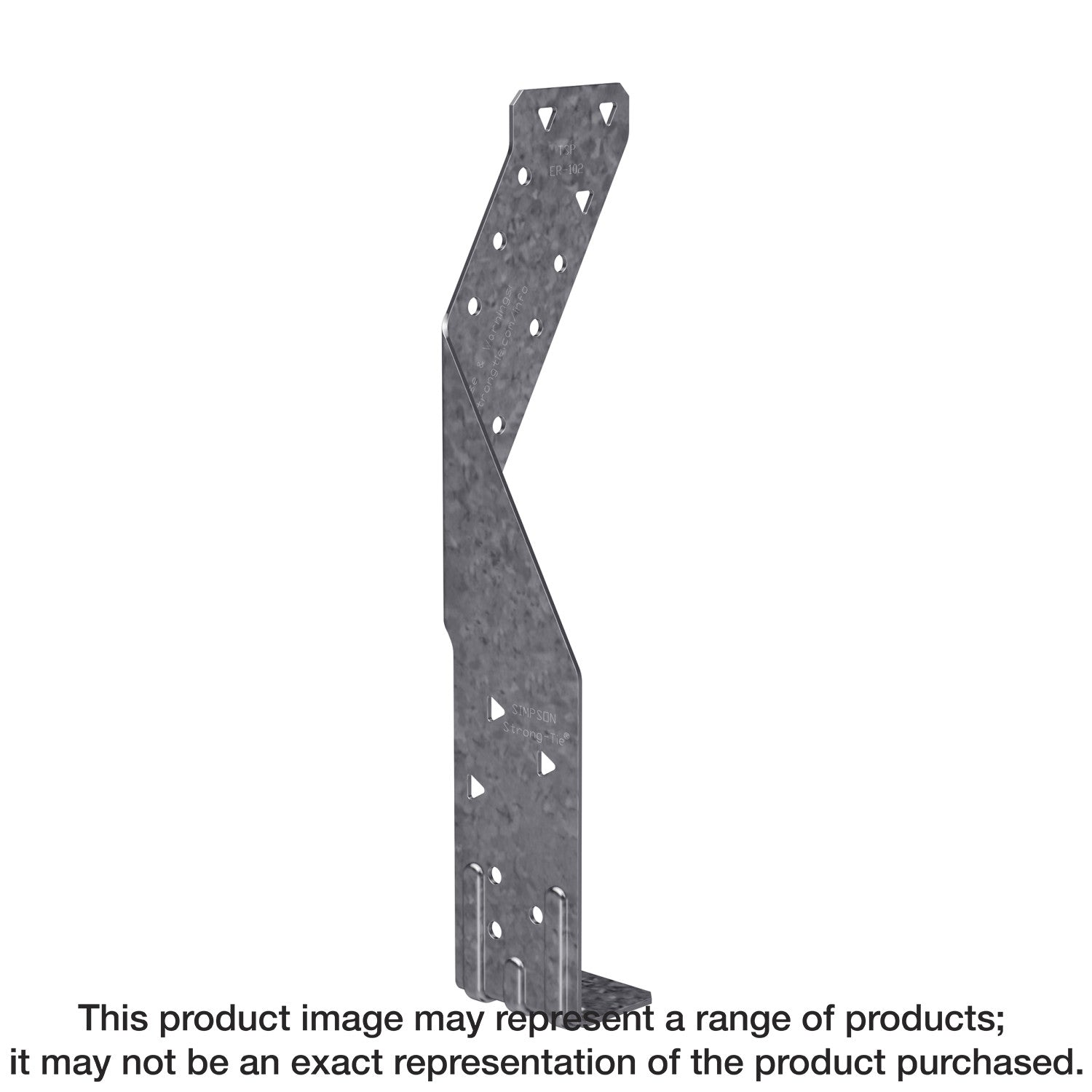

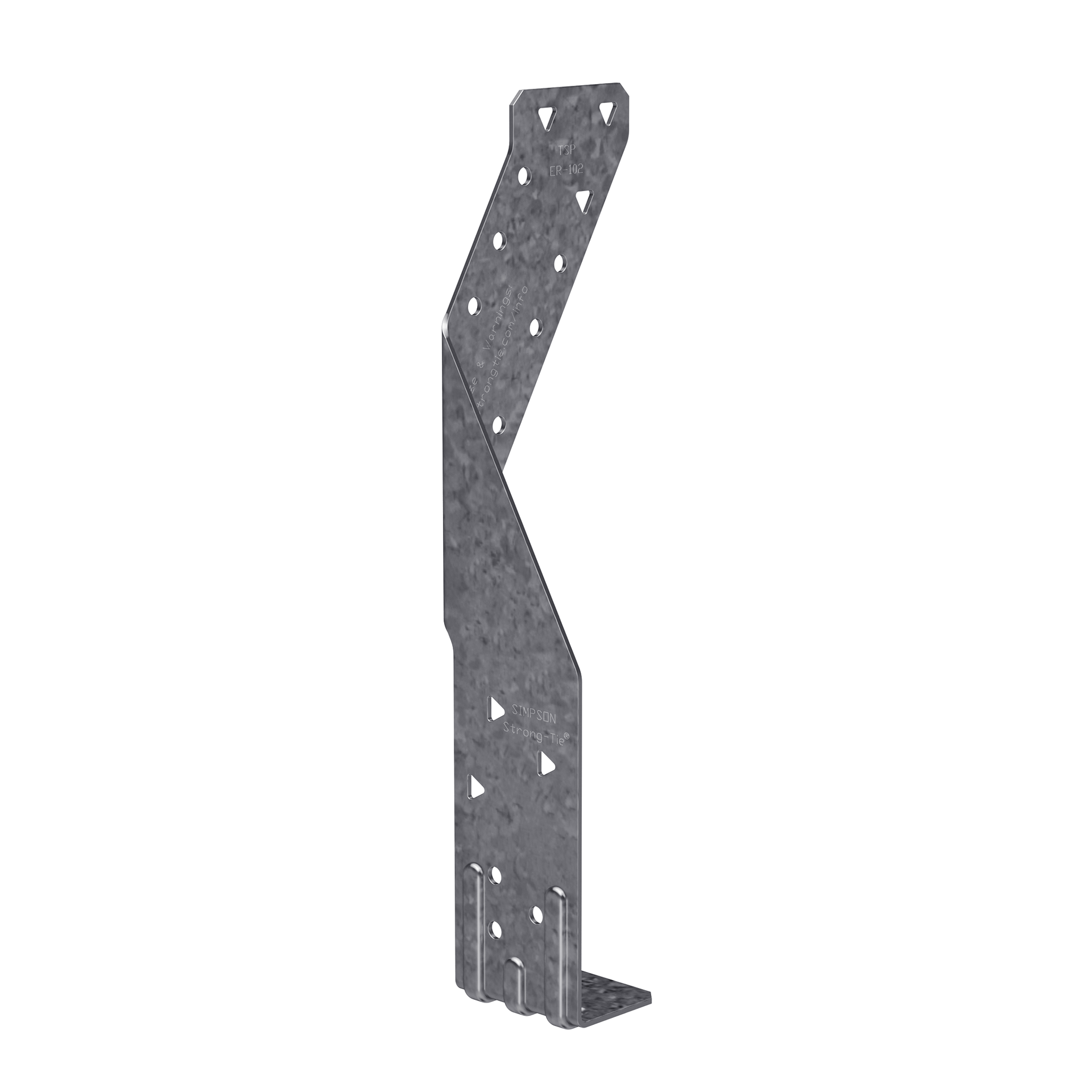

The TSP is designed for connecting the top plate to either the wall stud or a 2x rafter. This tie stud plate is installed on the wide face of the 2x stud to avoid interference with sheathing. The TSP features a top-flange that allows the plate to securely attach to both sill plates and top plates.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Embossment feature provides strength at the bend
• Features optional diamond holes of various uplift capacities with min./max. nailing configurations
• Can be installed before or after placement of wall
• Width: 1-1/2 in.
• Length: 7-7/8 in.
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: TSP
• UPC: 707392774204
• GTIN: 707392774204
• Feature 01: Embossment feature provides strength at the bend
• Feature 02: Features optional diamond holes of various uplift capacities with min./max. nailing configurations
• Feature 03: Can be installed before or after placement of wall
• Feature 04: Width: 1-1/2 in.
• Feature 05: Length: 7-7/8 in.
• Feature 06: Made from 16-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Install With: Install with 10d x 1-1/2 in. nails or 10d x 1-1/2 in. nails to the rafter/truss and 10d common nails to the plates
• Assembled Depth - Imperial: 1.68
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 7.985
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.45375
• Assembled Width UOM - Imperial: in.
• Base Product ID: TSP_Plate
• Base Product Name: TSP
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Straps and Ties > Stud-Plate Tie
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 16
• GUID: 282046843507448578077429955603896075929
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Stud-Plate Tie
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.22
• Short Product Name: STUD PLATE
• Strongtie.com URL: https://www.strongtie.com/studplateties_strapsandties/tsp_plate/p/tsp
• Subcategory: Wood Construction Connectors
• Subcategory 2: Straps and Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392774201
• PAL Reference: 50707392774209
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
