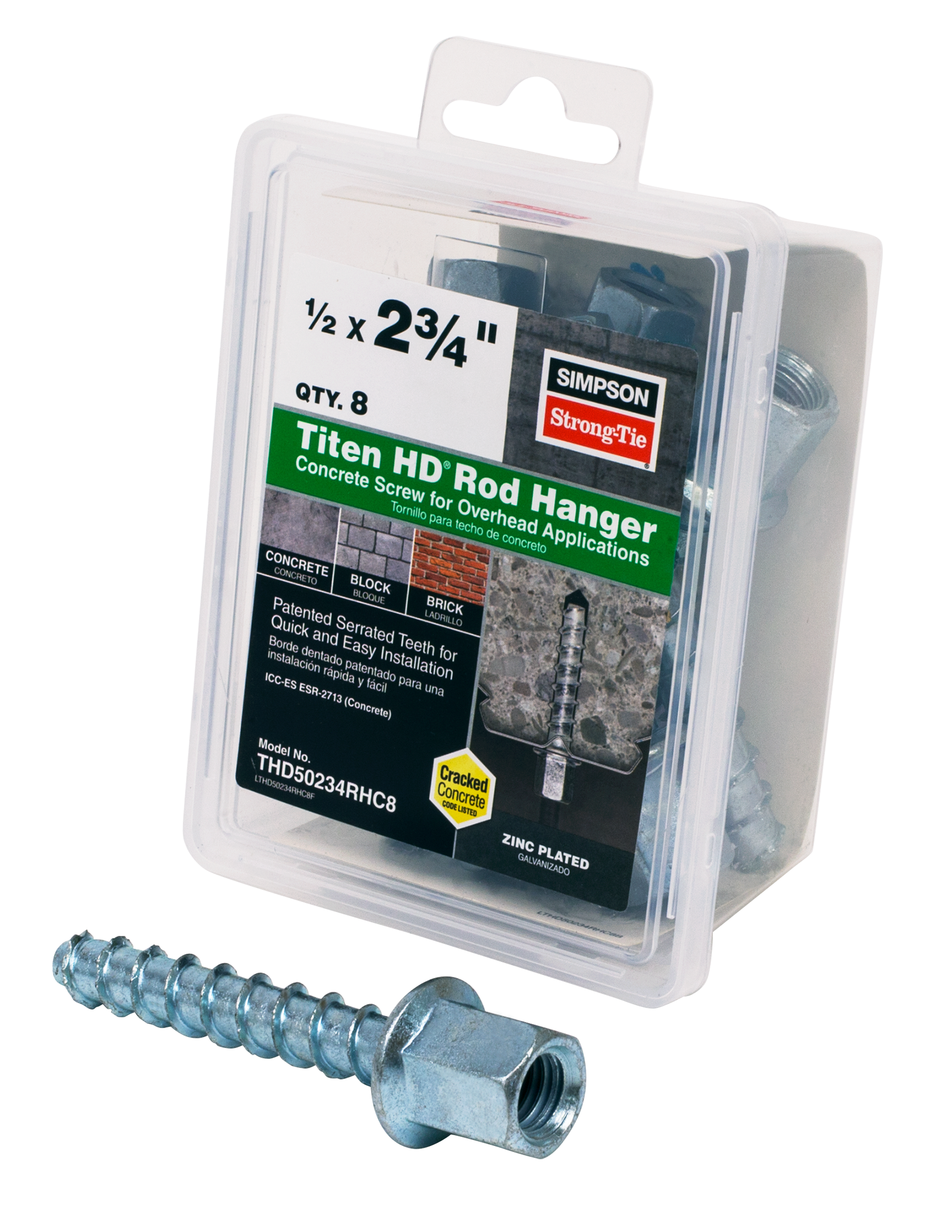

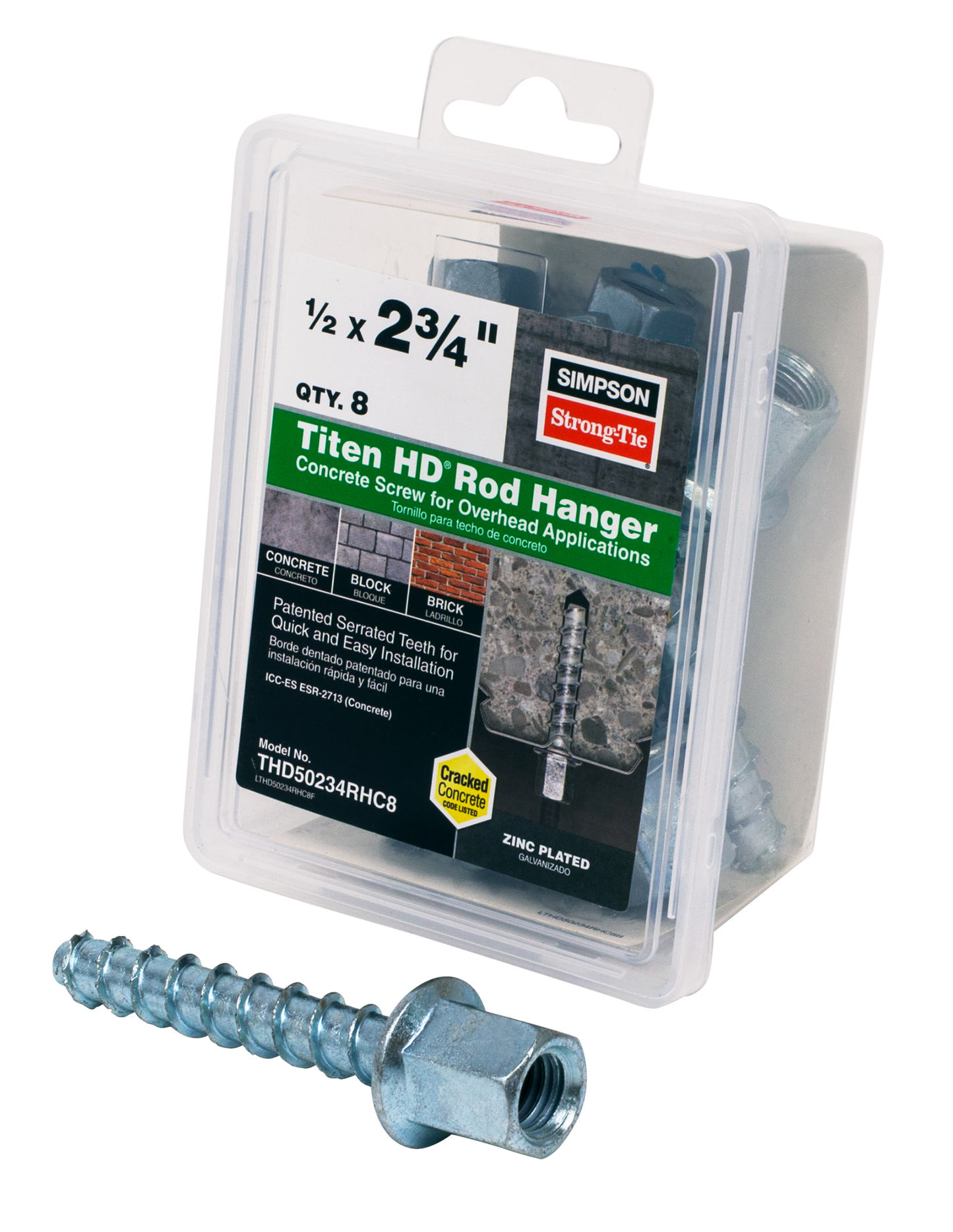

Simpson Strong-Tie THD50234RHC8 Titen HD® 3/8 in. x 2-3/4 in. Threaded Rod Hanger for 1/2 in. Rod (8-Qty)

Simpson Strong-Tie THD50234RHC8 Titen HD® 3/8 in. x 2-3/4 in. Threaded Rod Hanger for 1/2 in. Rod (8-Qty)

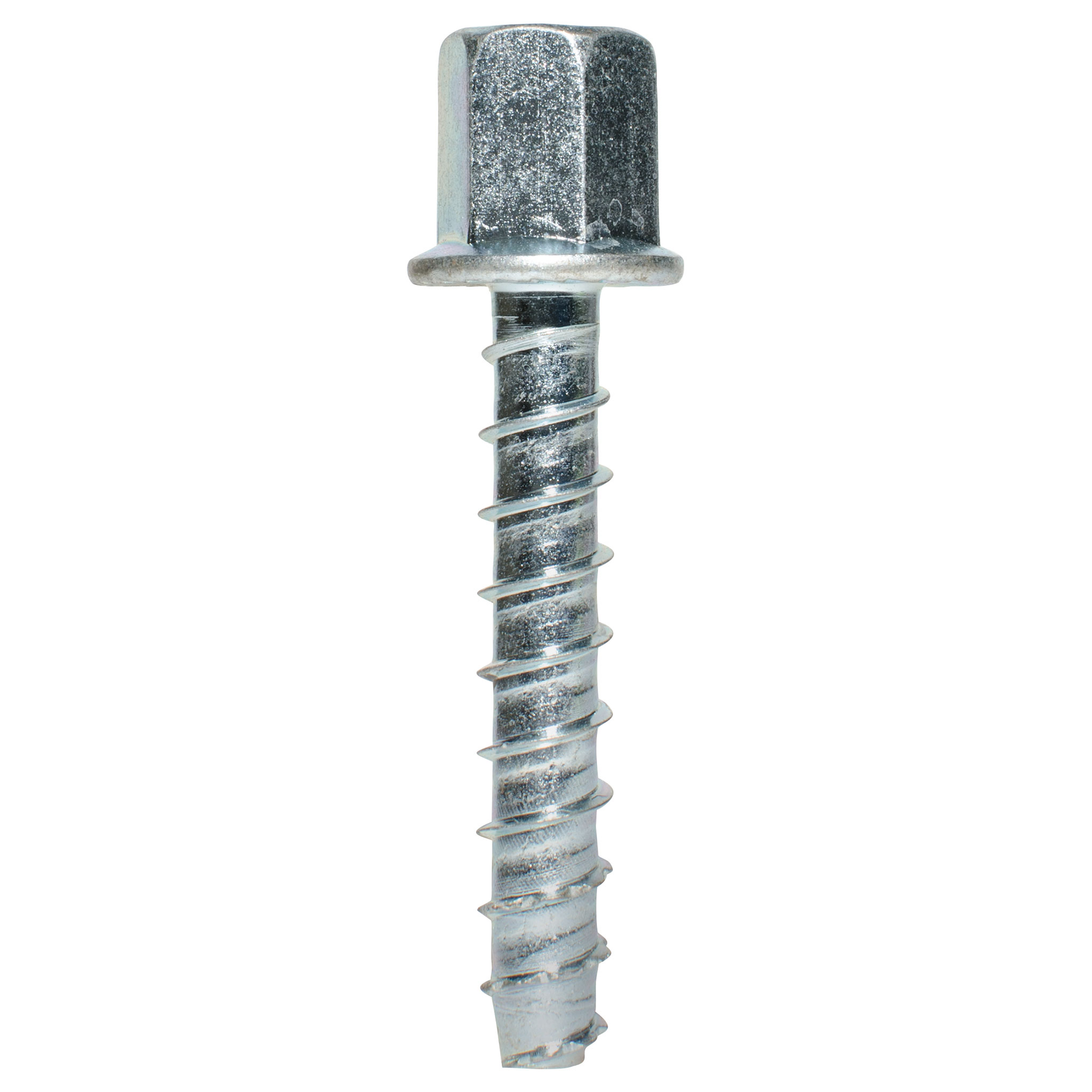

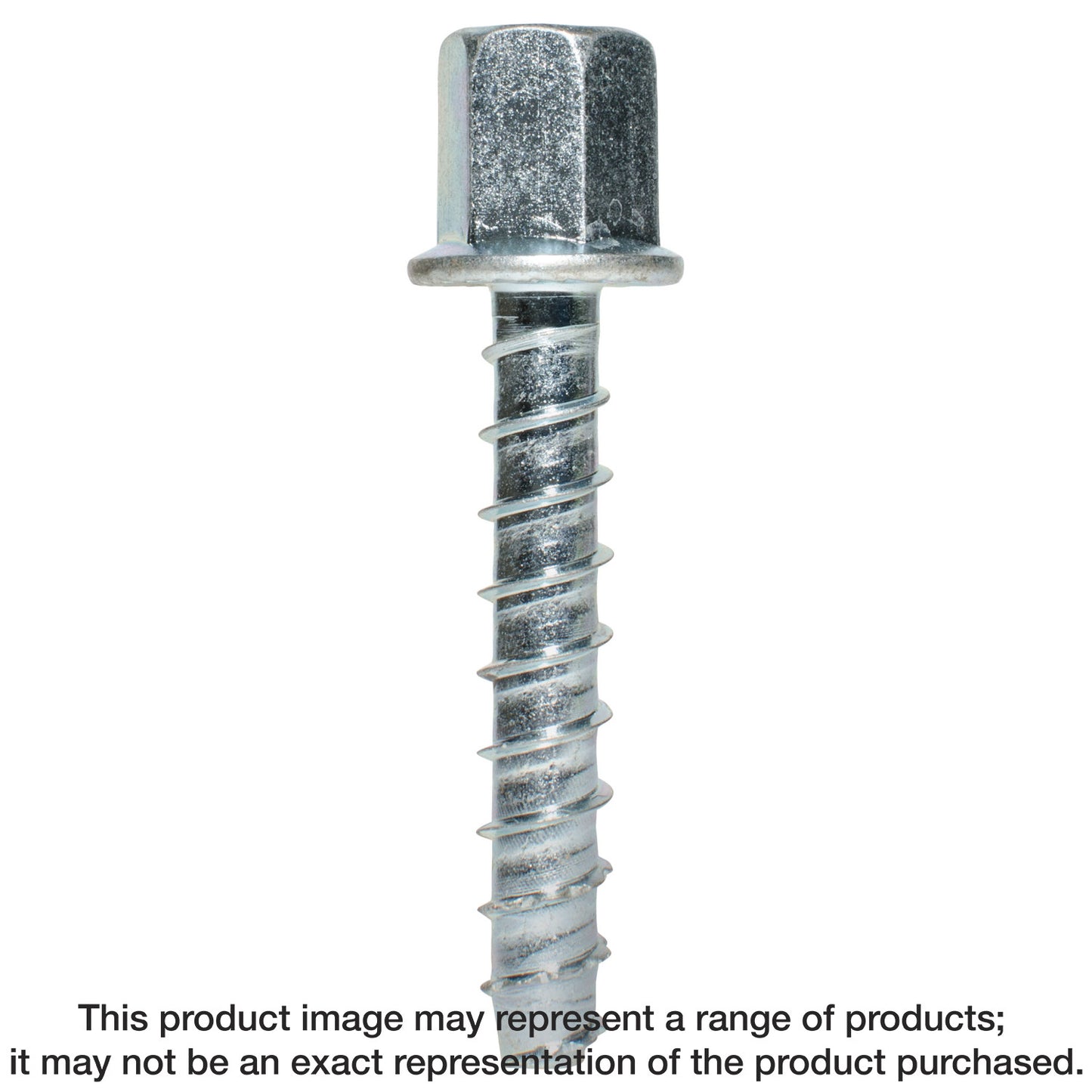

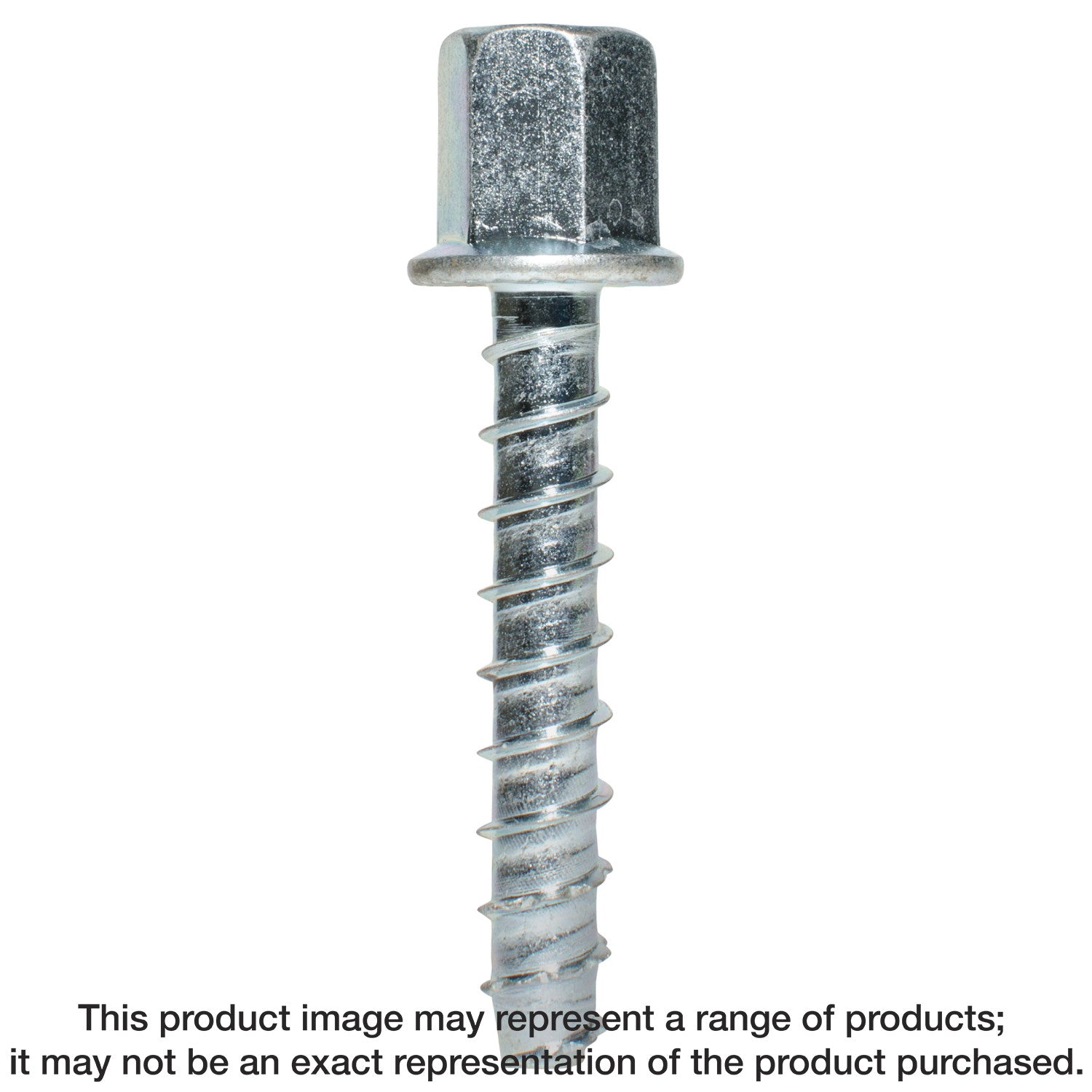

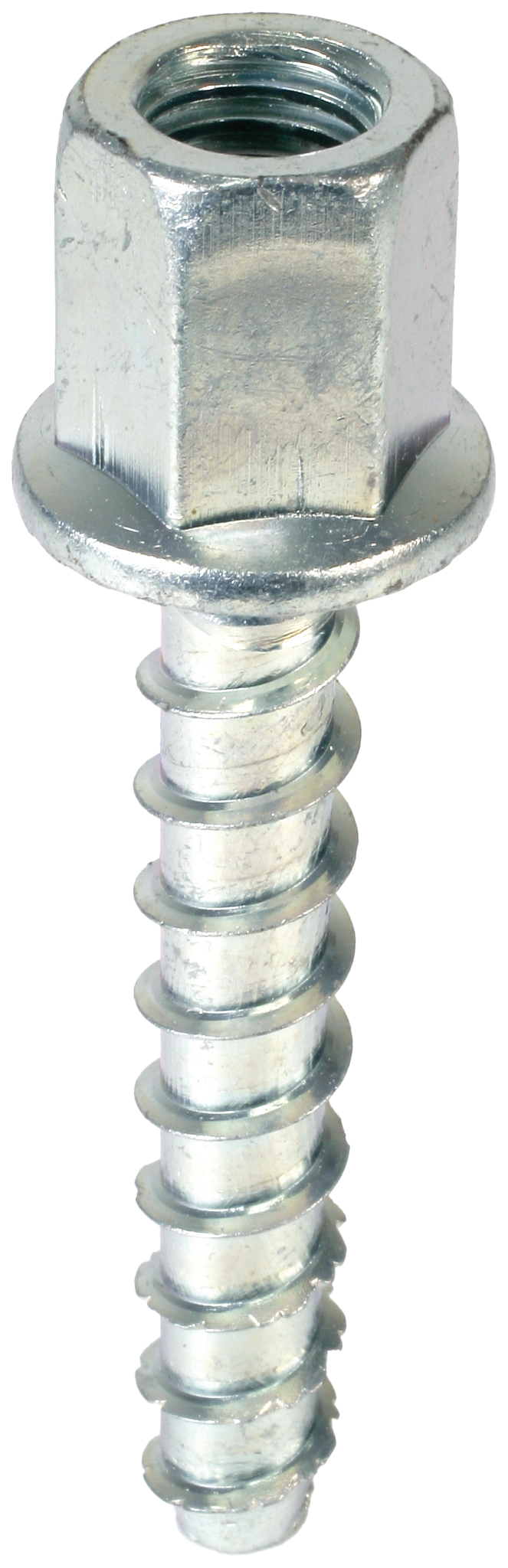

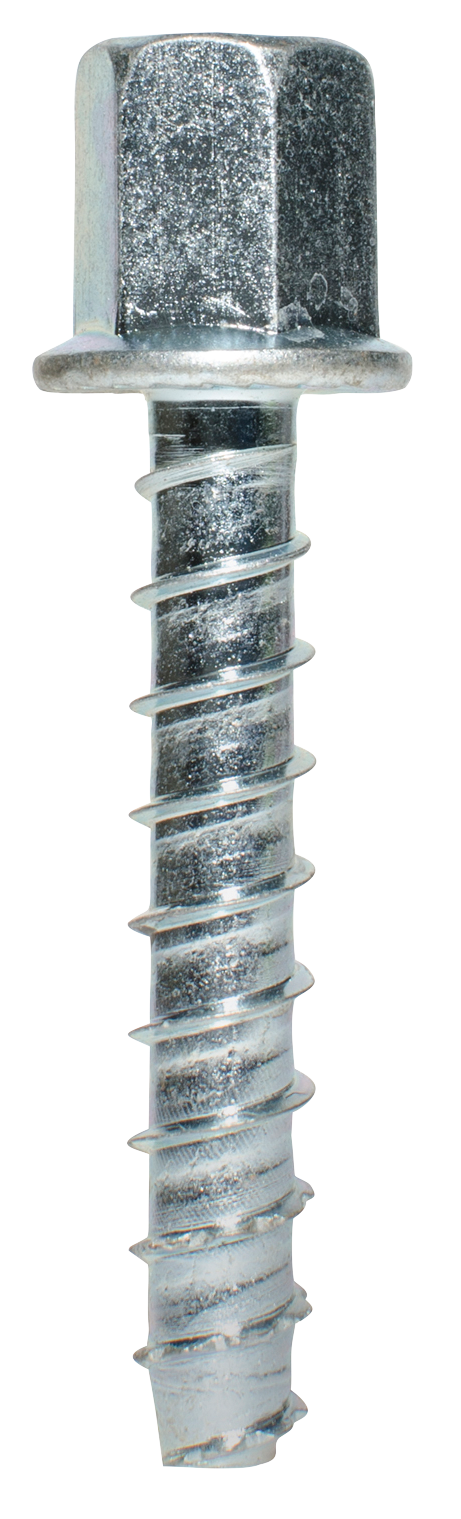

The Titen HD® threaded rod hanger is a high-strength screw anchor designed to suspend threaded rod from concrete slabs, beams or concrete over metal in order to hang pipes, cable trays and HVAC equipment. The anchor offers low installation torque with no secondary setting, and has been tested to offer industry-leading performance in cracked and uncracked concrete — even in seismic loading conditions.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Thread design undercuts to efficiently transfer the load to the base material
• Serrated cutting teeth and thread design enable quick and easy installation
• Specialized heat-treating process creates greater hardness at the tip to facilitate cutting while the body remains ductile
• Designed to install using a rotary hammer or hammer drill with standard ANSI drill bits — no special tools required
• Code listed for cracked and uncracked concrete applications; FM listed
• Made from zinc-plated carbon steel; use in dry interior environments only
• Rod size: 1/2 in.
• Wrench size: 11/16 in.
• Drill bit size: 3/8 in.
• Quantity: 8 per package

Specifications

• ERP Part Number: THD50234RHC8
• UPC: 707392219453
• GTIN: 707392219453
• Feature 01: Thread design undercuts to efficiently transfer the load to the base material
• Feature 02: Serrated cutting teeth and thread design enable quick and easy installation
• Feature 03: Specialized heat-treating process creates greater hardness at the tip to facilitate cutting while the body remains ductile
• Feature 04: Designed to install using a rotary hammer or hammer drill with standard ANSI drill bits — no special tools required
• Feature 05: Code listed for cracked and uncracked concrete applications; FM listed
• Feature 06: Made from zinc-plated carbon steel; use in dry interior environments only
• Feature 07: Rod size: 1/2 in.
• Feature 08: Wrench size: 11/16 in.
• Feature 09: Drill bit size: 3/8 in.
• Feature 10: Quantity: 8 per package
• Install With: Installs with standard-sized sockets
• Assembled Depth - Imperial: 0.975
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.674
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.975
• Assembled Width UOM - Imperial: in.
• Base Product ID: THD-RH_Anchor
• Base Product Name: Titen HD® Threaded Rod Hanger
• Bolt/Rod Diameter (in.): 1/2
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Rod Hanger
• Coating: Zinc Plated
• Country of Origin: CN
• Customer Unit: Yes
• Diameter (in.): 3/8
• Display Unit/Measure: PAC
• Drill Bit Diameter (in.): 3/8
• EAN category: UC
• Finish: Zinc Plated
• GUID: 8649472849565383082260662320660049979
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Carbon Steel
• Measurement Unit Text: Pack
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 2.25
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 4.75
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.625
• Package Width UOM - Imperial: in.
• Packaging Quantity: 8
• Packaging Type: Tub
• Product Class: Rod Hanger
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 1.413
• Short Product Name: THD RD HGR 1/2 X 2 3/4 INCH 8 TUB
• Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/thd-rh_anchor/p/titen-hd-threaded-rod-hanger
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mechanical Anchors
• TPI: Variable
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• Wrench Size (in.): 11/16
• CAR Reference: 10707392219450
• PAL Reference: 50707392219458
