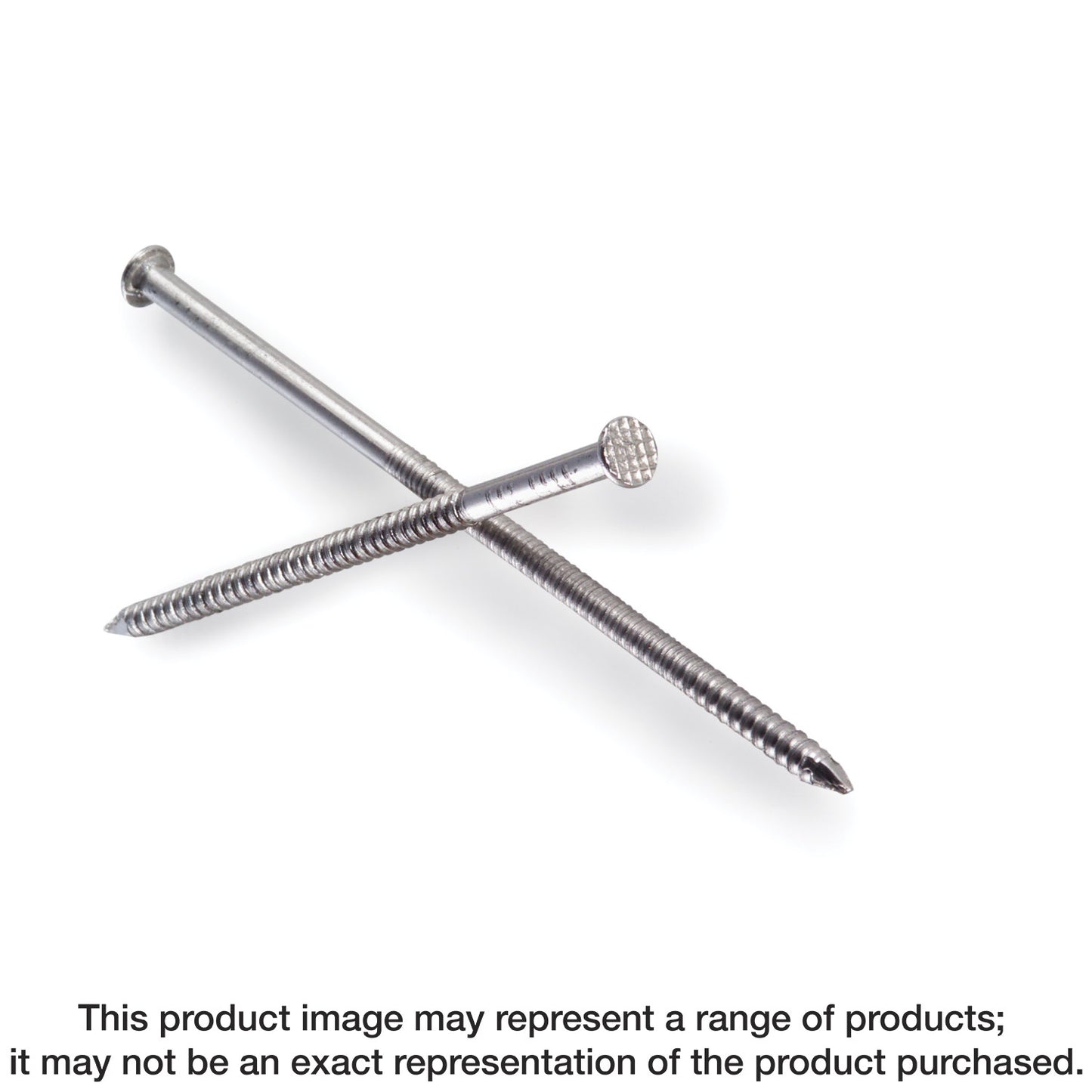

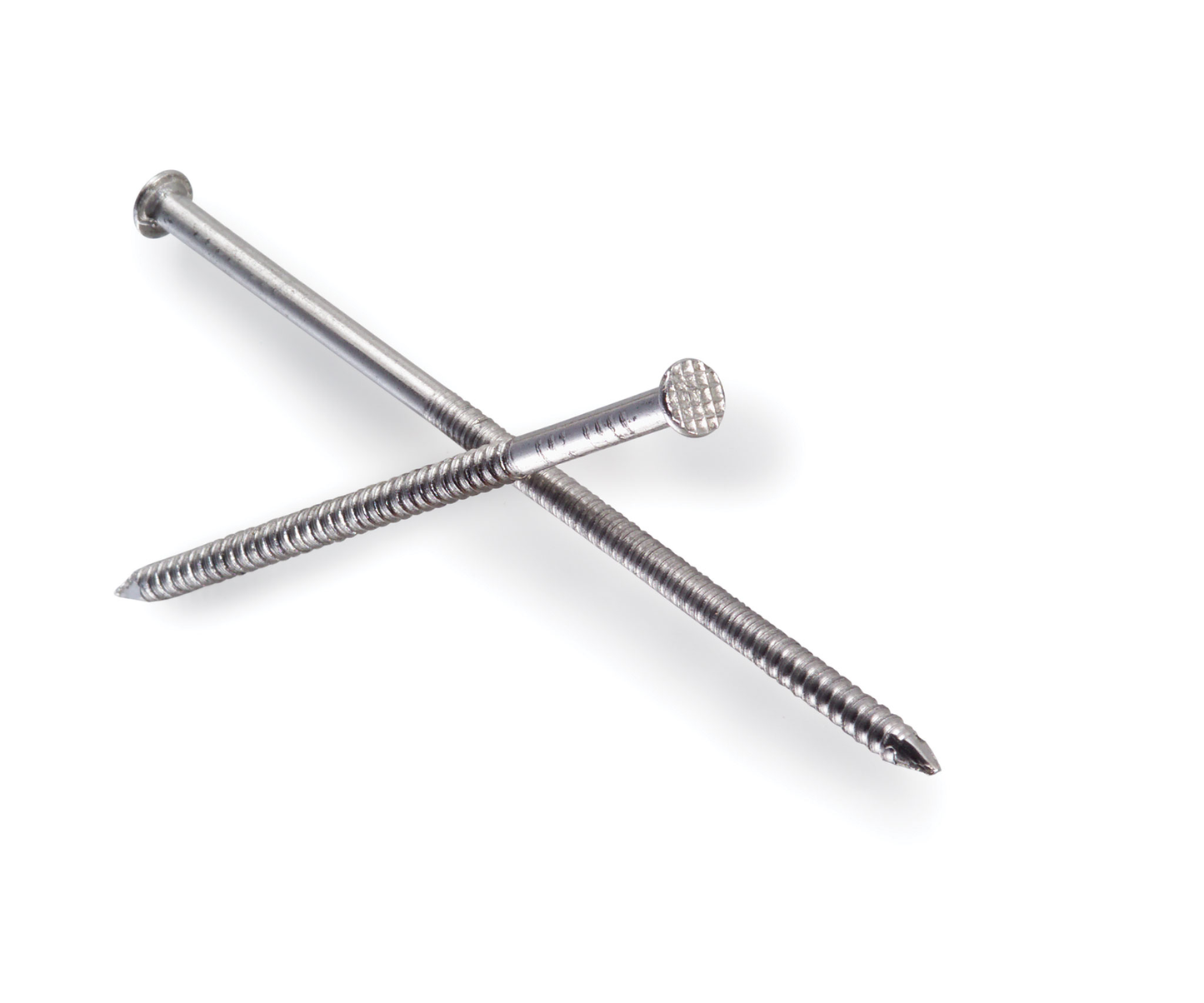

Simpson Strong-Tie T8CRD5 Cedar and Redwood Decking Nail — 2-1/2 in. x .113 in. Type 316 Stainless Steel (5 lb.)

Simpson Strong-Tie T8CRD5 Cedar and Redwood Decking Nail — 2-1/2 in. x .113 in. Type 316 Stainless Steel (5 lb.)

Simpson Strong-Tie offers a wide variety of fasteners to meet the requirements for every project type. Our exterior nails provide powerful, corrosion-resistant fastening solutions to help make your outside living space as long lasting as the interior of your home. The cedar and redwood decking nail is specifically designed for use in cedar and redwood decking projects and features an annular ring shank for increased withdrawal resistance. The small and compact head of this deck nail has a checker pattern that blends well with wood grain.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Smaller compact heads are less visible
• Checker pattern on heads blends with wood grain and reduces glare from sunlight
• Annular ring shank increases pull-out resistance to help prevent nail heads from popping up over time
• Slender shank permits nailing at board ends with reduced splitting
• Diamond point for easier driving
• Shank diameter: 0.113 in.
• Length: 2-1/2 in.
• Type 316 stainless steel provides severe-level corrosion resistance
• Quantity: 5 lb.

Application

• Fastening Wood-to-Wood
• Decks — Deck Boards Wood

Specifications

• ERP Part Number: T8CRD5
• UPC: 744039018130
• GTIN: 744039018130
• Feature 01: Smaller compact heads are less visible
• Feature 02: Checker pattern on heads blends with wood grain and reduces glare from sunlight
• Feature 03: Annular ring shank increases pull-out resistance to help prevent nail heads from popping up over time
• Feature 04: Slender shank permits nailing at board ends with reduced splitting
• Feature 05: Diamond point for easier driving
• Feature 06: Shank diameter: 0.113 in.
• Feature 07: Length: 2-1/2 in.
• Feature 08: Type 316 stainless steel provides severe-level corrosion resistance
• Feature 09: Quantity: 5 lb.
• Applications List: Fastening Wood-to-Wood
• Applications List.1: Decks — Deck Boards Wood
• Appx Count Per Lb: 145
• Assembled Depth - Imperial: 0.219
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.50
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.219
• Assembled Width UOM - Imperial: in.
• Base Product ID: CRD_Nail
• Base Product Name: Cedar and Redwood Decking Nail
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Exterior Nails > Hand-Drive Nail
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Type 316 Stainless Steel
• Gauge: 12
• GUID: 316122770209828940265702493471516292992
• Head Diameter (in.): 7/32
• Head Pattern: Checkered
• Head Type: Full Round Head
• Length (in.): 2 1/2
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Type 316 Stainless Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 5 lb.
• Packaging Type: Tub
• Penny Size: 8d
• Point Type: Diamond Point
• Product Class: Hand-Drive Nail
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shank Diameter (in.): 0.113
• Shank Type: Annular-Ring Shank
• Shipping Weight: 5
• Short Product Name: 8d 2-1/2IN 12GA 316SS RING CEDAR DK 5#
• Strongtie.com URL: https://www.strongtie.com/deckingandgeneralwoodconstructionnails_exteriornails/crd_nail/p/cedar-and-redwood-decking-nail
• Subcategory: Fasteners
• Subcategory 2: Exterior Nails
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10744039018137
• PAL Reference: 50744039018135
