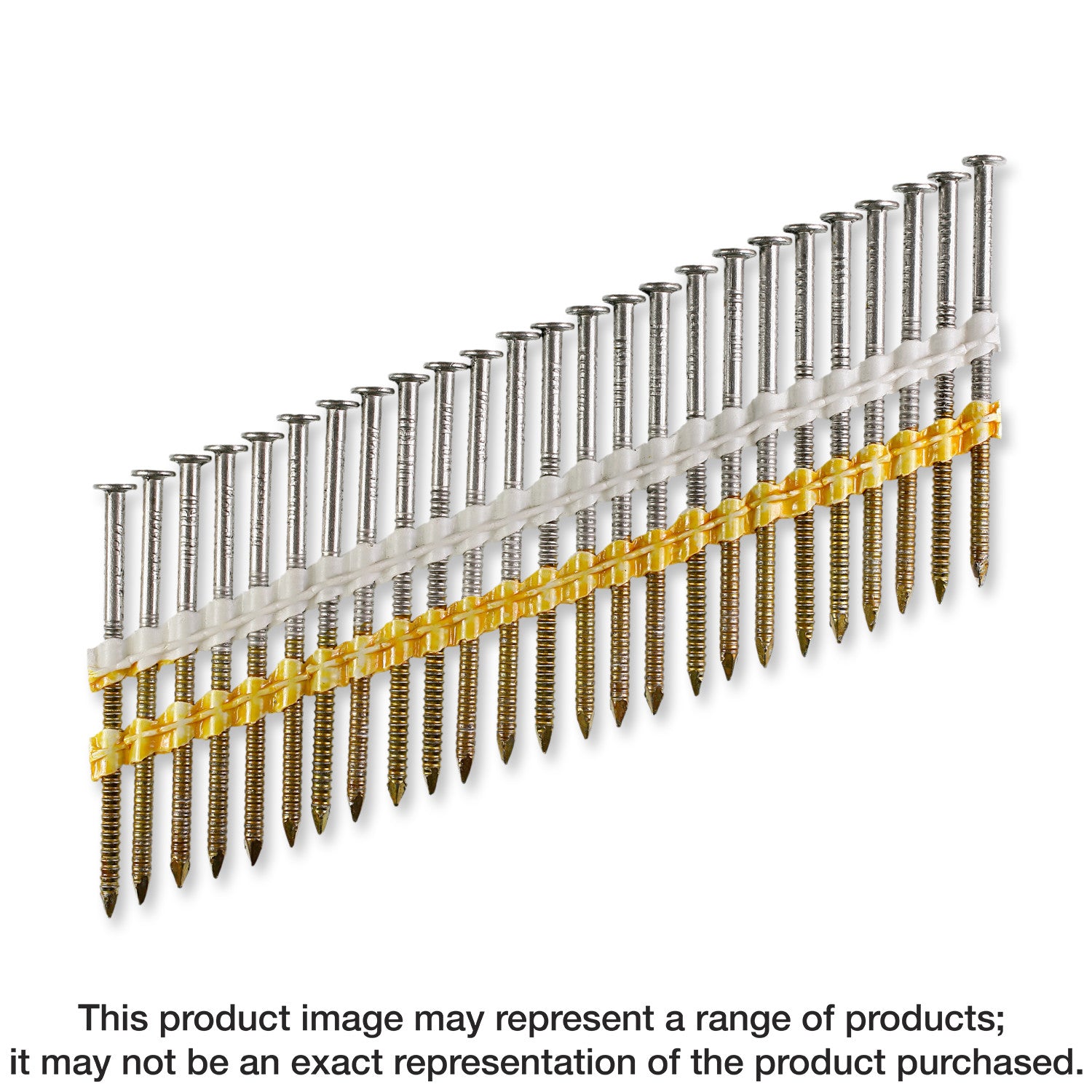

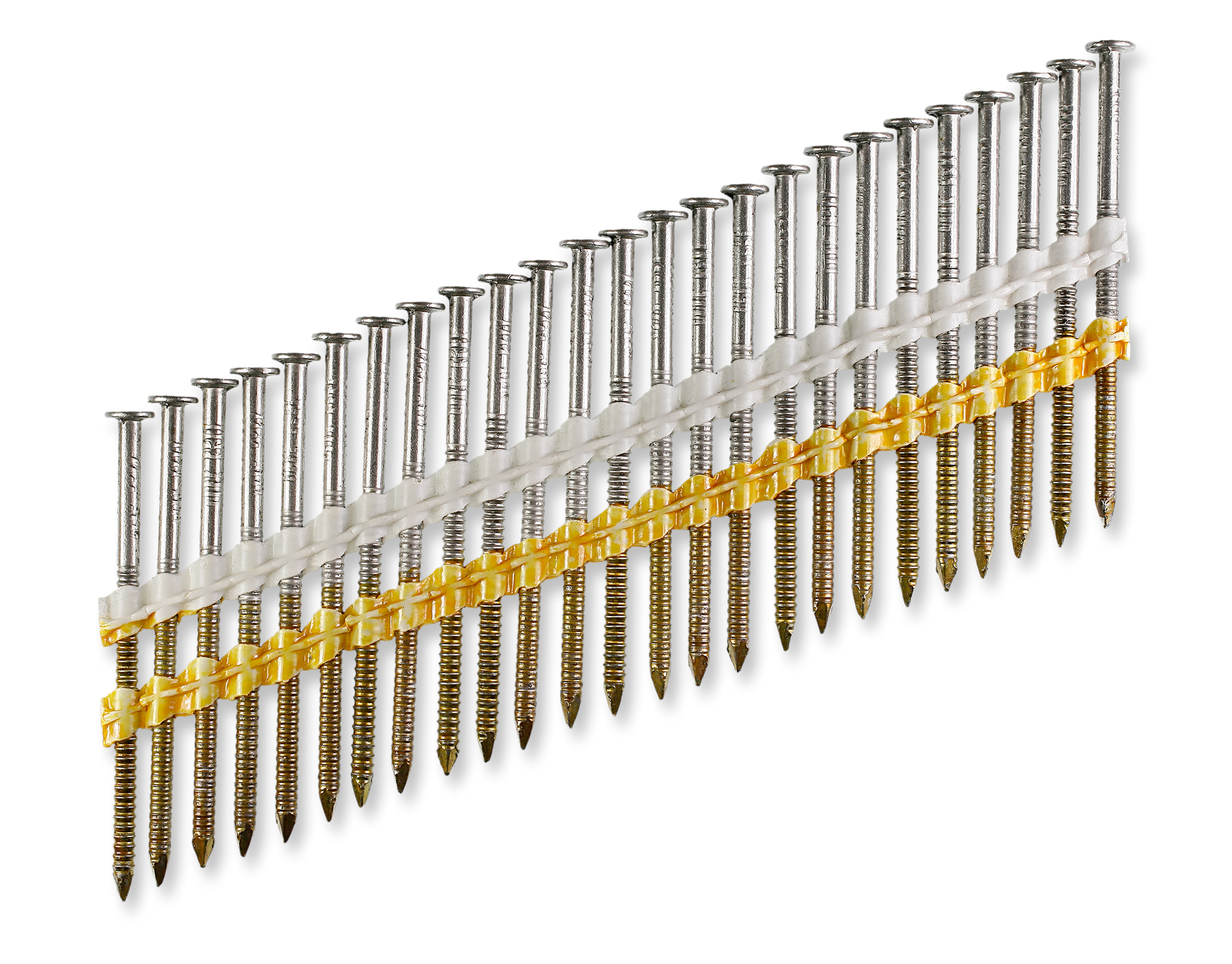

Simpson Strong-Tie T10A325CNJ 20°–22° Plastic Strip, Full Round Head, Ring-Shank Nail — 3-1/4 in. x .131 in. Type 316 (1000-Qty)

Simpson Strong-Tie T10A325CNJ 20°–22° Plastic Strip, Full Round Head, Ring-Shank Nail — 3-1/4 in. x .131 in. Type 316 (1000-Qty)

Simpson Strong-Tie offers a wide variety of fasteners to meet the requirements for every project type, including an extensive selection of collated nails. Collated nails provide an easy way to reduce driving force and increase installation speed. The 20°–22° plastic-strip, full-round-head, ring-shank nail features a checker pattern on the head that blends with wood grain, reduces sunlight glare and accepts surface finishes. This nail is compatible with many major manufacturers’ pneumatic tools.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Annular ring-shank increases withdrawal resistance to provide a secure attachment
• Nail length: 3-1/4 in.
• Nail penny size: 12d
• Head diameter: 9/32 in.
• Made from 10-gauge steel
• Type 316 stainless steel for seaside applications and superior corrosion resistance
• Painted tip for positive placement
• Quantity: 1,000 per package

Application

• Framing — Wood
• Fastening Wood-to-Wood

Specifications

• ERP Part Number: T10A325CNJ
• UPC: 744039308996
• GTIN: 744039308996
• Feature 01: Annular ring-shank increases withdrawal resistance to provide a secure attachment
• Feature 02: Nail length: 3-1/4 in.
• Feature 03: Nail penny size: 12d
• Feature 04: Head diameter: 9/32 in.
• Feature 05: Made from 10-gauge steel
• Feature 06: Type 316 stainless steel for seaside applications and superior corrosion resistance
• Feature 07: Painted tip for positive placement
• Feature 08: Quantity: 1,000 per package
• Applications List: Framing — Wood
• Applications List.1: Fastening Wood-to-Wood
• Assembled Depth - Imperial: 0.28125
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.25
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.28125
• Assembled Width UOM - Imperial: in.
• Base Product ID: 22SRA_CNail
• Base Product Name: 20°–22° Plastic Strip, Full Round Head, Ring-Shank Nail
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Framing Nails > Collated Nail
• Collation Angle: 20–22
• Collation Type: Plastic Strip
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Type 316 Stainless Steel
• Gauge: 10
• GUID: 312938348424805325056468093297485576530
• Head Diameter (in.): 9/32
• Head Pattern: Checkered
• Head Type: Full Round Head
• Length (in.): 3 1/4
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Type 316 Stainless Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1000
• Penny Size: 12d
• Point Type: Diamond Point
• Product Class: Collated Nail
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shank Diameter (in.): 0.131
• Shank Type: Annular-Ring Shank
• Shipping Weight: 14
• Short Product Name: 12d 3-1/4IN 10GA 316SS 22DEG RNG NAIL 1M
• Strongtie.com URL: https://www.strongtie.com/framingnails_collatednails/22sra_cnail/p/2022-plastic-strip-full-round-head-ring-shank-nail
• Subcategory: Fasteners
• Subcategory 2: Framing Nails
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10744039308993
• PAL Reference: 50744039308991
