Simpson Strong-Tie SUL2.56/11 SUL Galvanized Joist Hanger for 2-1/2 to 2-9/16 in. x 11-1/4 to 11-7/8 in. Engineered Wood, Skewed Left

Simpson Strong-Tie SUL2.56/11 SUL Galvanized Joist Hanger for 2-1/2 to 2-9/16 in. x 11-1/4 to 11-7/8 in. Engineered Wood, Skewed Left

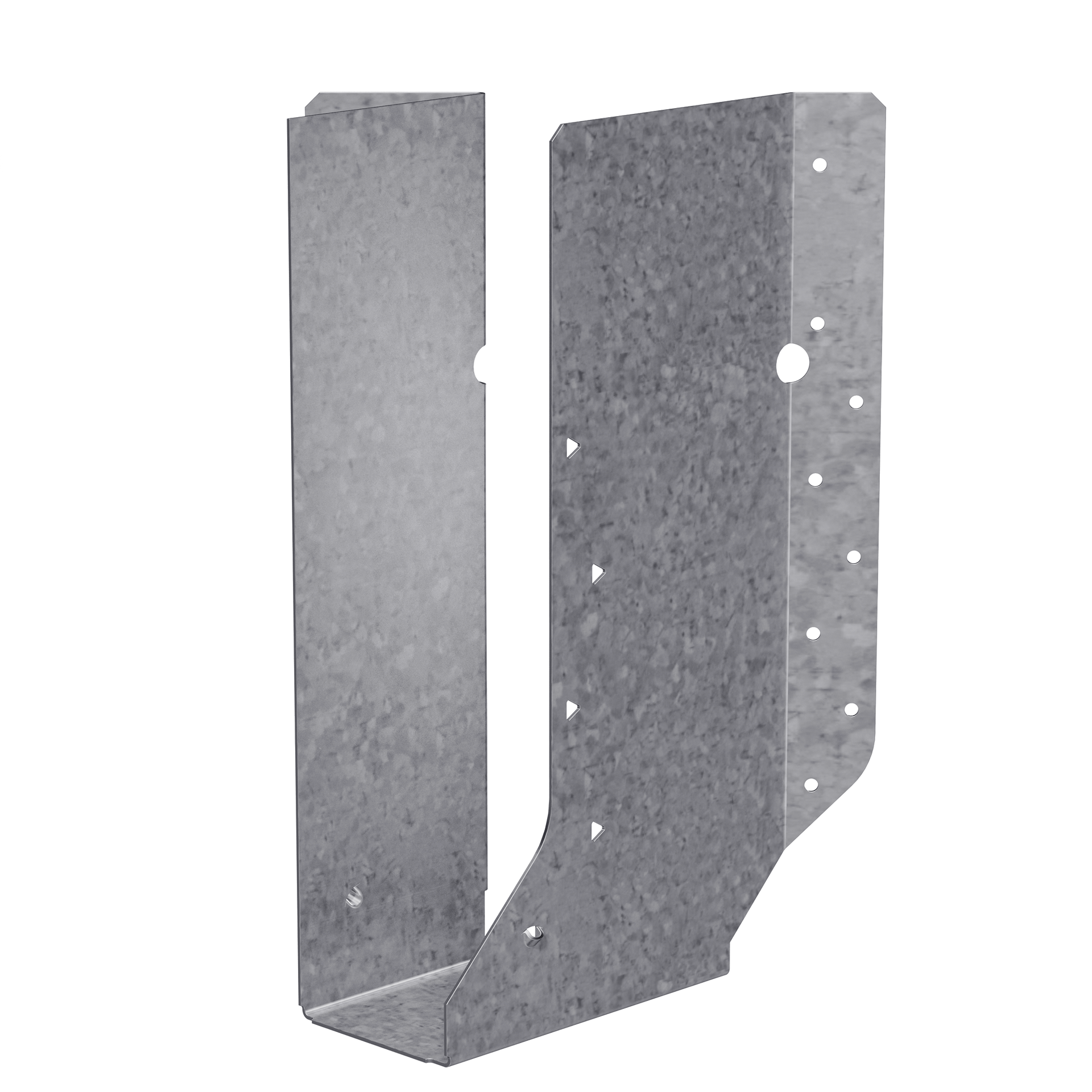

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The SUR/SUL are 45°-skewed hangers designed to support solid sawn and engineered wood products used in wood construction. These U-shaped hangers encapsulate the top flange of the joist, so no web stiffeners are required for standard installation. The SUR and SUL hangers are identical except that they are skewed 45° to the right (SUR) and the left (SUL), respectively.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• SUL = skewed left
• Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
• These hangers cannot be modified but will accommodate a 40° to 50° skewed joist
• Features positive-angle nailing for engineered wood sizes to prevent wood splitting and to speed installation
• Seat width: 2-9/16 in.
• Joist size: 2-1/2 to 2-9/16 in. x 11-1/4 to 11-7/8 in.
• Made from 16-gauge steel
• Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: SUL2.56/11
• UPC: 707392936404
• GTIN: 707392936404
• Feature 01: SUL = skewed left
• Feature 02: Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
• Feature 03: These hangers cannot be modified but will accommodate a 40° to 50° skewed joist
• Feature 04: Features positive-angle nailing for engineered wood sizes to prevent wood splitting and to speed installation
• Feature 05: Seat width: 2-9/16 in.
• Feature 06: Joist size: 2-1/2 to 2-9/16 in. x 11-1/4 to 11-7/8 in.
• Feature 07: Made from 16-gauge steel
• Feature 08: Galvanized (G90) for corrosion resistance
• Install With: Install with (16) 0.162 x 3-1/2 in. nails in the face and (2) 0.148 x 1-1/2 in. nails in the joist, OR (18) #9 x 1-1/2 in. Strong-Drive® SD Connector screws (SD9112)
• Assembled Depth - Imperial: 4.30467
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 11.2445
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 7.28938
• Assembled Width UOM - Imperial: in.
• Base Product ID: SUR-L_Hanger
• Base Product Name: SUR/SUL
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Zinc Galvanized, G90
• Gauge: 16
• GUID: 332218178020855779676176570287196724374
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 2-1/2 to 2-9/16 in. x 11-1/4 to 11-7/8 in.
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 2.09
• Short Product Name: 2-1/2 X 11-1/4 JOIST HANGER SKEWED LEFT
• Strongtie.com URL: https://www.strongtie.com/facemounthangers_engineeredwoodconnectors/sur-l_hanger/p/sur.sul
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers for Engineered Wood
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 20707392936408
• PAL Reference: 50707392936409
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
