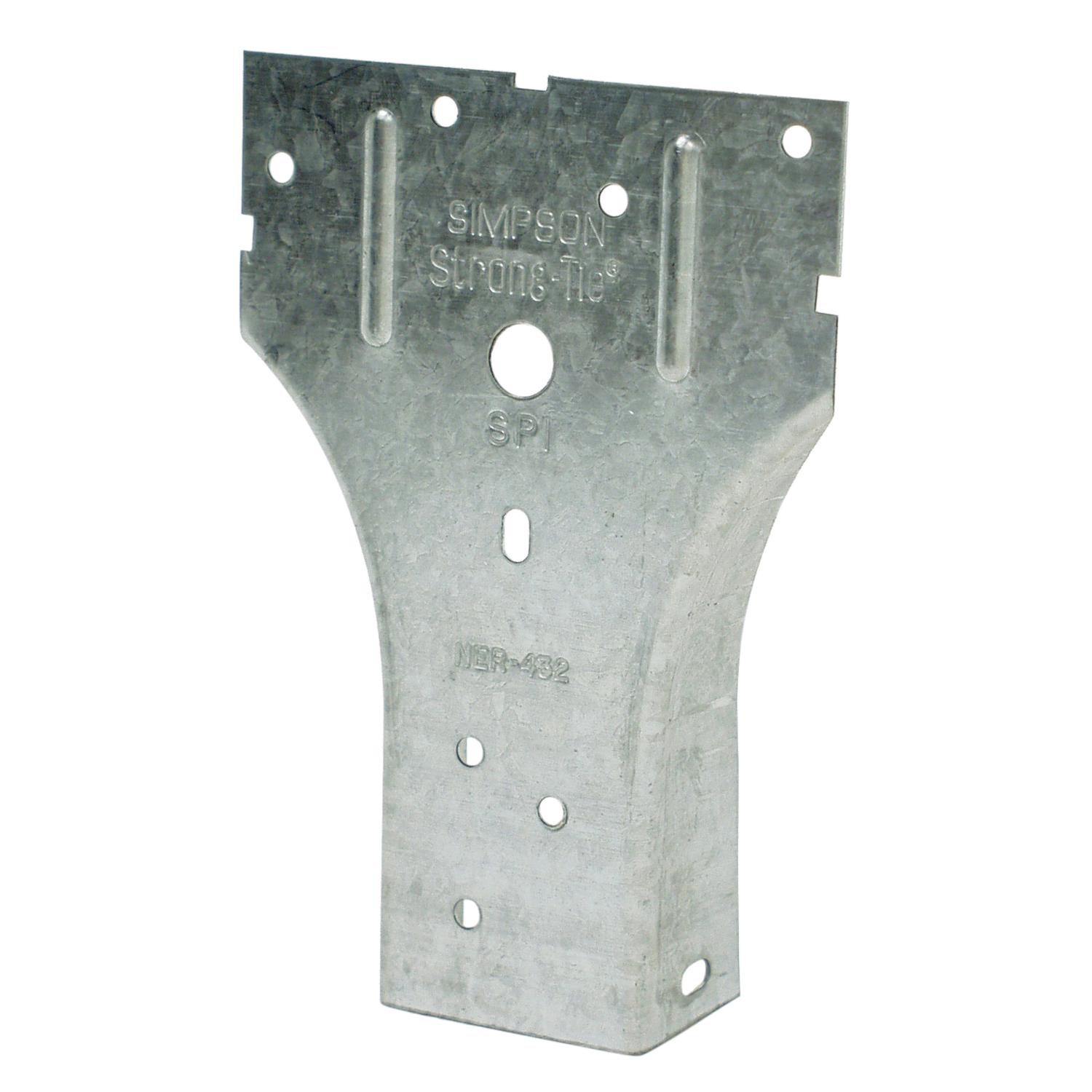

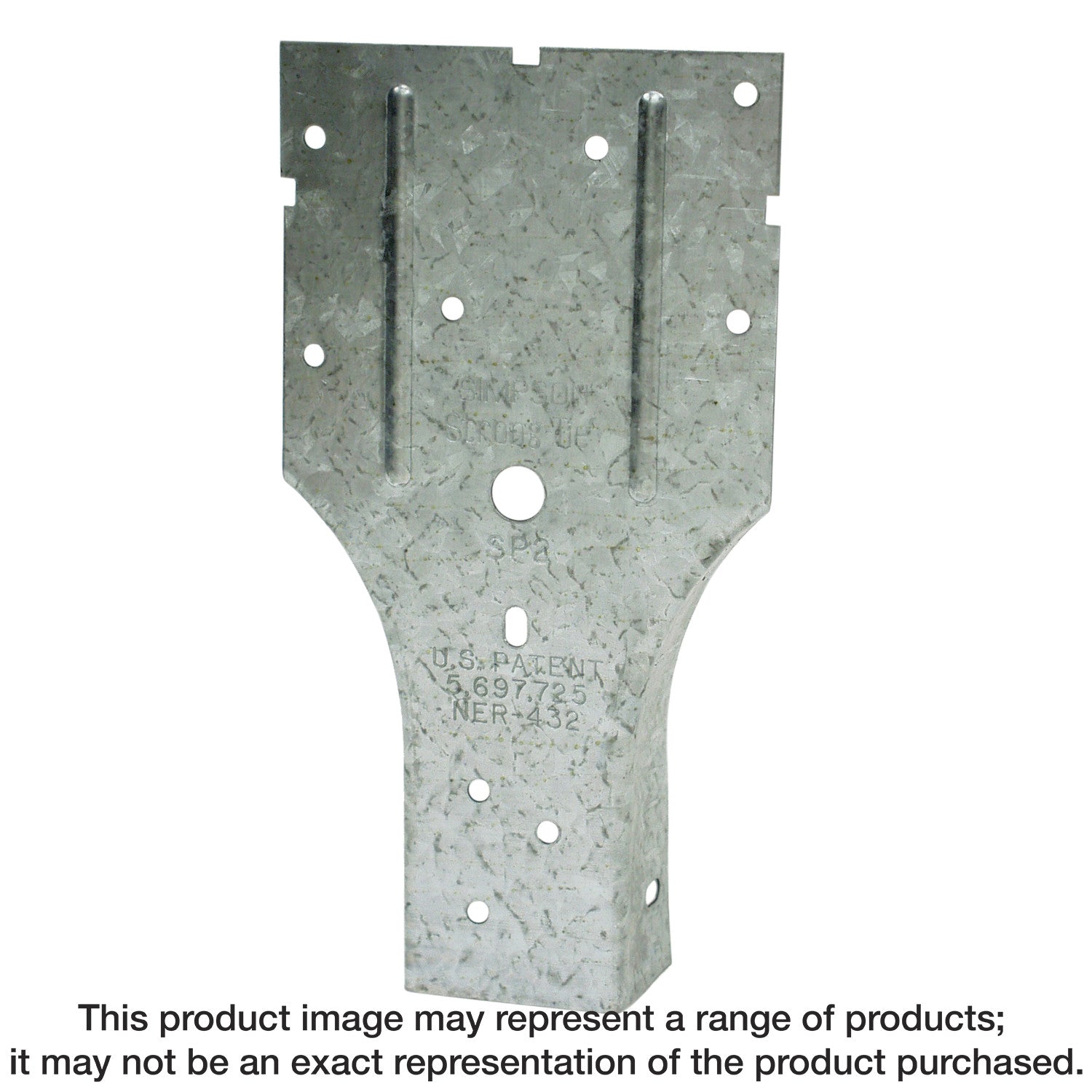

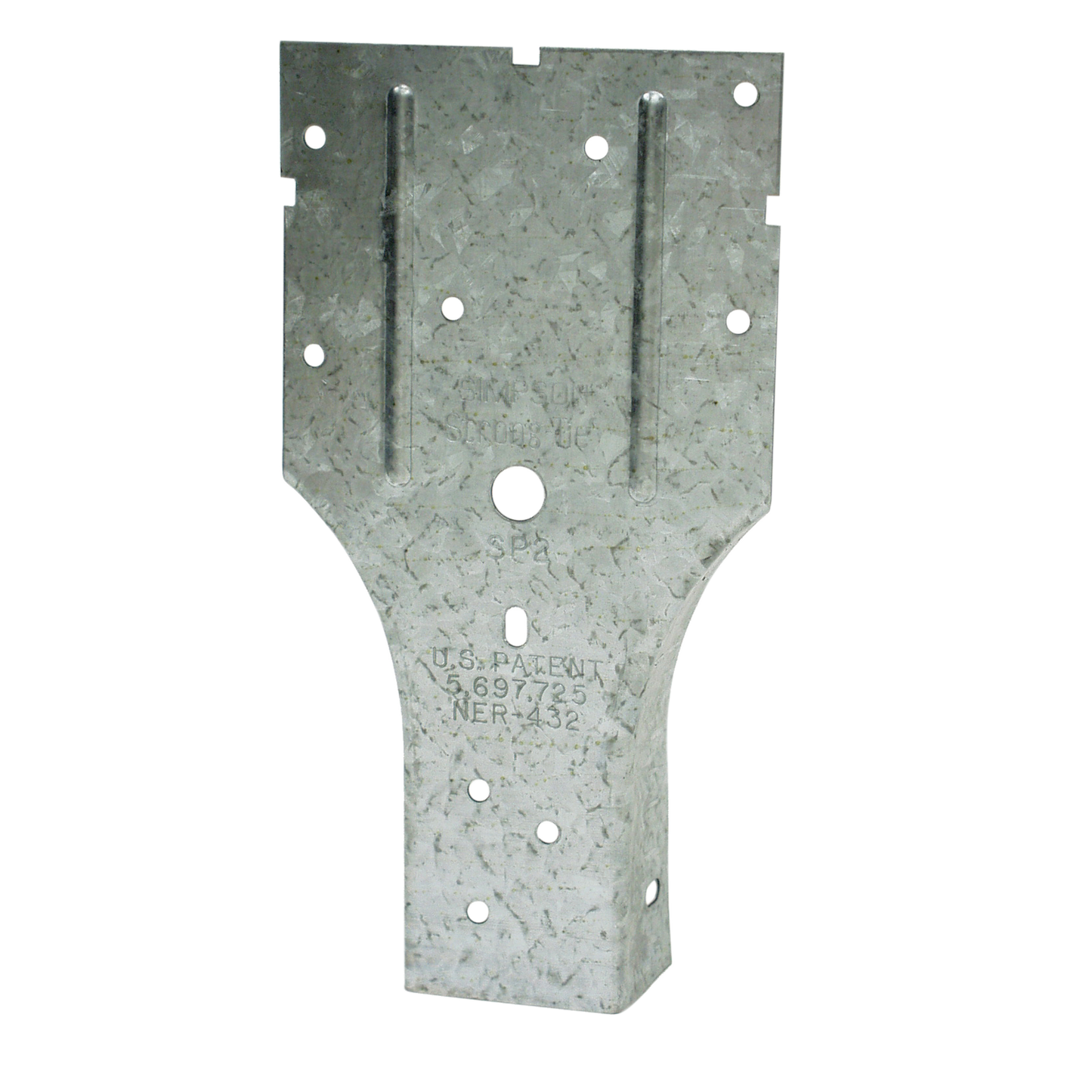

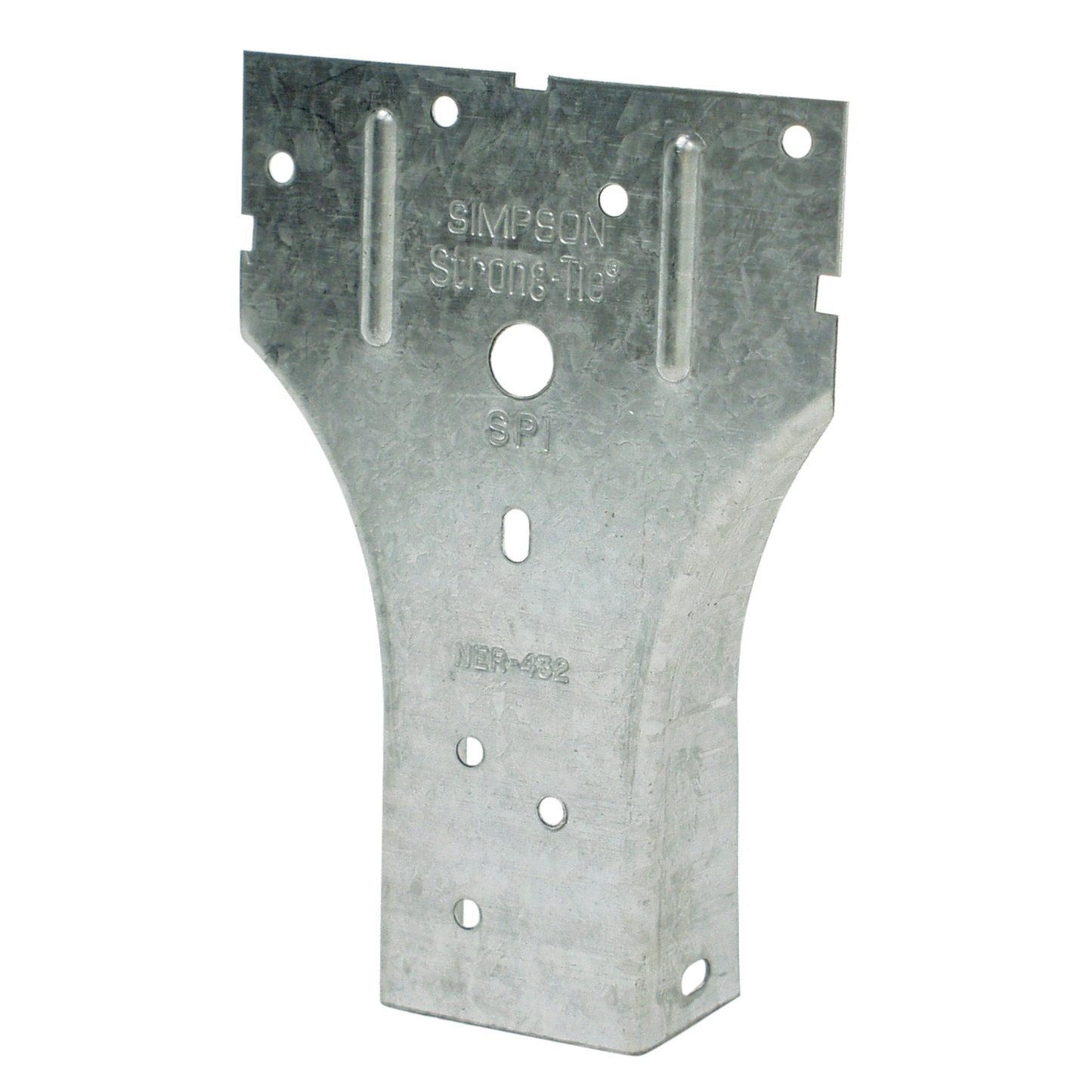

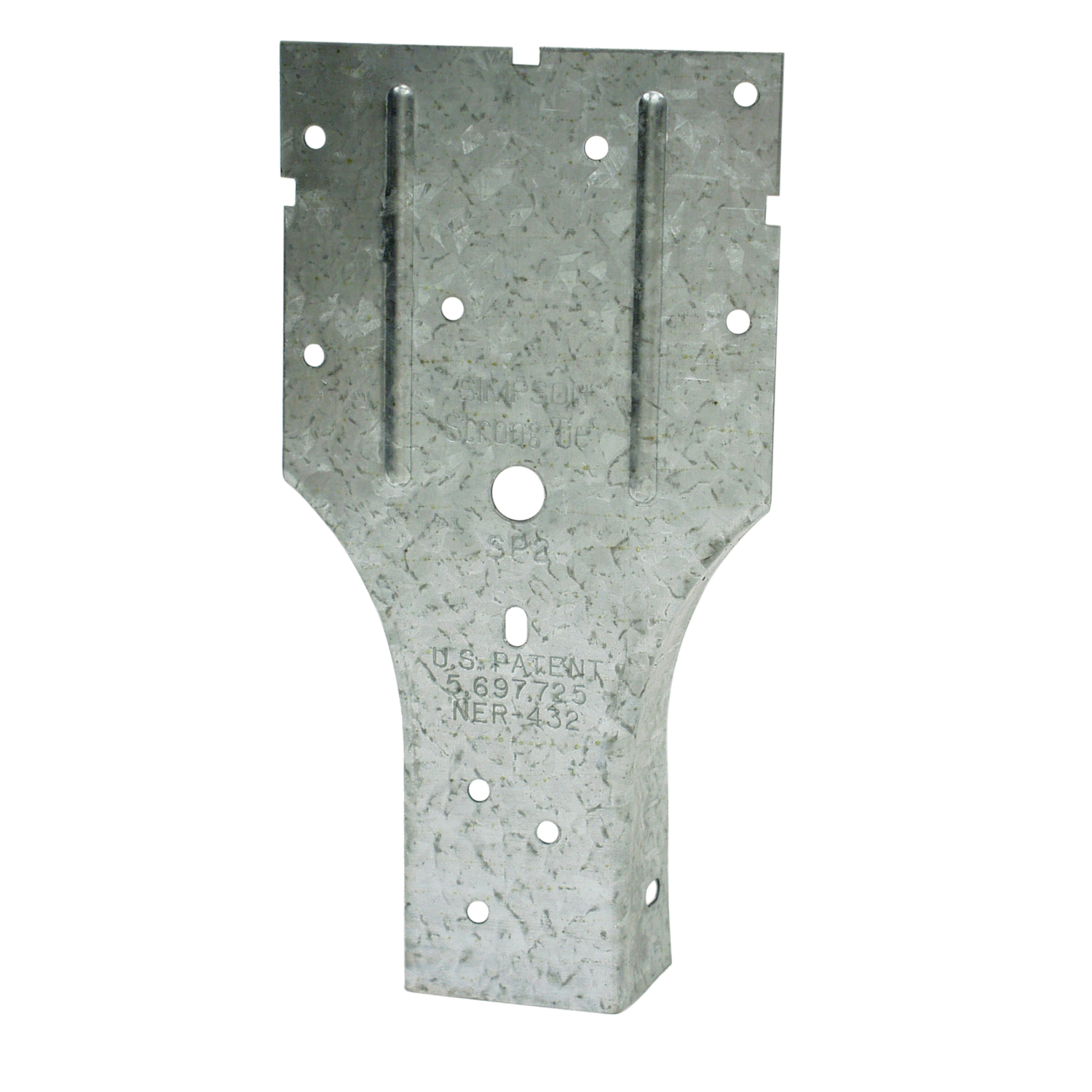

Simpson Strong-Tie SP1Z SP 3-1/2-in. x 5-1/16-in. ZMAX® Galvanized Stud-Plate Tie

Simpson Strong-Tie SP1Z SP 3-1/2-in. x 5-1/16-in. ZMAX® Galvanized Stud-Plate Tie

The Simpson Strong-Tie® stud-plate tie series offers various solutions for connecting the stud to the top and bottom plates. The SP1 and SP2 are designed as stud-to-plate connections to resist uplift. The SP1 is designed for sill-to-stud connections while the SP2 is for the double-top-plate-to-stud connection. These stud-plate ties feature angled holes for a positive connection from the stud to the plates.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Features embossments that strengthen the stud-to-plate connection
• Designed to resist wind and seismic forces
• Can be used before or after installation including in retrofit applications
• Stud size: nominal 2x
• Made from 20-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: SP1Z
• UPC: 707392152200
• GTIN: 707392152200
• Feature 01: Features embossments that strengthen the stud-to-plate connection
• Feature 02: Designed to resist wind and seismic forces
• Feature 03: Can be used before or after installation including in retrofit applications
• Feature 04: Stud size: nominal 2x
• Feature 05: Made from 20-gauge steel
• Feature 06: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Install With: Install with (10) 0.148 x 3-in. nails
• Assembled Depth - Imperial: 1.04075
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 5.09375
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.5
• Assembled Width UOM - Imperial: in.
• Base Product ID: SP_Tie
• Base Product Name: SP1/SP2
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Straps and Ties > Stud-Plate Tie
• Coating: ZMAX®
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: ZMAX®
• Gauge: 20
• GUID: 179025912772238683504123581945169445184
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 2x
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Stud-Plate Tie
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.19
• Short Product Name: STUD PLATE
• Strongtie.com URL: https://www.strongtie.com/studplateties_strapsandties/sp_tie/p/sp1.sp2
• Subcategory: Wood Construction Connectors
• Subcategory 2: Straps and Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392152207
• PAL Reference: 50707392152205
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
