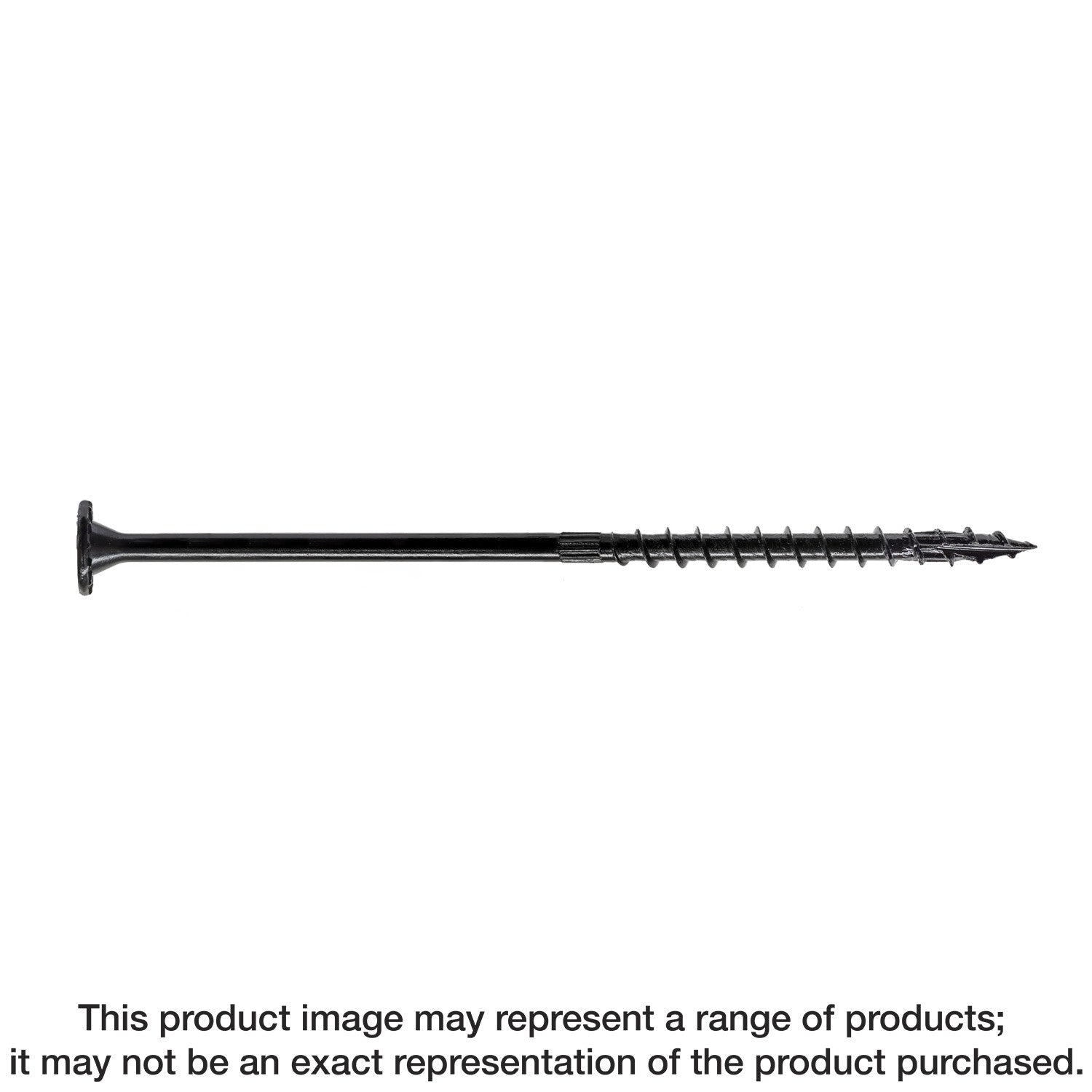

Simpson Strong-Tie SDWS19712-RP1 Strong-Drive® SDWS™ TIMBER Screw (Interior) — 0.195 in. x 7-1/2 in. E-coat®

Simpson Strong-Tie SDWS19712-RP1 Strong-Drive® SDWS™ TIMBER Screw (Interior) — 0.195 in. x 7-1/2 in. E-coat®

The Strong-Drive® SDWS™ Timber screw is a structural wood screw available in a variety of lengths and is designed for cross-laminated timber construction, mass timber construction and general interior applications. These 0.195 in. and 0.220 in. diameter structural fasteners require less torque to install than comparable fasteners. The large diameter washer head pulls members down easily, eliminating the need to use extra washers. It is code listed under IAPMO-UES ER-192 and meets IRC and IBC code requirements for several common wood framing applications.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• SawTooth® point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
• Low-profile head design makes countersinking easy
• Serrated thread reduces splitting and damage
• Large washer head with nibs provides maximum bearing area
• T40, 6-lobe drive provides positive engagement that makes the screw easy to drive
• Size identification on all Simpson Strong-Tie® screws
• Shank diameter: 0.195 in.
• Screw length: 7-1/2 in.
• E-coat electrocoating is recommended for dry, low-corrosion environments

Application

• Fastening Wood-to-Wood
• Log-Home Construction
• Structural Insulated Panels (SIPs)

Specifications

• ERP Part Number: SDWS19712-RP1
• UPC: 707392794448
• GTIN: 707392794448
• Feature 01: SawTooth® point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
• Feature 02: Low-profile head design makes countersinking easy
• Feature 03: Serrated thread reduces splitting and damage
• Feature 04: Large washer head with nibs provides maximum bearing area
• Feature 05: T40, 6-lobe drive provides positive engagement that makes the screw easy to drive
• Feature 06: Size identification on all Simpson Strong-Tie® screws
• Feature 07: Shank diameter: 0.195 in.
• Feature 08: Screw length: 7-1/2 in.
• Feature 09: E-coat electrocoating is recommended for dry, low-corrosion environments
• Applications List: Fastening Wood-to-Wood
• Applications List.1: Log-Home Construction
• Applications List.2: Structural Insulated Panels (SIPs)
• Assembled Depth - Imperial: 0.650
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 7.565
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.650
• Assembled Width UOM - Imperial: in.
• Base Product ID: SDWS-E_Screw
• Base Product Name: Strong-Drive® SDWS™ TIMBER Screw (Interior Grade)
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Interior Wood Screws > Hand-Drive Screw
• Coating: E-coat® Electrocoating
• Color: Black
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: T40 6-Lobe
• EAN category: UC
• Finish: E-coat Electrocoating
• GUID: 31046345408837756816447136693182492534
• Head Diameter (in.): 0.650
• Head Type: Low Profile Head
• Length (in.): 7 1/2
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Point Type: SawTooth® Point
• Product Class: Hand-Drive Screw
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shank Diameter (in.): 0.195
• Shipping Weight: 0.076
• Short Product Name: SDWS .19 X 7-1/2IN E-COAT QTY 1
• Strongtie.com URL: https://www.strongtie.com/strongdrive_interiorwoodscrews/sdws-e_screw/p/strong-drive-sdws-timber-screw-interior-grade
• Subcategory: Fasteners
• Subcategory 2: Interior Wood Screws
• Thread Length (in.): 3
• Thread Type: Serrated Threads
• TPI: 5
• US Patents: 11,181,138
• US Patents.1: 9,523,383
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392794445
• PAL Reference: 50707392794443
