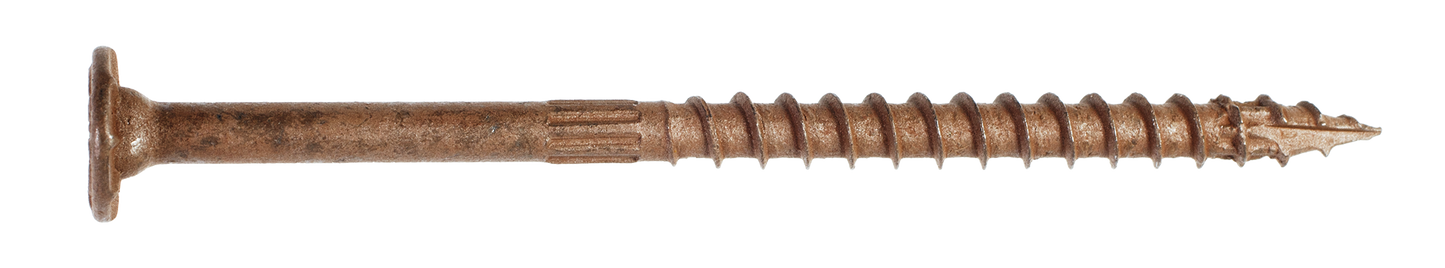

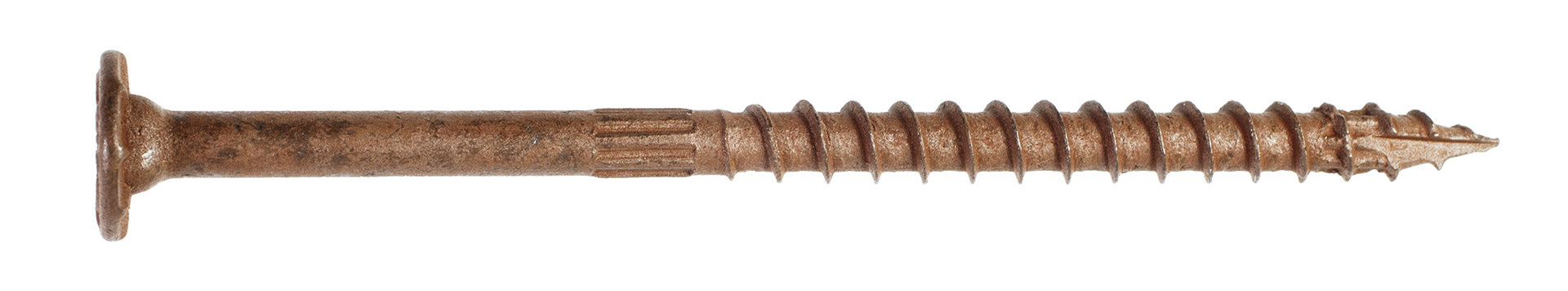

Simpson Strong-Tie SDWS16312QR150 Strong-Drive® SDWS™ FRAMING Screw — 0.160 in. x 3-1/2 in. T25, Quik Guard®, Tan (150-Qty) (Pack of 396)

Simpson Strong-Tie SDWS16312QR150 Strong-Drive® SDWS™ FRAMING Screw — 0.160 in. x 3-1/2 in. T25, Quik Guard®, Tan (150-Qty) (Pack of 396)

The SDWS Framing screw is designed and load-rated for replacing 16d, 10d and 8d nails in framing applications. The SDWS Framing screw is 0.160 in. in diameter and superior to nails in holding power and pull-out resistance. It is code listed under IAPMO UES ER-192 and meets 2018 and 2021 IRC® and IBC® code requirements for several common wood framing applications.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Large head with underhead box-nibs provides increased bearing in structural applications and provides clean and easy countersinking (0.450-in. head dia.)

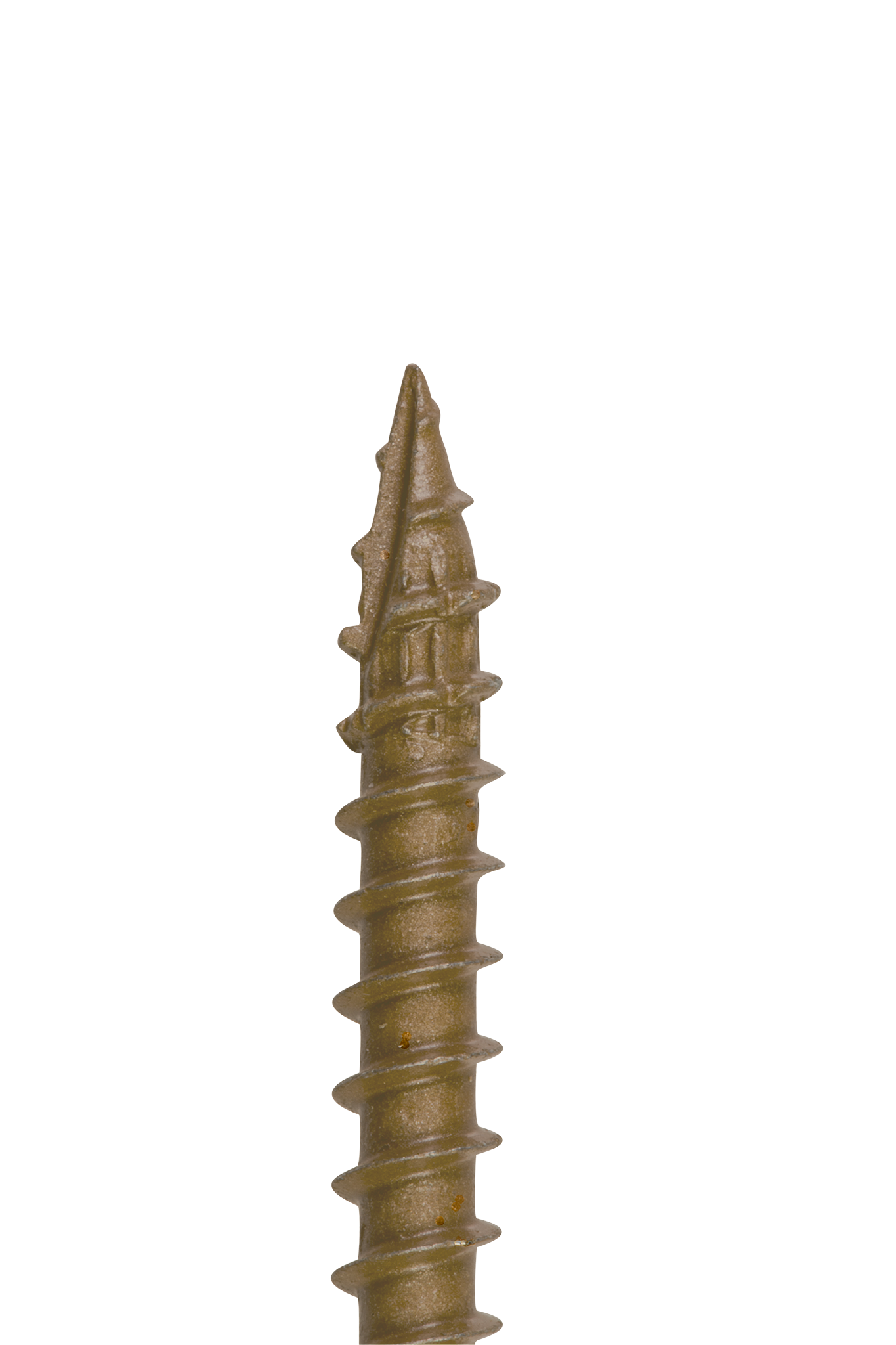

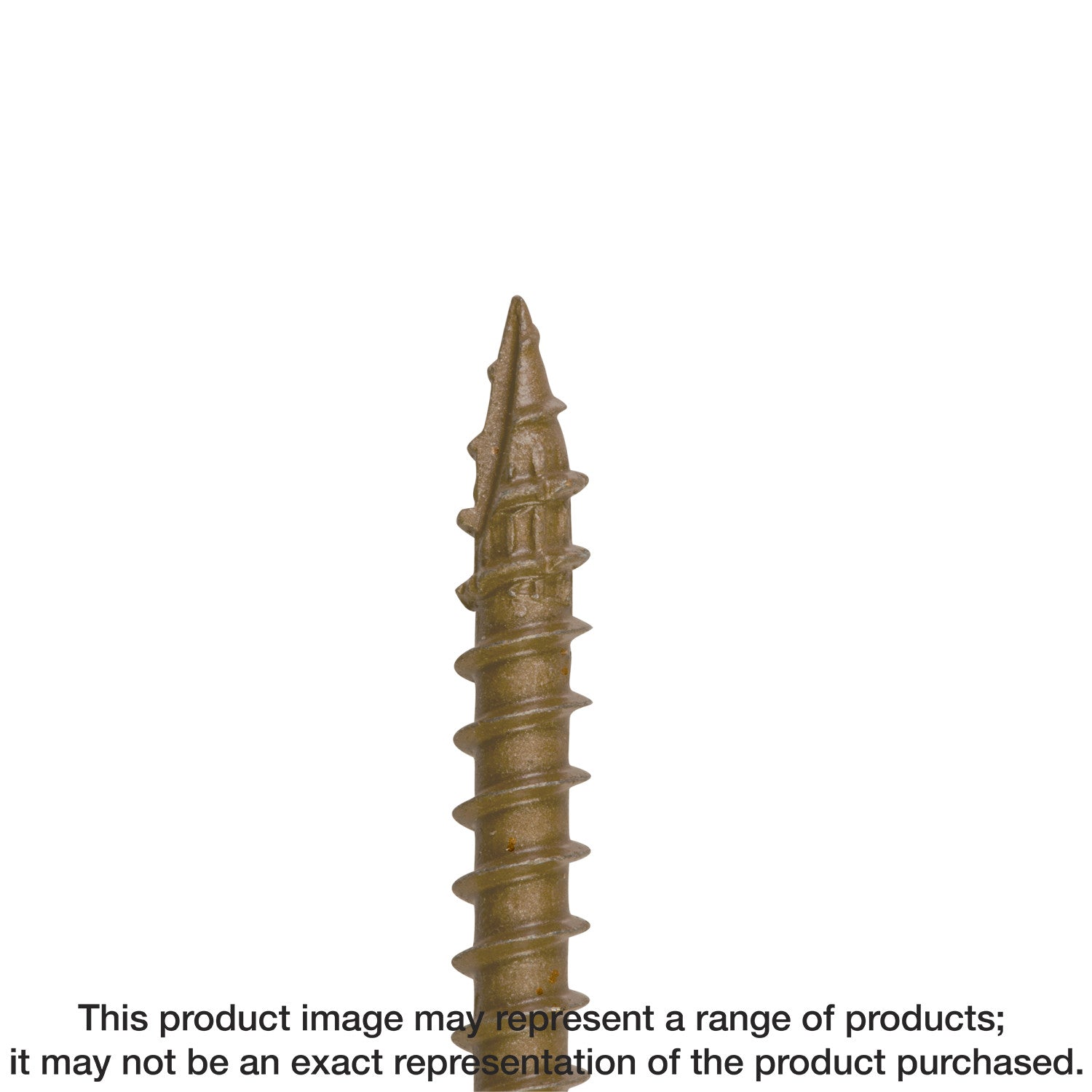

• SawTooth® Type-17 tip for quick starts with no predrilling
• Serrated threads reduce installation torque for easier driving
• The 6-lobe drive reduces driver-bit cam-outs, resulting in easier installations and longer bit life
• Driver bit included (BIT25T-2-R2)
• Length: 3-1/2 in.
• Quik Guard coating provides protection in indoor and outdoor applications
• Color: Tan
• Quantity: 150

Specifications

• ERP Part Number: SDWS16312QR150
• UPC: 50707392015265
• GTIN: 50707392015265
• Feature 01: Large head with underhead box-nibs provides increased bearing in structural applications and provides clean and easy countersinking (0.450-in. head dia.)
• Feature 02: SawTooth® Type-17 tip for quick starts with no predrilling
• Feature 03: Serrated threads reduce installation torque for easier driving
• Feature 04: The 6-lobe drive reduces driver-bit cam-outs, resulting in easier installations and longer bit life
• Feature 05: Driver bit included (BIT25T-2-R2)
• Feature 06: Length: 3-1/2 in.
• Feature 07: Quik Guard coating provides protection in indoor and outdoor applications
• Feature 08: Color: Tan
• Feature 09: Quantity: 150
• Assembled Depth - Imperial: 0.450
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.5
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.450
• Assembled Width UOM - Imperial: in.
• Base Product ID: SDWS-Q_Screw
• Base Product Name: Strong-Drive® SDWS™ FRAMING Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Exterior Wood Screws > Hand-Drive Screw
• Country of Origin: TW
• Customer Unit: No
• Display Unit/Measure: PAL
• EAN category: IC
• GUID: 119582084465856734510306968239187615479
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Hand-Drive Screw
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 396
• Shipping Weight: 1188
• Short Product Name: 0.160 X 3-1/2 SDWS FRAMING TAN T25 150CT
• Strongtie.com URL: https://www.strongtie.com/strongdrive_exteriorwoodscrews/sdws-q_screw/p/strong-drive-sdws-framing-screw
• Subcategory: Fasteners
• Subcategory 2: Exterior Wood Screws
• US Patents: 11,181,138
• US Patents.1: 9,523,383
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392015267
• PAC Reference: 707392015260
