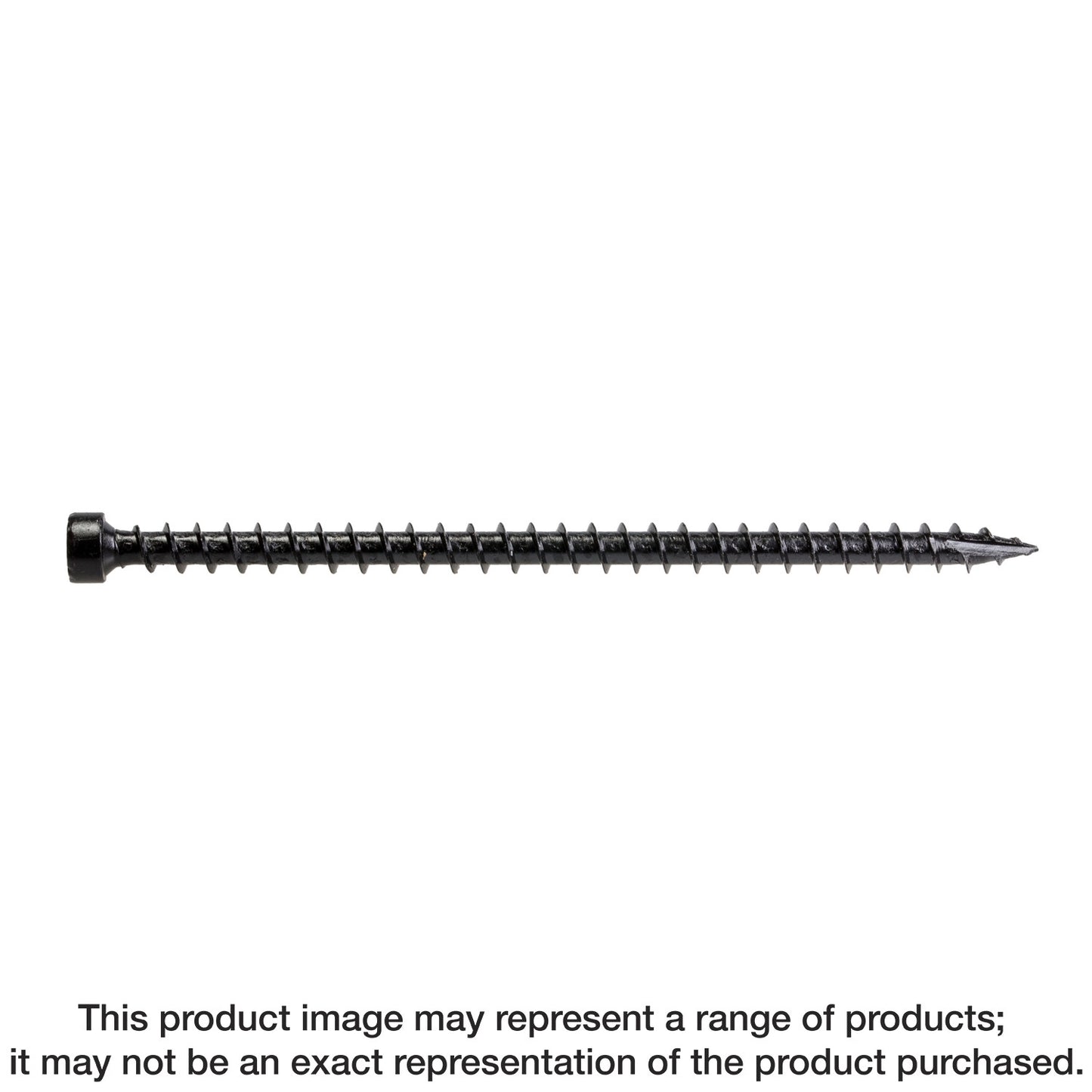

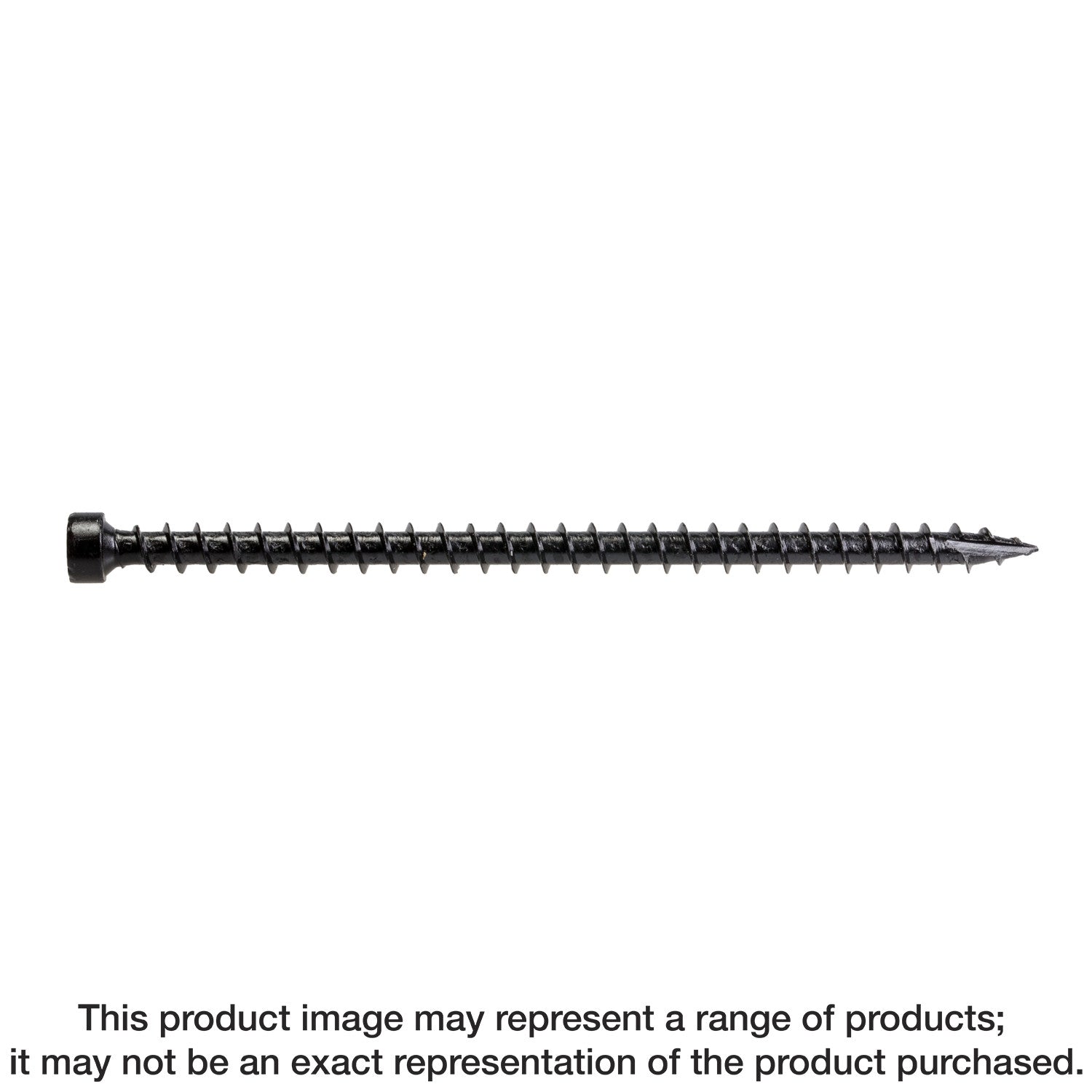

Simpson Strong-Tie SDWC15450B-KT Strong-Drive® SDWC® TRUSS Screw — .155 in. x 4-1/2 in. T-30 6-Lobe E-coat®, Black (500-Qty) (Pack of 64)
The Strong-Drive® SDWC® Truss screw provides a time-saving and reliable option to fastening trusses and rafters to wall top plates. This high-strength structural wood screw is designed with a shorter thread length to fasten multi-ply members such as plated trusses, engineered-lumber products and solid-sawn lumber. The fully-threaded shank engages the entire length of the fastener, providing a secure connection between the roof and wall framing members.
This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.
Features
- Cap-style head countersinks fully into the double top plate to avoid interference with drywall or finish trades
- Wide tolerance on installation angle makes it easy to install the SDWC correctly
- Can be installed from inside the structure, eliminating exterior work on the upper stories and enhancing job safety
- Fastening can be performed before or after exterior sheathing is applied for added flexibility
- Type-17 point for faster starts and easier driving
- Length: 4-1/2 in.
- E-coat® electrocoating; black
- Quantity: 500
- Matched-tolerance driver bit (included) engages fastener head securely to allow one-handed driving (replacement bit part no. BIT30T-2-R2)
Specifications
- ERP Part Number: SDWC15450B-KT
- UPC: 50707392902107
- GTIN: 50707392902107
- Feature 01: Cap-style head countersinks fully into the double top plate to avoid interference with drywall or finish trades
- Feature 02: Wide tolerance on installation angle makes it easy to install the SDWC correctly
- Feature 03: Can be installed from inside the structure, eliminating exterior work on the upper stories and enhancing job safety
- Feature 04: Fastening can be performed before or after exterior sheathing is applied for added flexibility
- Feature 05: Type-17 point for faster starts and easier driving
- Feature 06: Length: 4-1/2 in.
- Feature 07: E-coat® electrocoating; black
- Feature 08: Quantity: 500
- Feature 09: Matched-tolerance driver bit (included) engages fastener head securely to allow one-handed driving (replacement bit part no. BIT30T-2-R2)
- Assembled Depth - Imperial: 0.335
- Assembled Depth UOM - Imperial: in.
- Assembled Height - Imperial: 4.25
- Assembled Height UOM - Imperial: in.
- Assembled Width - Imperial: 0.335
- Assembled Width UOM - Imperial: in.
- Base Product ID: SDWC_Screw
- Base Product Name: Strong-Drive® SDWC® TRUSS Screw
- Brand Name: Simpson Strong-Tie®
- Category Tree (Computed): Fasteners > Interior Wood Screws > Hand-Drive Screw
- Country of Origin: TW
- Customer Unit: No
- Display Unit/Measure: PAL
- EAN category: IC
- GUID: 246621267584698797984622111341535894056
- Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
- Measurement Unit Text: Pallet
- MFG Name: Simpson Strong-Tie®
- Number Category Description: UPC
- Product Class: Hand-Drive Screw
- Prop 65 - Cancer: Wood Dust
- Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
- Prop 65 Warning: Yes
- Quantity: 64
- Shipping Weight: 937.6
- Short Product Name: SDWC 4-1/2IN T30 500CT W/GUIDE INCL
- Strongtie.com URL: https://www.strongtie.com/strongdrive_interiorwoodscrews/sdwc_screw/p/strong-drive-sdwc-truss-screw
- Subcategory: Fasteners
- Subcategory 2: Interior Wood Screws
- Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
- Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
- EA Reference: 707392902102
