Description

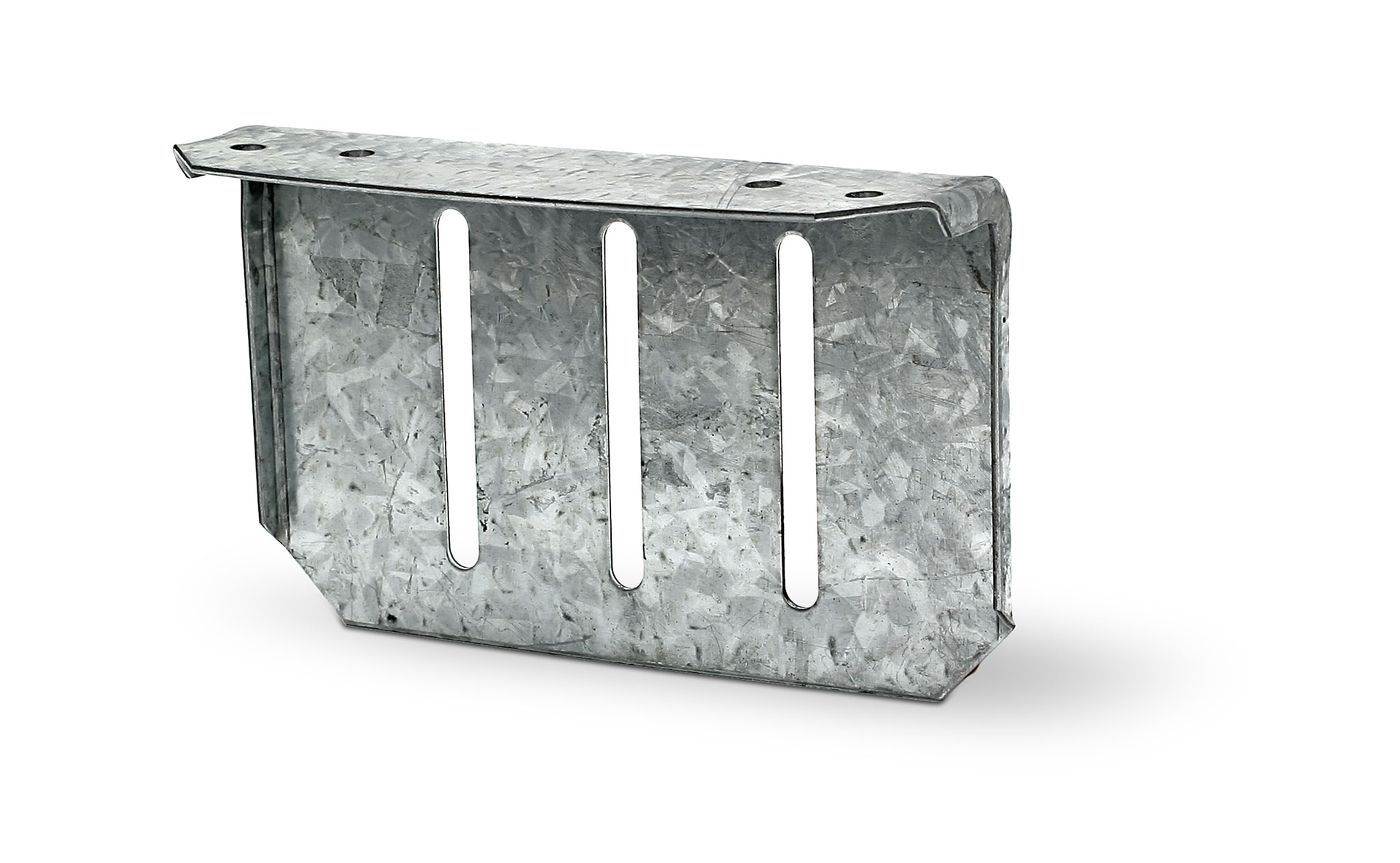

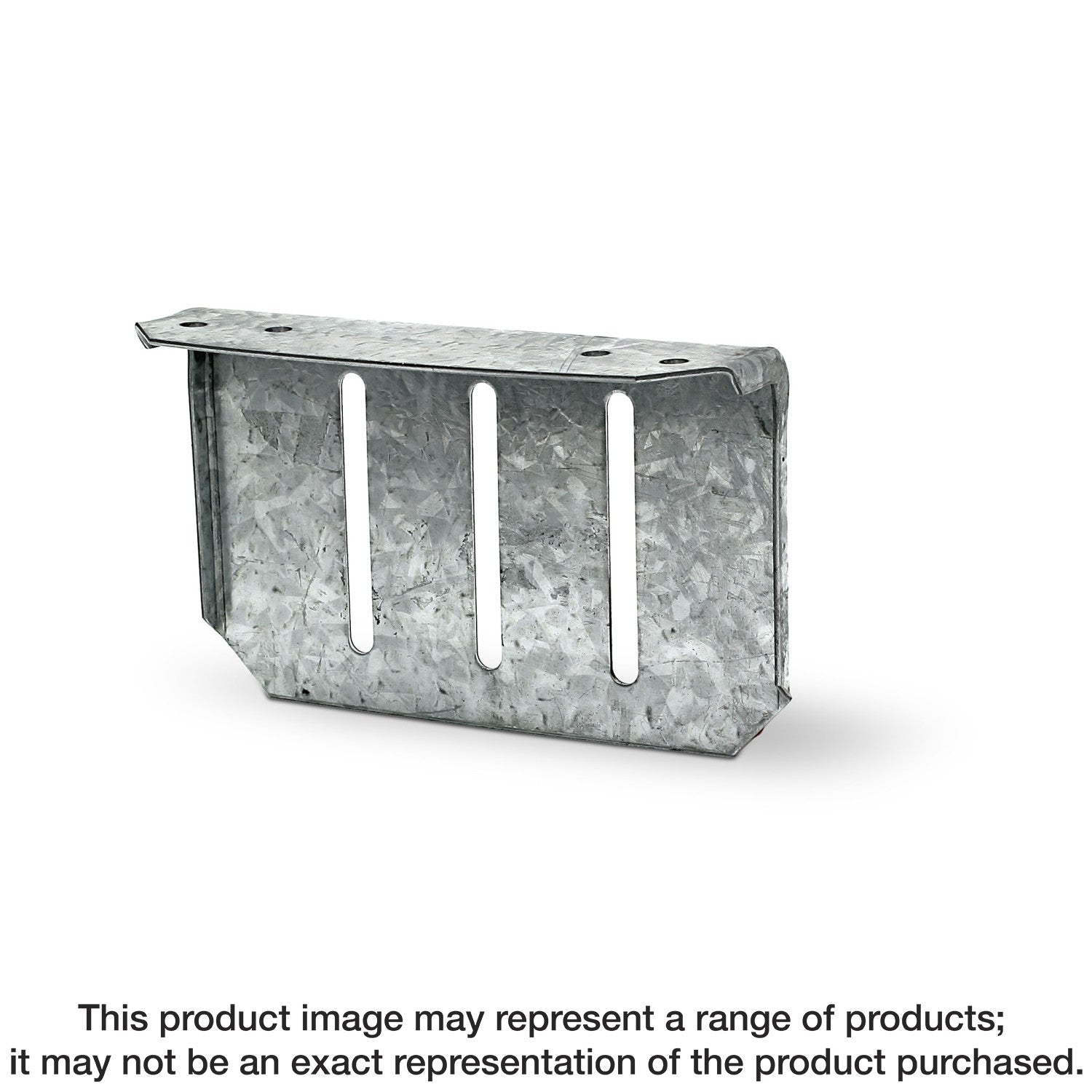

Simpson Strong-Tie SCW5.5-KT SCW 5-1/2 in. Head-of-Wall Slide-Clip Connector w/ Screws (25-Qty) (Pack of 144)
SCW slide-clip connectors are primarily used in head-of-wall applications that require vertical movement relative to the structure. The connector can also be used to strengthen window and door jambs for projects that utilize slip-track. The precision-manufactured shouldered screws provided with the SCW connector are designed to prevent overdriving and to ensure the clip functions properly.
This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.
Features
- Provides a full 1 in. of both upward and downward movement
- Clips that allow 1-3/8 in. of upward and downward movement are available by special order
- Anchor holes located to maximize performance
- Simpson Strong-Tie "No-Equal" stamps mark the center of the slots to help ensure correct shouldered-screw placement
- Width: 5-1/2 in.
- Made from 54-mil (16-gauge) steel
- Galvanized for extra corrosion resistance
- Quantity: 25
Specifications
- ERP Part Number: SCW5.5-KT
- UPC: 50707392914407
- GTIN: 50707392914407
- Feature 01: Provides a full 1 in. of both upward and downward movement
- Feature 02: Clips that allow 1-3/8 in. of upward and downward movement are available by special order
- Feature 03: Anchor holes located to maximize performance
- Feature 04: Simpson Strong-Tie "No-Equal" stamps mark the center of the slots to help ensure correct shouldered-screw placement
- Feature 05: Width: 5-1/2 in.
- Feature 06: Made from 54-mil (16-gauge) steel
- Feature 07: Galvanized for extra corrosion resistance
- Feature 08: Quantity: 25
- Assembled Depth - Imperial: 1.50
- Assembled Depth UOM - Imperial: in.
- Assembled Height - Imperial: 4
- Assembled Height UOM - Imperial: in.
- Assembled Width - Imperial: 5.50
- Assembled Width UOM - Imperial: in.
- Base Product ID: SCW_Clip
- Base Product Name: SCW
- Brand Name: Simpson Strong-Tie®
- Category Tree (Computed): Cold-Formed Steel Connectors > Deflection Connectors > Clip
- Country of Origin: US
- Customer Unit: No
- Display Unit/Measure: PAL
- EAN category: IC
- GUID: 330272458453600095245417013746773704526
- Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
- Measurement Unit Text: Pallet
- MFG Name: Simpson Strong-Tie®
- Product Class: Clip
- Prop 65 - Cancer: Wood Dust
- Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
- Prop 65 Warning: Yes
- Quantity: 144
- Shipping Weight: 1915.2
- Short Product Name: SLIDE CLIP HD OF WALL 5.5IN W/SCREW 25PK
- Strongtie.com URL: https://www.strongtie.com/deflectionconnectors_coldformedsteelconstruction/scw_clip/p/scw
- Subcategory: Cold-Formed Steel Connectors
- Subcategory 2: Deflection Connectors
- Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
- Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
- CAR Reference: 707392914402
