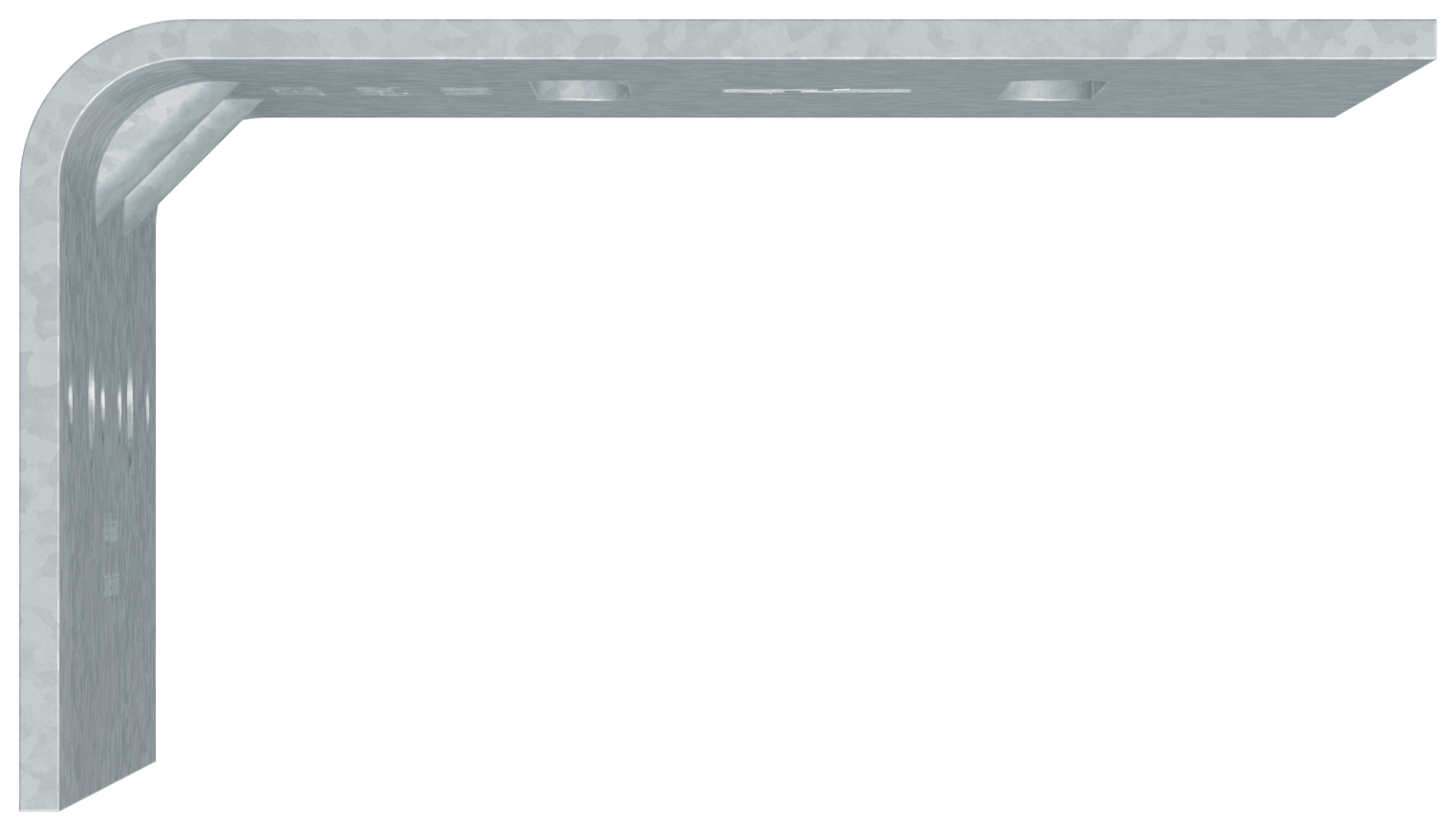

Simpson Strong-Tie SC32-5/97-KT25 SC 3-1/2 in. 12 ga. Bypass Framing Slide-Clip Connector w/ Screws (Qty-25)

Simpson Strong-Tie SC32-5/97-KT25 SC 3-1/2 in. 12 ga. Bypass Framing Slide-Clip Connector w/ Screws (Qty-25)

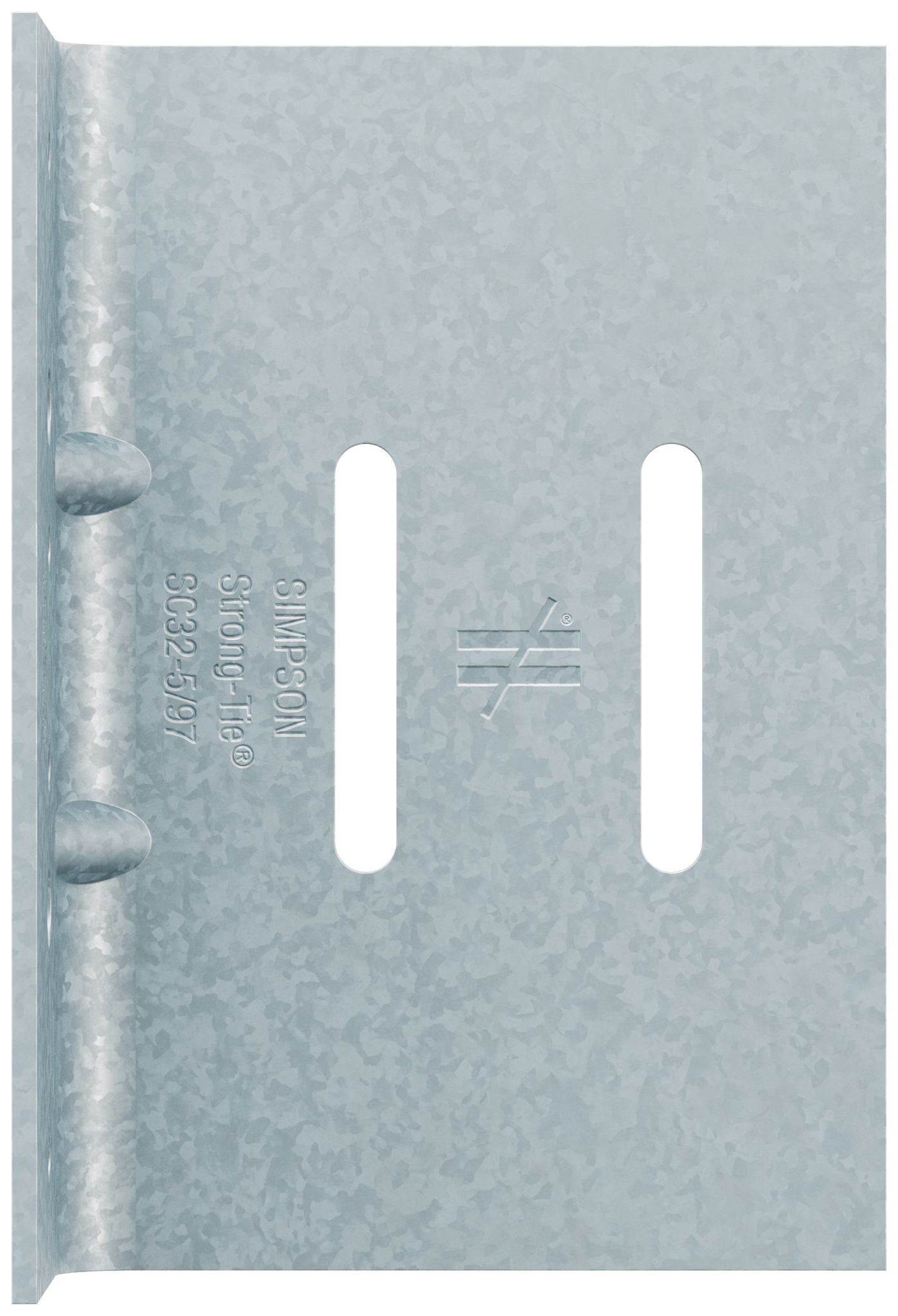

Ideal for high-seismic areas, Simpson Strong-Tie® SC connectors are the optimal solution for slide-clip bypass framing. SC clips are often welded to the structure in high-seismic zones, but they also feature anchorage holes so that concrete screws or powder-actuated fasteners can be used to attach the clip to the structure. In addition to anchorage versatility, the SC clips include No-Equal® stamps at the center of the slots to ensure proper shouldered screw placement. SC connectors are manufactured using heavy-duty steel to provide exceptional resistance to in-plane seismic load.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Provides a full 3/4 in. of both upward and downward deflection
• Embossments in the bend line provide increased strength and stiffness in the F1 and F2 load directions, but are positioned towards the center of the clip so that 1-1/2 in. long welds can be applied at the top and bottom of the clip

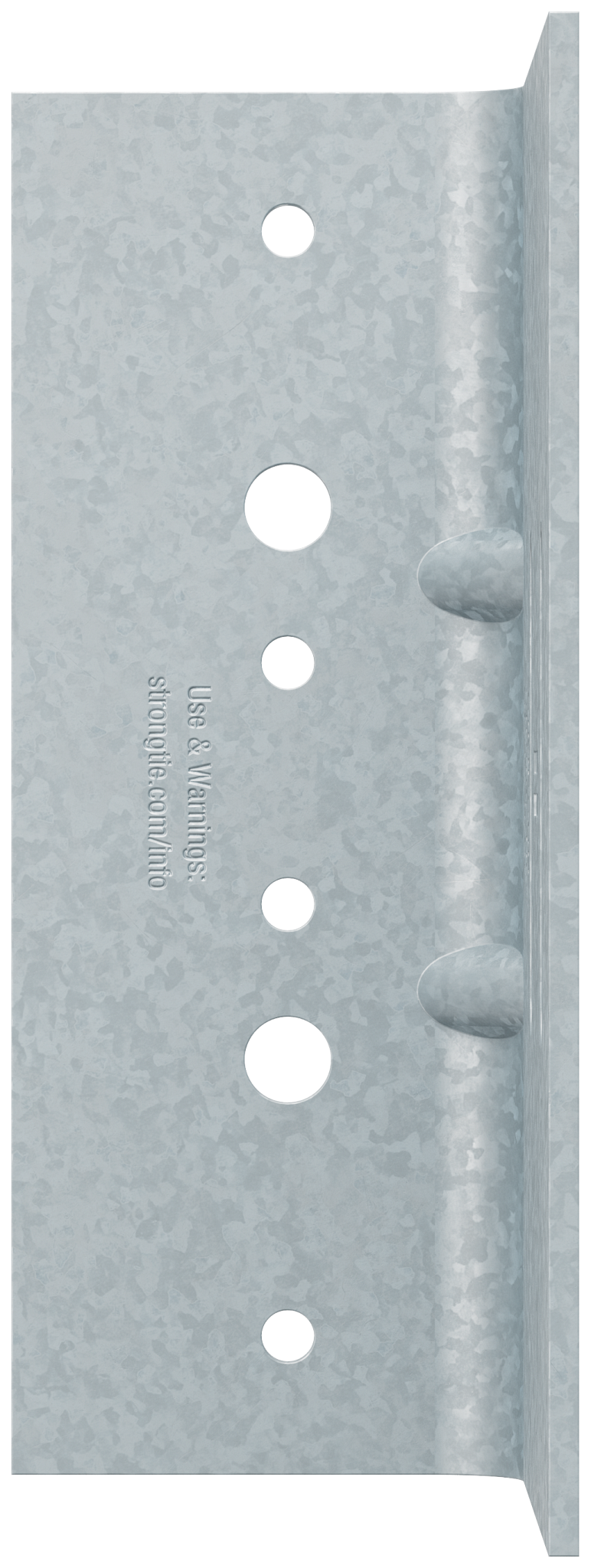

• Prepunched large-diameter anchor holes accommodate 1/4 in. diameter concrete screws like the Simpson Strong-Tie Titen HD®
• Prepunched small-diameter anchor holes accommodate powder-actuated fasteners like the 0.157 in. diameter Simpson Strong-Tie PDPAT or the #12 self-drilling Simpson Strong-Tie Strong-Drive® XL Large-Head Metal screw

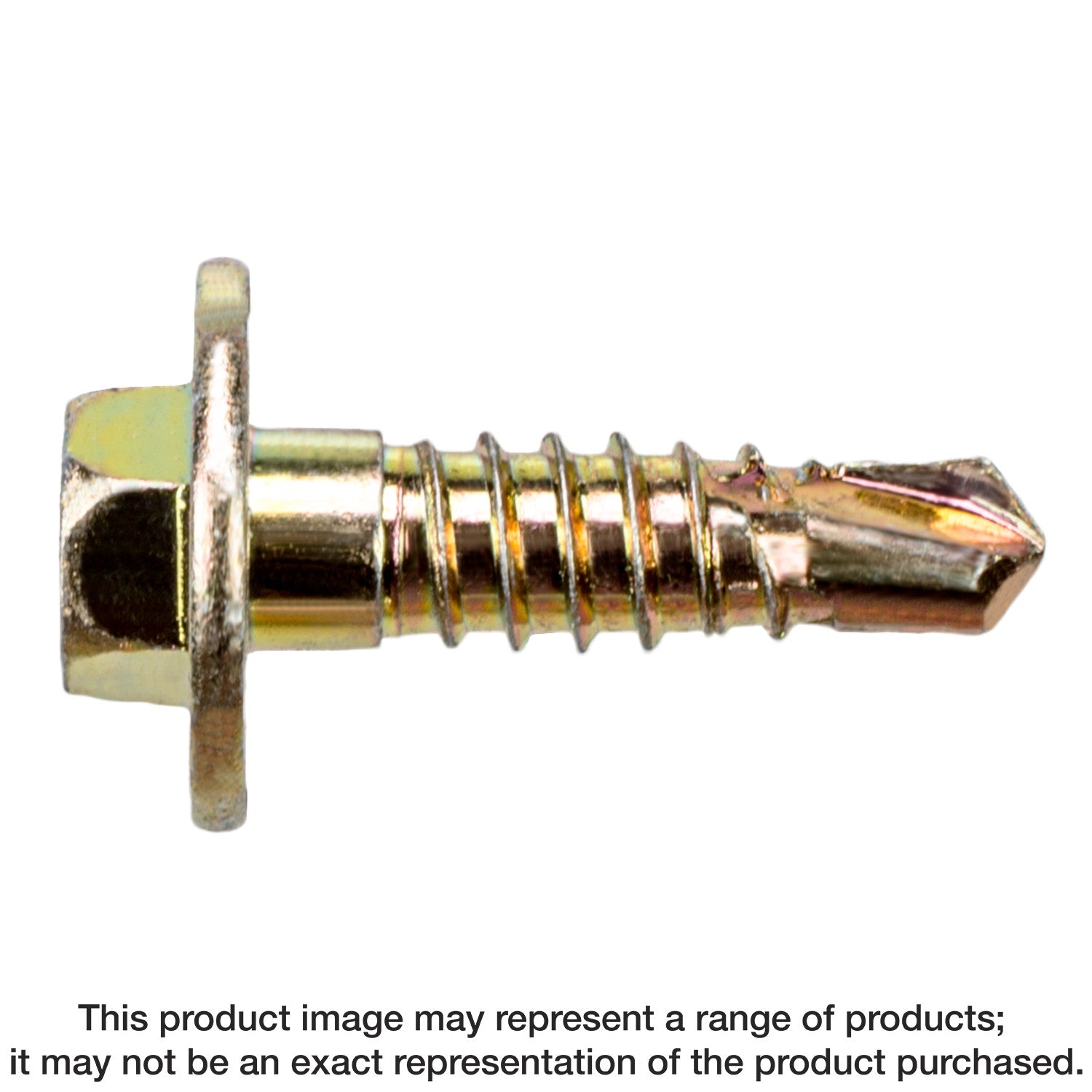

• Precision-manufactured shouldered screws, provided with SC connectors, are designed to prevent overdriving and to ensure the clip functions properly
• 3-1/2 in. clip length, suitable for 3-5/8 in. stud; the maximum standoff distance is 1 in. for 3-5/8 in. studs
• Made from 97 mil (12 ga.) steel; 50 ksi
• Quantity: 25 connectors per package

Application

• Bypass
• Curtain-Wall Construction
• Deflection
• Cold-Formed Steel
• Seismic (New Construction)

Specifications

• ERP Part Number: SC32-5/97-KT25
• UPC: 707392596783
• GTIN: 707392596783
• Feature 01: Provides a full 3/4 in. of both upward and downward deflection
• Feature 02: Embossments in the bend line provide increased strength and stiffness in the F1 and F2 load directions, but are positioned towards the center of the clip so that 1-1/2 in. long welds can be applied at the top and bottom of the clip
• Feature 03: Prepunched large-diameter anchor holes accommodate 1/4 in. diameter concrete screws like the Simpson Strong-Tie Titen HD®
• Feature 04: Prepunched small-diameter anchor holes accommodate powder-actuated fasteners like the 0.157 in. diameter Simpson Strong-Tie PDPAT or the #12 self-drilling Simpson Strong-Tie Strong-Drive® XL Large-Head Metal screw
• Feature 05: Precision-manufactured shouldered screws, provided with SC connectors, are designed to prevent overdriving and to ensure the clip functions properly
• Feature 06: 3-1/2 in. clip length, suitable for 3-5/8 in. stud; the maximum standoff distance is 1 in. for 3-5/8 in. studs
• Feature 07: Made from 97 mil (12 ga.) steel; 50 ksi
• Feature 08: Quantity: 25 connectors per package
• Install With: Fasteners may vary by application; refer to Simpson Strong-Tie® catalog or strongtie.com
• Applications List: Bypass
• Applications List.1: Curtain-Wall Construction
• Applications List.2: Deflection
• Applications List.3: Cold-Formed Steel
• Applications List.4: Seismic (New Construction)
• Assembled Depth - Imperial: 1.94275
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.474
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5
• Assembled Width UOM - Imperial: in.
• Base Product ID: SC_SClip
• Base Product Name: SC
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Deflection Connectors > Clip
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: PAC
• Finish: Zinc Galvanized, G90
• Gauge: 12
• GUID: 96480343314998979231432647557738349262
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pack
• Member Size: 3 5/8 in. stud
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 10.31
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 7.81
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 4.38
• Package Width UOM - Imperial: in.
• Packaging Quantity: 25
• Packaging Type: Box
• Product Class: Clip
• Product Includes: (25) connectors; (55) XLSH78B1414 #14 shouldered screws
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 20.14
• Short Product Name: SLIDE CLIP 2x3.5x5 12GA 25 PAK W/SCREWS
• Strongtie.com URL: https://www.strongtie.com/deflectionconnectors_coldformedsteelconstruction/sc_sclip/p/sc
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Deflection Connectors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392596788
