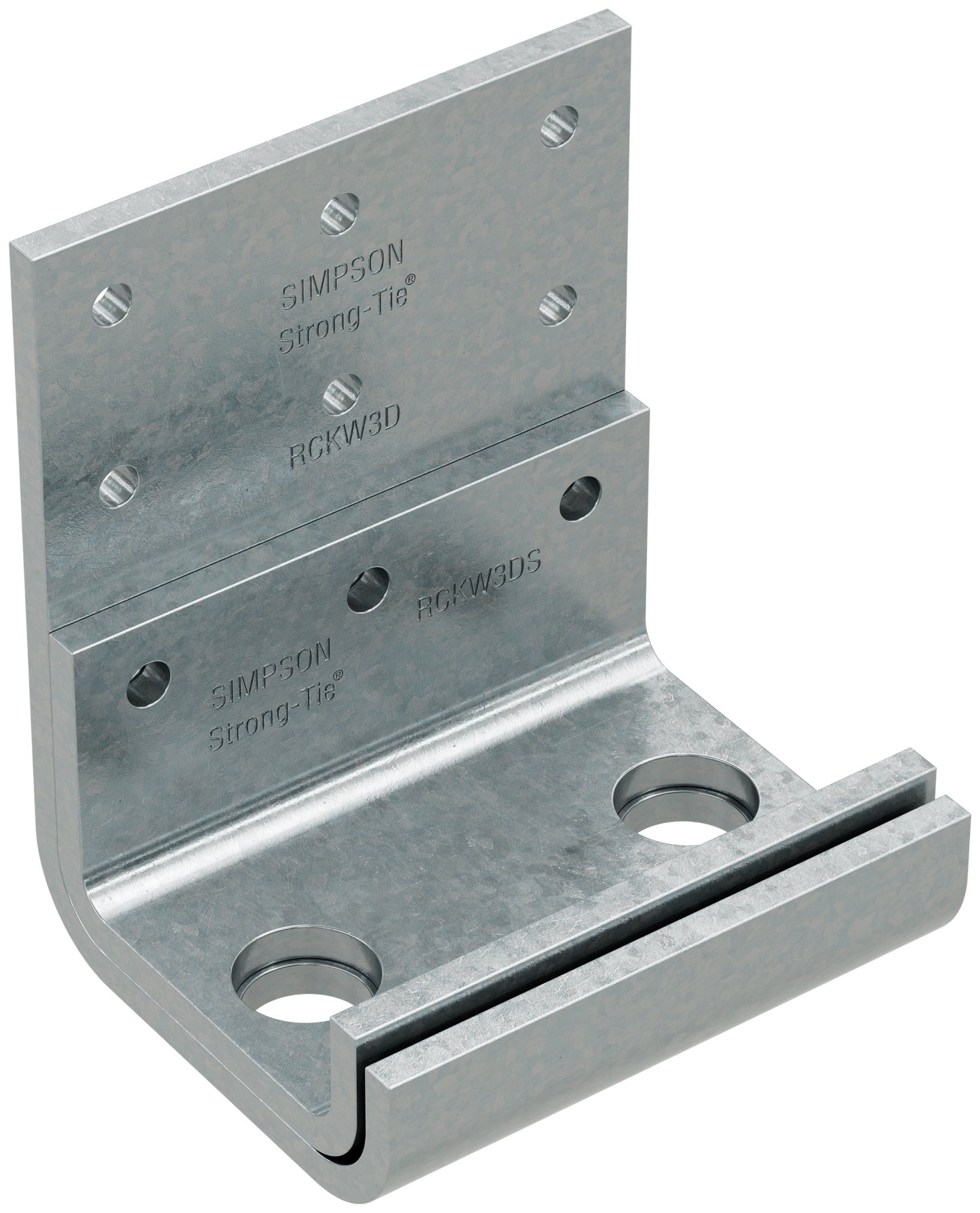

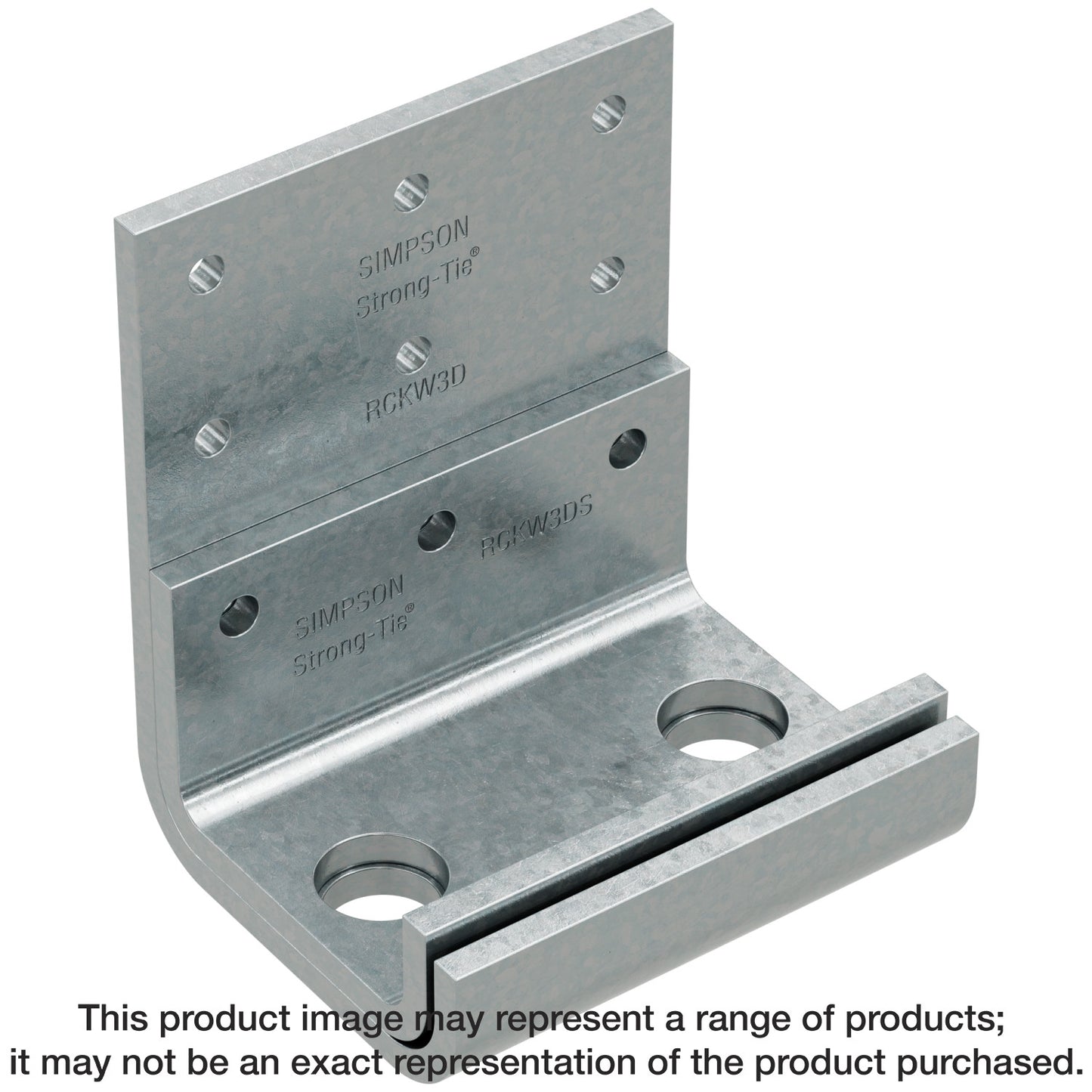

Simpson Strong-Tie RCKW3DS-R10 RCKW™ 3-in. Two-Anchor Kneewall Connector Stiffener (Qty-10) (Pack of 120)

Simpson Strong-Tie RCKW3DS-R10 RCKW™ 3-in. Two-Anchor Kneewall Connector Stiffener (Qty-10) (Pack of 120)

The Simpson Strong-Tie® RCKW is a heavy 171 mil (7 ga.) rigid connector that has been developed to resist overturning moment at the base of exterior kneewalls and parapets as well as interior partial-height walls or overhead ribbon window conditions. These connectors offer a unique small and large anchor-hole pattern that permits anchorage to both concrete and structural steel. If load requires more capacity, a stiffener, the RCKWS can be added. The RCKWS is a heavy 171 mil (7 ga.) stiffener that nests onto the RCKW clip. The screw holes and anchor holes in the stiffener line up with those in the RCKW clip, making fastener and anchor installation a snap. The RCKW clip and RCKWS stiffener are sold separately.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• RCKW3DS has two large holes, one on each end for increased anchorage capacity
• Anchorage legs incorporate stiffened flanges, improving overturning moment resistance
• (2) Large-diameter anchor holes accommodate 1/2-in. diameter concrete screw anchors and wedge anchors, such as the Simpson Strong-Tie Titen HD® heavy-duty screw anchor and the Strong-Bolt® 2 wedge anchor
• Width: 3 in.
• 171 mil (7 ga.) stiffener is secured to the RCKW clip with screws, optimizing overturning moment resistance and stiffness
• Galvanized (G90) for corrosion resistance
• Quantity: 10

Specifications

• ERP Part Number: RCKW3DS-R10
• UPC: 50707392021945
• GTIN: 50707392021945
• Feature 01: RCKW3DS has two large holes, one on each end for increased anchorage capacity
• Feature 02: Anchorage legs incorporate stiffened flanges, improving overturning moment resistance
• Feature 03: (2) Large-diameter anchor holes accommodate 1/2-in. diameter concrete screw anchors and wedge anchors, such as the Simpson Strong-Tie Titen HD® heavy-duty screw anchor and the Strong-Bolt® 2 wedge anchor
• Feature 04: Width: 3 in.
• Feature 05: 171 mil (7 ga.) stiffener is secured to the RCKW clip with screws, optimizing overturning moment resistance and stiffness
• Feature 06: Galvanized (G90) for corrosion resistance
• Feature 07: Quantity: 10
• Assembled Depth - Imperial: 2.1875
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 1.50
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3
• Assembled Width UOM - Imperial: in.
• Base Product ID: RCKW_Connect
• Base Product Name: RCKW™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Rigid Connectors > Clip Stiffener
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• GUID: 27246260381041619796650860696762877936
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Clip Stiffener
• Prop 65 Warning: No
• Quantity: 120
• Shipping Weight: 670.8
• Short Product Name: CFS STIFFENER 1.5X2X3, 2hole, 7GA 10 PAK
• Strongtie.com URL: https://www.strongtie.com/rigidconnectors_coldformedsteelconstruction/rckw_connect/p/rckw
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Rigid Connectors
• US Patents: 9,938,709
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 707392021940
