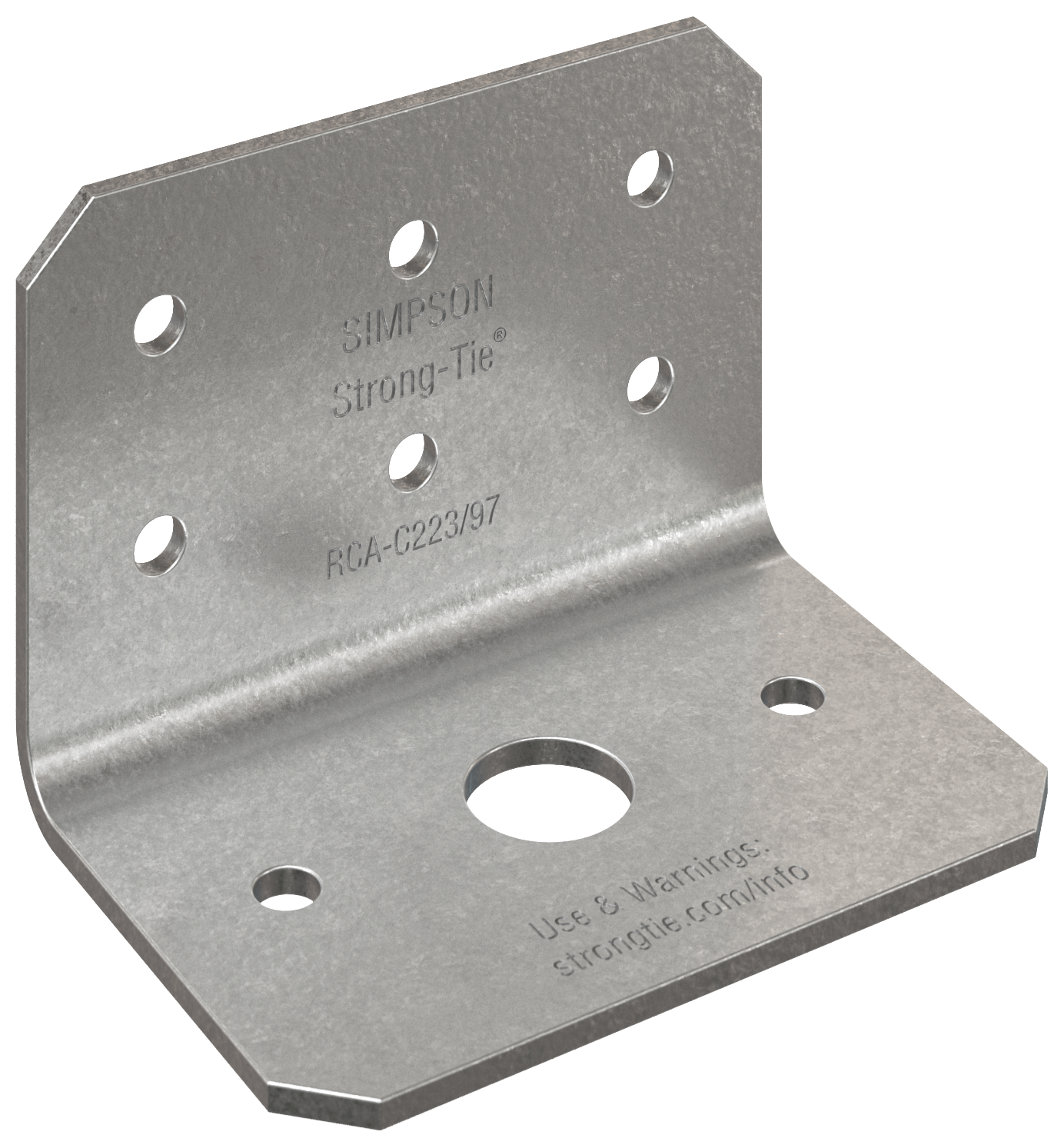

Simpson Strong-Tie RCA-C223/97-R90 RCA-C™ 2 in. x 2 in. x 3 in. 12-Gauge Rigid Connector Angle for Concrete (90-Qty) (Pack of 40)

Simpson Strong-Tie RCA-C223/97-R90 RCA-C™ 2 in. x 2 in. x 3 in. 12-Gauge Rigid Connector Angle for Concrete (90-Qty) (Pack of 40)

The Simpson Strong-Tie® RCA-C is an ideal solution for attaching stud framing to concrete supports. The connector’s design includes holes for a 1/2-in. diameter anchor screw or bolt, or for two 1/4-in. diameter concrete screws, positioned in a wide array of fastening options — thus saving the installer the time and cost of drilling connector holes at the jobsite. In addition, the RCA-C connector has been rigorously tested and load rated, giving you the confidence of quality and performance for your job.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• 2-in. x 2 -in. legs provide plenty of room to make attachments to structure and stud framing
• Multiple screw pattern options to stud framing for different load rating
• Can be used as either a heavy-duty shear and tension connector or light-duty moment connection
• Prepunched holes for screws to stud framing and attachment to concrete; prepunched holes on anchor leg provide options for (1) 1/2 -in. diameter anchor, (2) 1/4-in. diameter anchors, or (2) 1/4-in. diameter concrete screws
• Attachment to concrete or masonry can be achieved with 1/2-in. diameter Titen HD®, 1/2-in. diameter Strong-Bolt® 2, 1/4-in. diameter Titen HD, or 1/4-in. diameter Titen Turbo™
• Made from 12-gauge (97 mil) steel
• Galvanized (G90) for corrosion resistance
• Size: 2 in. x 2 in. x 3 in.
• Quantity: 90

Specifications

• ERP Part Number: RCA-C223/97-R90
• UPC: 50707392024175
• GTIN: 50707392024175
• Feature 01: 2-in. x 2 -in. legs provide plenty of room to make attachments to structure and stud framing
• Feature 02: Multiple screw pattern options to stud framing for different load rating
• Feature 03: Can be used as either a heavy-duty shear and tension connector or light-duty moment connection
• Feature 04: Prepunched holes for screws to stud framing and attachment to concrete; prepunched holes on anchor leg provide options for (1) 1/2 -in. diameter anchor, (2) 1/4-in. diameter anchors, or (2) 1/4-in. diameter concrete screws
• Feature 05: Attachment to concrete or masonry can be achieved with 1/2-in. diameter Titen HD®, 1/2-in. diameter Strong-Bolt® 2, 1/4-in. diameter Titen HD, or 1/4-in. diameter Titen Turbo™
• Feature 06: Made from 12-gauge (97 mil) steel
• Feature 07: Galvanized (G90) for corrosion resistance
• Feature 08: Size: 2 in. x 2 in. x 3 in.
• Feature 09: Quantity: 90
• Assembled Depth - Imperial: 2.0365
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.00525
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3
• Assembled Width UOM - Imperial: in.
• Base Product ID: RCA-C_Clip
• Base Product Name: RCA-C
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Angles and Plates > Angle
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• GUID: 317866394263247516161548089645125455249
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Angle
• Prop 65 Warning: No
• Quantity: 40
• Shipping Weight: 1200.4
• Short Product Name: CFS Concrete Clip 2x2x3 12ga 90 pak
• Strongtie.com URL: https://www.strongtie.com/rigidconnectors_coldformedsteelconstruction/rca-c_clip/p/rca-c
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Angles and Plates
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 707392024170
