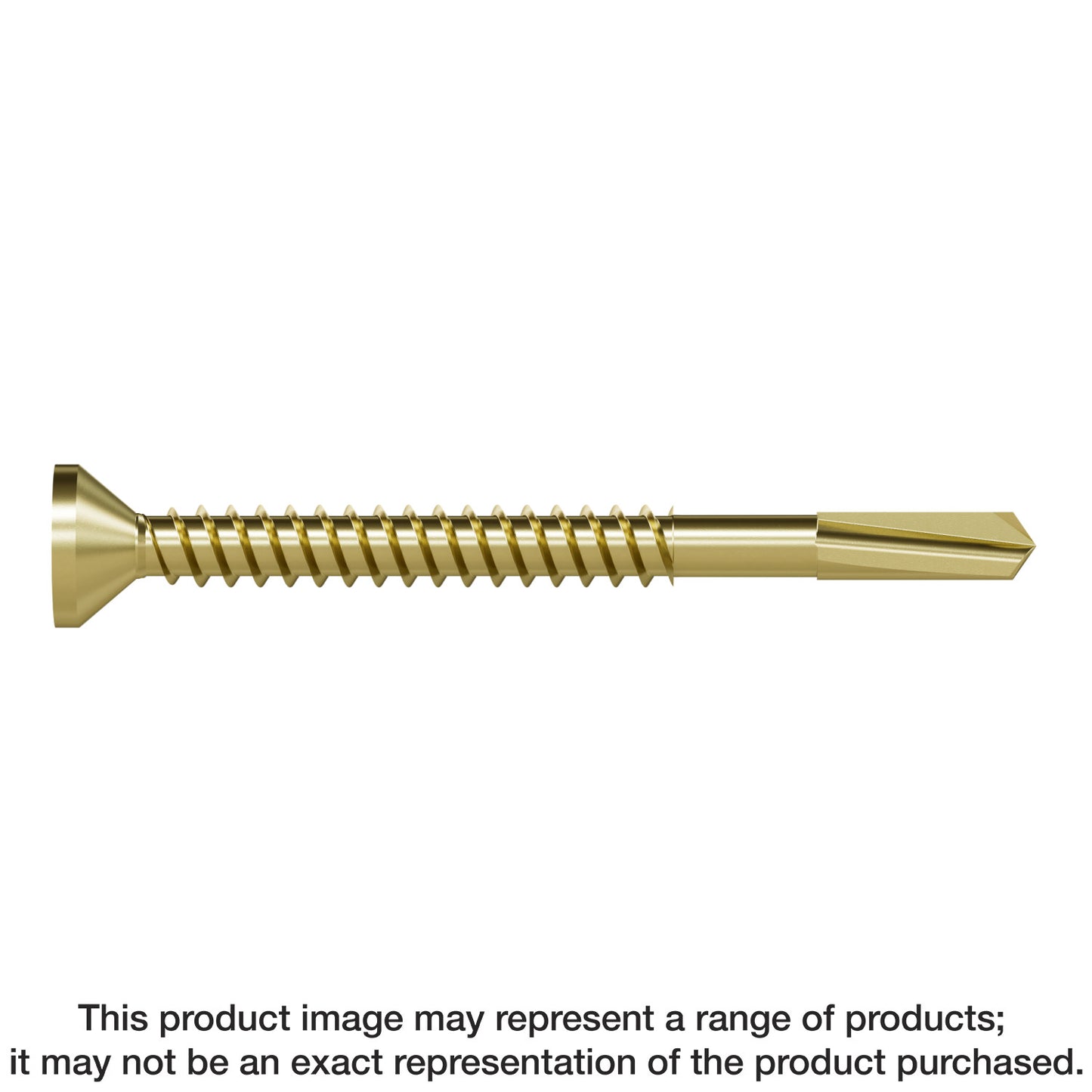

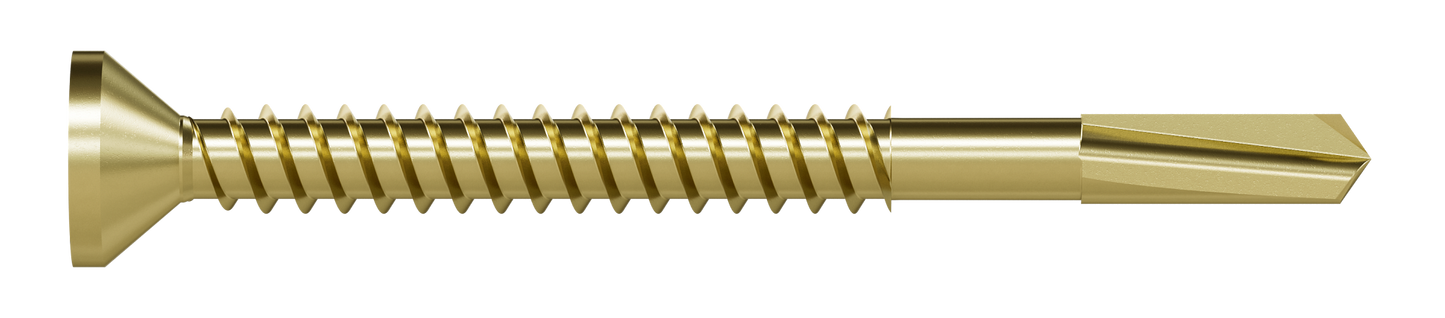

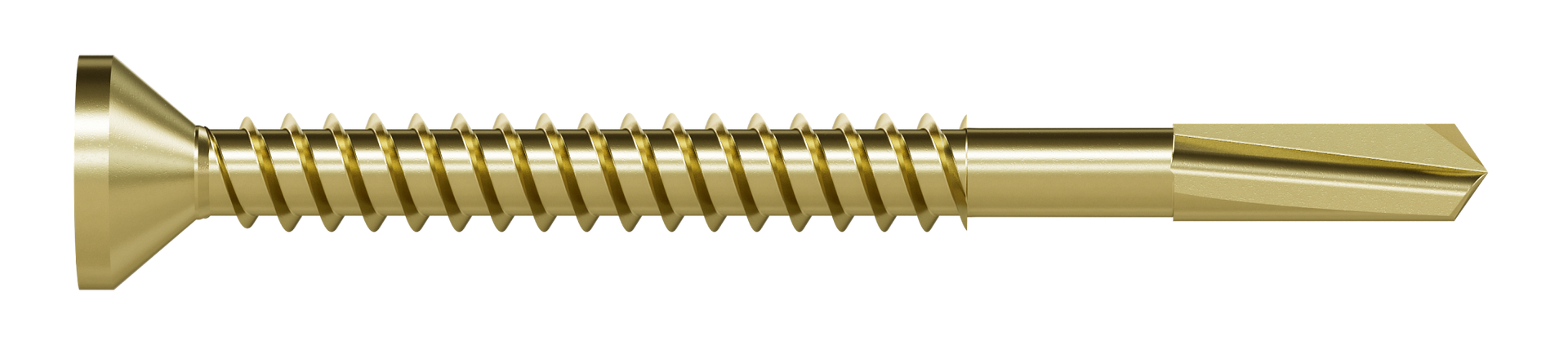

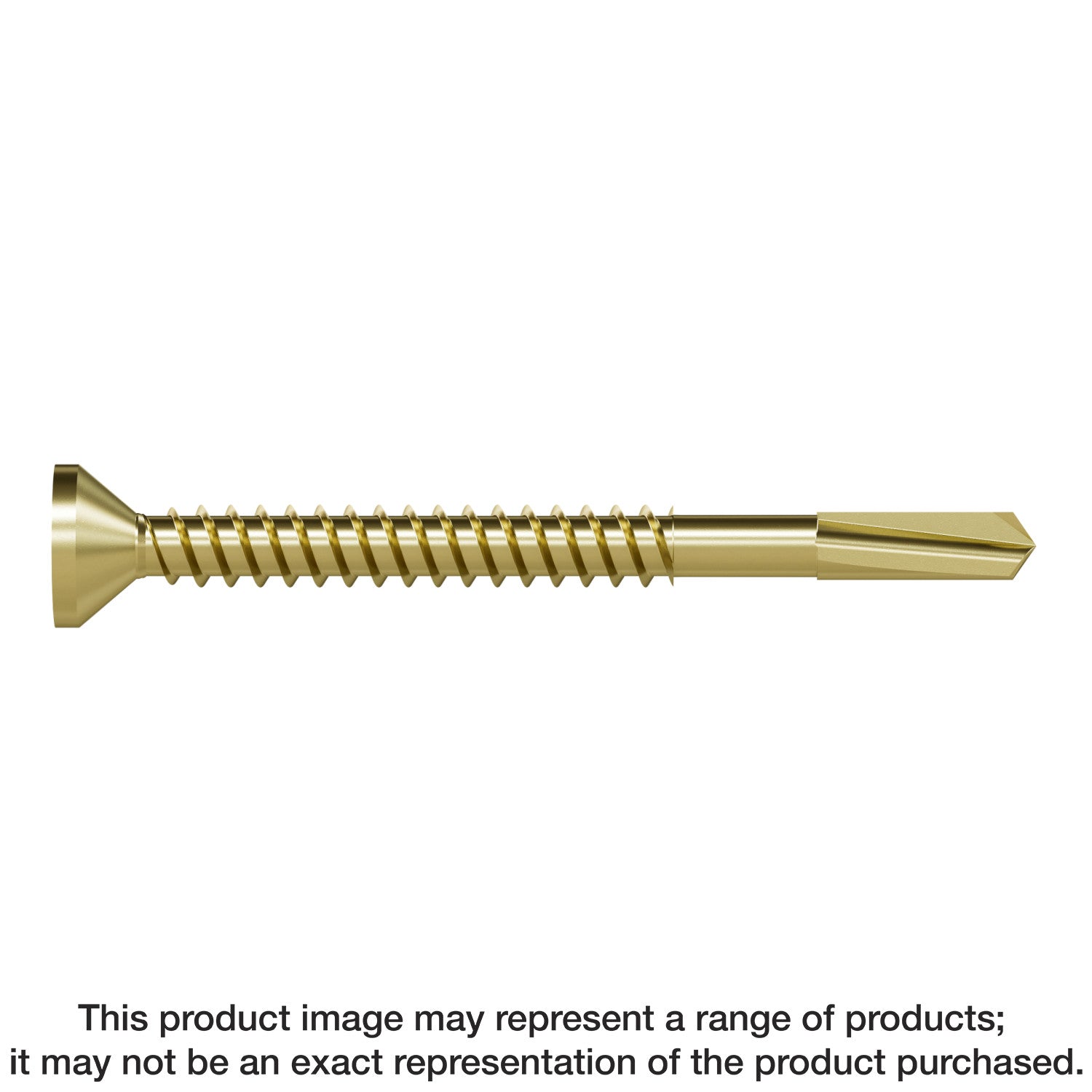

Simpson Strong-Tie PPHD11516S0818 Strong-Drive® PPHD SHEATHING-TO-CFS Screw (Collated) — #8 x 1-15/16 in. T25, Yellow Zinc (2000-Qty)

Simpson Strong-Tie PPHD11516S0818 Strong-Drive® PPHD SHEATHING-TO-CFS Screw (Collated) — #8 x 1-15/16 in. T25, Yellow Zinc (2000-Qty)

Simpson Strong-Tie® metal screws are designed to provide strength and superior performance in steel and other metal applications. With a variety of features, these fasteners meet the requirements for residential, agricultural and commercial projects. The Strong-Drive PPHD Sheathing-to-CFS screw is designed to drive through sheathing materials and into cold-formed steel (CFS) using its long #5 drill point and buttressed thread design. The Strong-Drive PPHD Sheathing-to-CFS screw comes collated for use in Quik Drive auto-feed screw driving systems and in bulk for hand drive applications.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Larger #5 pilot point with longer flute
• Buttress threads and dog-ear point provide faster drilling through sheathing and metal
• 6-lobe recess for a more secure drive
• Compatible with Quik Drive PRO300SG2, PRO250G2 and PRO200SG2 auto-feed screw driving systems
• PPHD screws may be used as prescribed by the codes for shearwalls and diaphragms as described in AISA S240 and AISIS400
• (2) T25 6-lobe driver bits included (replacement bit model QRTX25-1.5)
• Length: 1-15/16 in.
• Yellow-zinc coating
• Quantity: 2,000

Application

• Fastening Wood to Steel — Sheathing
• Fastening for Cold-Formed Steel
• Cold-Formed Steel

Specifications

• ERP Part Number: PPHD11516S0818
• UPC: 707392017905
• GTIN: 707392017905
• Feature 01: Larger #5 pilot point with longer flute
• Feature 02: Buttress threads and dog-ear point provide faster drilling through sheathing and metal
• Feature 03: 6-lobe recess for a more secure drive
• Feature 04: Compatible with Quik Drive PRO300SG2, PRO250G2 and PRO200SG2 auto-feed screw driving systems
• Feature 05: PPHD screws may be used as prescribed by the codes for shearwalls and diaphragms as described in AISA S240 and AISIS400
• Feature 06: (2) T25 6-lobe driver bits included (replacement bit model QRTX25-1.5)
• Feature 07: Length: 1-15/16 in.
• Feature 08: Yellow-zinc coating
• Feature 09: Quantity: 2,000
• Install With: Installs with the Simpson Strong-Tie® Quik Drive® PRO200SG2, PRO250G2, or PRO300SG2 auto-feed screw driving systems
• Applications List: Fastening Wood to Steel — Sheathing
• Applications List.1: Fastening for Cold-Formed Steel
• Applications List.2: Cold-Formed Steel
• Assembled Depth - Imperial: 0.323
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 1.9375
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.323
• Assembled Width UOM - Imperial: in.
• Base Product ID: PPHD_CScrew
• Base Product Name: Strong-Drive® PPHD SHEATHING-TO-CFS Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Metal Screws > Collated Screw
• Coating: Yellow-Zinc Coated
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: T25 6-Lobe
• EAN category: UC
• Finish: Yellow-Zinc Coated
• GUID: 231612521784815666052452567128324289151
• Head Diameter (in.): 0.323
• Head Type: Flat Head
• Length (in.): 1 15/16
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Max. Grip Length (in.): 1.034
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 14.375
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 4.125
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 10.750
• Package Width UOM - Imperial: in.
• Packaging Quantity: 2000
• Packaging Type: Box
• Point Size: 5
• Point Type: Pilot Point
• Product Class: Collated Screw
• Product Includes: (2) driver bits included
• Prop 65 Warning: No
• Quantity: 1
• Screw Size: #8
• Shipping Weight: 17.5
• Short Product Name: #8 X 1-15/16IN T25 PILOT PT 2000/BX
• Subcategory: Fasteners
• Subcategory 2: Metal Screws
• Thread Type: Buttress Threads
• TPI: 17
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392017900
