Simpson Strong-Tie PINW-300 PINW 3 in. Powder-Actuated Metal-Washered Pin for Insulation Board (50-Qty)

Simpson Strong-Tie PINW-300 PINW 3 in. Powder-Actuated Metal-Washered Pin for Insulation Board (50-Qty)

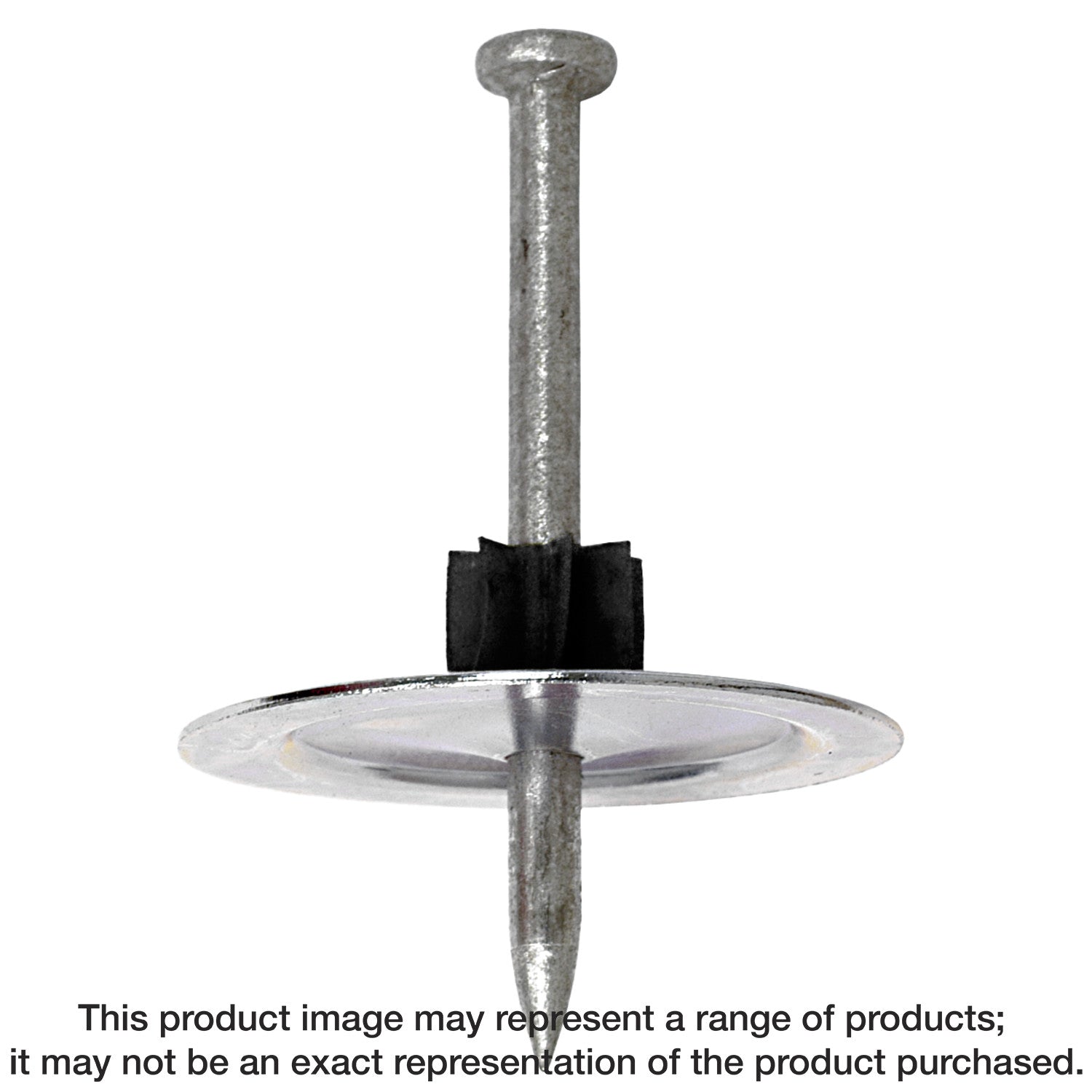

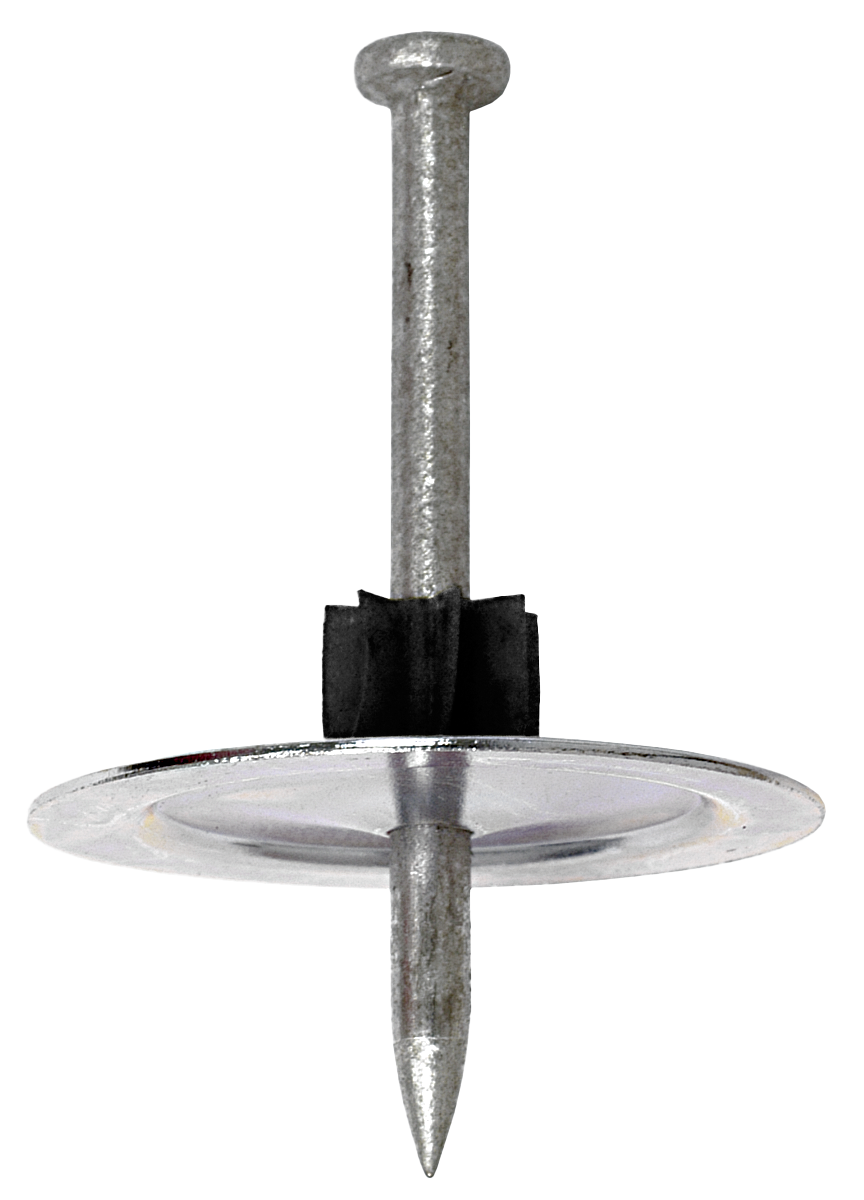

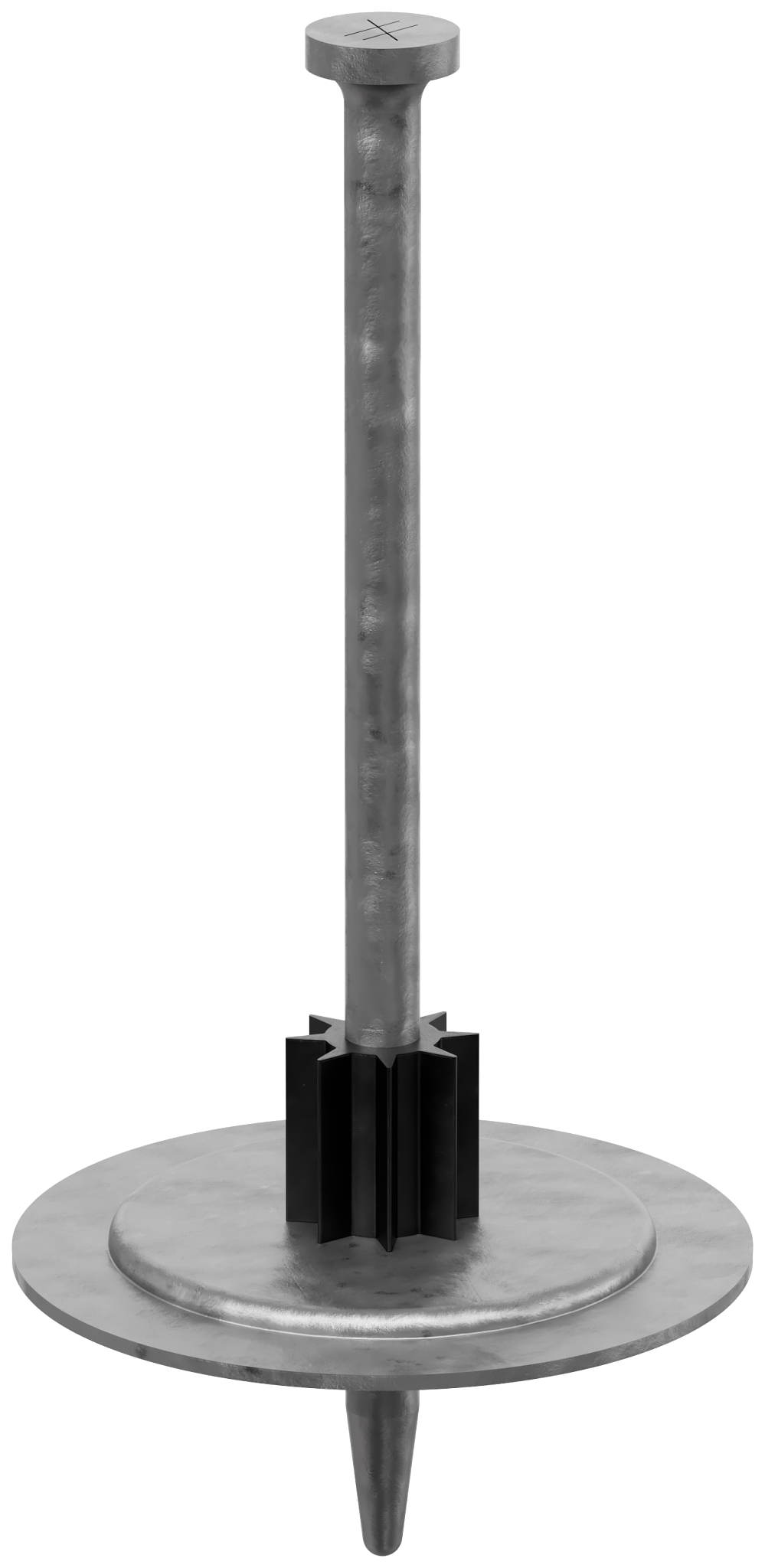

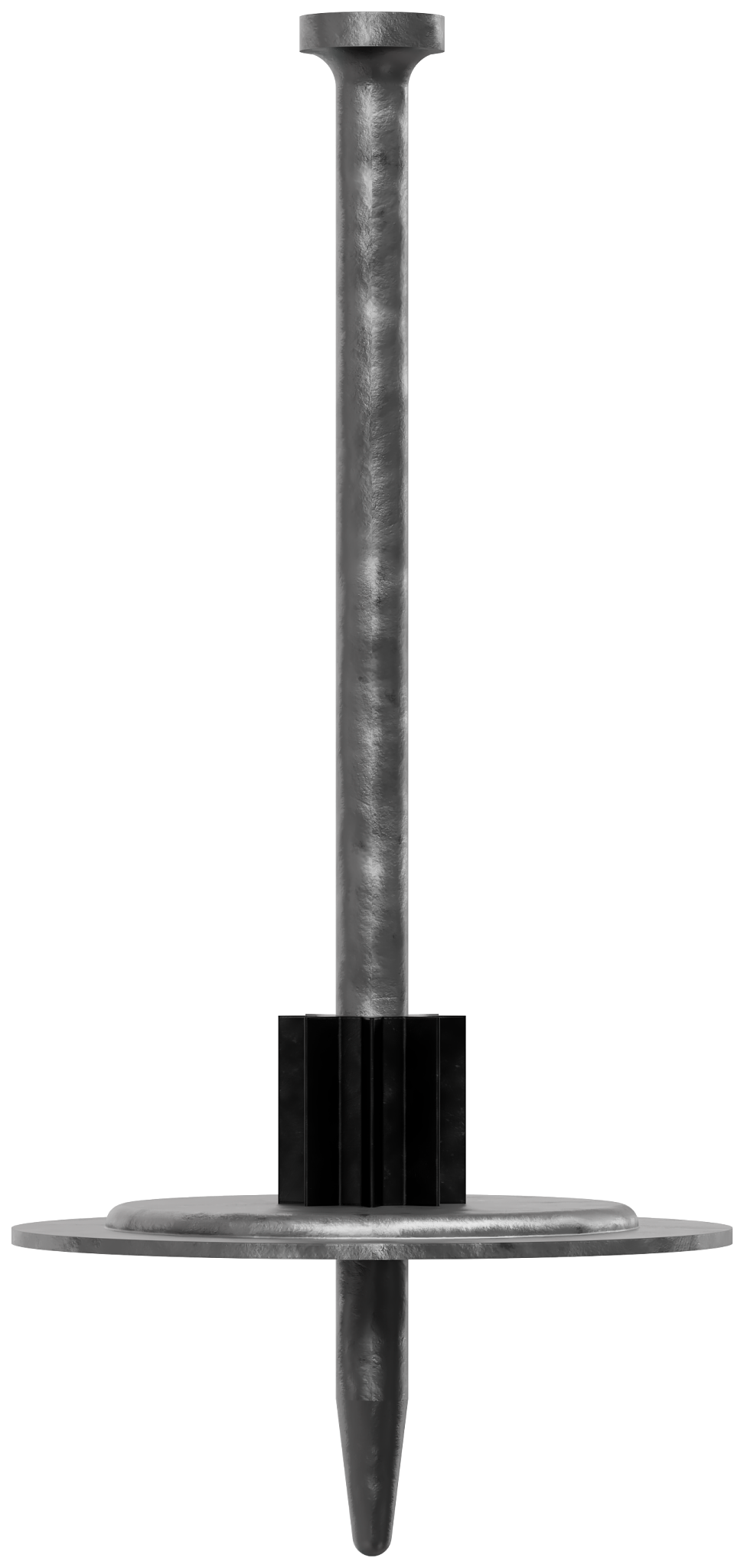

Simpson Strong-Tie offers a full range of gas- and powder-actuated tools and fasteners designed to maximize jobsite productivity and operator comfort. The PINW is a powder-actuated washered pin designed to fasten rigid insulation board to building structures. The PINW consists of a 0.300-in. headed fastener with a pre-mounted 1-7/16 in. flat metal washer. The PINW is for high-volume applications and is designed for fastening into concrete and steel.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• The minimum effective shank length must equal or exceed the combined thickness of the attached material and the minimum embedment depth
• Code listed per ICC-ES ESR-2138 and Florida FL15730
• Designed for use with Simpson Strong-Tie® powder-actuated tools and compatible with many competitive tools
• 0.300-in. pin head diameter
• 0.145-in. pin shank diameter
• 3 in. pin length

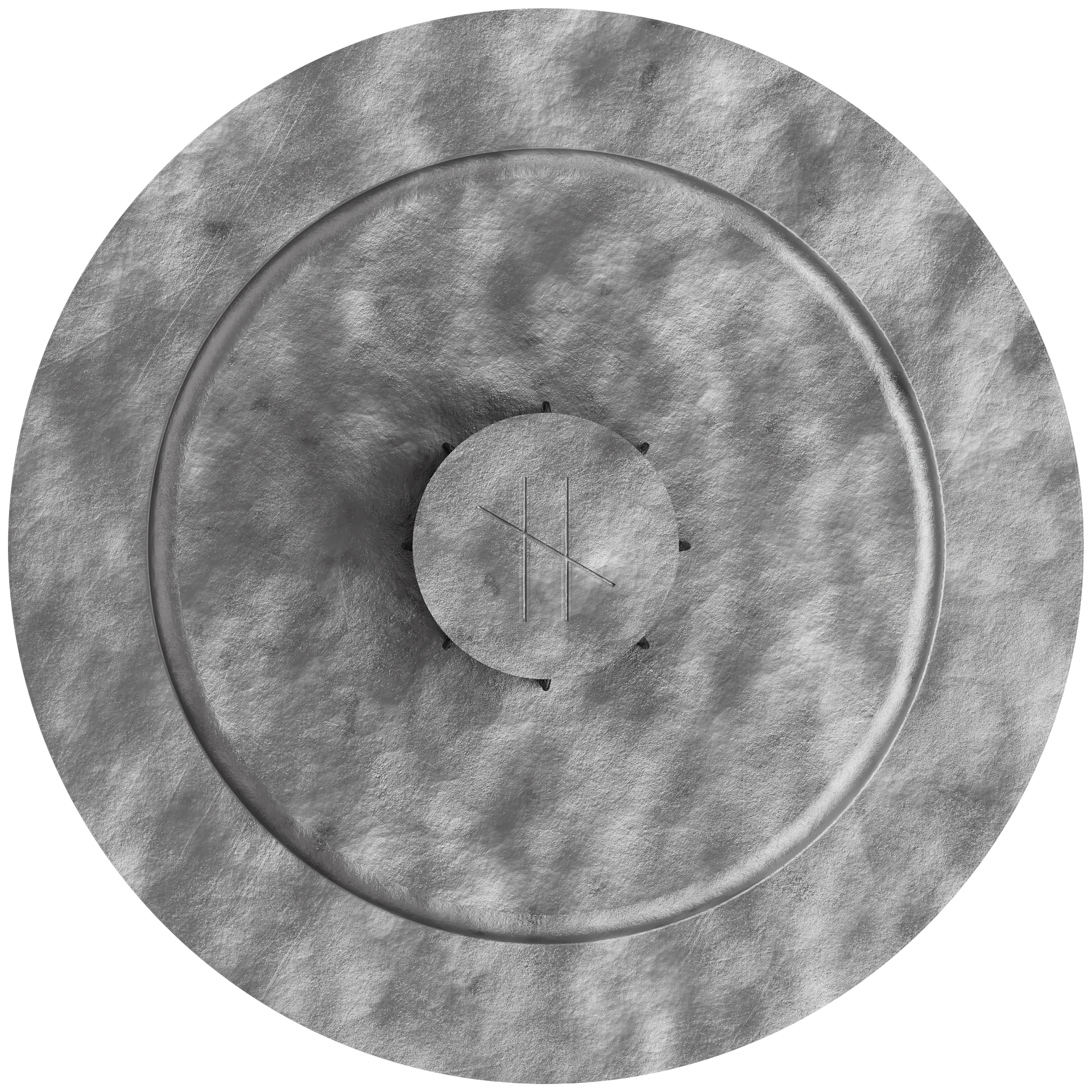

• 1-7/16 in. zinc-plated washer
• Mechanically galvanized carbon-steel pin
• Quantity: 50

Specifications

• ERP Part Number: PINW-300
• UPC: 707392694830
• GTIN: 707392694830
• Feature 01: The minimum effective shank length must equal or exceed the combined thickness of the attached material and the minimum embedment depth
• Feature 02: Code listed per ICC-ES ESR-2138 and Florida FL15730
• Feature 03: Designed for use with Simpson Strong-Tie® powder-actuated tools and compatible with many competitive tools
• Feature 04: 0.300-in. pin head diameter
• Feature 05: 0.145-in. pin shank diameter
• Feature 06: 3 in. pin length
• Feature 07: 1-7/16 in. zinc-plated washer
• Feature 08: Mechanically galvanized carbon-steel pin
• Feature 09: Quantity: 50
• Assembled Depth - Imperial: 1.4375
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.069
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 1.4375
• Assembled Width UOM - Imperial: in.
• Base Product ID: PINW_Pin
• Base Product Name: PINW
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Direct Fastening > Powder-Actuated Fasteners > Pin
• Coating: Mechanically Galvanized
• Coating.1: Zinc Plated
• Country of Origin: CN
• Customer Unit: Yes
• Display Unit/Measure: PAC
• EAN category: UC
• Finish: Zinc Plated/Mechanically Galvanized
• GUID: 77872095266619762735872337284851462256
• Head Diameter (in.): 0.300
• Length (in.): 3
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Steel
• Measurement Unit Text: Pack
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 4.250
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 4.000
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 5.250
• Package Width UOM - Imperial: in.
• Packaging Quantity: 50
• Packaging Type: Box
• Product Class: Pin
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shank Diameter (in.): 0.145
• Shipping Weight: 1.5
• Short Product Name: 3in LV Insul pin with metal washer
• Strongtie.com URL: https://www.strongtie.com/patfasteners_powderactuatedfasteningsystems/pinw_pin/p/pinw
• Subcategory: Direct Fastening
• Subcategory 2: Powder-Actuated Fasteners
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 20707392694803
