Simpson Strong-Tie PECLDPA-131 PECLDPA Powder-Actuated 120° Compact Ceiling Clip with 1-5/16 in. Pin (100-Qty)

Simpson Strong-Tie PECLDPA-131 PECLDPA Powder-Actuated 120° Compact Ceiling Clip with 1-5/16 in. Pin (100-Qty)

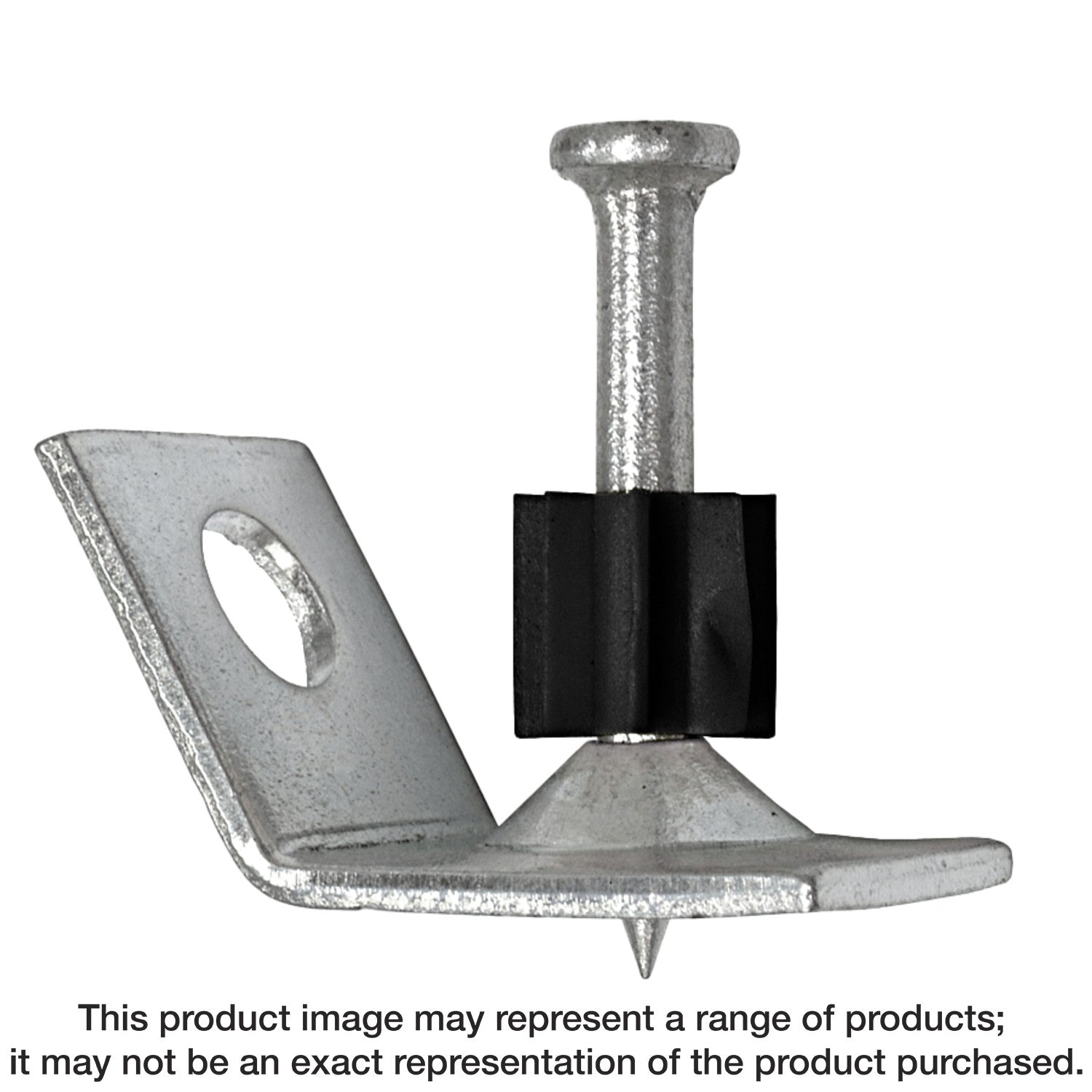

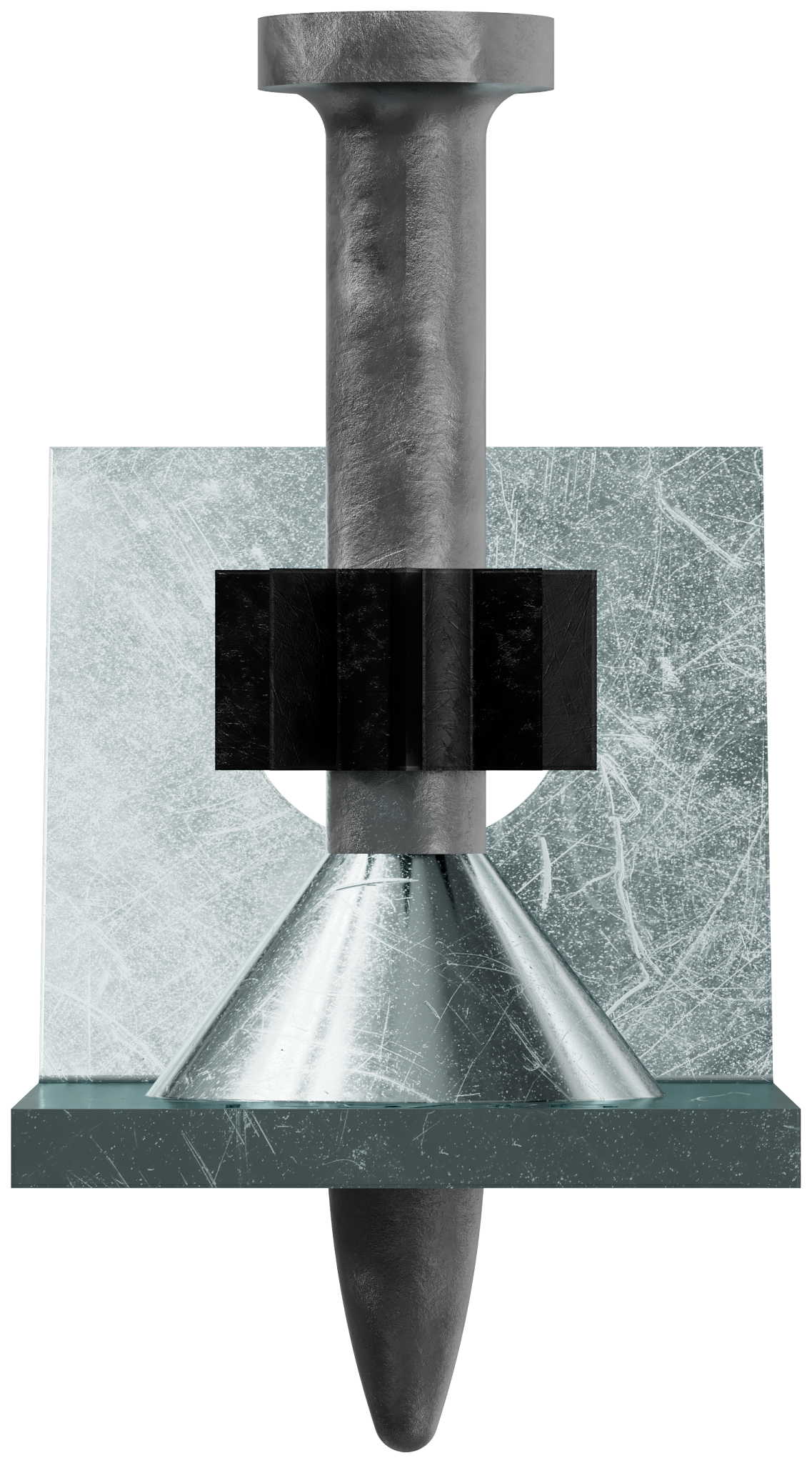

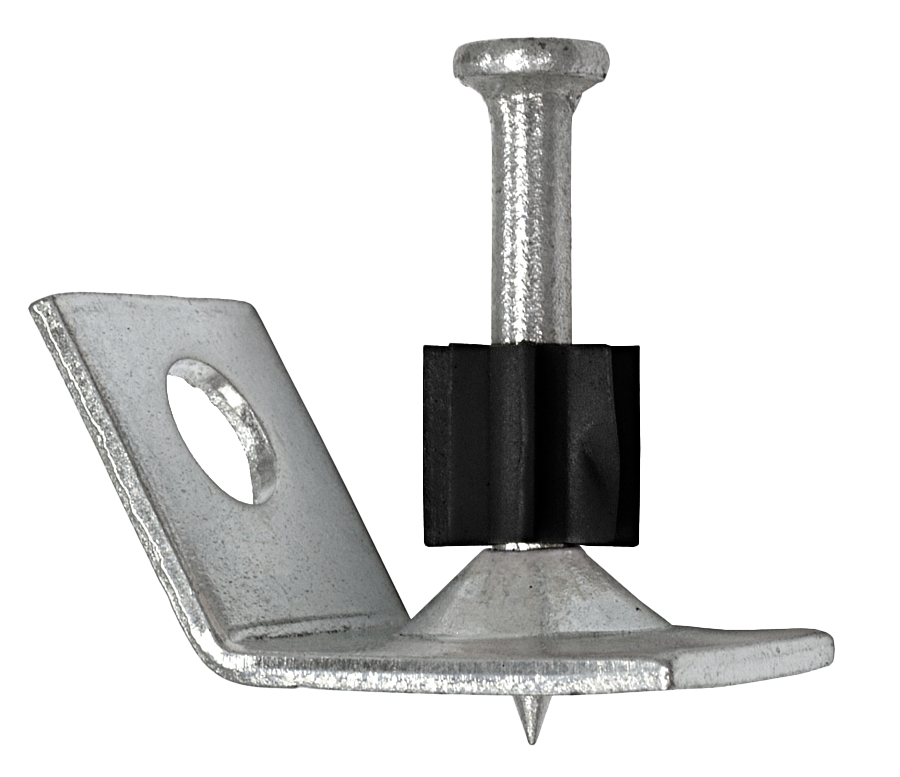

Simpson Strong-Tie offers a full range of gas- and powder-actuated tools and fasteners designed to maximize jobsite productivity and operator comfort. The PECLDPA is a powder-actuated assembly designed to attach ceiling wires to concrete. The PECLDPA consists of a hardened-steel PDPA pin attached to a 120° clip angle. This compact ceiling clip is compatible with Simpson Strong-Tie® powder-actuated tool systems as well as other common tools and can be installed with an overhead extension pole.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
• Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
• 14-gauge ceiling clip
• 0.300-in. pin head diameter
• 0.157-in. pin shank diameter
• 1-5/16 in. pin length
• Zinc-plated ceiling clip; mechanically galvanized carbon-steel pin
• Quantity: 100

Specifications

• ERP Part Number: PECLDPA-131
• UPC: 707392435129
• GTIN: 707392435129
• Feature 01: The minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
• Feature 02: Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
• Feature 03: 14-gauge ceiling clip
• Feature 04: 0.300-in. pin head diameter
• Feature 05: 0.157-in. pin shank diameter
• Feature 06: 1-5/16 in. pin length
• Feature 07: Zinc-plated ceiling clip; mechanically galvanized carbon-steel pin
• Feature 08: Quantity: 100
• Assembled Depth - Imperial: 1.28125
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 1.41
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.748
• Assembled Width UOM - Imperial: in.
• Base Product ID: PECLDPA_Pin
• Base Product Name: PECLDPA
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Direct Fastening > Powder-Actuated Fasteners > Pin
• Coating: Mechanically Galvanized
• Coating.1: Zinc Plated
• Country of Origin: CN
• Customer Unit: Yes
• Display Unit/Measure: PAC
• Finish: Zinc Plated/Mechanically Galvanized
• GUID: 75323210980861876778592464467519887685
• Head Diameter (in.): 0.300
• Length (in.): 1 5/16
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Steel
• Measurement Unit Text: Pack
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 4.250
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 4.000
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 5.250
• Package Width UOM - Imperial: in.
• Packaging Quantity: 100
• Packaging Type: Box
• Product Class: Pin
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shank Diameter (in.): 0.157
• Shipping Weight: 3
• Short Product Name: 1-5/16IN, PECL CLIP
• Strongtie.com URL: https://www.strongtie.com/patfasteners_powderactuatedfasteningsystems/pecldpa_pin/p/pecldpa
• Subcategory: Direct Fastening
• Subcategory 2: Powder-Actuated Fasteners
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392455759
