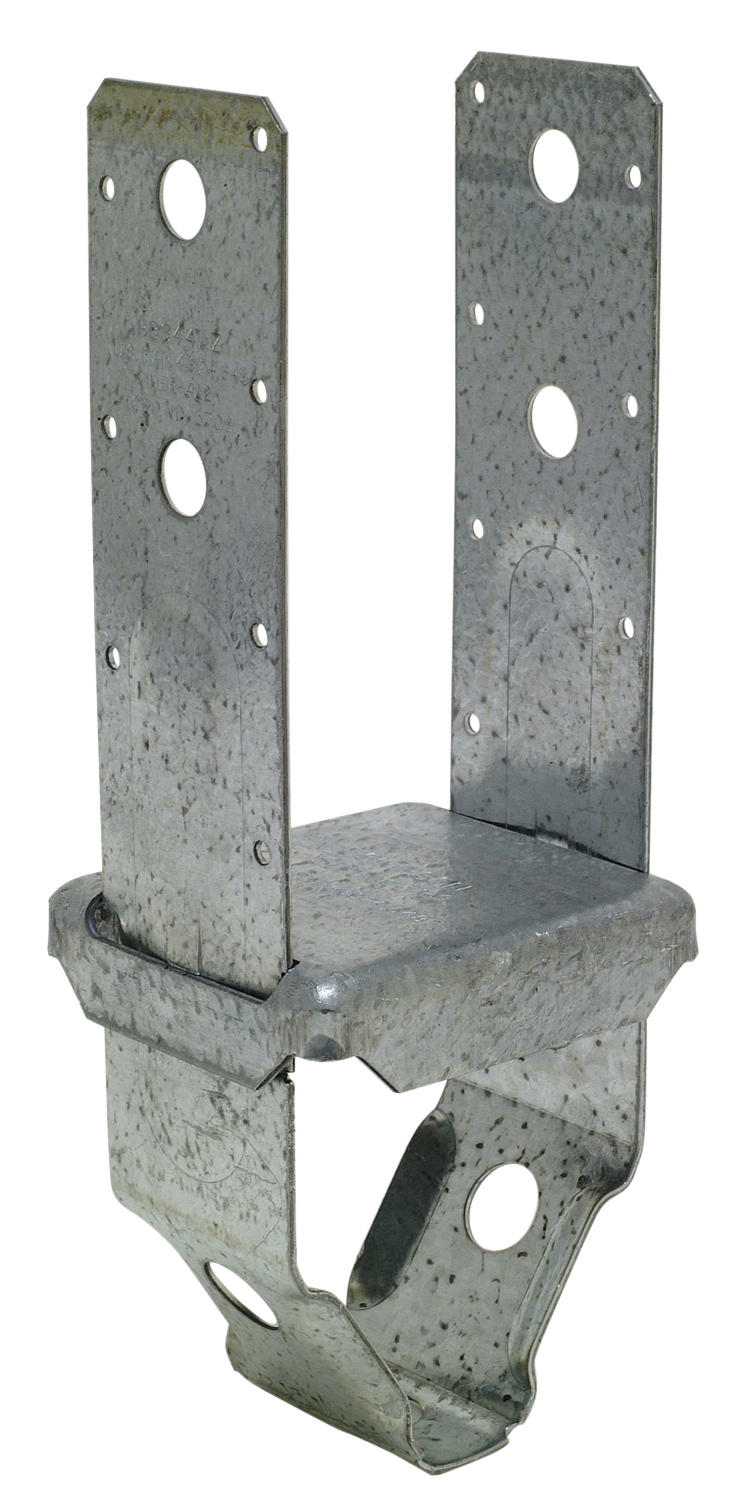

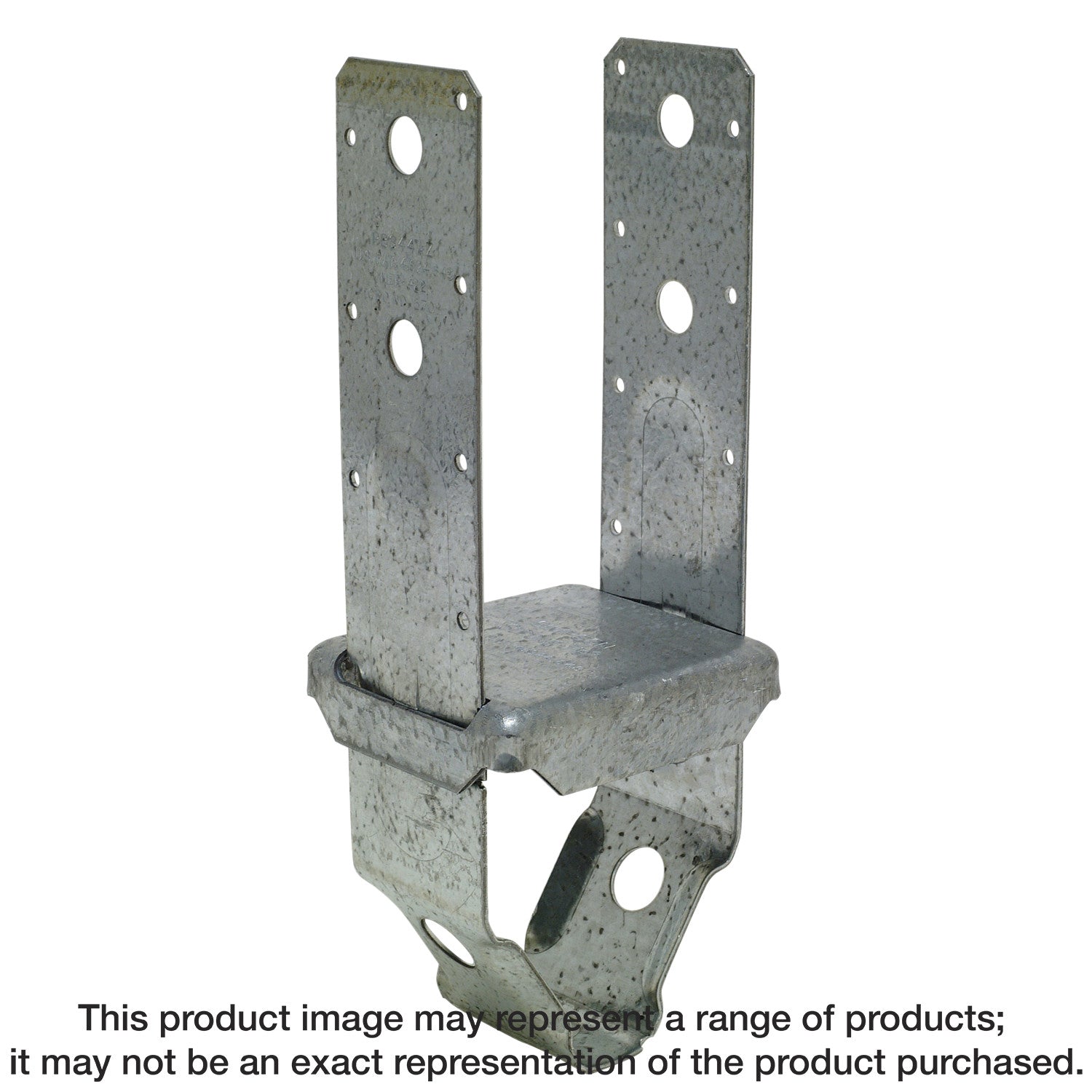

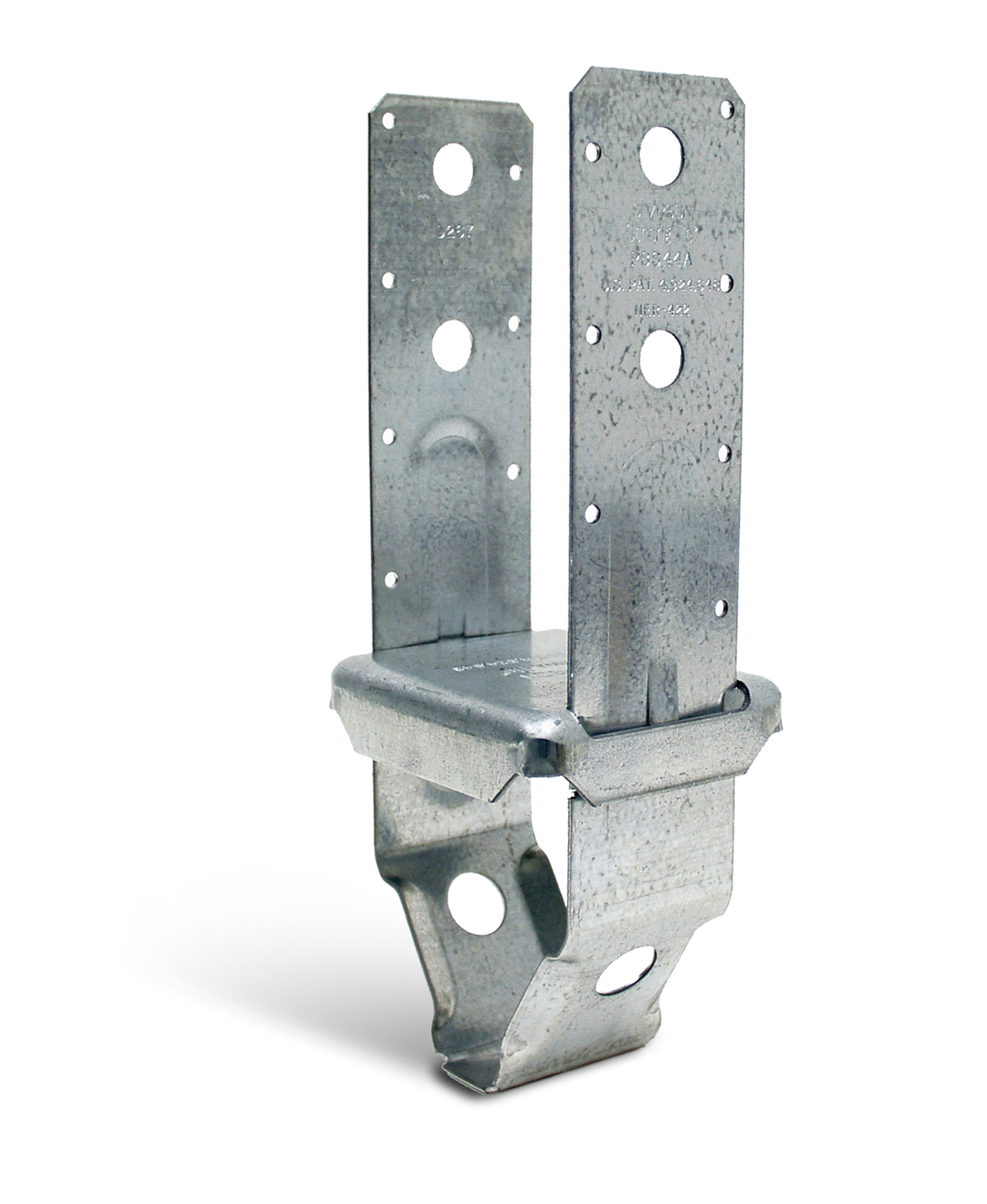

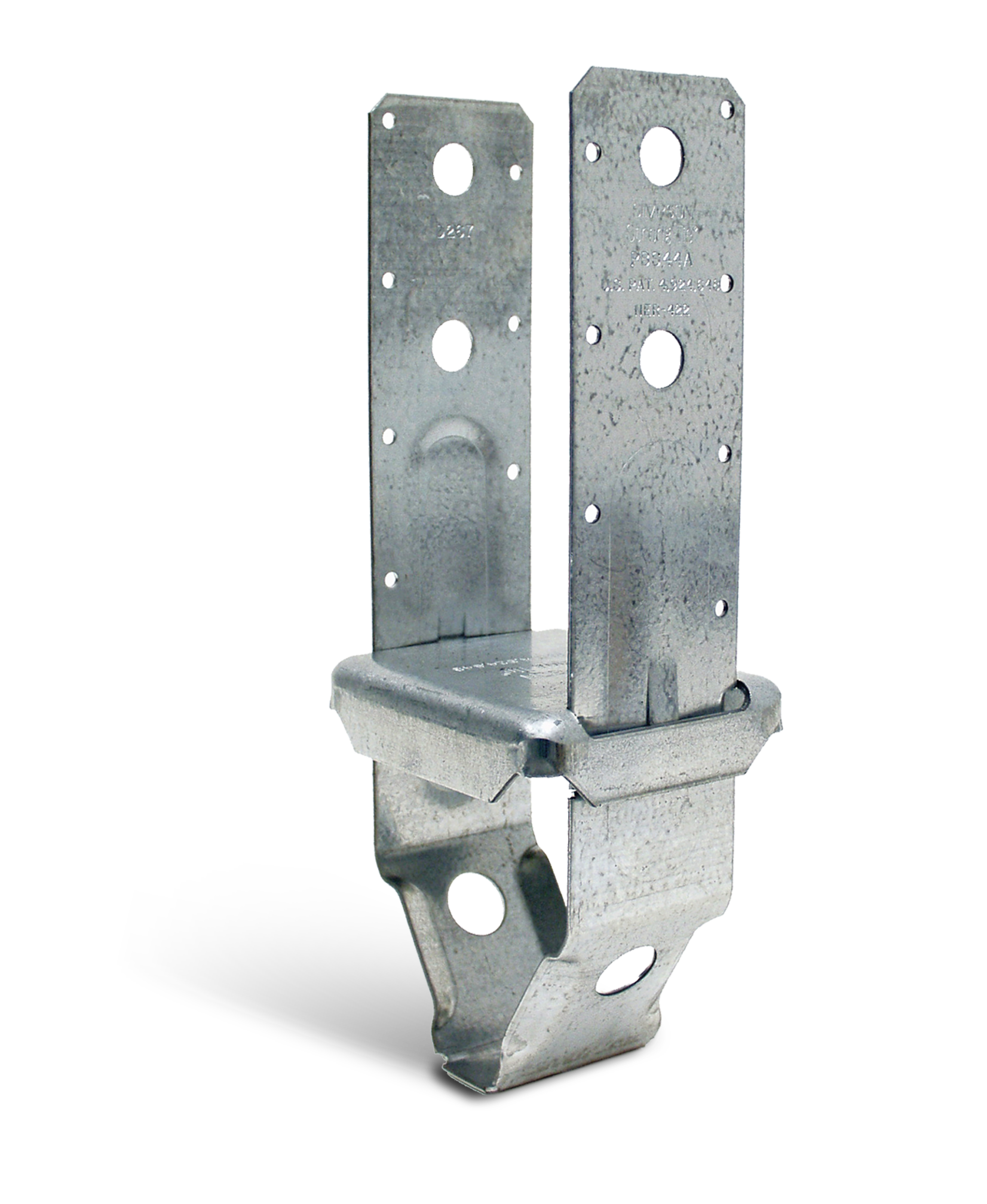

Simpson Strong-Tie PBS44AZ PBS ZMAX® Galvanized Standoff Post Base for 4x4

Simpson Strong-Tie PBS44AZ PBS ZMAX® Galvanized Standoff Post Base for 4x4

Simpson Strong-Tie® post bases connect the bottom of wood posts or columns to a concrete foundation. The PBS is designed to provide a secure connection between a post (or column) and concrete in projects including decks, patio covers and other top-supported structures. These post bases are elevated 1 in. to avoid contact of the wood post with standing water to help prevent rot at the post end.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Provides a 1-in. standoff between post and concrete that meets code requirements
• Embeds in wet concrete before it has cured and is designed to install flush with the concrete surface
• Embossment in the vertical straps provides increased strength
• Optional fastening with either nails or bolts
• Nominal post size: 4x4
• Base 12-ga. steel; Strap 14-ga. steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: PBS44AZ
• UPC: 707392191803
• GTIN: 707392191803
• Feature 01: Provides a 1-in. standoff between post and concrete that meets code requirements
• Feature 02: Embeds in wet concrete before it has cured and is designed to install flush with the concrete surface
• Feature 03: Embossment in the vertical straps provides increased strength
• Feature 04: Optional fastening with either nails or bolts
• Feature 05: Nominal post size: 4x4
• Feature 06: Base 12-ga. steel; Strap 14-ga. steel
• Feature 07: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Install With: (14) 0.162 in. x 3-1/2 in. nails or (2) 1/2 in. diameter bolts
• Assembled Depth - Imperial: 3.5
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 10.79075
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 4.0625
• Assembled Width UOM - Imperial: in.
• Base Product ID: PBS_Base
• Base Product Name: PBS
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Bases > Post Base
• Coating: ZMAX®
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: ZMAX®
• Gauge: Base 12; strap 14
• GUID: 273700452323707694804506153641261521890
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 4x4
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Post Base
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 1.8
• Short Product Name: 4 X 4 POST BASE STAND OFF ZMAX
• Strongtie.com URL: https://www.strongtie.com/standoffpostbases_castinplacepostbases/pbs_base/p/pbs
• Subcategory: Wood Construction Connectors
• Subcategory 2: Bases
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392191800
• PAL Reference: 50707392191808
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
