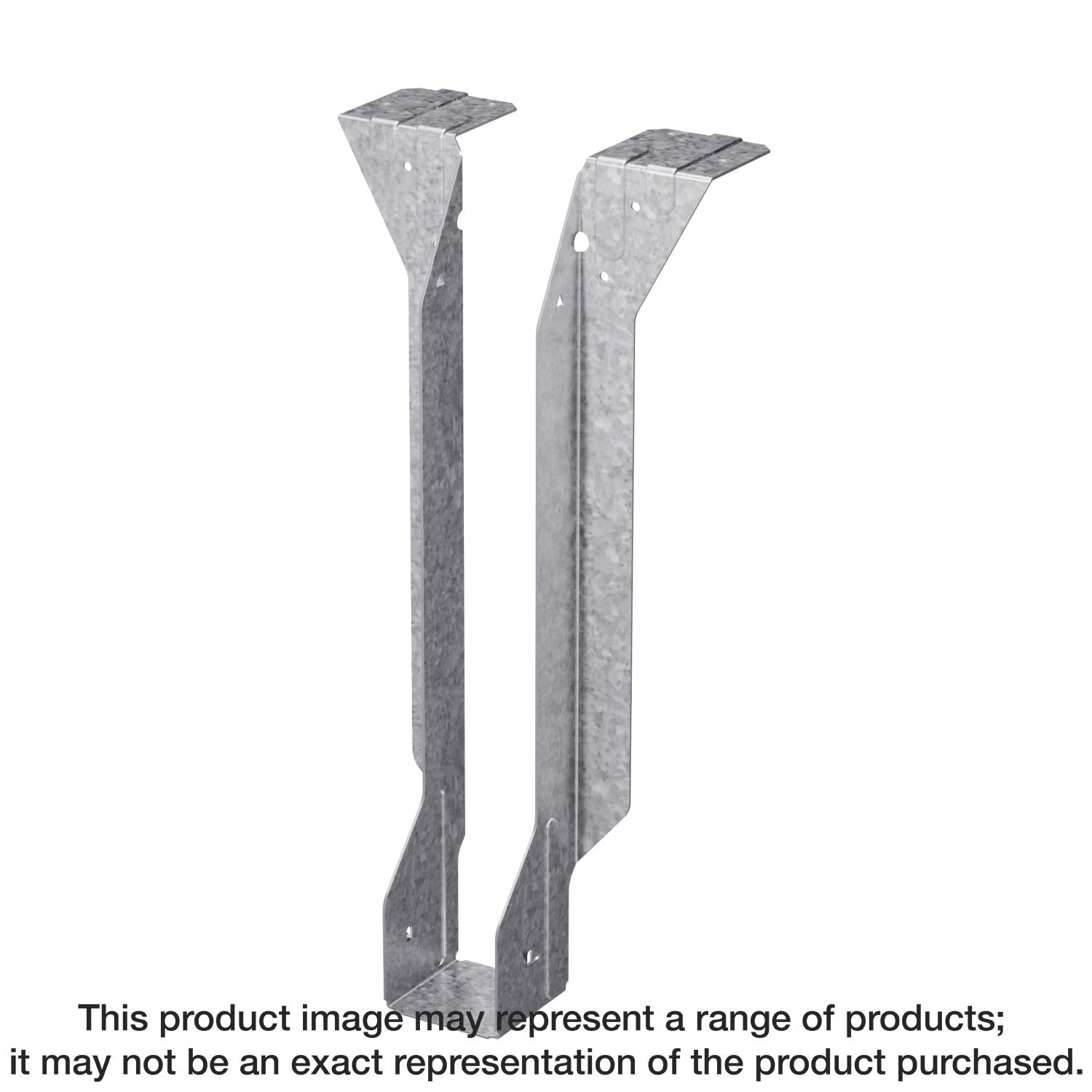

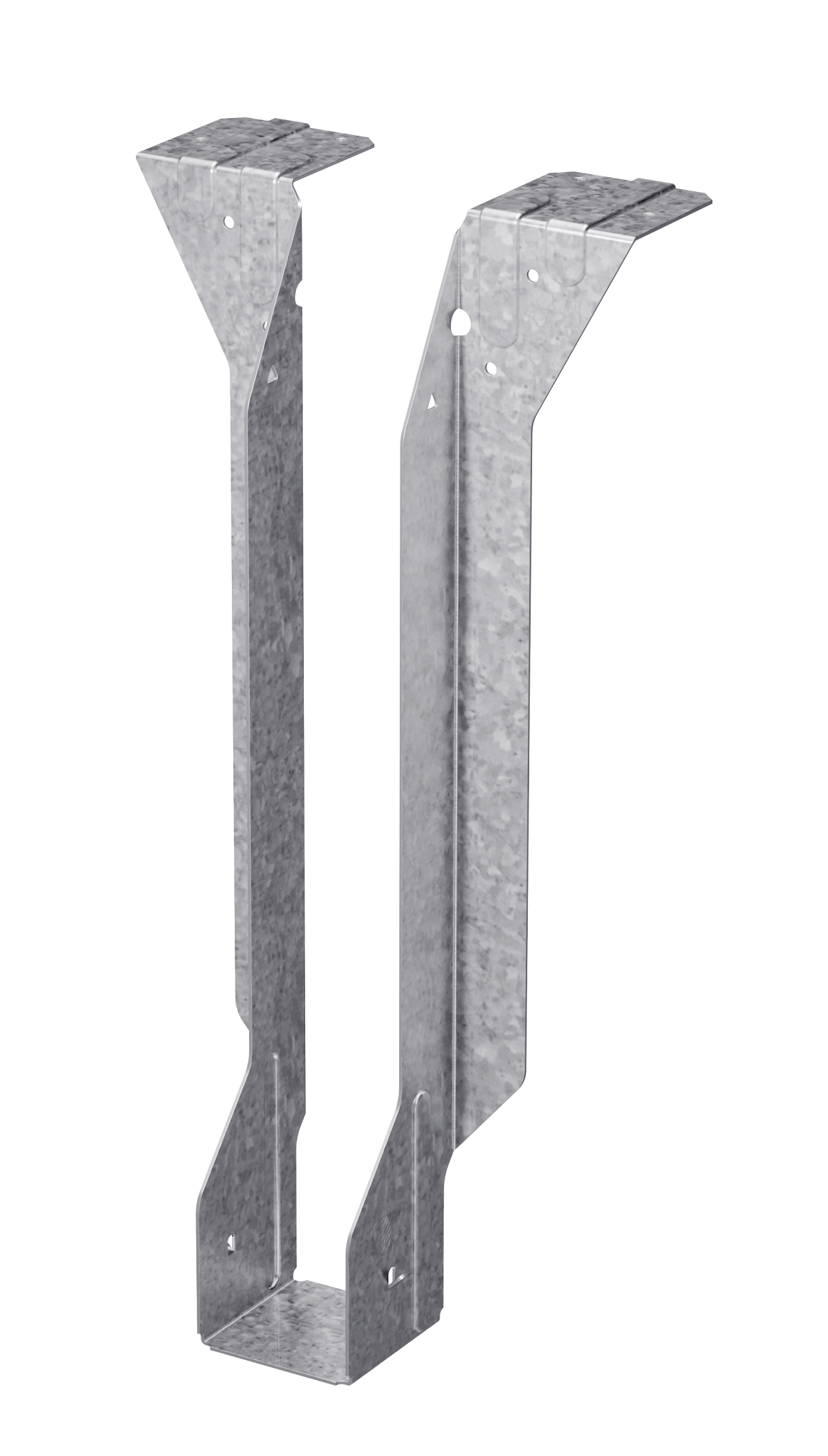

Simpson Strong-Tie MIT3516 MIT Galvanized Top-Flange Joist Hanger for 2-5/16 in. x 16 in. Engineered Wood (Pack of 25)

Simpson Strong-Tie MIT3516 MIT Galvanized Top-Flange Joist Hanger for 2-5/16 in. x 16 in. Engineered Wood (Pack of 25)

Top-flange hangers for engineered wood are an integral component for providing maximum down loads that require a minimum amount of fasteners. These metal connectors are created to be installed before the joist is in place. The Simpson Strong-Tie® MIT is designed to support 90° connections of I-joists to headers. This top-flange hanger features a Funnel Flange™ design allowing for easier placement of members. The hanger also features positive-angle nailing (PAN), specifically created for I-joists to minimize splitting.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Positive-angle nailing (PAN) minimizes splitting of the flanges while permitting time-saving nailing from a better angle
• With positive-angle nailing, the nail hole material is not removed
• Optional triangle nail holes may be used for increased uplift capacity; optional uplift nailing requires the addition of properly-secured web stiffeners
• Cost-effective solution for standard 90° connections in comparison to welded hangers
• Features optional fastening with PAT for steel applications/header
• Actual joist size: 2-5/16 in. x 16 in.
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: MIT3516
• UPC: 10044315706100
• GTIN: 10044315706100
• Feature 01: Positive-angle nailing (PAN) minimizes splitting of the flanges while permitting time-saving nailing from a better angle
• Feature 02: With positive-angle nailing, the nail hole material is not removed
• Feature 03: Optional triangle nail holes may be used for increased uplift capacity; optional uplift nailing requires the addition of properly-secured web stiffeners
• Feature 04: Cost-effective solution for standard 90° connections in comparison to welded hangers
• Feature 05: Features optional fastening with PAT for steel applications/header
• Feature 06: Actual joist size: 2-5/16 in. x 16 in.
• Feature 07: Made from 16-gauge steel
• Feature 08: Galvanized (G90) for extra corrosion resistance
• Assembled Depth - Imperial: 5.1195
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 16.13975
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 7.739
• Assembled Width UOM - Imperial: in.
• Base Product ID: MIT_Hanger
• Base Product Name: MIT
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: CAR
• EAN category: IC
• GUID: 252460056455713797052690171771199425217
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Carton
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 23.375
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 16.375
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 15.25
• Package Width UOM - Imperial: in.
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 25
• Shipping Weight: 41.5
• Short Product Name: 2-5/16 X 16 TOP FLANGE I-JOIST HANGER
• Strongtie.com URL: https://www.strongtie.com/topflangehangers_engineeredwoodconnectors/mit_hanger/p/mit
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers for Engineered Wood
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 44315706103
• PAL Reference: 50044315706108
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
