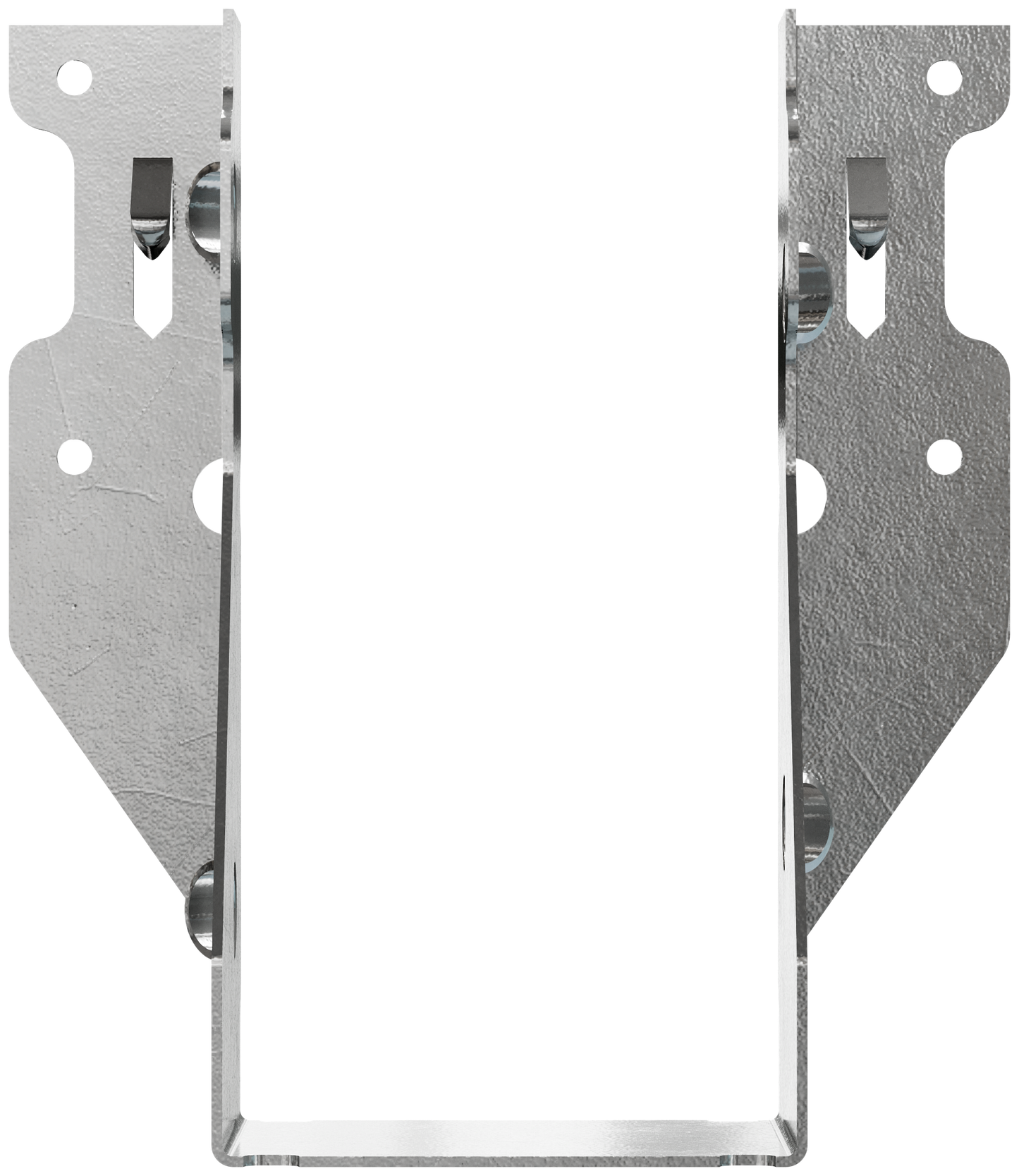

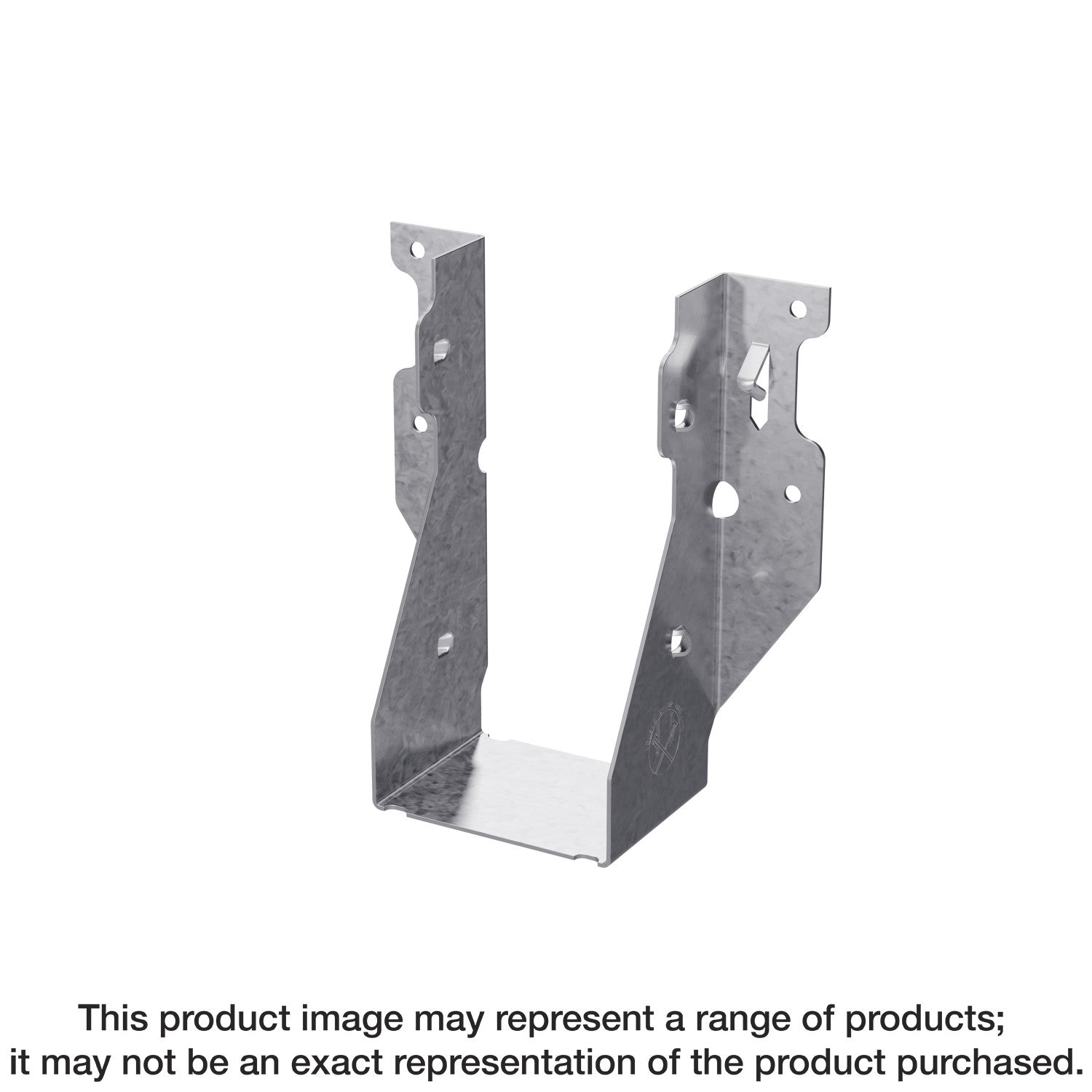

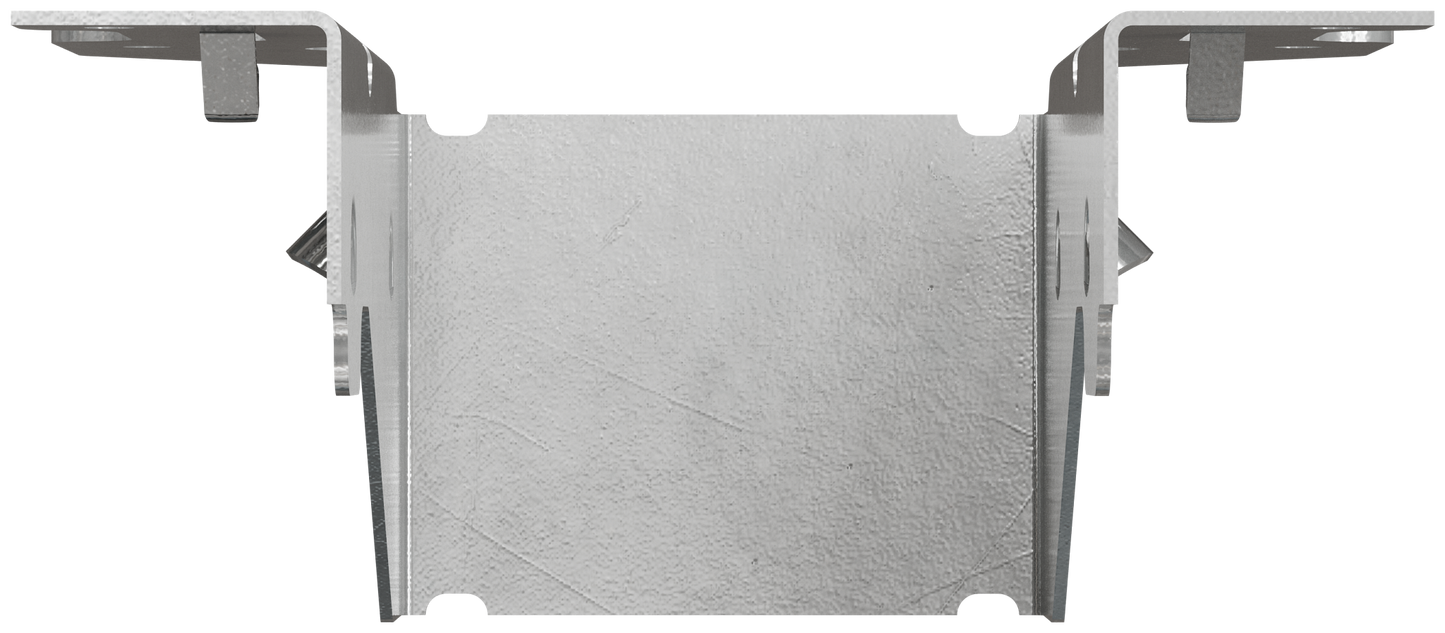

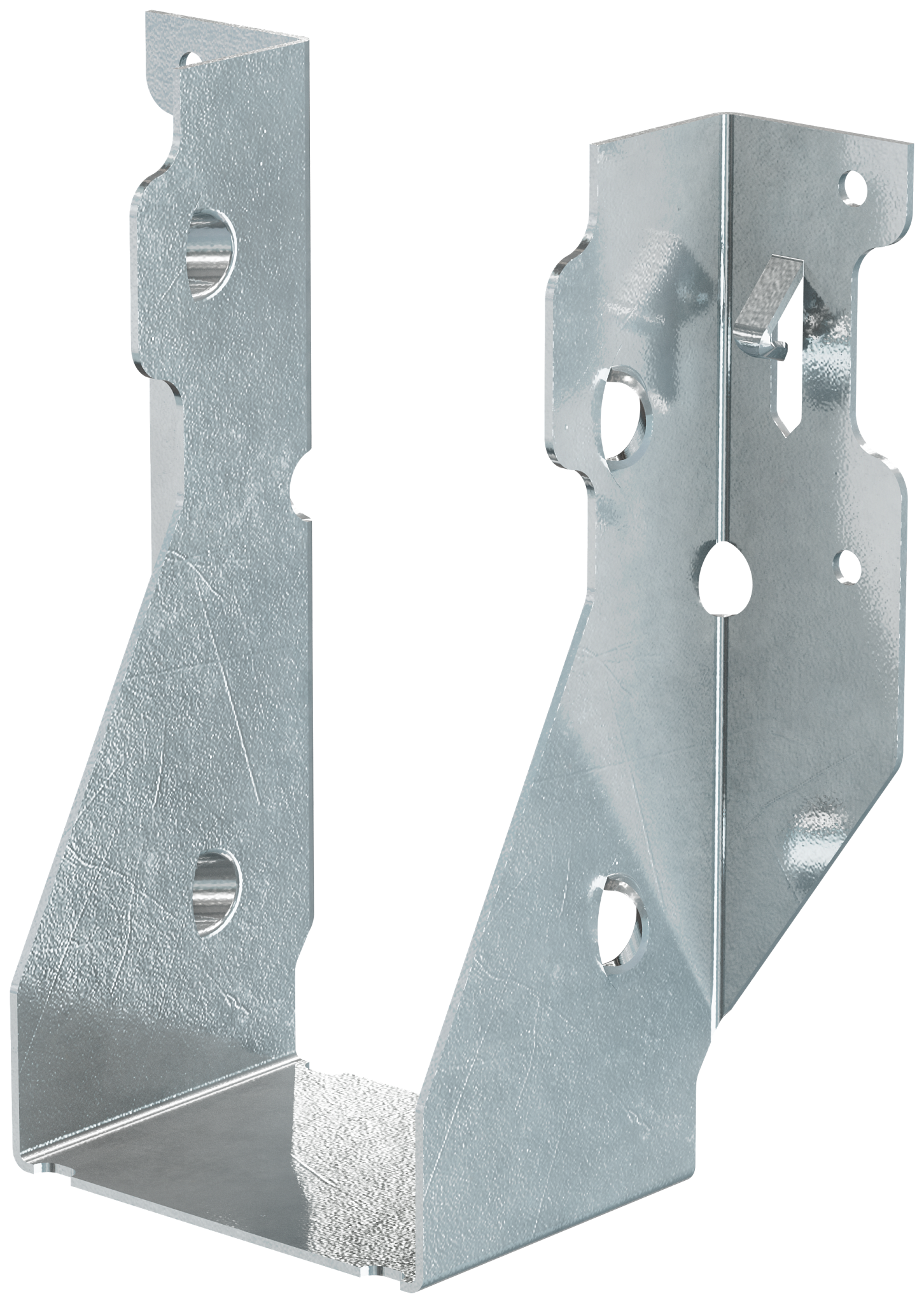

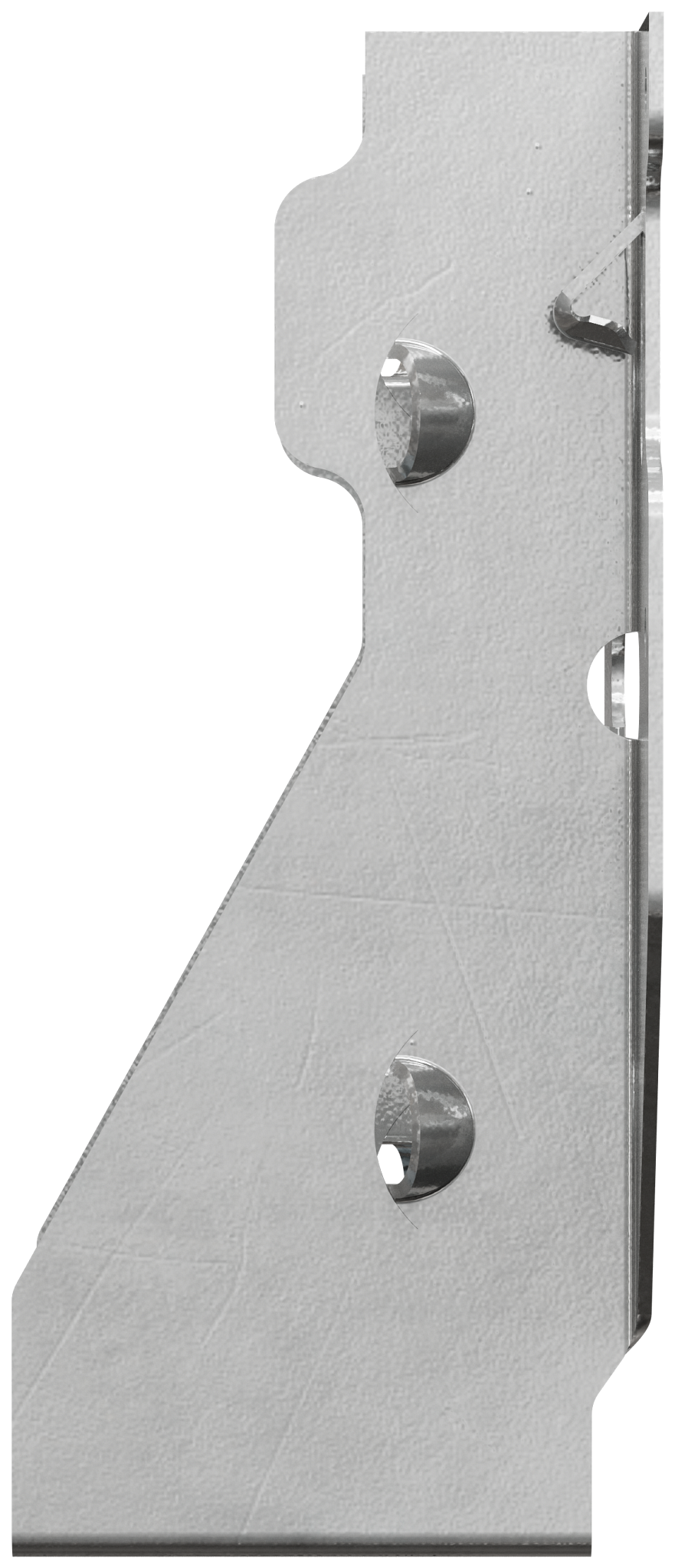

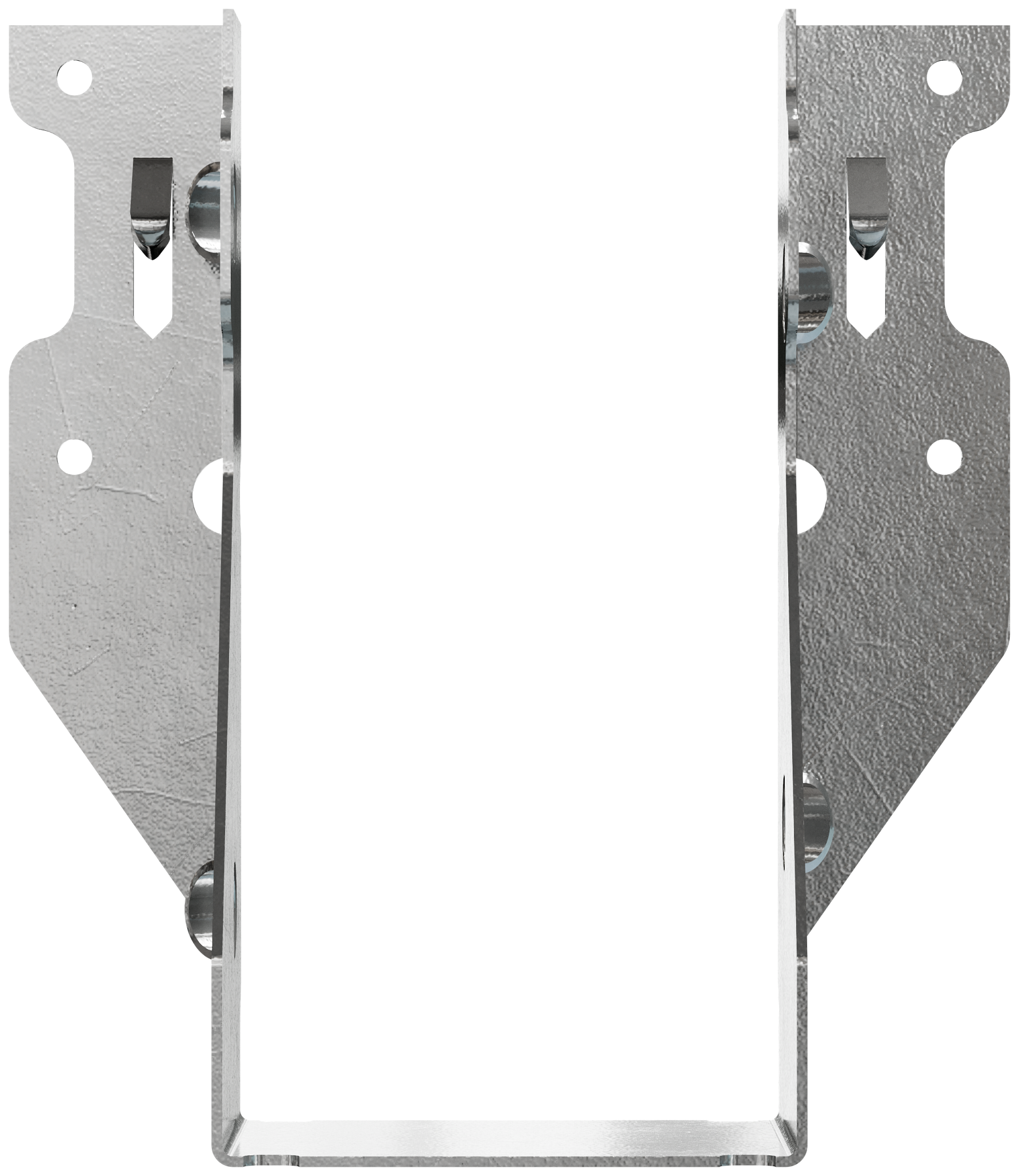

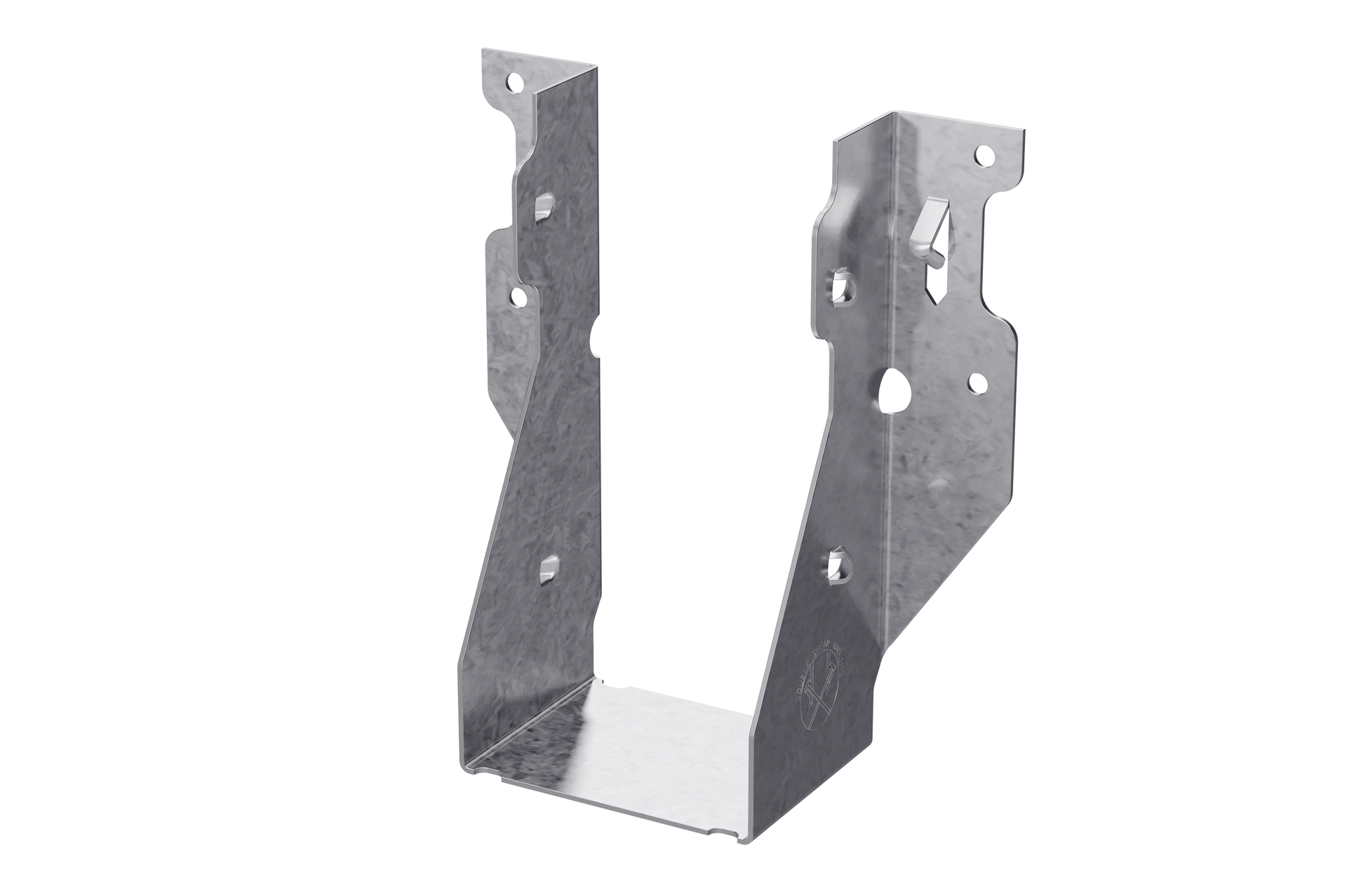

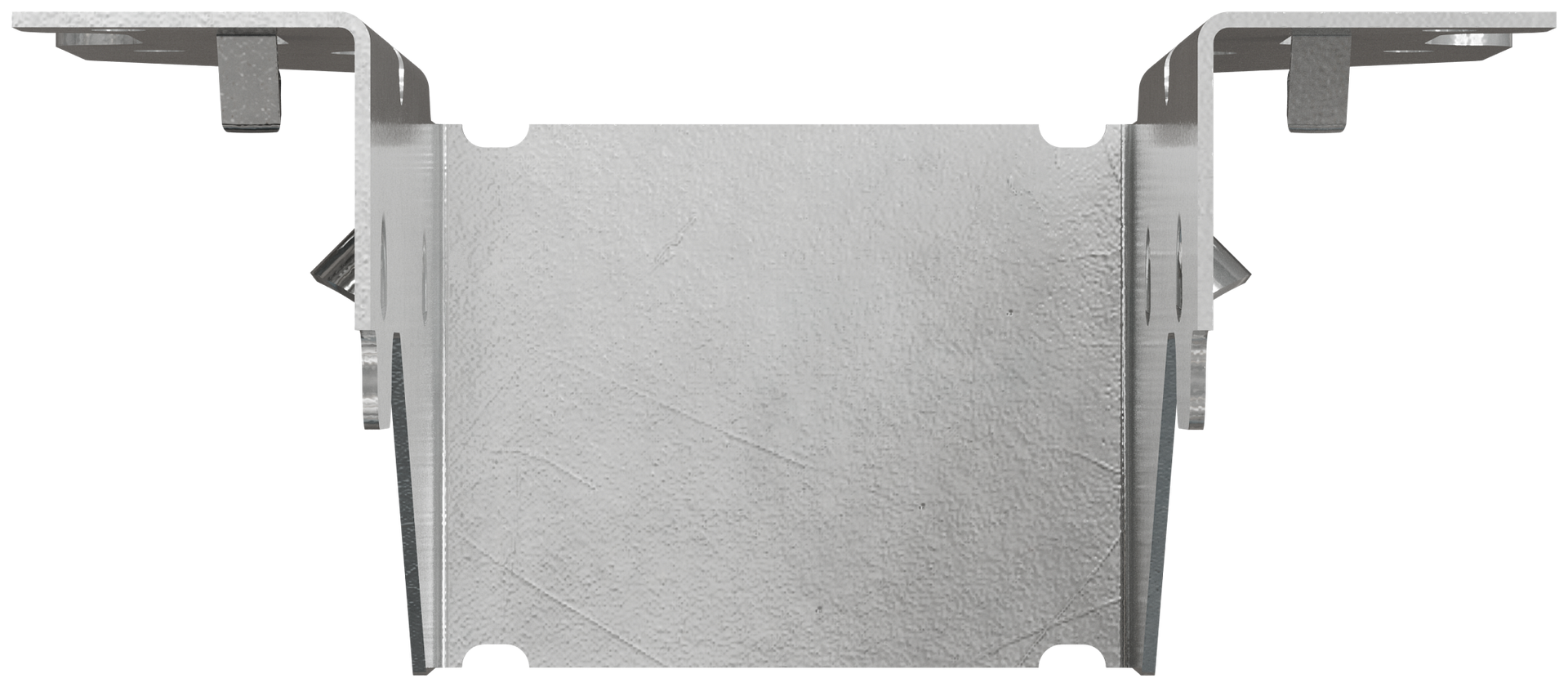

Simpson Strong-Tie LUS36SS LUS Stainless-Steel Face-Mount Joist Hanger for 3x6

Simpson Strong-Tie LUS36SS LUS Stainless-Steel Face-Mount Joist Hanger for 3x6

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Works for a wide range of applications
• Double-shear nailing design provides greater strength with fewer nails
• Features speed prongs used to temporarily position and secure the connector for easier and faster installation
• Angled joist nailing easier in tight spaces
• LUS-series hangers are tested, load rated and code compliant
• Nominal joist size: 3x6, 3x8
• Seat width: 2-9/16 in.
• Made from 18-gauge steel
• Stainless steel offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: LUS36SS
• UPC: 44315385100
• GTIN: 44315385100
• Feature 01: Works for a wide range of applications
• Feature 02: Double-shear nailing design provides greater strength with fewer nails
• Feature 03: Features speed prongs used to temporarily position and secure the connector for easier and faster installation
• Feature 04: Angled joist nailing easier in tight spaces
• Feature 05: LUS-series hangers are tested, load rated and code compliant
• Feature 06: Nominal joist size: 3x6, 3x8
• Feature 07: Seat width: 2-9/16 in.
• Feature 08: Made from 18-gauge steel
• Feature 09: Stainless steel offers extra corrosion resistance for exterior and treated-wood applications
• Install With: Stainless-steel connectors require stainless-steel fasteners; install with Simpson Strong-Tie® Strong-Drive® SD Connector SS screws: (4) #9 x 1-1/2 in. screws in the header AND (4) #9 x 2-1/2 in. screws in the joist, OR (8) 0.162 in. x 3-1/2 in. Strong-Drive SCNR™ Ring-Shank Connector nails (Models: SD9112SS, SD9212SS, SSA16D)
• Assembled Depth - Imperial: 2.20225
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 5.26475
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 4.7795
• Assembled Width UOM - Imperial: in.
• Base Product ID: LUS_Hanger
• Base Product Name: LUS
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Stainless Steel
• Gauge: 18
• GUID: 174632396959104195715429018595529290452
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Stainless Steel
• Measurement Unit Text: each
• Member Size: 3x6 and 3x8
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.36
• Short Product Name: 3 X 6 DBL SHEAR FACE MOUNT HANGER SS
• Strongtie.com URL: https://www.strongtie.com/facemounthangersssl_solidsawnlumberconnector/lus_hanger/p/lus
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50044315385105
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
