Simpson Strong-Tie LTTP2 LTT 14-15/16 in. 10-Gauge Light Tension Tie (Pack of 600)

Simpson Strong-Tie LTTP2 LTT 14-15/16 in. 10-Gauge Light Tension Tie (Pack of 600)

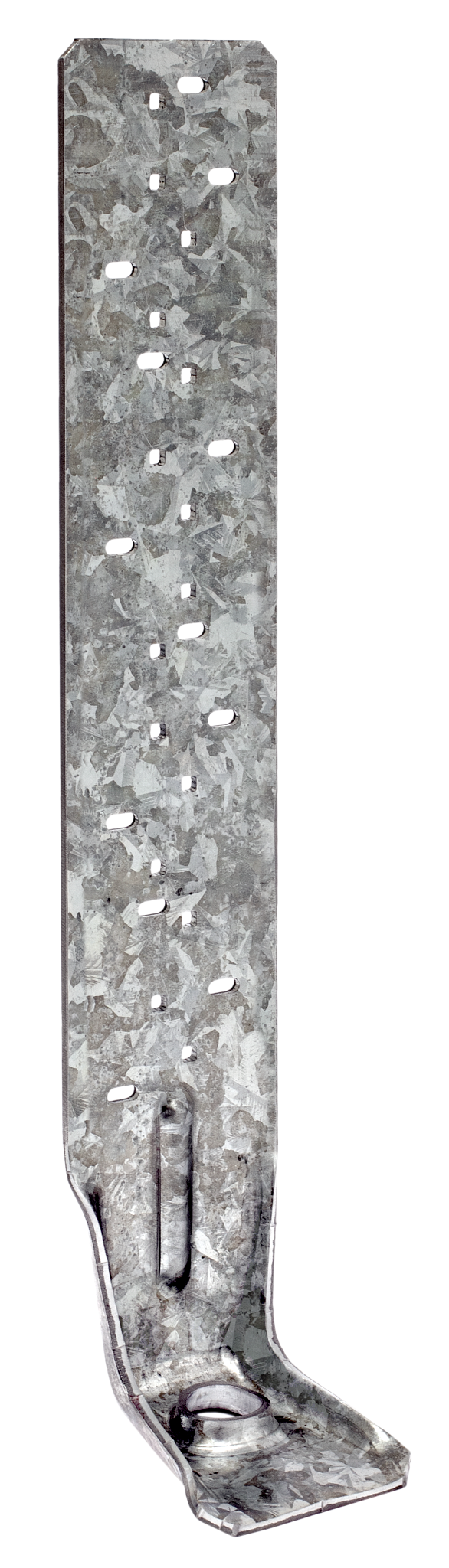

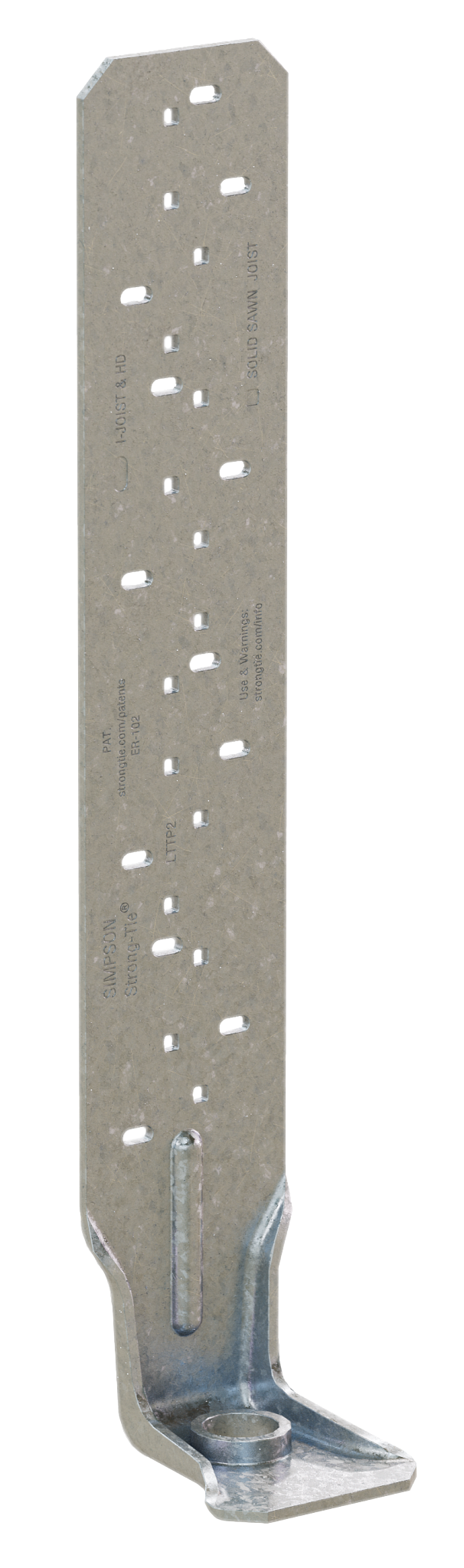

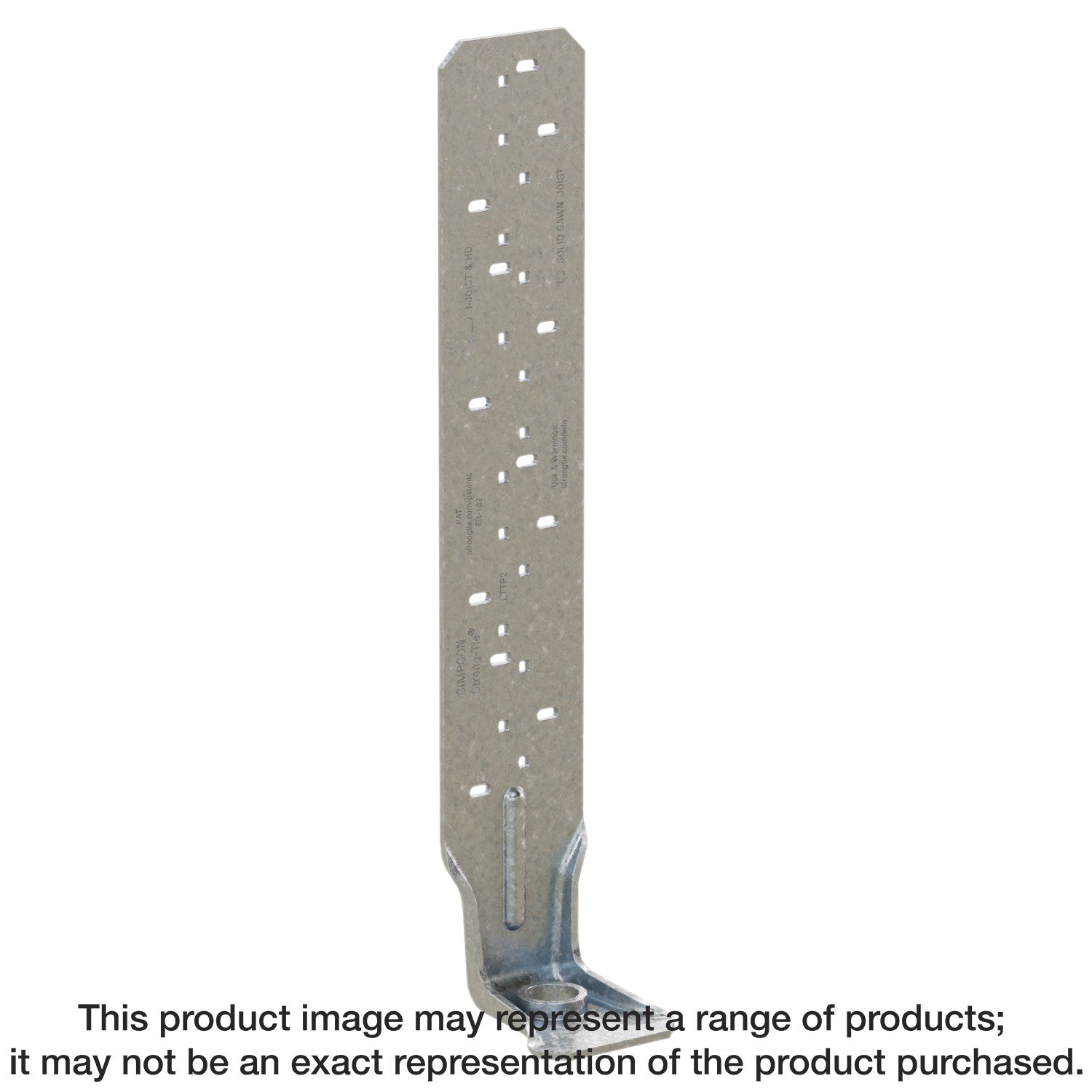

The Simpson Strong-Tie® LTT is a solution for resisting tension loads when used to attach wood to concrete or masonry walls. This light tension tie is designed for horizontal purlin applications and may also be used for vertical holdown applications. For LTT tension tie applications with unreinforced concrete masonry, 3/4-in. post-installed anchor bolts are commonly used. The LTTP2 model, for wood joist attachments, features an extruded anchor bolt hole to accommodate 1/2-in., 5/8-in. and 3/4-in. bolt diameters. It also features two separate nailing patterns: obround holes spaced 3 in. apart for I-joist purlins and square holes spaced to accommodate the narrow face of 2x solid-sawn purlins. The LTTP2 may be installed vertically on the wide face of a minimum 2x4 stud for holdown applications and can be fastened with nails or Strong-Drive® SD Connector screws.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Nailing patterns to accommodate different purlin/rafter/truss types
• Low-profile seat to reduce visibility of tie
• Tested with different anchor bolt diameters to meet code-required applications based on substrate
• Length: 14-15/16 in.
• Width: 2-9/16 in.
• Made from 10-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: LTTP2
• UPC: 50707392017894
• GTIN: 50707392017894
• Feature 01: Nailing patterns to accommodate different purlin/rafter/truss types
• Feature 02: Low-profile seat to reduce visibility of tie
• Feature 03: Tested with different anchor bolt diameters to meet code-required applications based on substrate
• Feature 04: Length: 14-15/16 in.
• Feature 05: Width: 2-9/16 in.
• Feature 06: Made from 10-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Assembled Depth - Imperial: 2.9375
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 14.9375
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.5625
• Assembled Width UOM - Imperial: in.
• Base Product ID: LTT_Tie
• Base Product Name: LTT
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Holdowns and Tension Ties > Tie
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• EAN category: IC
• GUID: 287602964004517653053452022538740374764
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Tie
• Prop 65 Warning: No
• Quantity: 600
• Shipping Weight: 1008
• Short Product Name: LIGHT TENSION TIE PURLIN
• Strongtie.com URL: https://www.strongtie.com/tensionties_holdownsandtensionties/ltt_tie/p/ltt
• Subcategory: Wood Construction Connectors
• Subcategory 2: Holdowns and Tension Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392017896
• EA Reference: 707392017899
