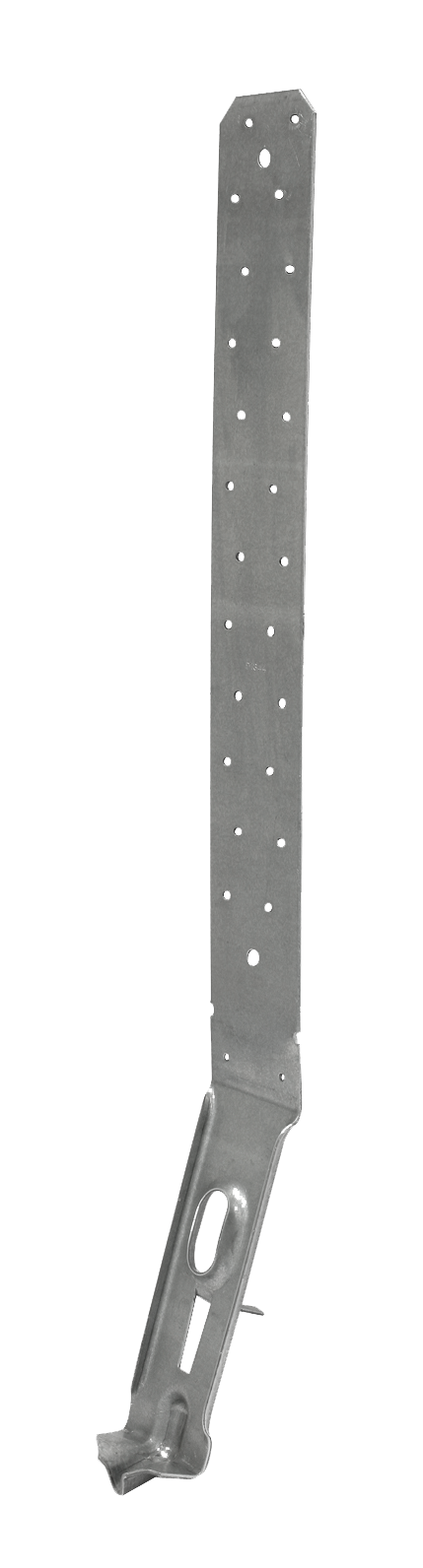

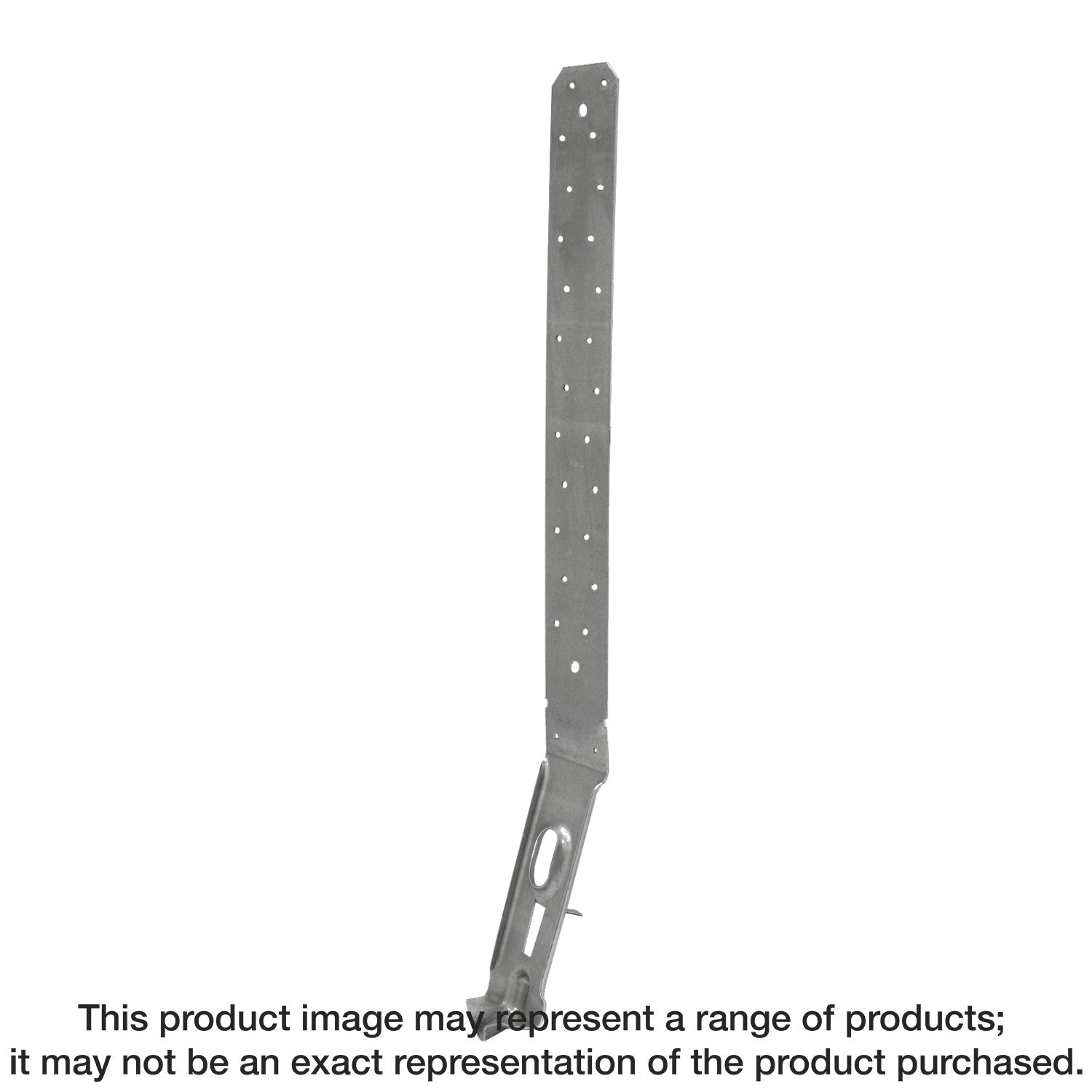

Simpson Strong-Tie LSTHD8 LSTHD 18-5/8 in. 14-Gauge Galvanized Strap-Tie Holdown

Simpson Strong-Tie LSTHD8 LSTHD 18-5/8 in. 14-Gauge Galvanized Strap-Tie Holdown

The LSTHD is an embedded strap-tie holdown with features that aid correct installation and improve performance in both wood and cold-formed steel construction. When installed on the forms with the StrapMate® strap holder or other holding device, the unique design of this light cast-in-place strap-tie holdown delivers enhanced stability before and during the pour to help prevent both parallel and perpendicular movement.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Staggered nailing pattern helps to minimize splitting and allows for nailing to the edges of double 2x members
• Strap nail slots are countersunk to provide a lower nail head profile when used with specified fasteners
• The slots below the embedment line enable increased front-to-back concrete bond and help to reduce spalling
• Strap length: 18-5/8 in.
• Made from 14-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: LSTHD8
• UPC: 44315878008
• GTIN: 44315878008
• Feature 01: Staggered nailing pattern helps to minimize splitting and allows for nailing to the edges of double 2x members
• Feature 02: Strap nail slots are countersunk to provide a lower nail head profile when used with specified fasteners
• Feature 03: The slots below the embedment line enable increased front-to-back concrete bond and help to reduce spalling
• Feature 04: Strap length: 18-5/8 in.
• Feature 05: Made from 14-gauge steel
• Feature 06: Galvanized (G90) for extra corrosion resistance
• Install With: Install with 0.148 in. x 3-1/4 in. nails
• Assembled Depth - Imperial: 4.50
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 26.625
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3
• Assembled Width UOM - Imperial: in.
• Base Product ID: LSTHD_Holdown
• Base Product Name: LSTHD
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Holdowns and Tension Ties > Holdown
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 14
• GUID: 112326561715995101199752426314141888767
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Holdown
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 1.676
• Short Product Name: 18-5/8IN STRAP TIE HOLDOWN
• Strongtie.com URL: https://www.strongtie.com/straptieholdowns_holdownsandtensionties/lsthd_holdown/p/lsthd
• Subcategory: Wood Construction Connectors
• Subcategory 2: Holdowns and Tension Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50044315878003
