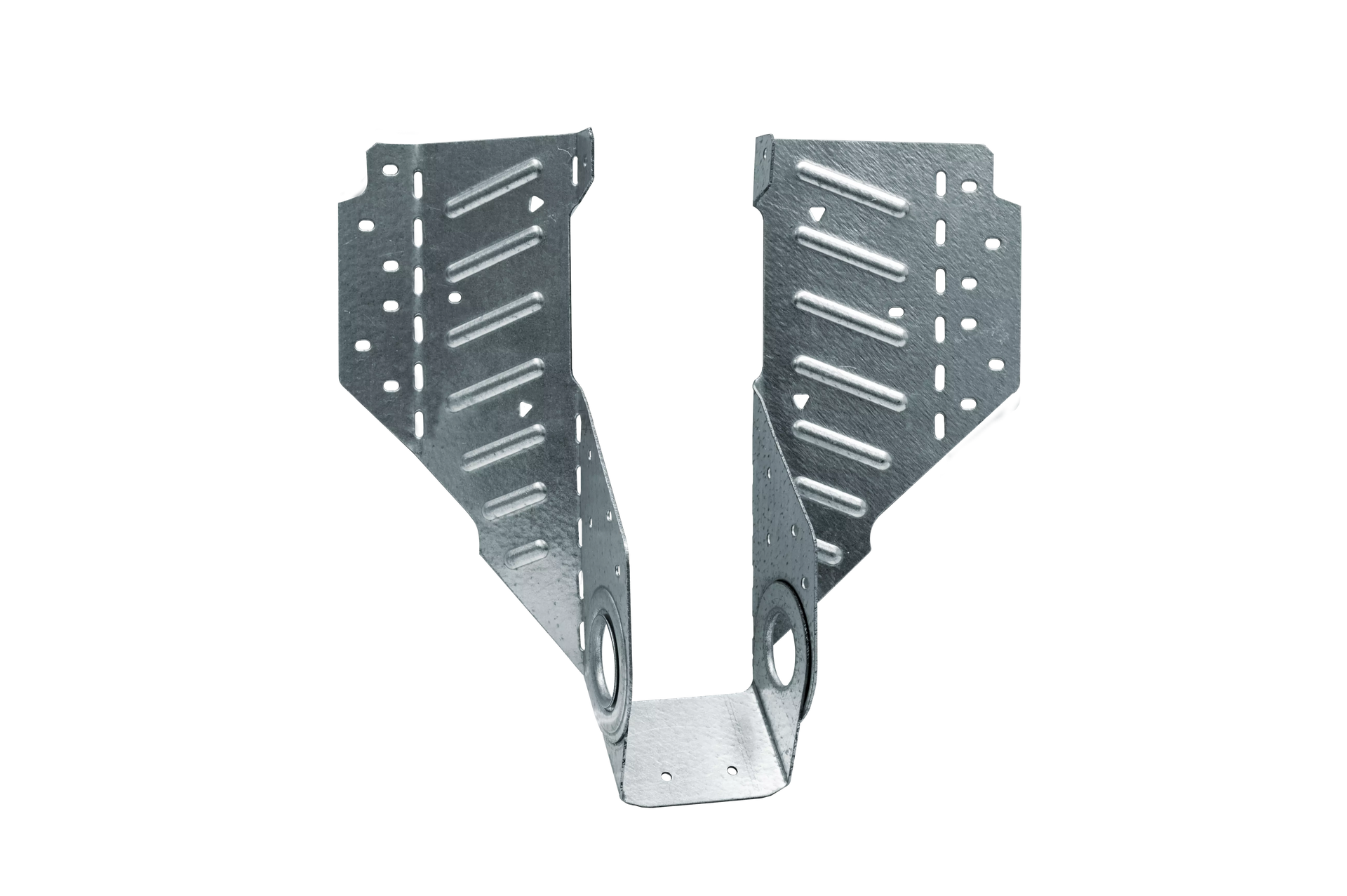

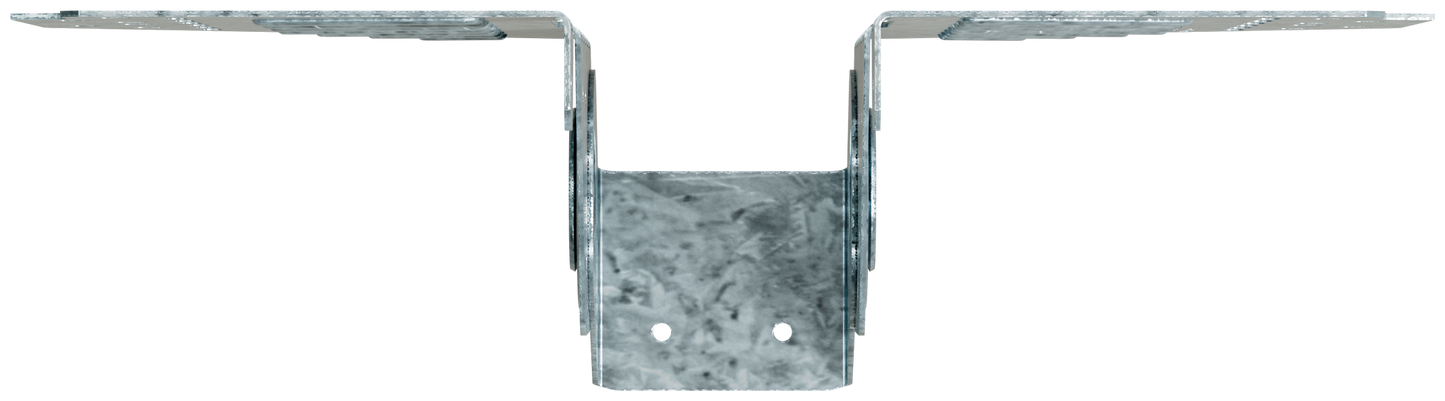

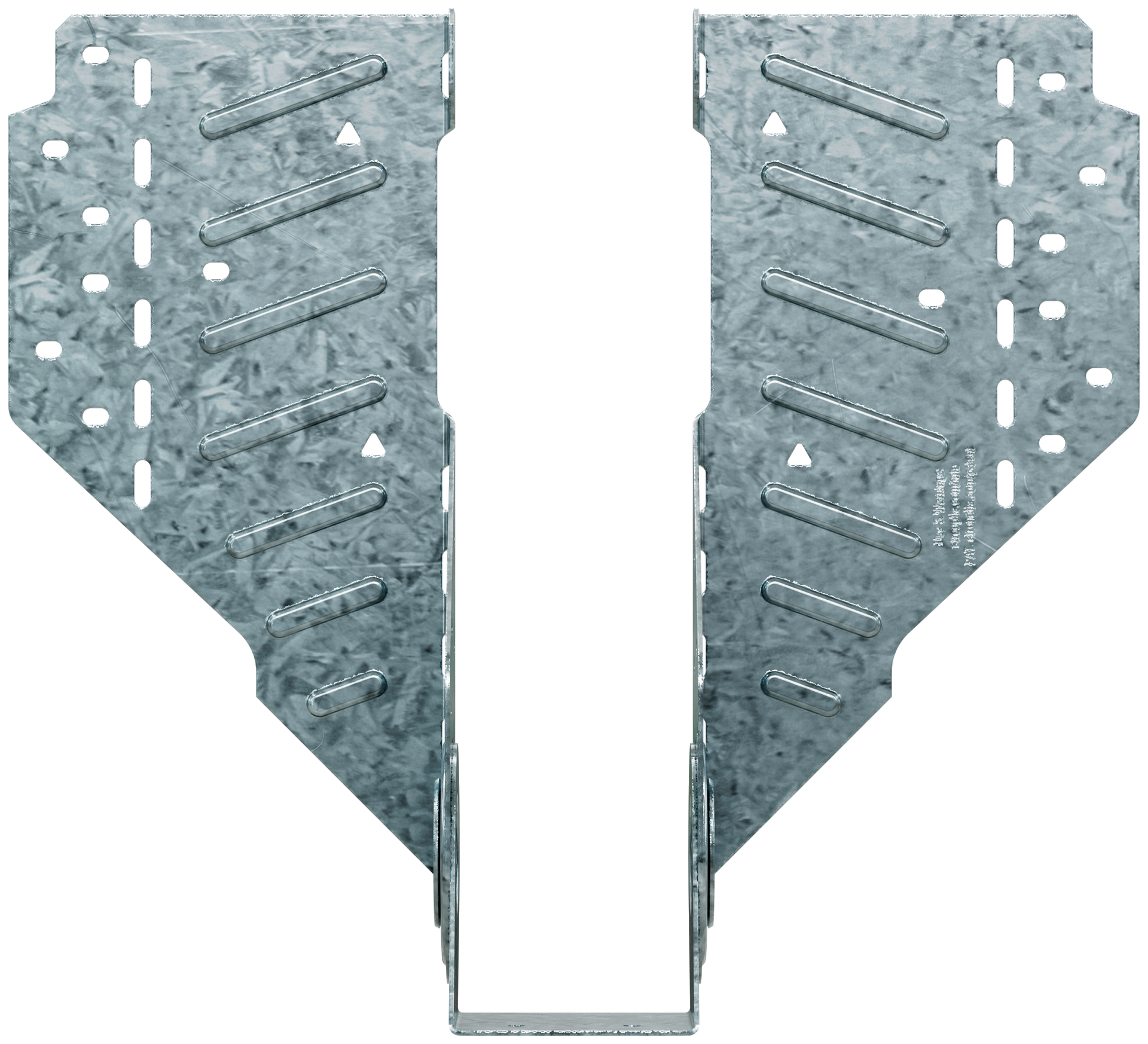

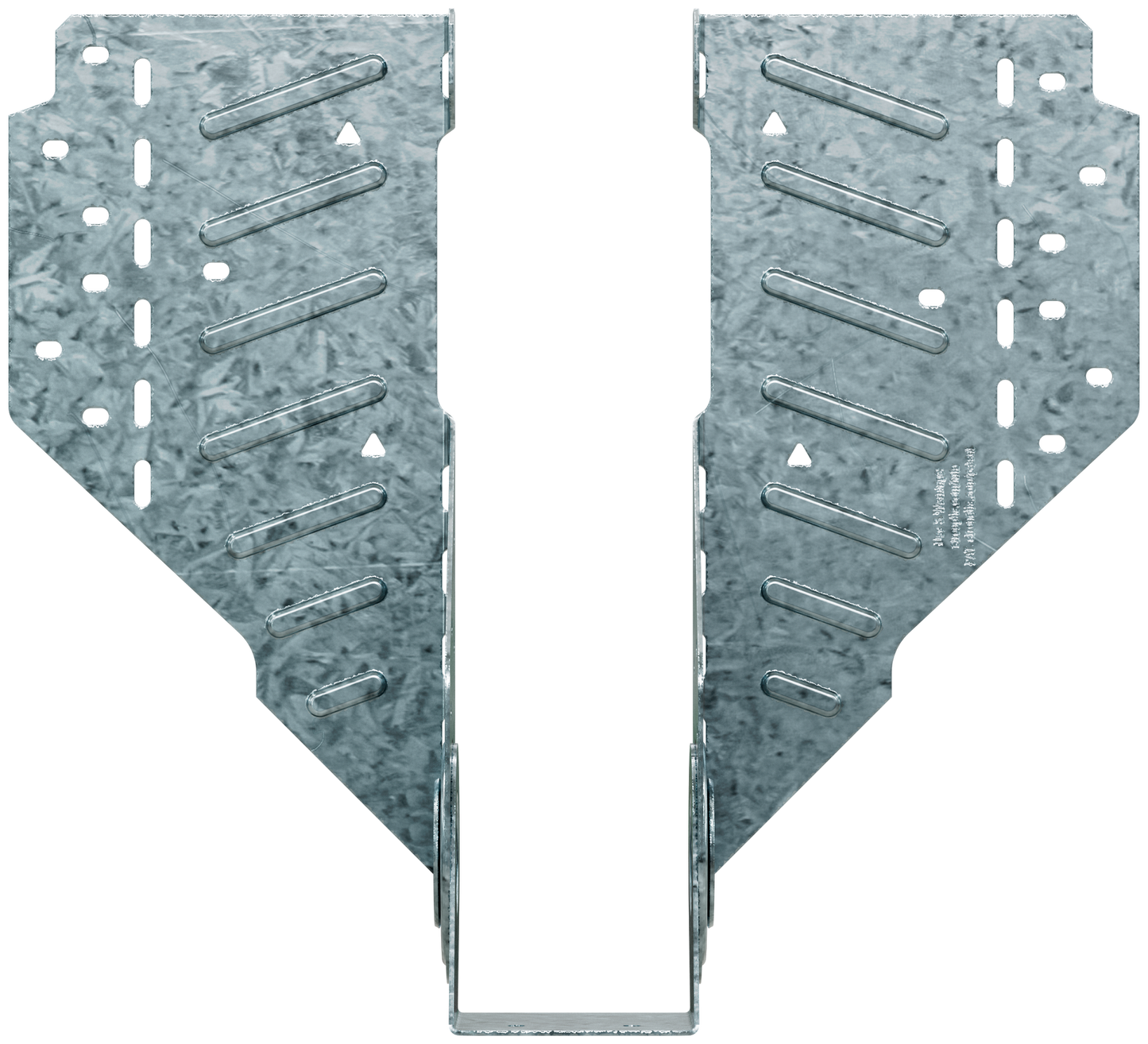

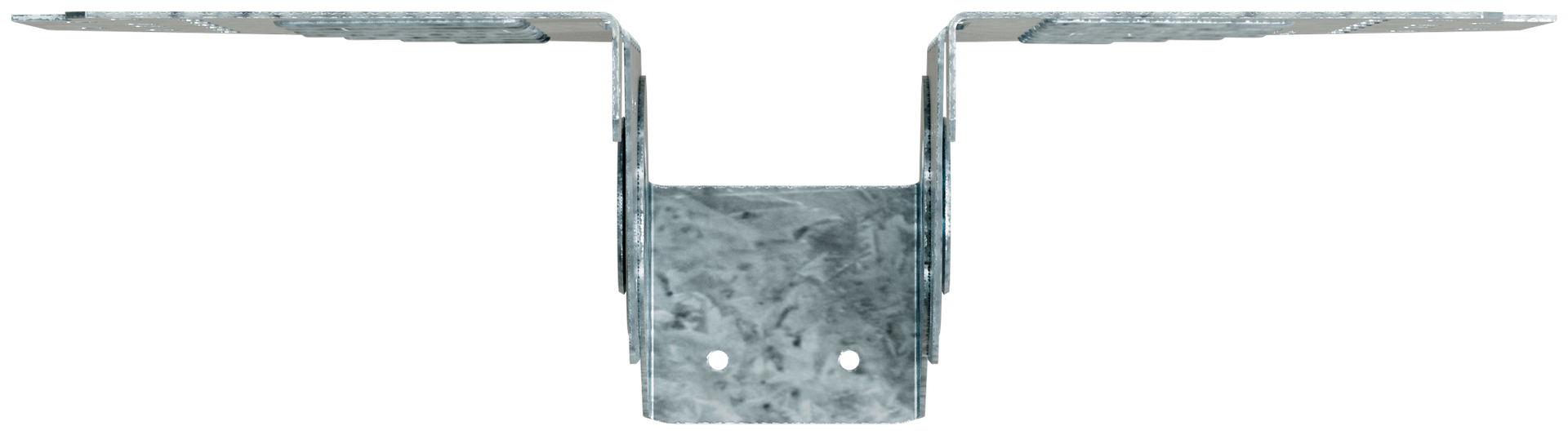

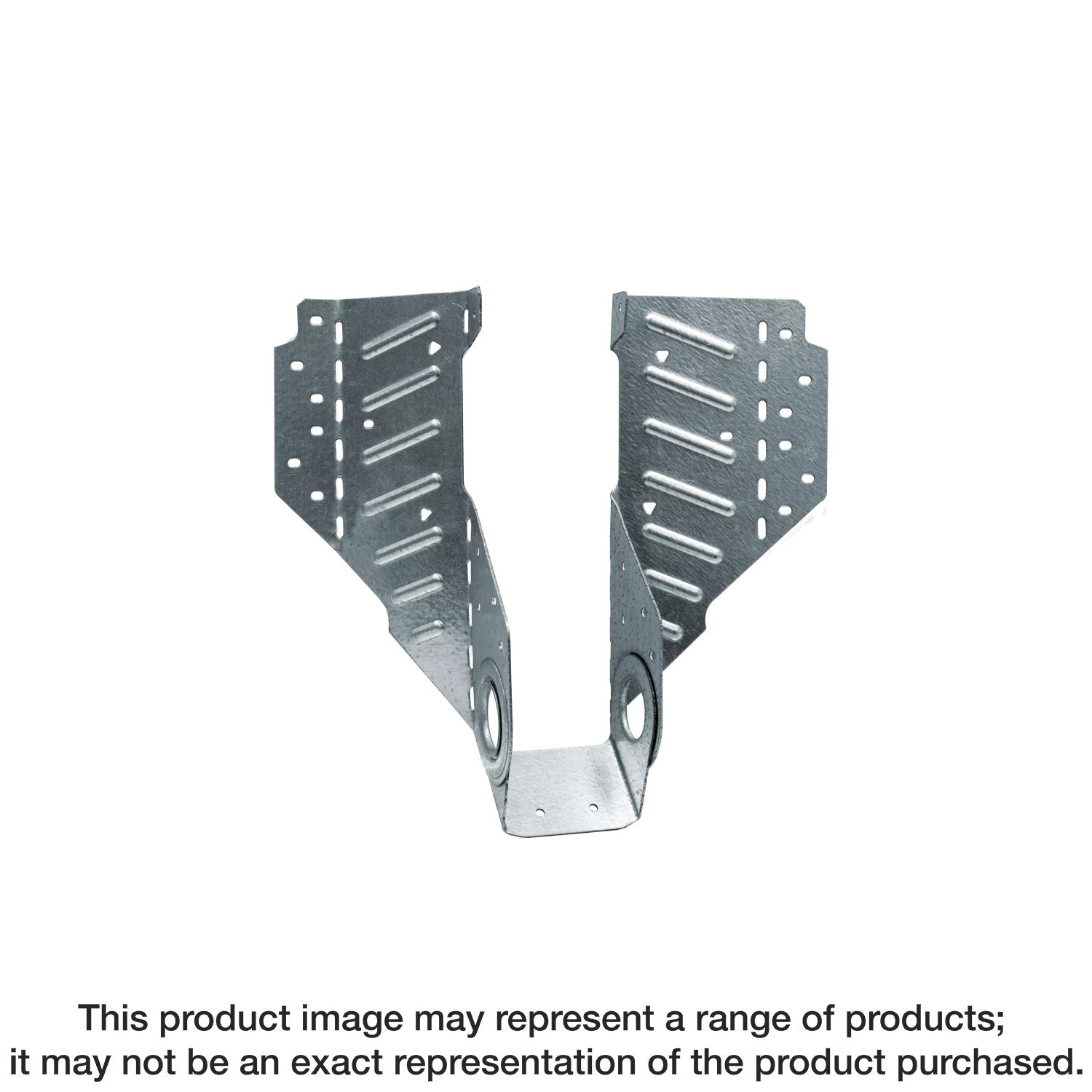

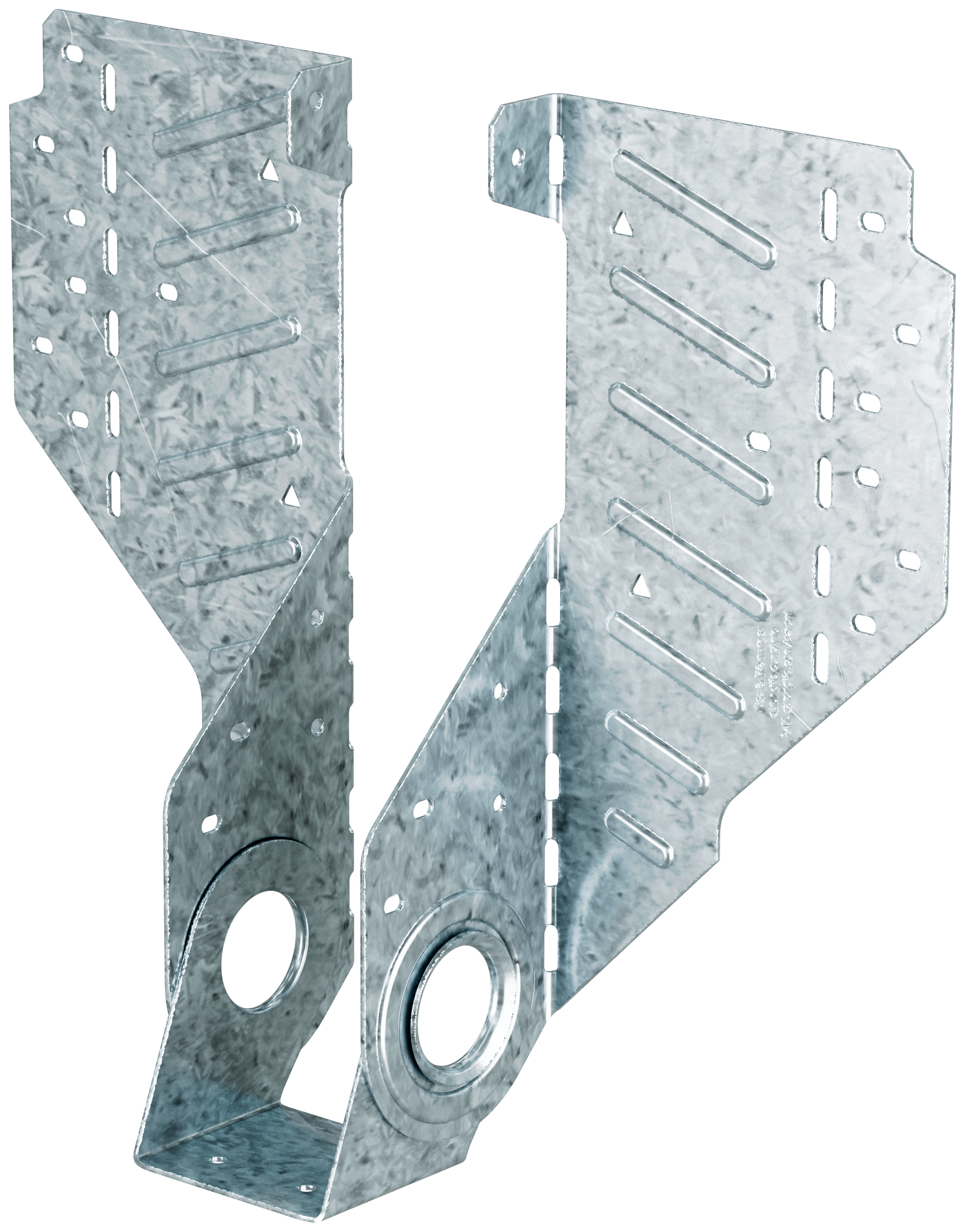

Simpson Strong-Tie LSSR2.1Z LSSR® Light Field-Adjustable Rafter Hanger for 2-in. Engineered Wood

Simpson Strong-Tie LSSR2.1Z LSSR® Light Field-Adjustable Rafter Hanger for 2-in. Engineered Wood

The patent-pending LSSR® light slopeable/skewable rafter hanger is the next generation of a field-adjustable rafter hanger. One of its key features is that it can be installed after all of the rafters have been tacked into place. A versatile hanger, it is field adjustable for skew up to 45° and features an innovative hinged swivel seat to adjust for up to a 45° slope.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Makes it possible to install after the rafters are already in place
• Flange design allows for easy skew adjustment, from 0° to 45°

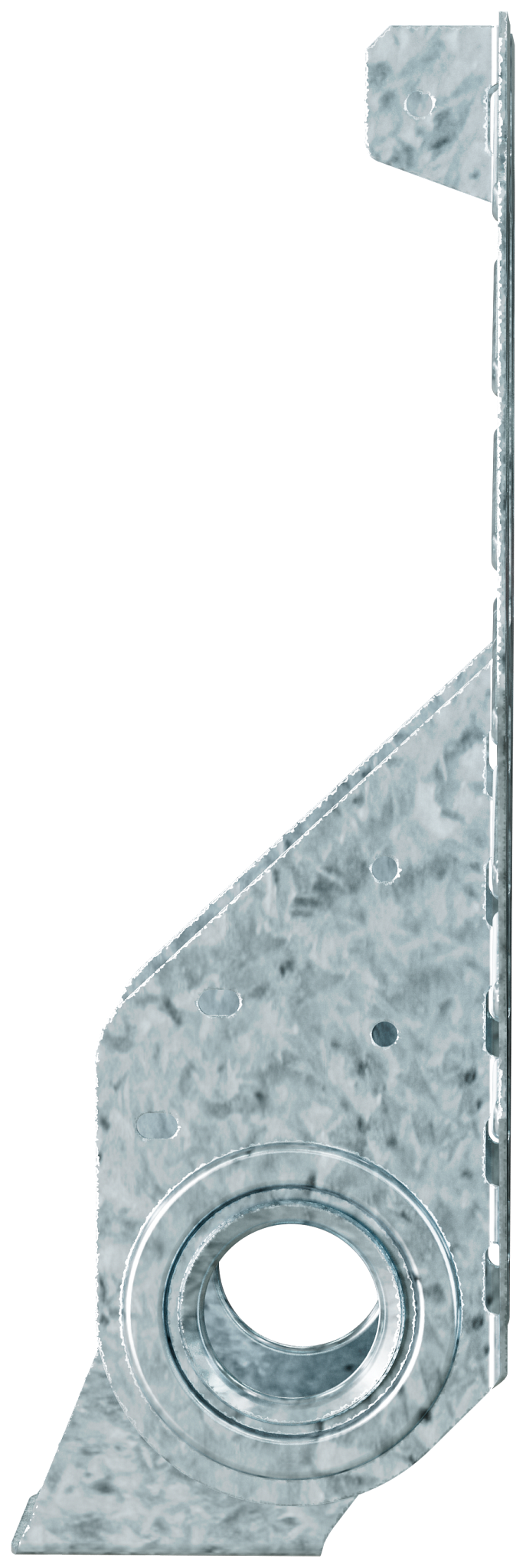

• Swivel seat adjusts easily and supports joist
• Actual joist width: 2 in.
• Minimum joist height: 9-1/2 in.
• Made from 18-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: LSSR2.1Z
• UPC: 707392003762
• GTIN: 707392003762
• Feature 01: Makes it possible to install after the rafters are already in place
• Feature 02: Flange design allows for easy skew adjustment, from 0° to 45°
• Feature 03: Swivel seat adjusts easily and supports joist
• Feature 04: Actual joist width: 2 in.
• Feature 05: Minimum joist height: 9-1/2 in.
• Feature 06: Made from 18-gauge steel
• Feature 07: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Install With: Install with 0.148 in. x 2-1/2 in. nails in the face and 0.148 in. x 1-1/2 in. nails in the joist
• Assembled Depth - Imperial: 3.01675
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 9.26675
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 10.567
• Assembled Width UOM - Imperial: in.
• Base Product ID: LSSR_Hanger
• Base Product Name: LSSR®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
• Coating: ZMAX®
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: ZMAX®
• Gauge: 18
• GUID: 94599349399277529895413907862193904533
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 2 to 2-1/16
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 1.07
• Short Product Name: Field Adjustable Rafter Hanger
• Strongtie.com URL: https://www.strongtie.com/facemounthangers_engineeredwoodconnectors/lssr_hanger/p/lssr
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers for Engineered Wood
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392003769
• PAL Reference: 50707392003767
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
