Simpson Strong-Tie HWSC6-KT HWSC™ 5-3/4 in. Head-of-Wall Slide-Clip Connector w/ Screws (50-Qty)

Simpson Strong-Tie HWSC6-KT HWSC™ 5-3/4 in. Head-of-Wall Slide-Clip Connector w/ Screws (50-Qty)

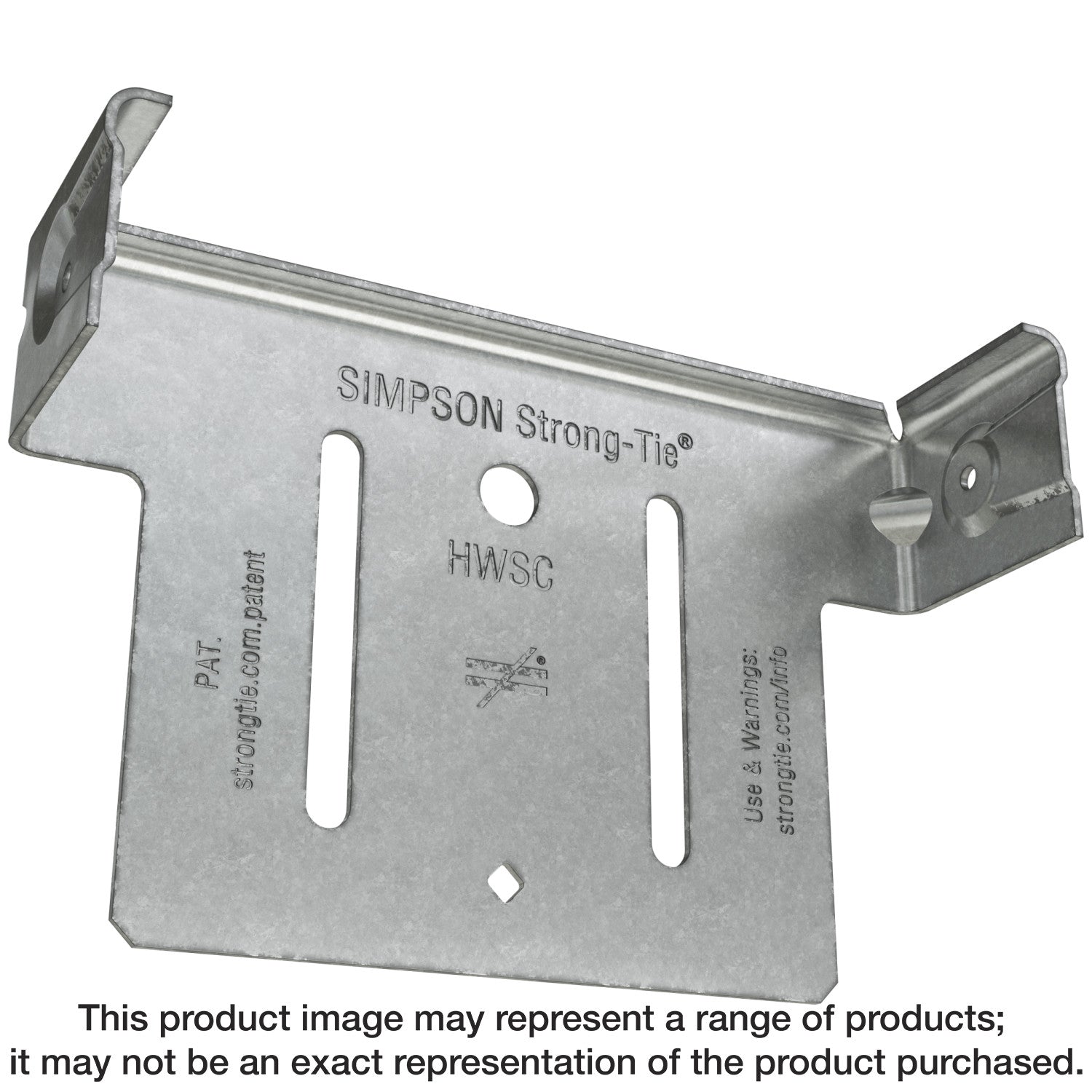

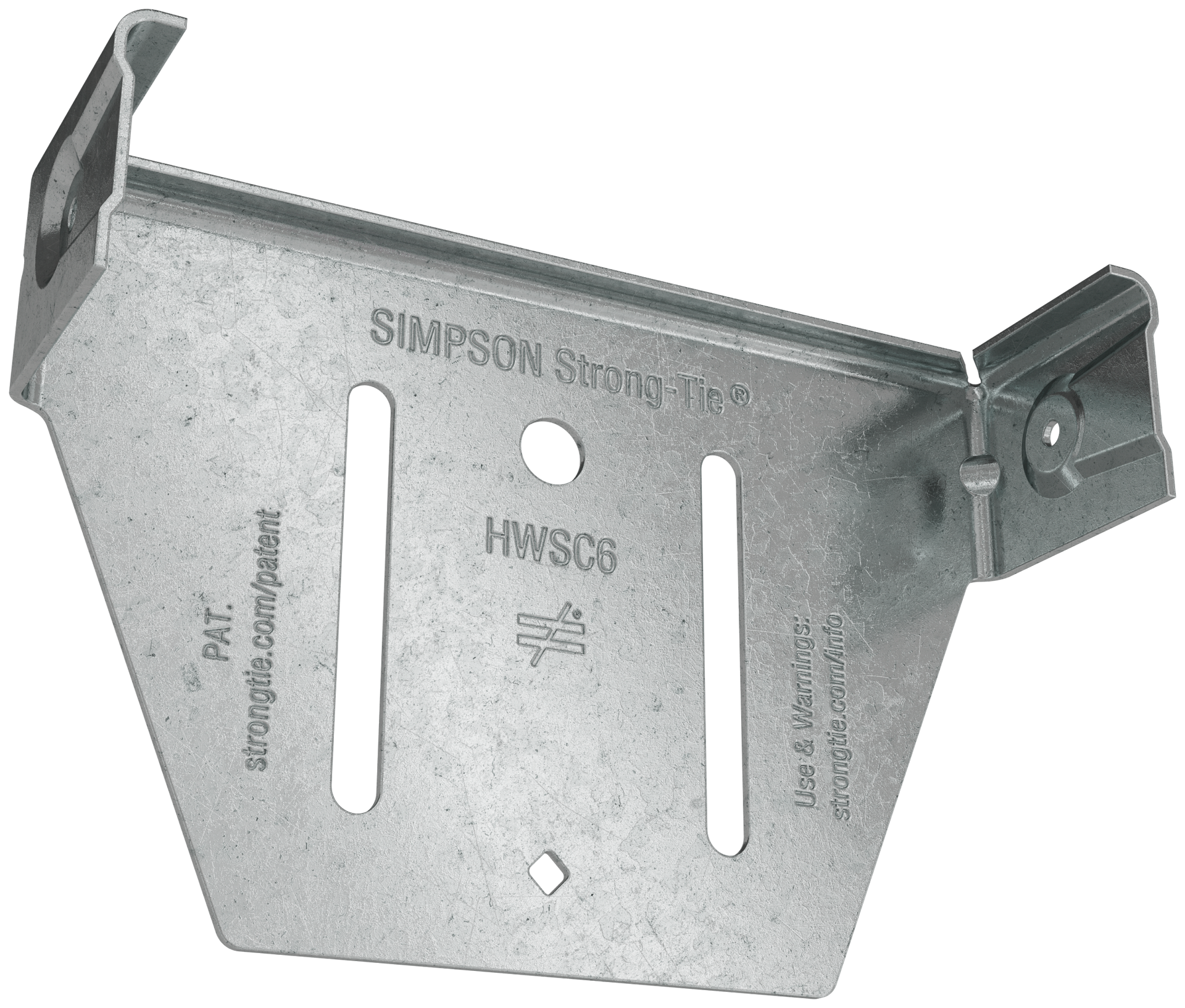

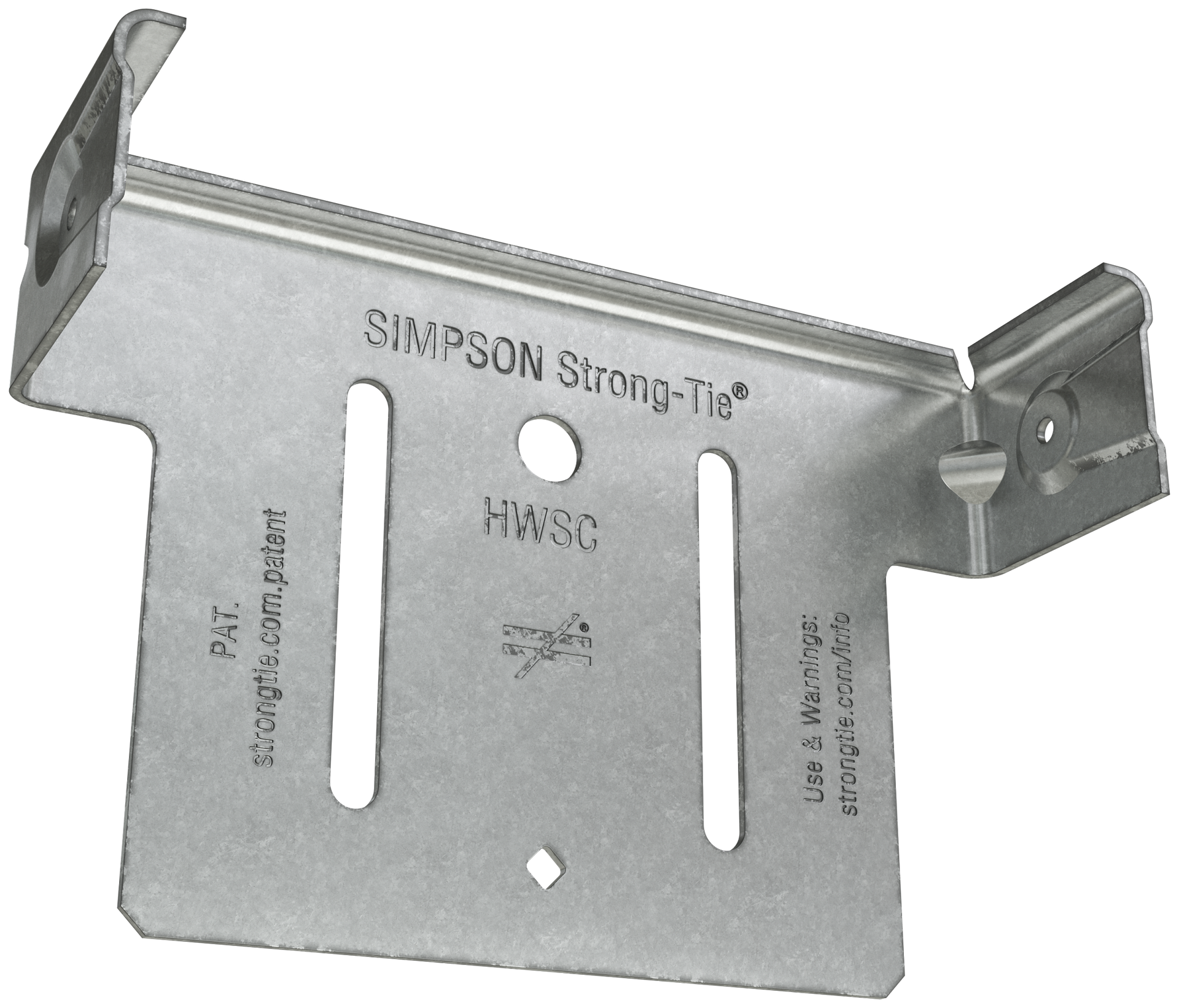

The Simpson Strong-Tie® HWSC™ head-of-wall slide-clip connector is designed for simplifying the panelization of printed studs (e.g., FrameCAD, Arkitech, Howick and Pinnacle). The HWSC is designed to replace slotted track with a typical printed track at head-of-wall conditions. To facilitate installation, a cone-shaped funnel in the clip helps the dimple in the track align properly with the clip’s corresponding dimple to hold it in place while a screw is placed in each flange from the track to the clip. The stud is then slid into position, and the clip is attached to the stud with shoulder screws driven through the center of the fastener slots. As an option, fasten the clip to the stud hole using a single screw to lock the deflection gap in place temporarily during transport and installation. The optional screw is then removed after installation is complete. The HWSC has been assembly-tested to provide optimal strength and performance.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• An edge stiffener has been rolled into the web and flange of the clip for added strength and for ease of fastening of the screws into the clip flange during installation
• The clip has a unique cone-shaped dimple that guides the track dimple into alignment with the clip, locking the connection in place while a screw is installed into each flange
• Replaces slotted track that is difficult to panelize with typical printed track
• Allows up to 1-in. movement up and down
• Width: 5-3/4 inches
• Designed for simplifying the panelization of 6-in. printed studs
• Made from 54-mil (16-gauge) steel
• Galvanized for corrosion resistance
• Quantity: 50 per package

Specifications

• ERP Part Number: HWSC6-KT
• UPC: 707392021285
• GTIN: 707392021285
• Feature 01: An edge stiffener has been rolled into the web and flange of the clip for added strength and for ease of fastening of the screws into the clip flange during installation
• Feature 02: The clip has a unique cone-shaped dimple that guides the track dimple into alignment with the clip, locking the connection in place while a screw is installed into each flange
• Feature 03: Replaces slotted track that is difficult to panelize with typical printed track
• Feature 04: Allows up to 1-in. movement up and down
• Feature 05: Width: 5-3/4 inches
• Feature 06: Designed for simplifying the panelization of 6-in. printed studs
• Feature 07: Made from 54-mil (16-gauge) steel
• Feature 08: Galvanized for corrosion resistance
• Feature 09: Quantity: 50 per package
• Install With: Install with (1) #10-16 screw into each track flange to each flange of clip; use (2) XLSH78B1414 #14 shoulder screws (included) in the center of the slot at No-Equal® logo; use an optional #10 screw to lock deflection gap during panel construction — remove after installation is complete
• Assembled Depth - Imperial: 1.3125
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.75
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.75
• Assembled Width UOM - Imperial: in.
• Base Product ID: HWSC_Clip
• Base Product Name: HWSC®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Deflection Connectors > Clip
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Zinc Galvanized, G90
• Gauge: 16
• GUID: 88596787180559283195491737976715684142
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 20.63
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 8.00
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 8.00
• Package Width UOM - Imperial: in.
• Packaging Quantity: 50
• Packaging Type: Box
• Product Class: Clip
• Product Includes: (50) connectors; (110) XLSH78B1414 #14 shouldered screws
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 19
• Short Product Name: 6"HEAD OF WALL SLIDE 50PK W/SCREWS
• Strongtie.com URL: https://www.strongtie.com/deflectionconnectors_coldformedsteelconstruction/hwsc_clip/p/hwsc
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Deflection Connectors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392021280
