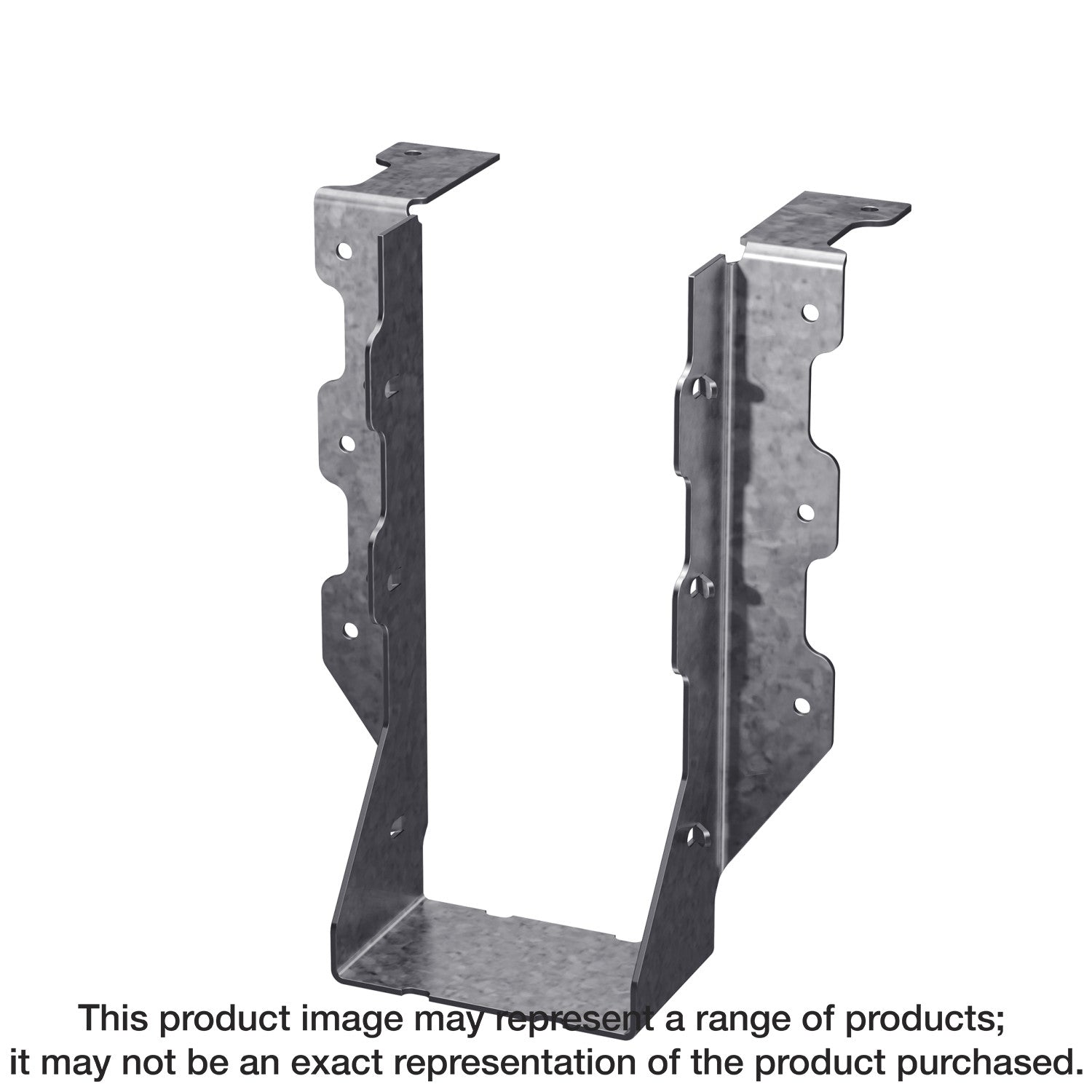

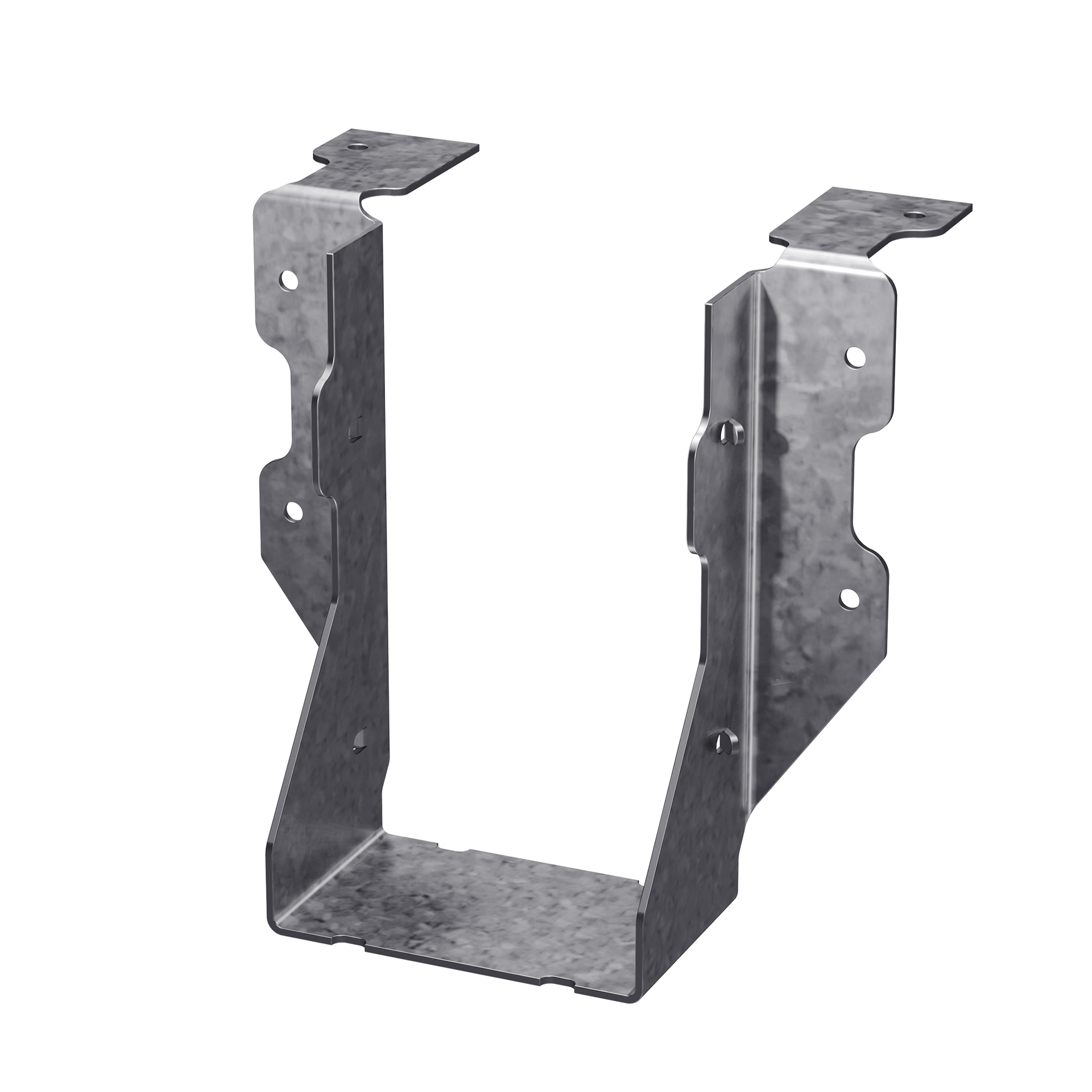

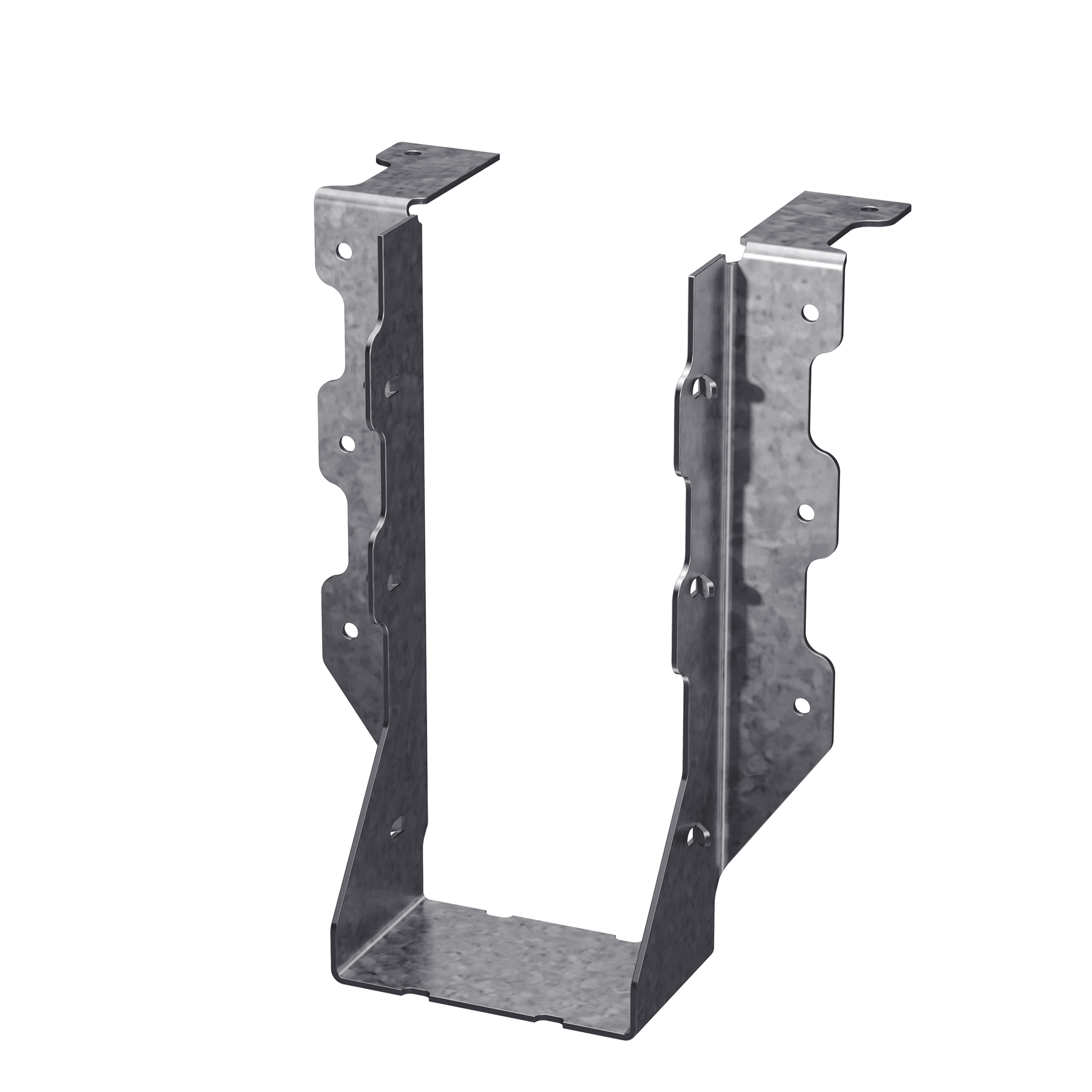

Simpson Strong-Tie HUS26-2TF HUS Galvanized Top-Flange Joist Hanger for Double 2x6

Simpson Strong-Tie HUS26-2TF HUS Galvanized Top-Flange Joist Hanger for Double 2x6

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. HUS hangers are designed for applications where higher load values are needed.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
• Allows for the use of fewer nails, faster installation and the use of standard nails for all connections
• Do not bend or remove tabs
• Seat width: 3-1/8 in.
• Nominal joist size: Double 2x6
• Made from 12 -gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: HUS26-2TF
• UPC: 44315443206
• GTIN: 44315443206
• Feature 01: Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
• Feature 02: Allows for the use of fewer nails, faster installation and the use of standard nails for all connections
• Feature 03: Do not bend or remove tabs
• Feature 04: Seat width: 3-1/8 in.
• Feature 05: Nominal joist size: Double 2x6
• Feature 06: Made from 12 -gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Install With: Install with 0.162 in. x 3-1/2 in. nails
• Assembled Depth - Imperial: 3.945
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 5.515
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.515
• Assembled Width UOM - Imperial: in.
• Base Product ID: HUSTF_Hanger
• Base Product Name: HUSTF
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 14
• GUID: 166407684456141757993147463612815137389
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: Double 2x6
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.68
• Short Product Name: 2 X 6 DBL TOP FLANGE FACE MOUNT HANGER
• Strongtie.com URL: https://www.strongtie.com/topflangehangersssl_solidsawnlumberconnectors/hustf_hanger/p/hustf
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315443203
• PAL Reference: 50044315443201
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
