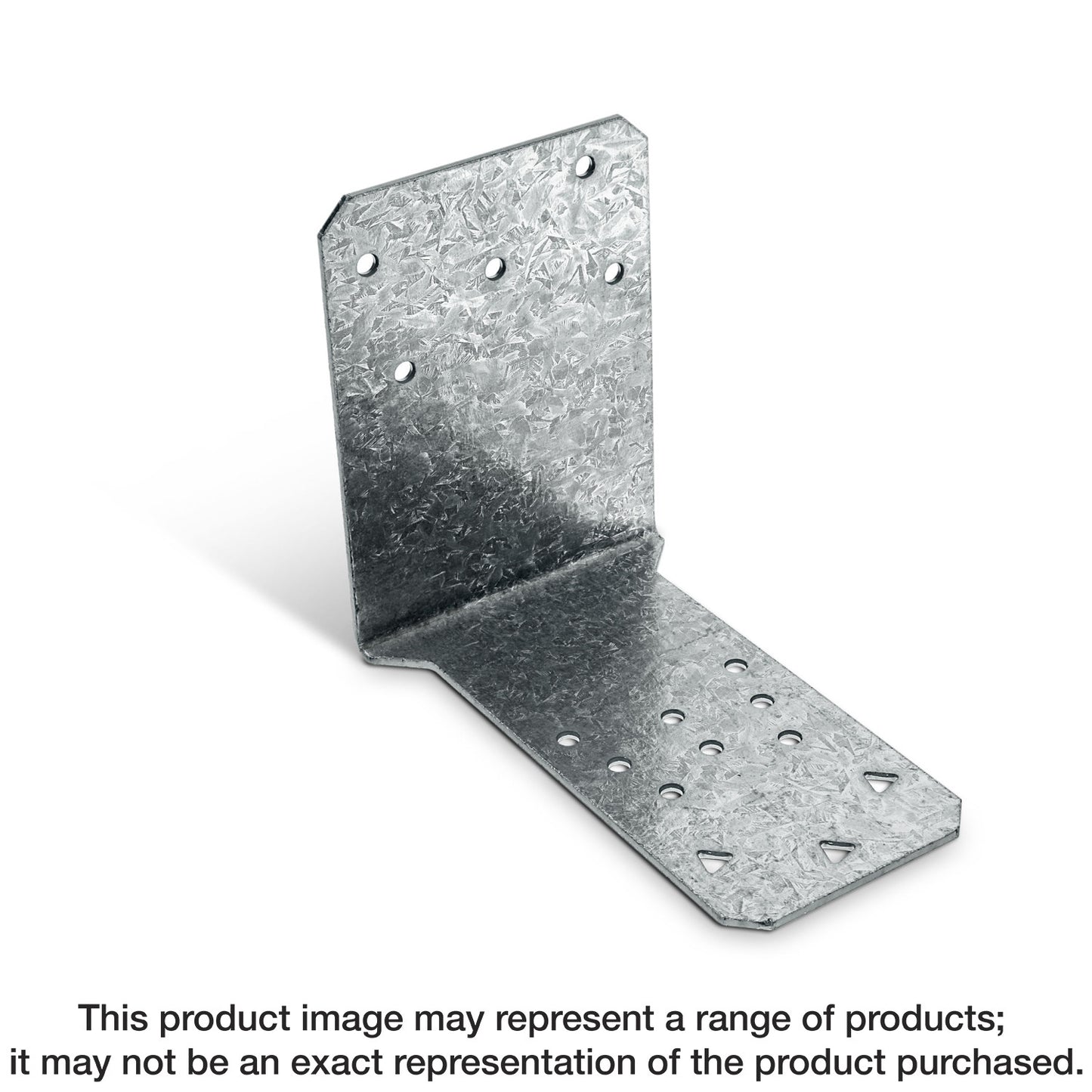

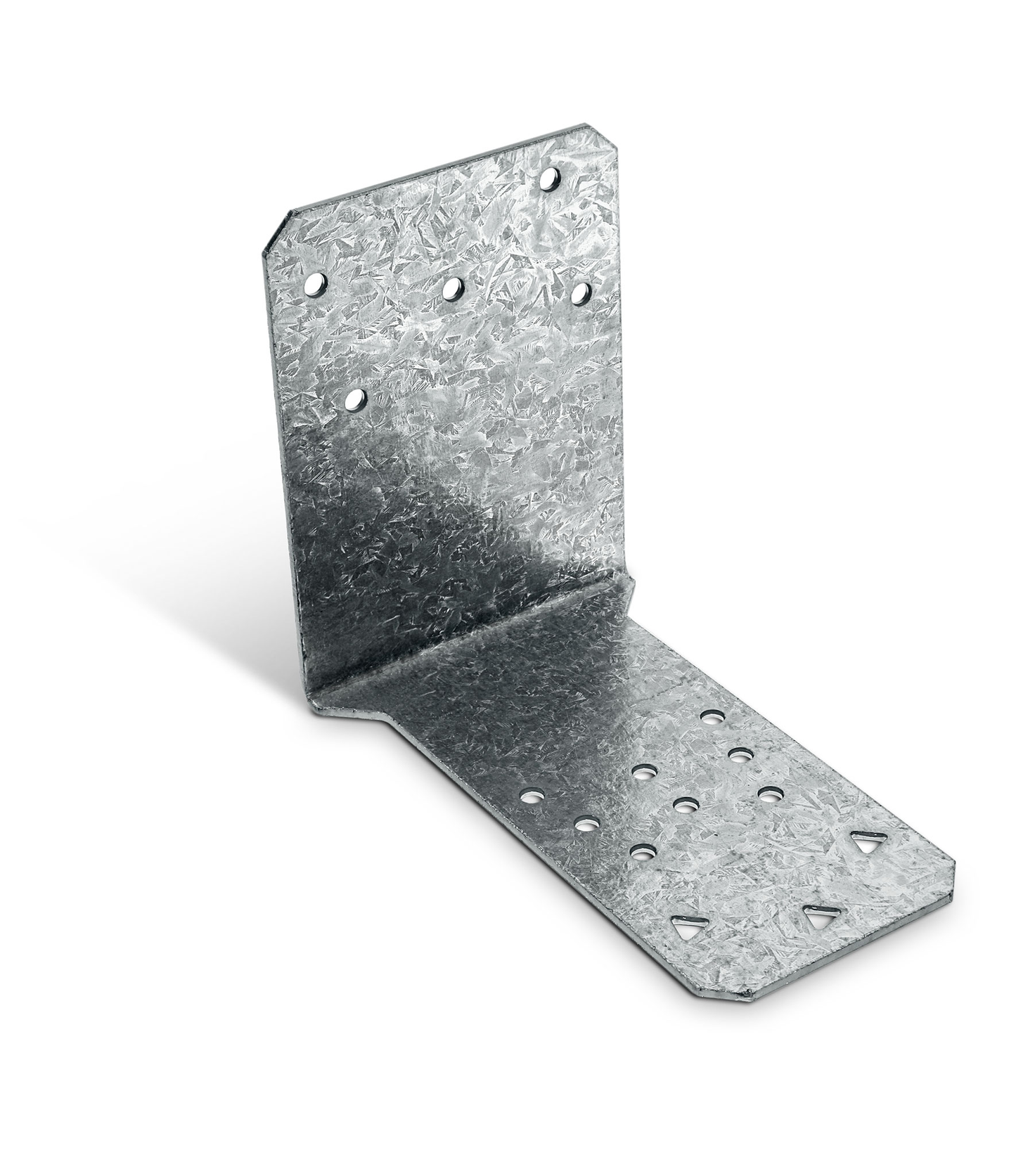

Simpson Strong-Tie FWANZ FWANZ ZMAX® Galvanized Nail-On Foundation Wall Angle

Simpson Strong-Tie FWANZ FWANZ ZMAX® Galvanized Nail-On Foundation Wall Angle

FWA foundation anchors connect the foundation or basement walls to the floor system to resist out-of-plane forces imposed by soil pressure. The FWANZ fastens to the mudsill with nails, relying on other anchorage (by Designer) to anchor the sill plate to the foundation. Spacing of the FWA anchors is independent of the joist spacing, allowing for a multitude of options based on soil pressures.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Compatible with solid sawn joists, I-joists and floor trusses
• Testing performed on most common rim materials and types
• Addresses design needs set forth in Section 1610.1 in the IBC and Section R404.1 in the IRC
• Eliminates the need of costly cantilevered foundation designs
• Made from 14-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: FWANZ
• UPC: 707392521105
• GTIN: 707392521105
• Feature 01: Compatible with solid sawn joists, I-joists and floor trusses
• Feature 02: Testing performed on most common rim materials and types
• Feature 03: Addresses design needs set forth in Section 1610.1 in the IBC and Section R404.1 in the IRC
• Feature 04: Eliminates the need of costly cantilevered foundation designs
• Feature 05: Made from 14-gauge steel
• Feature 06: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Install With: Fasten with 0.148 in. dia. x 1-1/2 in. long nails
• Assembled Depth - Imperial: 4.625
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 4
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3
• Assembled Width UOM - Imperial: in.
• Base Product ID: FWA_Angle
• Base Product Name: FWA
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Foundation Anchors > Angle
• Coating: ZMAX®
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: ZMAX®
• Gauge: 14
• GUID: 38987077375422488100353021003639374432
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Angle
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.46
• Short Product Name: FOUNDATION WALL ANGLE NAIL-ON ZMAX
• Strongtie.com URL: https://www.strongtie.com/foundationanchors_concreteconnectorsandanchors/fwa_angle/p/fwa
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Foundation Anchors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392521102
• PAL Reference: 50707392521100
