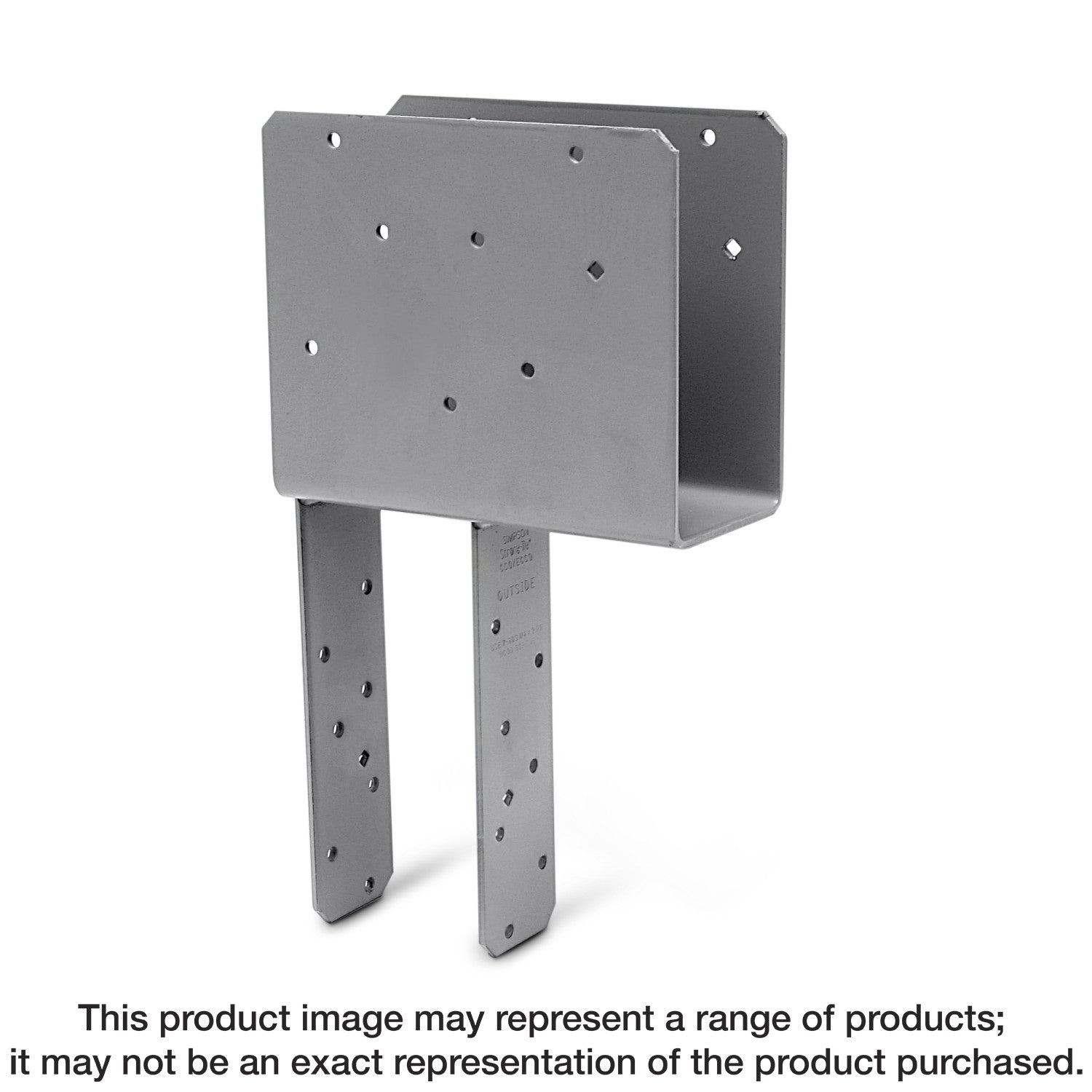

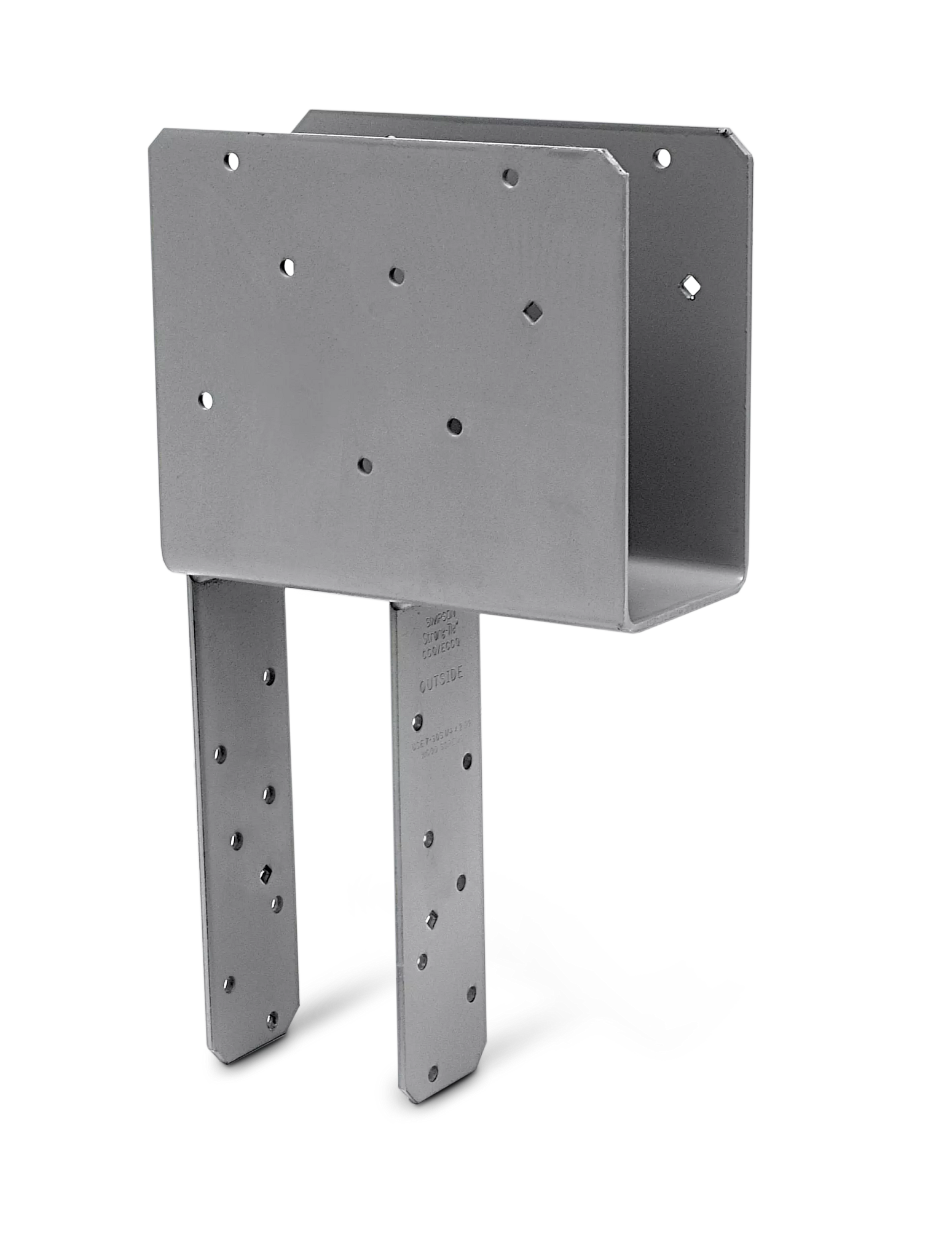

Simpson Strong-Tie ECCQ88SDS2.5ROT ECCQ™ Rotated-Strap End Column Cap for 8x Beam, 8x Post with Strong-Drive® SDS Screws

Simpson Strong-Tie ECCQ88SDS2.5ROT ECCQ™ Rotated-Strap End Column Cap for 8x Beam, 8x Post with Strong-Drive® SDS Screws

Simpson Strong-Tie® column caps come in a variety of sizes to accommodate any project, generally eliminating the need for additional brackets or braces. The ECCQ™ is designed to provide strong column-beam connections in end-of-beam applications in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond the side of the column. The extended bearing surface helps distribute the load from the beam and provide support for the connection. The ECCQ uses Strong-Drive® SDS Heavy-Duty Connector screws for fast installation and to attach to a greater net section area of the column than a bolt attachment normally entails.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• The SDS screws provide a lower profile than standard through bolts
• Certified welds for confidence in strength and loading
• Uplift loads have been increased for earthquake or wind loading
• Diamond holes for temporary fastening
• Option with straps rotated 90°
• Nominal beam width: 8x
• Nominal post size: 8x
• Made from 3-gauge steel
• Simpson Strong-Tie gray paint finish

Specifications

• ERP Part Number: ECCQ88SDS2.5ROT
• UPC: 707392388807
• GTIN: 707392388807
• Feature 01: The SDS screws provide a lower profile than standard through bolts
• Feature 02: Certified welds for confidence in strength and loading
• Feature 03: Uplift loads have been increased for earthquake or wind loading
• Feature 04: Diamond holes for temporary fastening
• Feature 05: Option with straps rotated 90°
• Feature 06: Nominal beam width: 8x
• Feature 07: Nominal post size: 8x
• Feature 08: Made from 3-gauge steel
• Feature 09: Simpson Strong-Tie gray paint finish
• Install With: Install with (28) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (Model: SDS25212 included)
• Assembled Depth - Imperial: 7.958
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 15.729
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 8.50
• Assembled Width UOM - Imperial: in.
• Base Product ID: ECCQ_Cap
• Base Product Name: ECCQ™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Caps > Column Cap
• Coating: Simpson Strong-Tie Gray Paint
• Color: Gray
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Simpson Strong-Tie Gray Paint
• Gauge: 3
• GUID: 232065285862225649687874355268387017582
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 8x beam, 8x post
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Column Cap
• Product Includes: Includes (28) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 16.22
• Short Product Name: 8X BEAM, 8X POST ROT SDS
