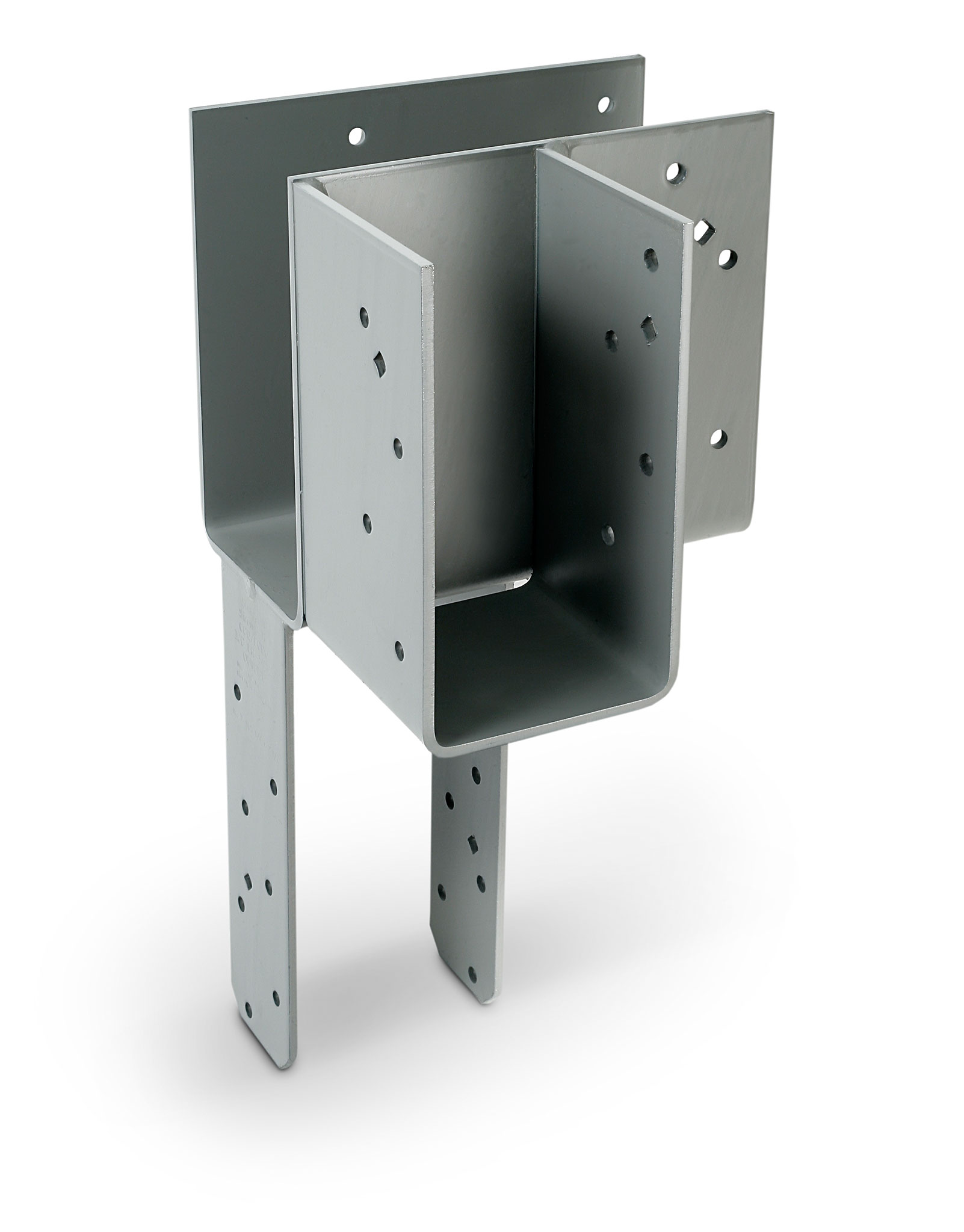

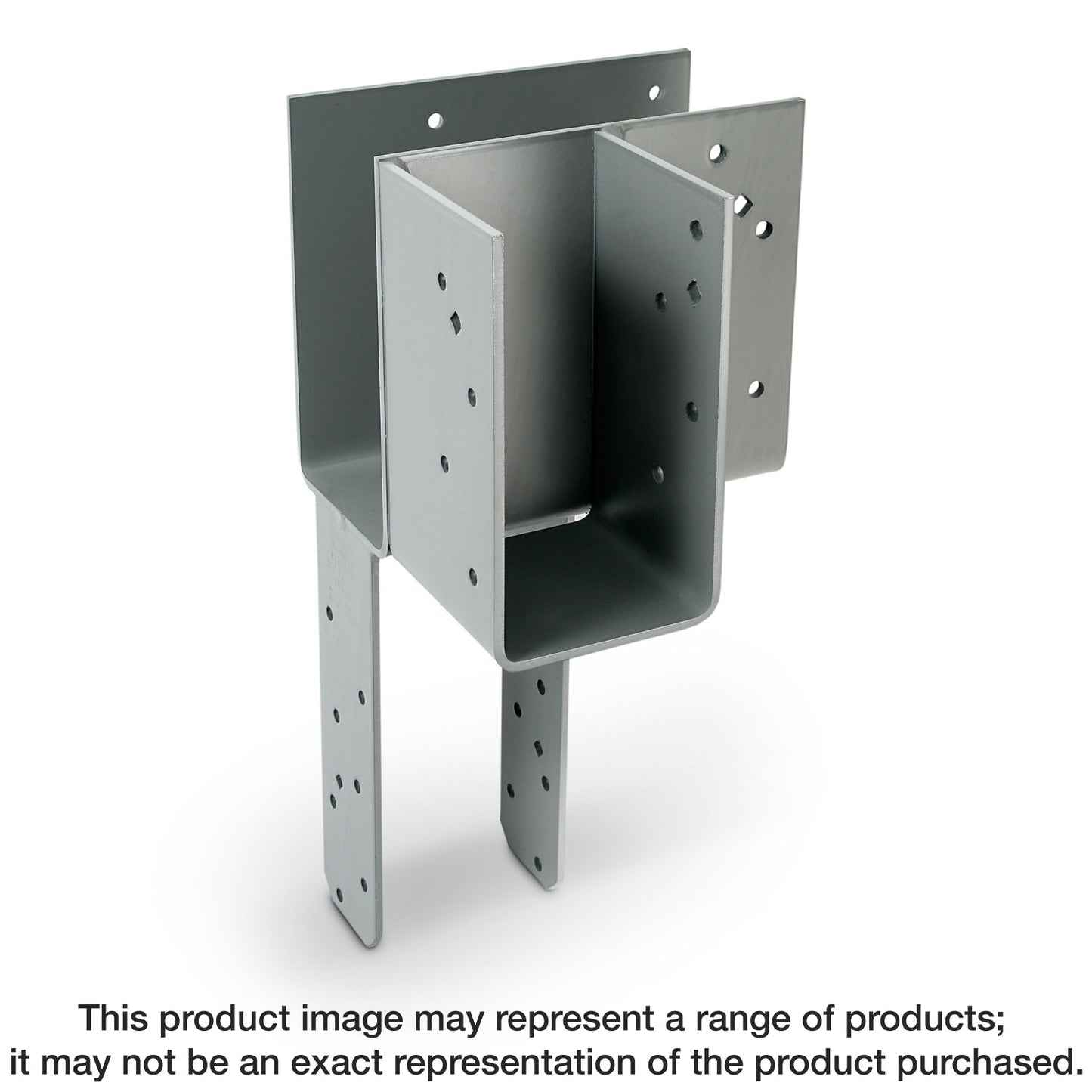

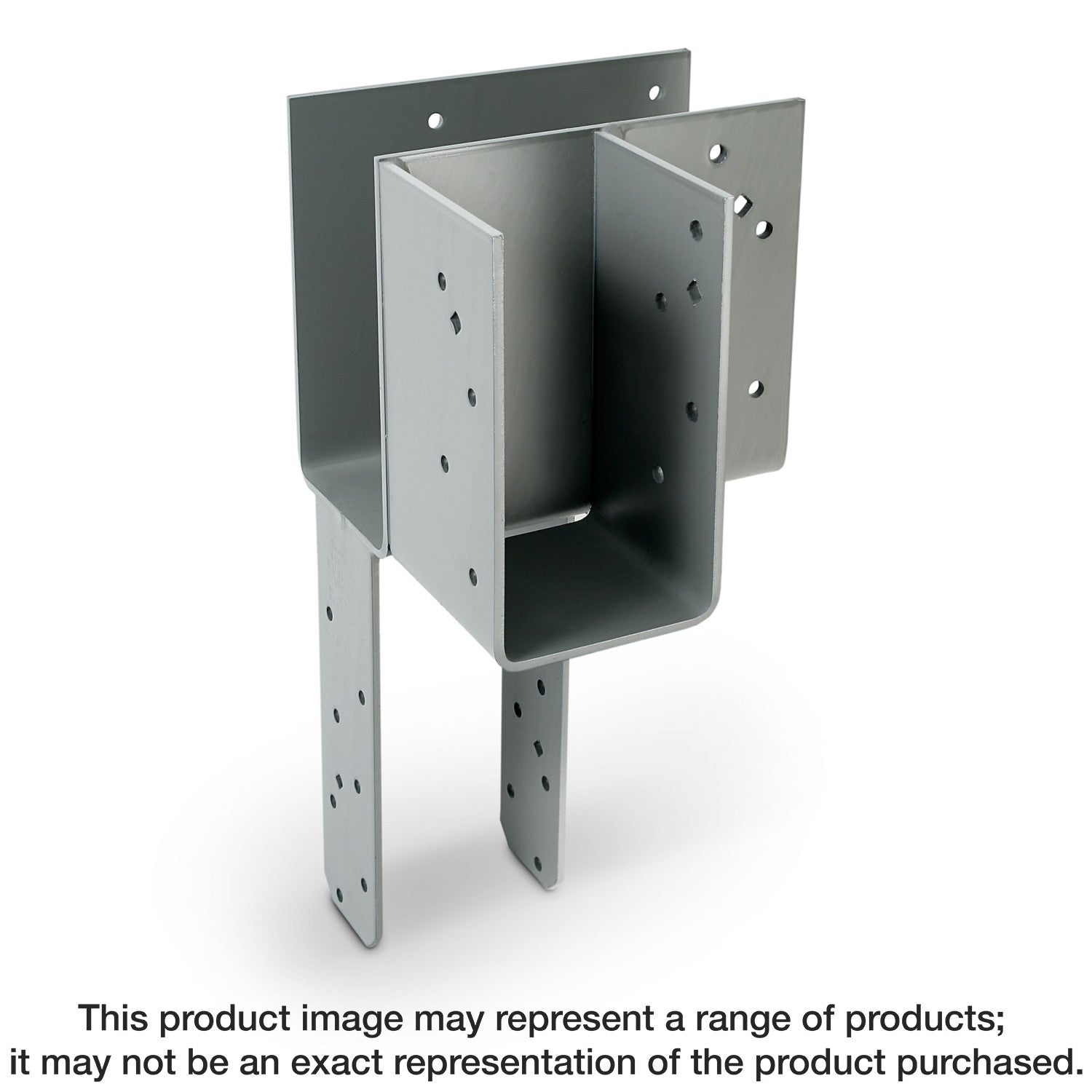

Simpson Strong-Tie ECCLRQ464HDG ECCLRQ HDG L-Shape End Column Cap for 4x Beams, 6x Post w/ SDS Screws, Skewed Right
Simpson Strong-Tie® column caps come in a variety of sizes to accommodate any project, generally eliminating the need for additional brackets or braces. The ECCLQ is designed to provide strong column-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. The ECCLQ uses Strong-Drive® SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts. The ECCLQ is available in left- or right-side beam orientations.
This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.
Features
- Screws are configured to provide high uplift design values
- Certified welds for confidence in strength and loading
- Diamond holes to provide temporary fastening
- Side beam oriented right; order ECCLLQ model for side beam oriented left
- Nominal member sizes: 4x main beam, 6x post, 4x side beam
- Made from 7-gauge steel
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
Specifications
- ERP Part Number: ECCLRQ464HDG
- UPC: 707392008415
- GTIN: 707392008415
- Feature 01: Screws are configured to provide high uplift design values
- Feature 02: Certified welds for confidence in strength and loading
- Feature 03: Diamond holes to provide temporary fastening
- Feature 04: Side beam oriented right; order ECCLLQ model for side beam oriented left
- Feature 05: Nominal member sizes: 4x main beam, 6x post, 4x side beam
- Feature 06: Made from 7-gauge steel
- Feature 07: Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
- Install With: Install with 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (Model: SDS25212 included)
- Assembled Depth - Imperial: 7.974
- Assembled Depth UOM - Imperial: in.
- Assembled Height - Imperial: 15.6745
- Assembled Height UOM - Imperial: in.
- Assembled Width - Imperial: 8.5
- Assembled Width UOM - Imperial: in.
- Base Product ID: ECCLQ_Cap
- Base Product Name: ECCLQ
- Brand Name: Simpson Strong-Tie®
- Category Tree (Computed): Wood Construction Connectors > Caps > Column Cap
- Coating: Hot-Dip Galvanized
- Country of Origin: US
- Customer Unit: Yes
- Display Unit/Measure: EA
- EAN category: UC
- Finish: Hot-Dip Galvanized
- Gauge: 7
- GUID: 223347039089182833819379460439140402223
- Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
- Measurement Unit Text: each
- Member Size: 4x main beam, 6x post, 4x side beam
- MFG Name: Simpson Strong-Tie®
- Number Category Description: UPC
- Packaging Quantity: 1
- Packaging Type: Unpacked
- Product Class: Column Cap
- Product Includes: Includes 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws
- Prop 65 - Cancer: Wood Dust
- Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
- Prop 65 Warning: Yes
- Quantity: 1
- Shipping Weight: 14.5
- Short Product Name: L End column Cap Right with screws
- Strongtie.com URL: https://www.strongtie.com/sdsscrewcolumncaps_columncaps/ecclq_cap/p/ecclq
- Subcategory: Wood Construction Connectors
- Subcategory 2: Caps
- Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
- Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
- Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
