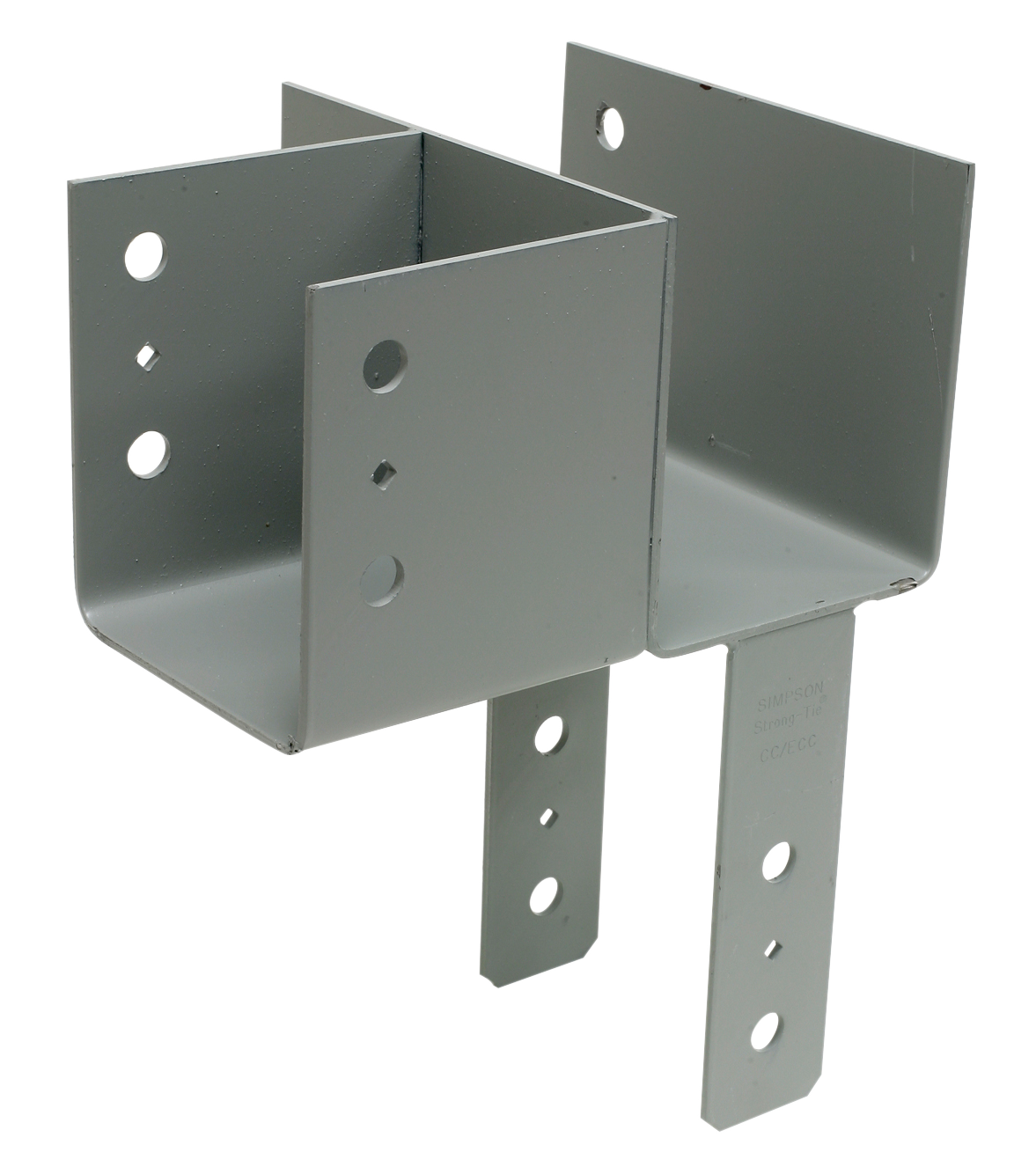

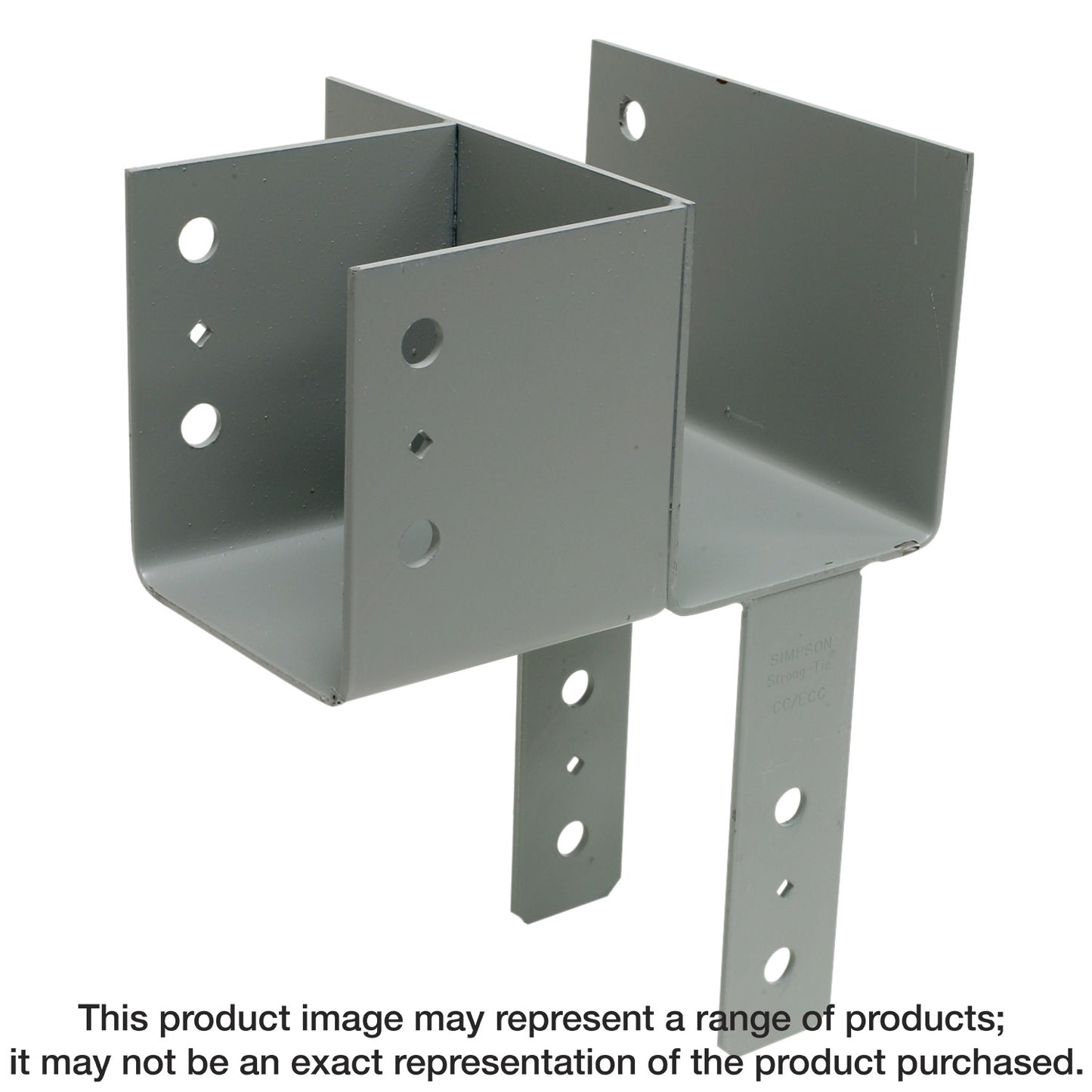

Simpson Strong-Tie ECCLR666 ECCLR L-Shape End Column Cap for 6x Beams, 6x Post, Skewed Right

Simpson Strong-Tie ECCLR666 ECCLR L-Shape End Column Cap for 6x Beams, 6x Post, Skewed Right

Simpson Strong-Tie® column caps come in a variety of sizes to accommodate any project, generally eliminating the need for additional brackets or braces. The ECCL is designed to provide strong column-to-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. End column caps are sized to the specific plan details or needs to accommodate the many combinations of beam and post sizes.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Assembled with certified welds for confidence in strength and loading
• Bolt spacing that meets NDS code requirements to ensure optimal performance
• Diamond holes to provide temporary fastening
• Right direction; order ECCLL for left direction
• Nominal member sizes: 6x main beam, 6x post, 6x side beam
• Made from 7-gauge steel
• Simpson Strong-Tie gray paint finish

Specifications

• ERP Part Number: ECCLR666
• UPC: 44315570407
• GTIN: 44315570407
• Feature 01: Assembled with certified welds for confidence in strength and loading
• Feature 02: Bolt spacing that meets NDS code requirements to ensure optimal performance
• Feature 03: Diamond holes to provide temporary fastening
• Feature 04: Right direction; order ECCLL for left direction
• Feature 05: Nominal member sizes: 6x main beam, 6x post, 6x side beam
• Feature 06: Made from 7-gauge steel
• Feature 07: Simpson Strong-Tie gray paint finish
• Install With: Install with 5/8-in. diameter bolts
• Assembled Depth - Imperial: 9.5
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 15.171
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 11.842
• Assembled Width UOM - Imperial: in.
• Base Product ID: ECCL_Cap
• Base Product Name: ECCL
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Caps > Column Cap
• Coating: Simpson Strong-Tie Gray Paint
• Color: Gray
• Country of Origin: ZZ
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Simpson Strong-Tie Gray Paint
• Gauge: 7
• GUID: 76983782578110200359178156830715799898
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 6x main beam, 6x post, 6x side beam
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Column Cap
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 19.27
• Short Product Name: 6X BEAM, 6X POST, 6X BEAM ECC L SHAPE RT
• Strongtie.com URL: https://www.strongtie.com/boltedcolumncaps_columncaps/eccl_cap/p/eccl
• Subcategory: Wood Construction Connectors
• Subcategory 2: Caps
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392219177
• PAL Reference: 50707392219175
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
