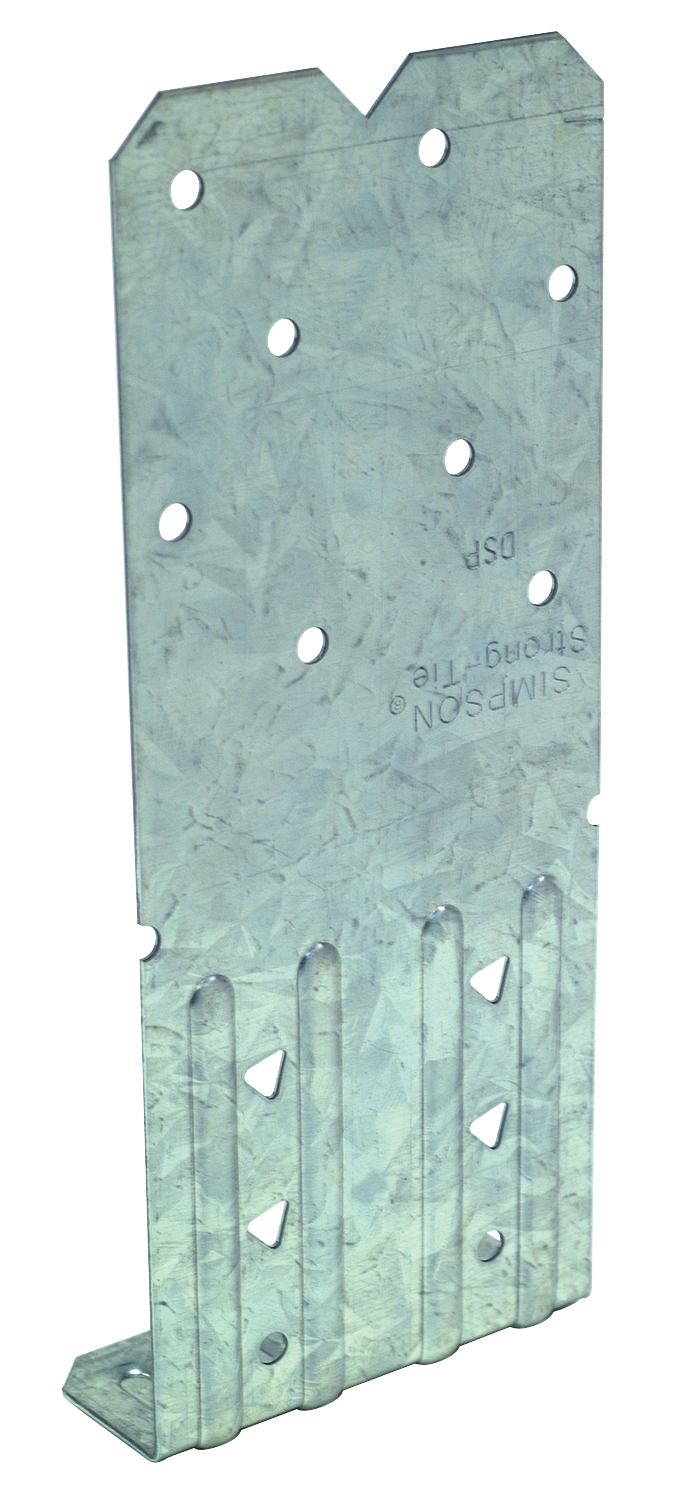

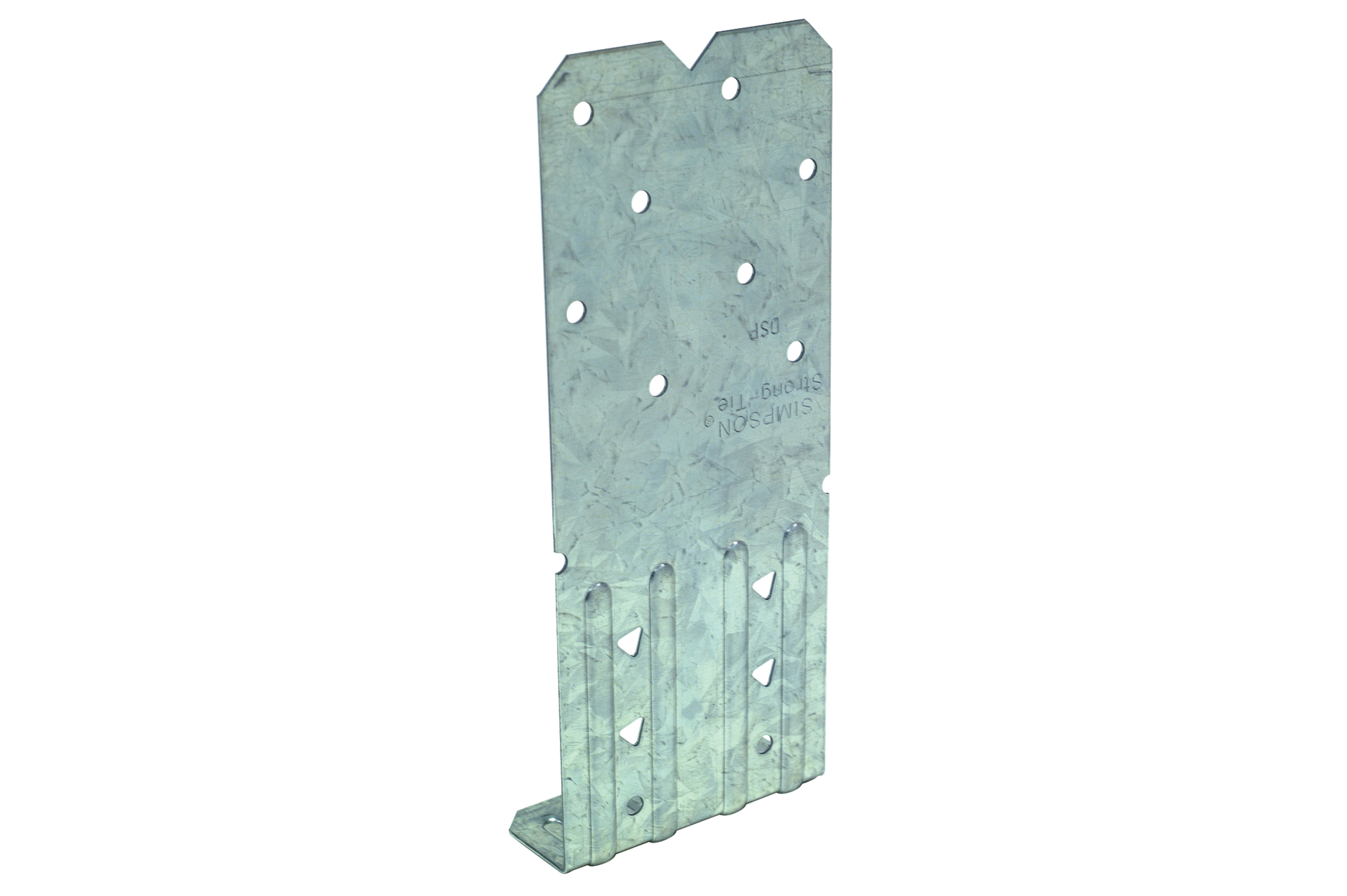

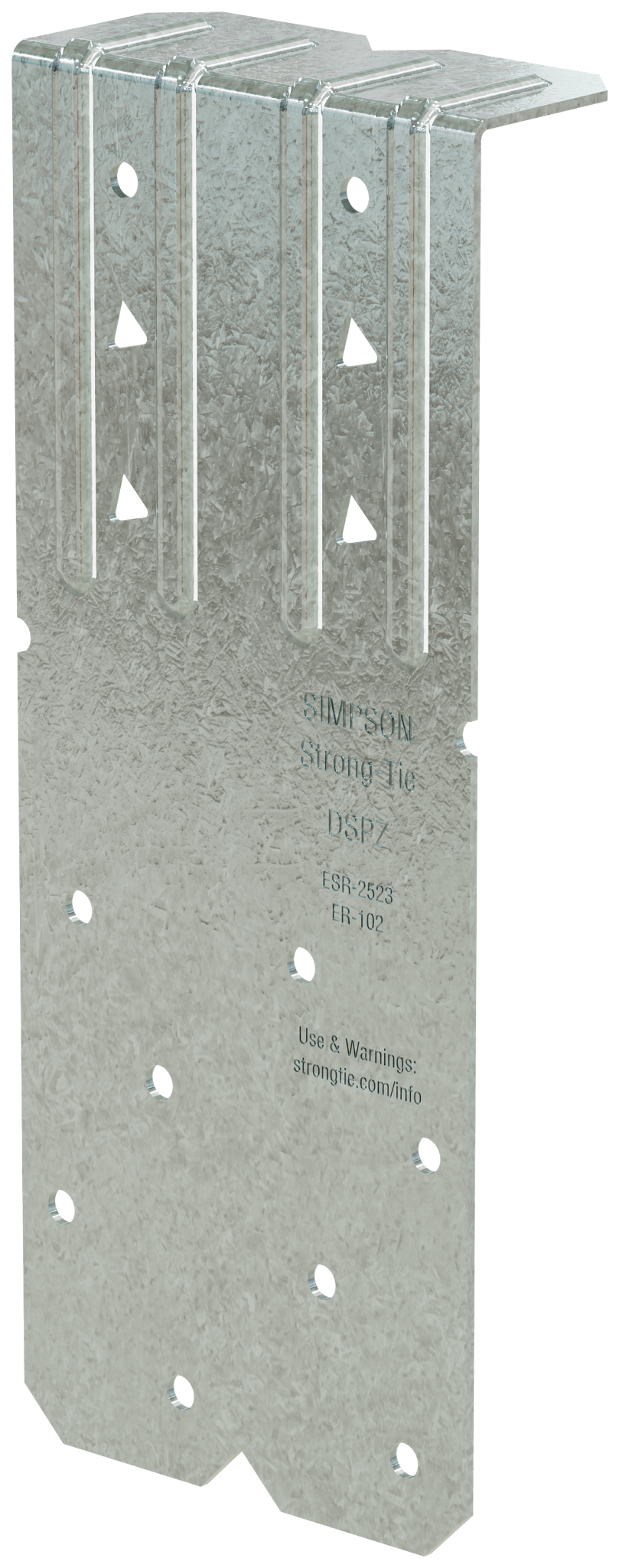

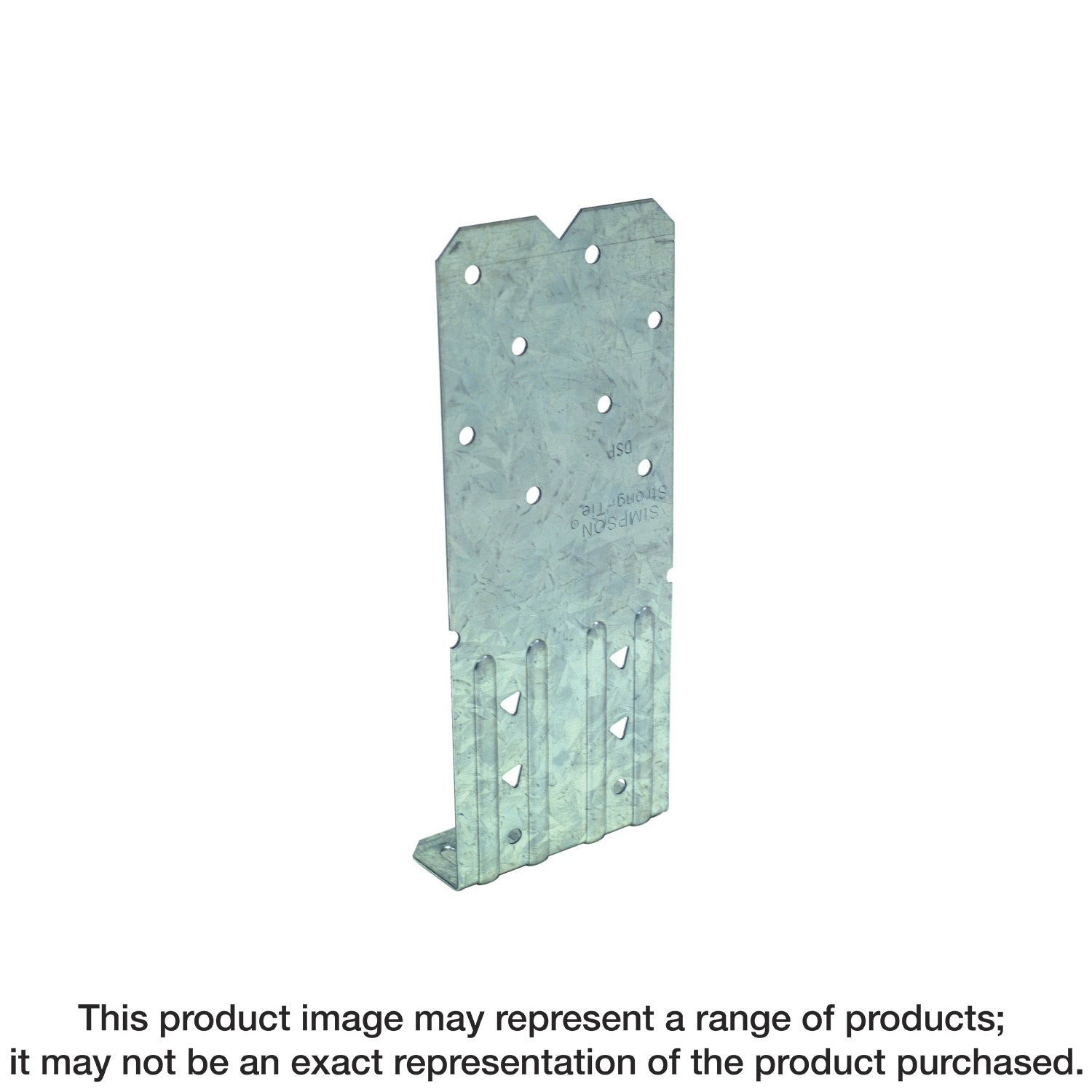

Simpson Strong-Tie DSPZ DSP 18-Gauge ZMAX® Galvanized Double-Stud Plate Tie

Simpson Strong-Tie DSPZ DSP 18-Gauge ZMAX® Galvanized Double-Stud Plate Tie

Simpson Strong-Tie straps and plates join and reinforce joints with simple, versatile solutions for a wide range of connections. Available in many lengths, widths and thicknesses, straps can be used on the wide or narrow face of lumber for light repairs or heavy-duty projects. Many straps are designed to be used back-to-back on a piece of lumber without fastener interference. The stud plate tie series offers various solutions for connecting the stud to the top and bottom plates. DSP double-stud plate ties connect double studs to top and bottom track and can be used for either top- or bottom-track applications.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• For sill plate installation, fill all round holes
• For top plate installation, fill all round holes and triangle holes
• Width: 2-3/4 in.
• Length: 6-11/16 in.
• Made from 18-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: DSPZ
• UPC: 707392740001
• GTIN: 707392740001
• Feature 01: For sill plate installation, fill all round holes
• Feature 02: For top plate installation, fill all round holes and triangle holes
• Feature 03: Width: 2-3/4 in.
• Feature 04: Length: 6-11/16 in.
• Feature 05: Made from 18-gauge steel
• Feature 06: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Install With: Install with 10d common nails or 10d x 1-1/2 in. nails
• Assembled Depth - Imperial: 1.219
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 6.7815
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.75
• Assembled Width UOM - Imperial: in.
• Base Product ID: DSP_Plate
• Base Product Name: DSP
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Straps and Ties > Stud-Plate Tie
• Coating: ZMAX®
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: ZMAX®
• Gauge: 18
• GUID: 5961506586669606645202606546512627633
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Stud-Plate Tie
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.275
• Short Product Name: DOUBLE STUD PLATE ZMAX
• Strongtie.com URL: https://www.strongtie.com/studplateties_strapsandties/dsp_plate/p/dsp
• Subcategory: Wood Construction Connectors
• Subcategory 2: Straps and Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392740008
• PAL Reference: 50707392740006
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
