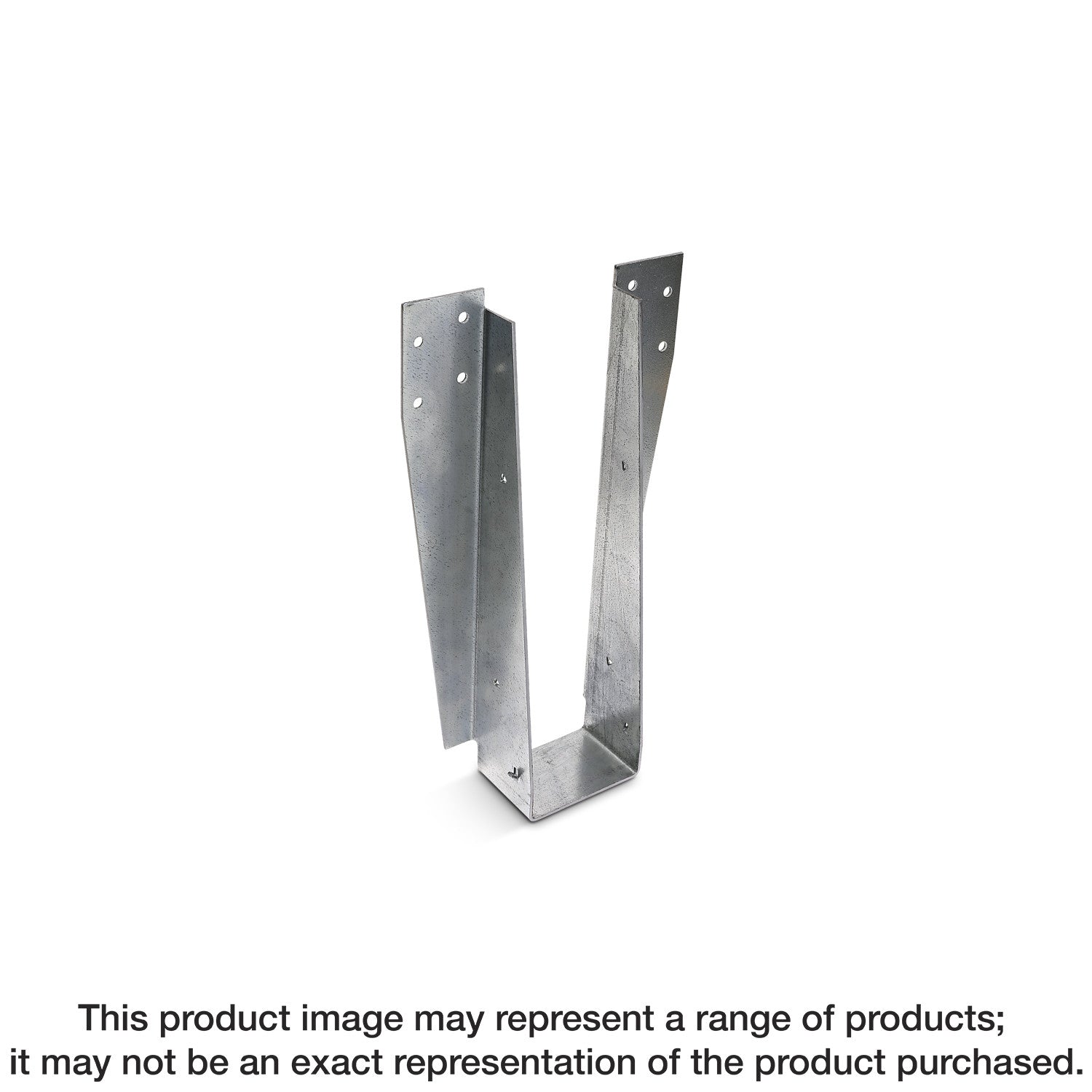

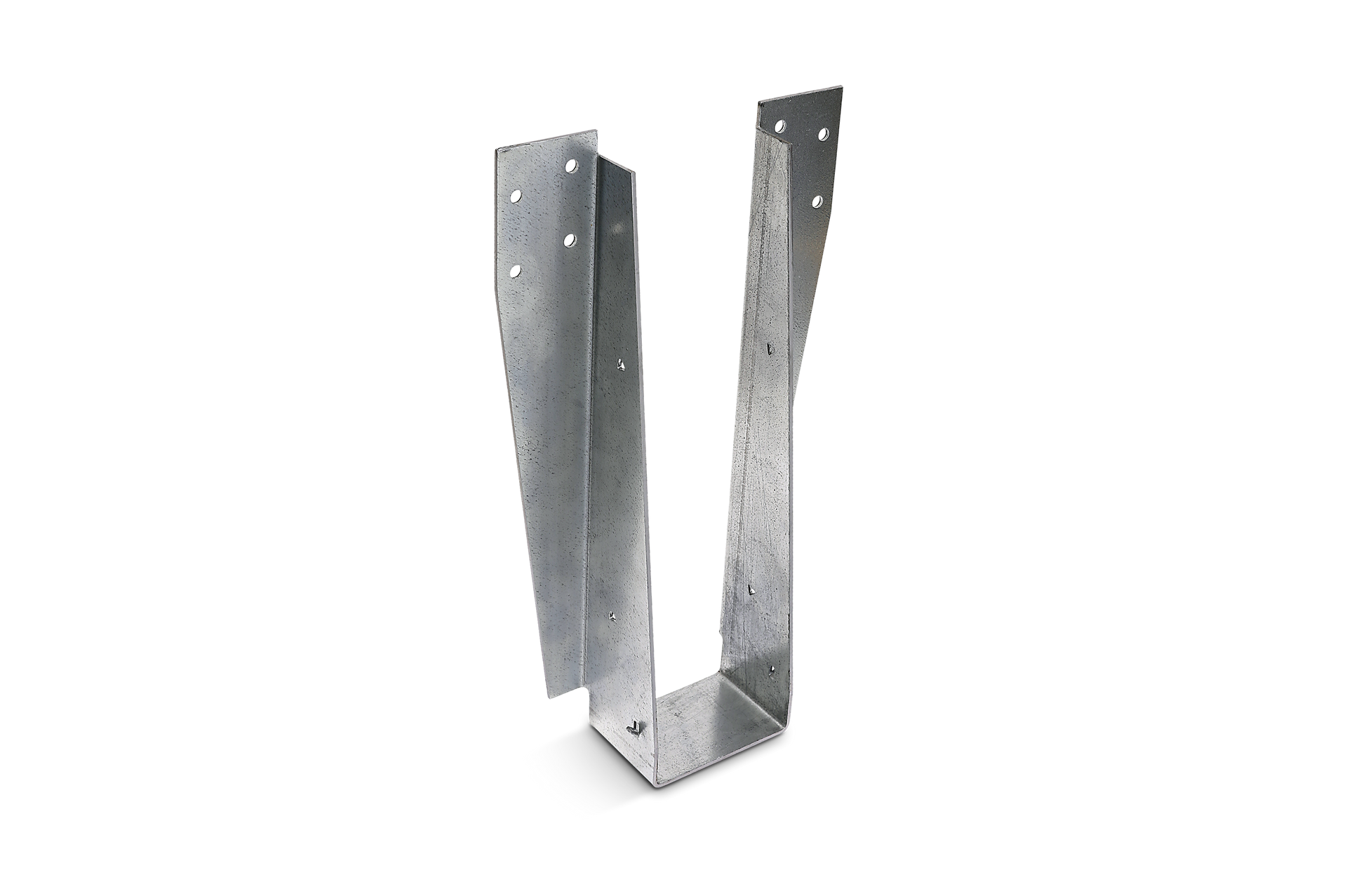

Simpson Strong-Tie DHU3.56/11.88 DHU® Face-Mount Drywall Hanger for 3-1/2 in. x 11-7/8 in. Engineered Wood with SDS Screws

Simpson Strong-Tie DHU3.56/11.88 DHU® Face-Mount Drywall Hanger for 3-1/2 in. x 11-7/8 in. Engineered Wood with SDS Screws

Engineered and tested to perform, Simpson Strong-Tie hangers are manufactured to the highest quality standards for structural strength and safety. DHU® face-mount hangers are designed to carry joist floor loads to a wood stud wall over two layers of 5/8-in. gypsum board (drywall). These hangers install after the drywall is in place.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• DHU hangers in widths of 2-1/2 in. or greater may be ordered with one flange concealed
• Available for order skewed up to 45°
• Testing verifies that the DHU hangers do not reduce the two-hour fire wall assembly rating in either 2x4 or 2x6 walls
• DHU fire wall hangers are code listed for structural use under ICC-ES ESR-2552
• Hangers have been tested according to ASTM E814 and received F (flame) and T (temperature) ratings for use on one or both sides of the wall in Intertek Design No. SST/WPCF 120-01
• If hangers are installed on both sides of the wall, then it must be a 2x6 wall
• Seat width: 3-9/16 in.
• Height: 11-13/16 in.
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: DHU3.56/11.88
• UPC: 707392525219
• GTIN: 707392525219
• Feature 01: DHU hangers in widths of 2-1/2 in. or greater may be ordered with one flange concealed
• Feature 02: Available for order skewed up to 45°
• Feature 03: Testing verifies that the DHU hangers do not reduce the two-hour fire wall assembly rating in either 2x4 or 2x6 walls
• Feature 04: DHU fire wall hangers are code listed for structural use under ICC-ES ESR-2552
• Feature 05: Hangers have been tested according to ASTM E814 and received F (flame) and T (temperature) ratings for use on one or both sides of the wall in Intertek Design No. SST/WPCF 120-01
• Feature 06: If hangers are installed on both sides of the wall, then it must be a 2x6 wall
• Feature 07: Seat width: 3-9/16 in.
• Feature 08: Height: 11-13/16 in.
• Feature 09: Made from 12-gauge steel
• Feature 10: Galvanized (G90) for extra corrosion resistance
• Install With: Install with (2) 0.148 in. x 1-1/2 in. nails in the joist and (8) 1/4 in. x 3-1/2 in. Strong Drive® SDS Heavy-Duty Connector screws in the face (screws included)
• Assembled Depth - Imperial: 2.7865
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 11.9115
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 8.323
• Assembled Width UOM - Imperial: in.
• Base Product ID: DHU_Hanger
• Base Product Name: DHU®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 12
• GUID: 302895580284441740100585095631372295943
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 3-1/2 in. x 11-7/8 in.
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Product Includes: (8) 1/4 in. x 3-1/2 in. Strong Drive SDS Heavy-Duty Connector screws
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 2.57
• Short Product Name: DRYWALL FACEMOUNT HANGER W/SDS SCREWS
• Strongtie.com URL: https://www.strongtie.com/firewallhangers_engineeredwoodconnectors/dhu_hanger/p/dhu
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers for Engineered Wood
• US Patents: 9,394,680
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
