Simpson Strong-Tie DGF1.81/11.88 DGF Top-Flange Fire Wall Hanger for 1-3/4 in. x 11-7/8 in. Engineered Wood (Pack of 192)

Simpson Strong-Tie DGF1.81/11.88 DGF Top-Flange Fire Wall Hanger for 1-3/4 in. x 11-7/8 in. Engineered Wood (Pack of 192)

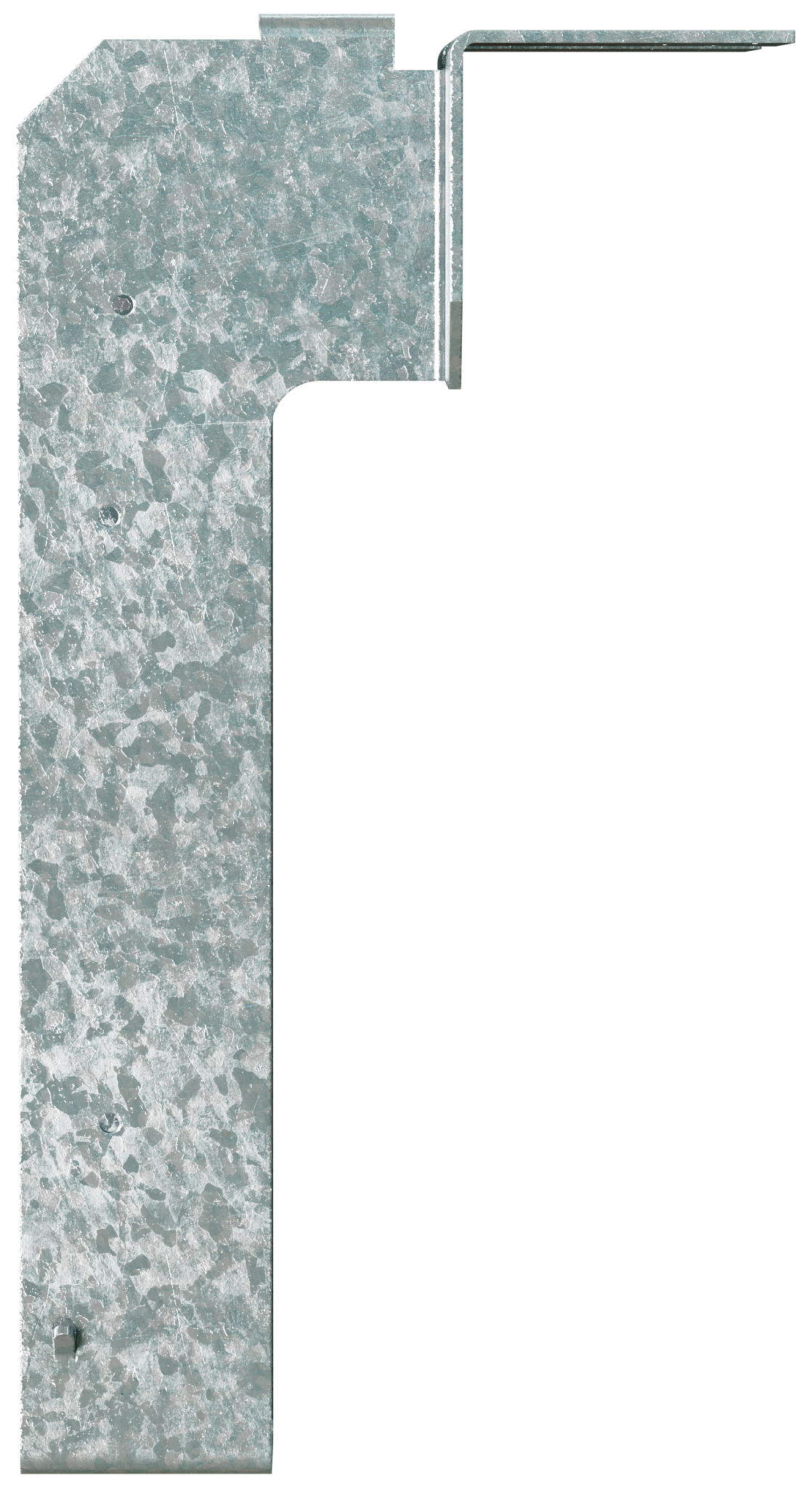

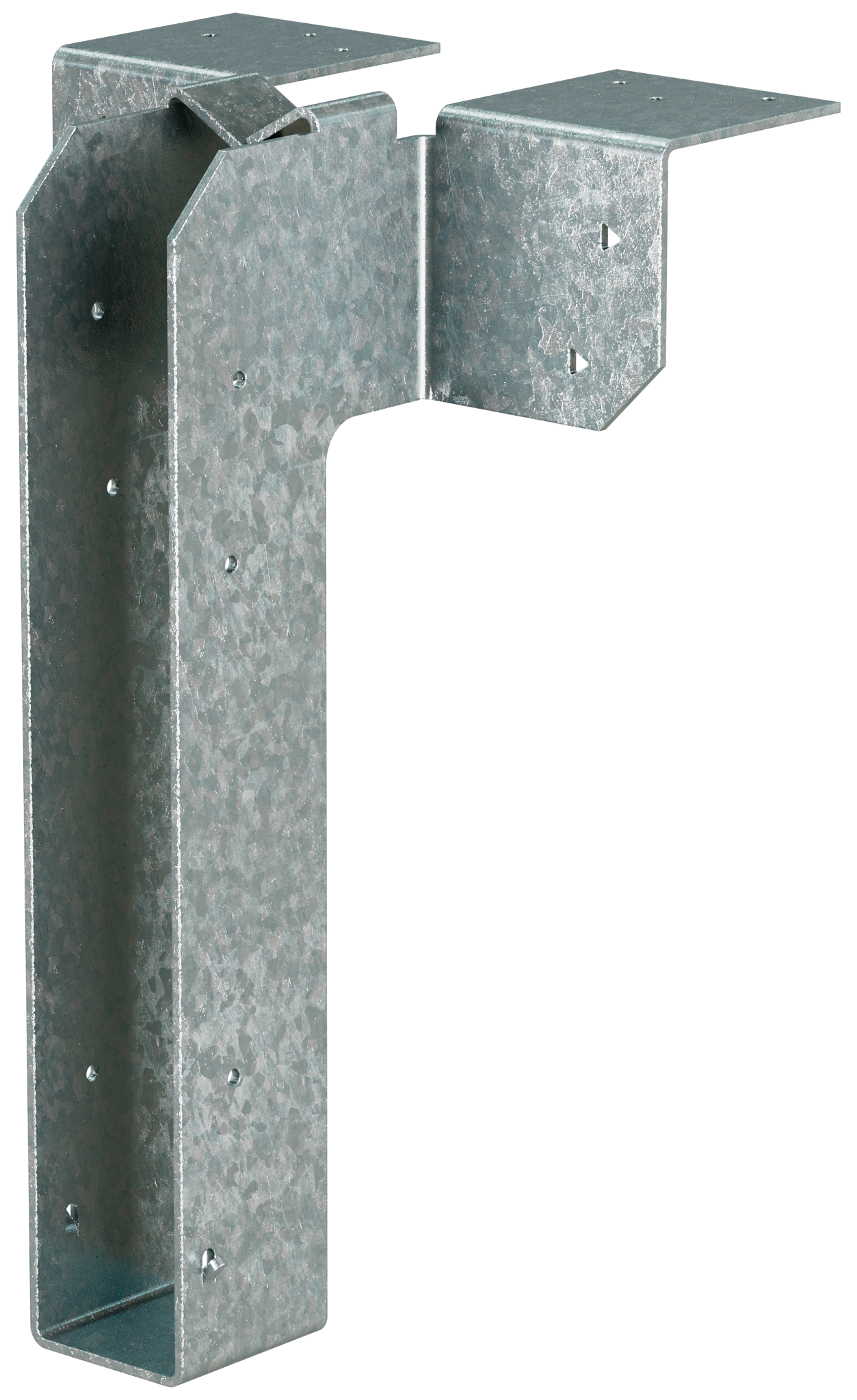

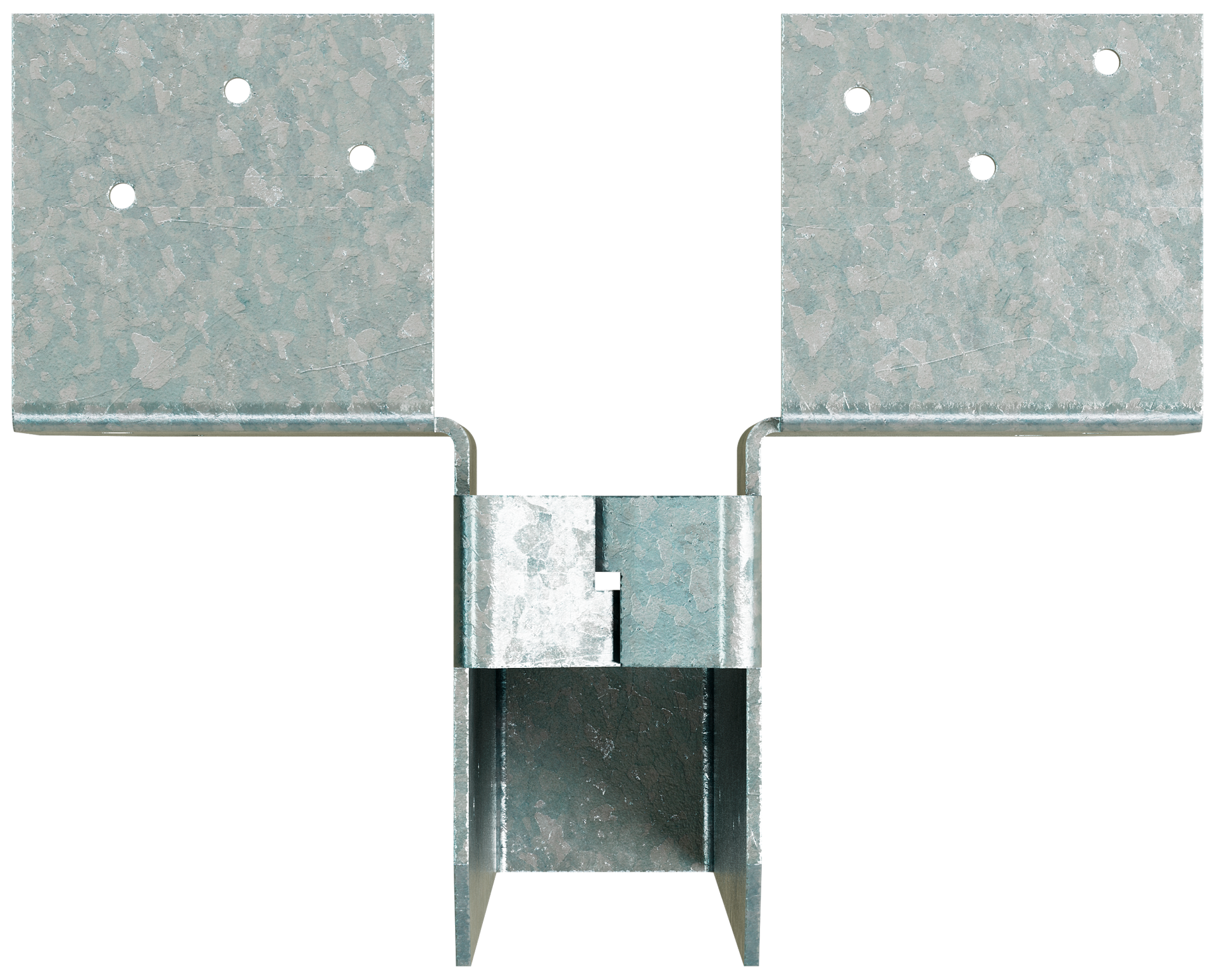

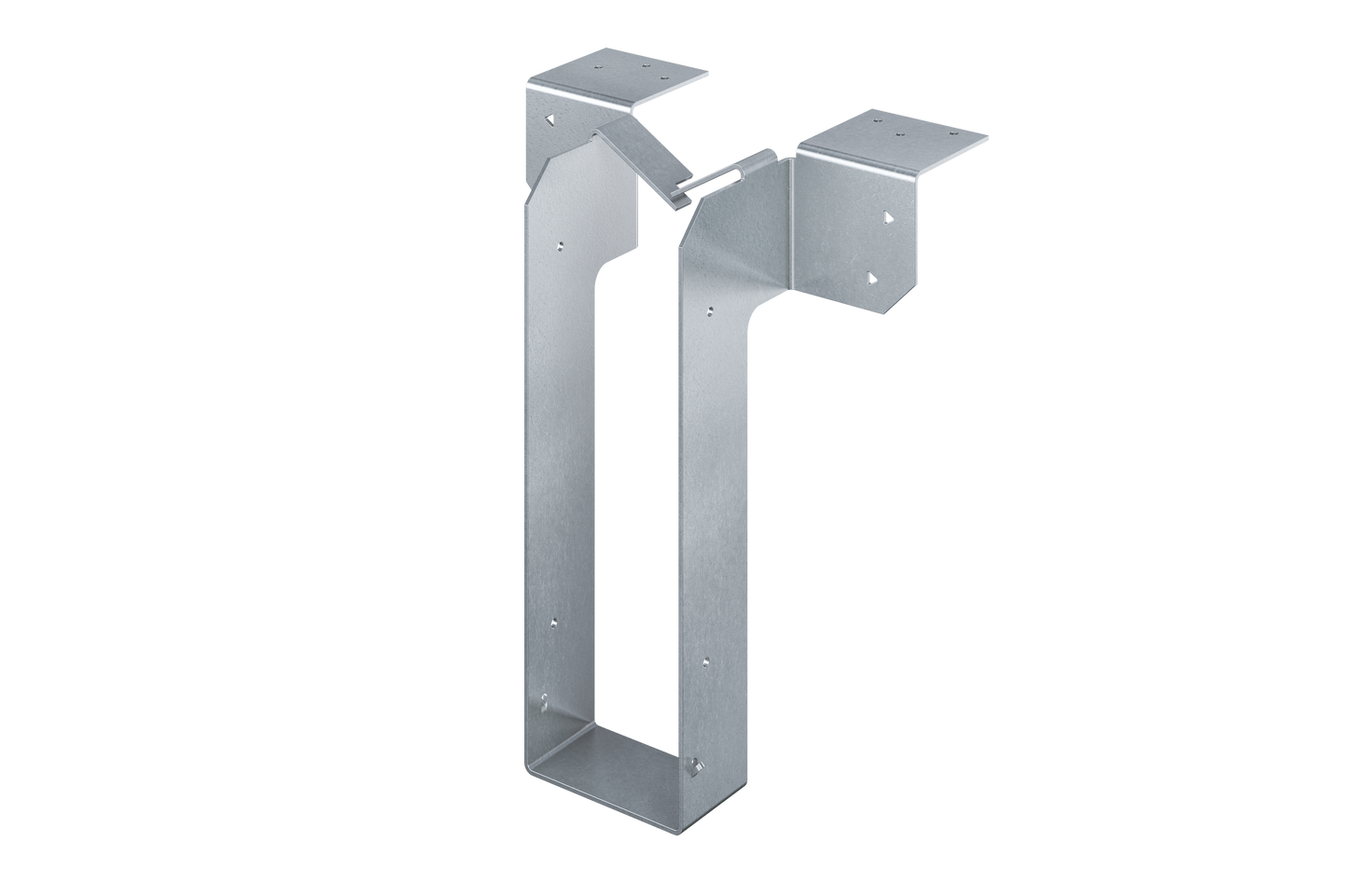

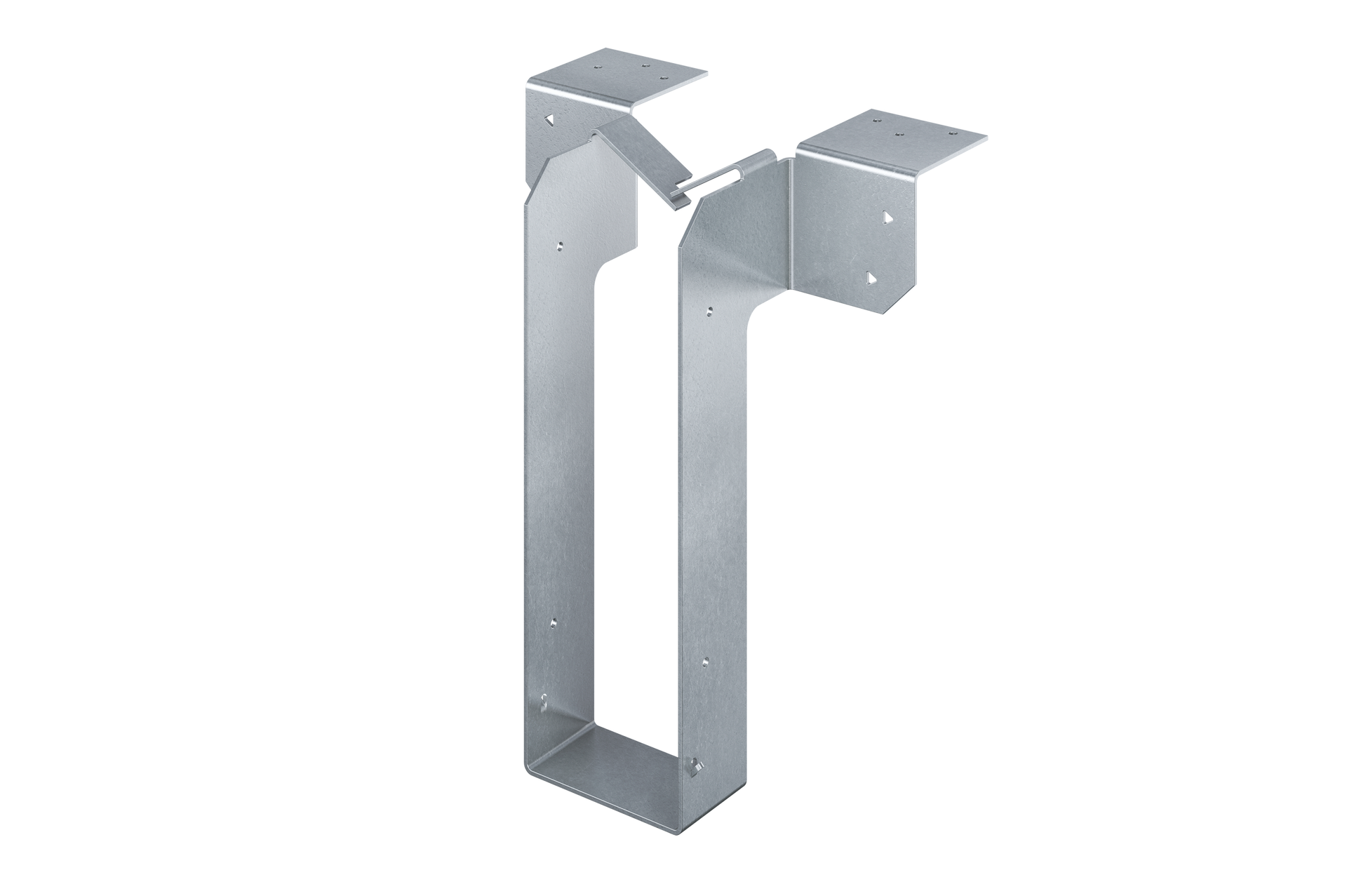

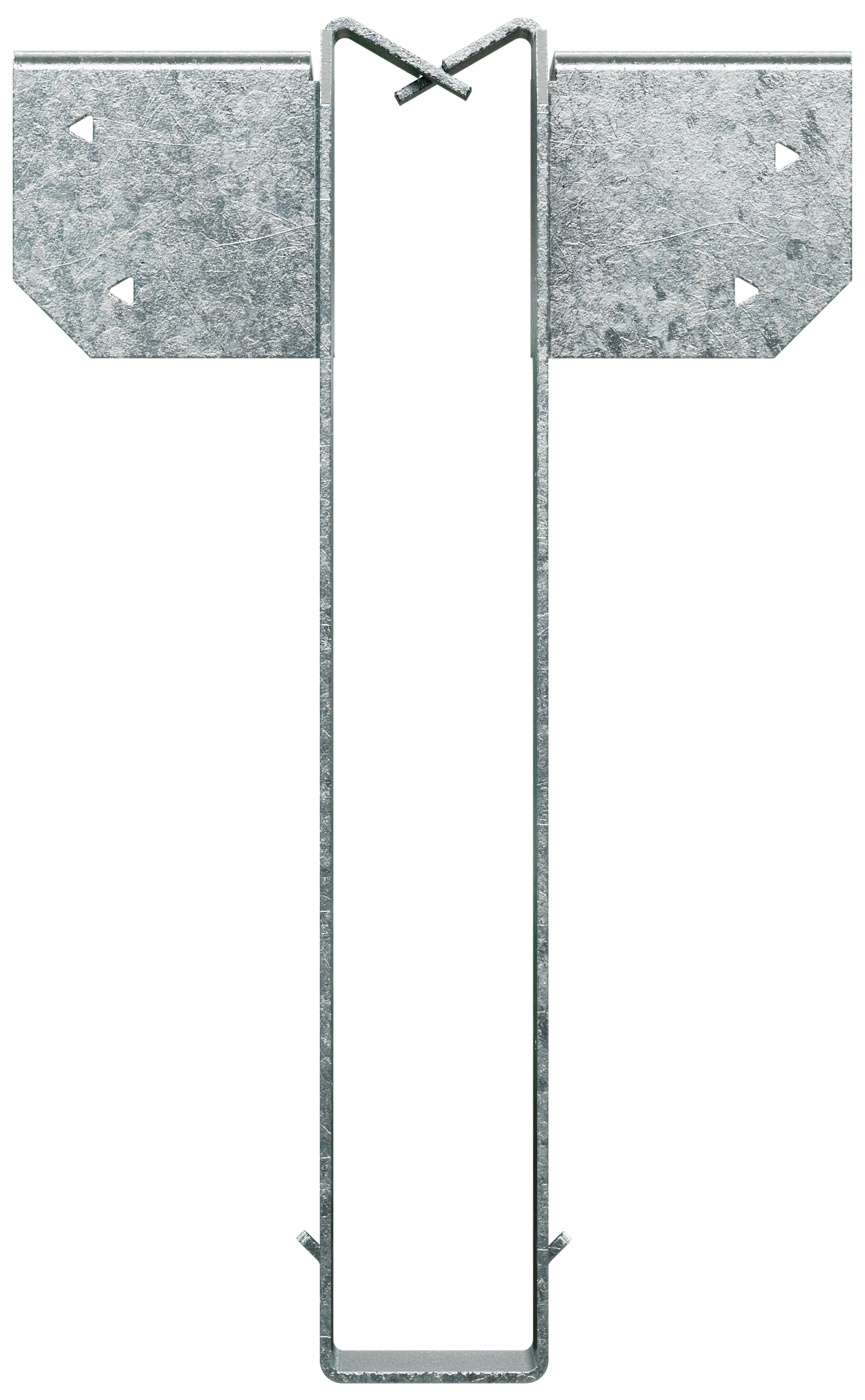

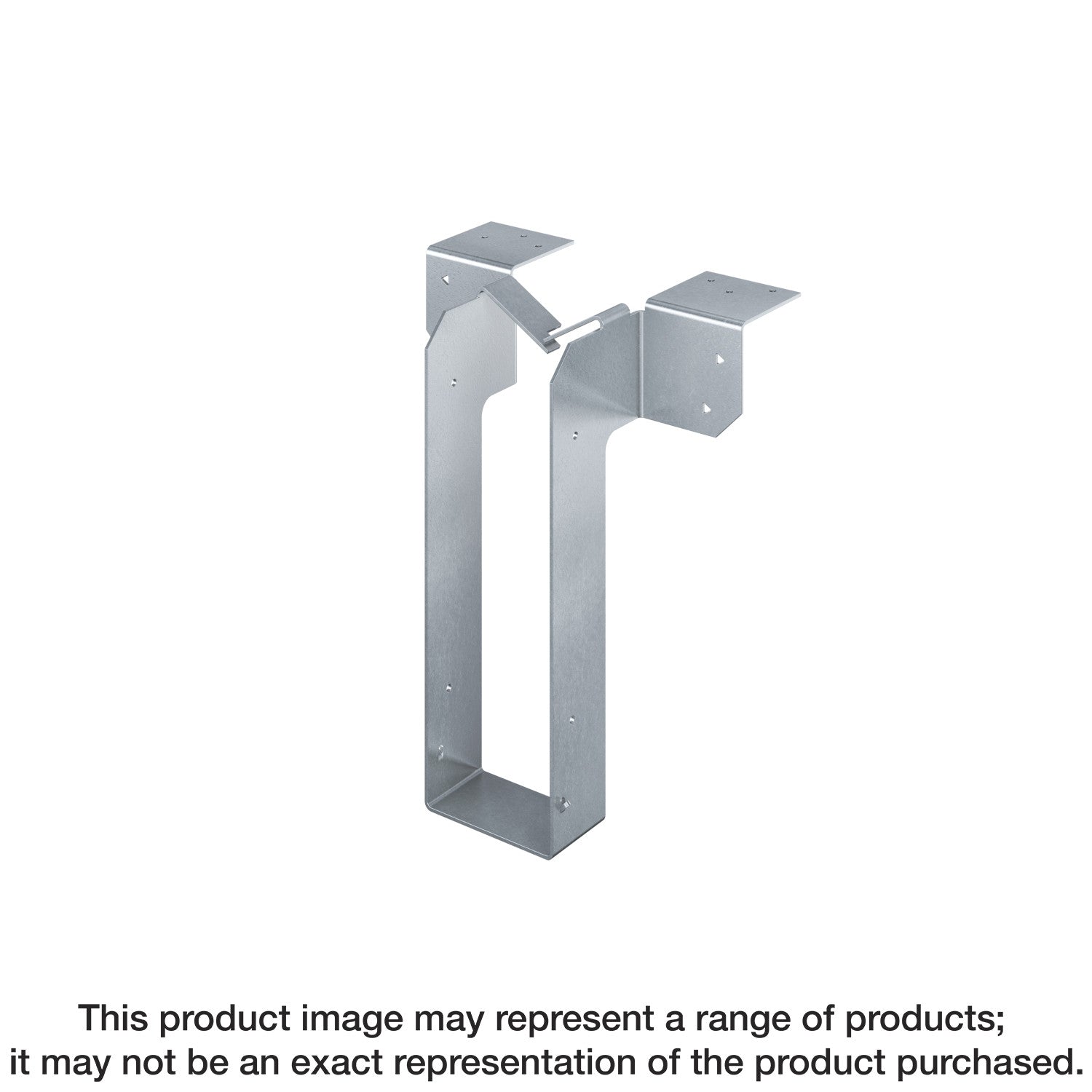

The DGF is a top-flange hanger that connects floor trusses and joists to wood stud walls. The hanger features a v-shaped joist stop at the top whose unique design prevents the joist from seating too far back in the stirrup, creating space for two layers of 5/8" gypsum board (drywall) to be installed between the joist and the wall after framing. This economical hanger provides joist support for the majority of Type III construction projects.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• The two-hour fire wall assembly rating applies to either 2x4 or 2x6 walls
• If hangers are installed back to back on both sides of a wall, the wall must be 2x6
• The DGF has been tested according to ASTM E814 and received F (flame) and T (temperature) ratings that can be found in Intertek Design No. SST/WPCF 120-01. These ratings verify that the hangers do not reduce the two-hour fire wall assembly rating.
• Joist size: 1-3/4 in. x 11-7/8 in.
• Seat width: 1-13/16 in.
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: DGF1.81/11.88
• UPC: 50707392005471
• GTIN: 50707392005471
• Feature 01: The two-hour fire wall assembly rating applies to either 2x4 or 2x6 walls
• Feature 02: If hangers are installed back to back on both sides of a wall, the wall must be 2x6
• Feature 03: The DGF has been tested according to ASTM E814 and received F (flame) and T (temperature) ratings that can be found in Intertek Design No. SST/WPCF 120-01. These ratings verify that the hangers do not reduce the two-hour fire wall assembly rating.
• Feature 04: Joist size: 1-3/4 in. x 11-7/8 in.
• Feature 05: Seat width: 1-13/16 in.
• Feature 06: Made from 12-gauge steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Assembled Depth - Imperial: 6.25525
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 12.0105
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 7.7605
• Assembled Width UOM - Imperial: in.
• Base Product ID: DGF_Hanger
• Base Product Name: DGF
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• EAN category: IC
• GUID: 45600938351075241443720252963521013773
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 192
• Shipping Weight: 768
• Short Product Name: TOP FLANGE FIRE WALL HANGER
• Strongtie.com URL: https://www.strongtie.com/firewallhangers_hangersforplatedtruss/dgf_hanger/p/dgf
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers for Engineered Wood
• US Patents: 11,142,902
• US Patents.1: 11,225,787
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392005473
• EA Reference: 707392005476
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
