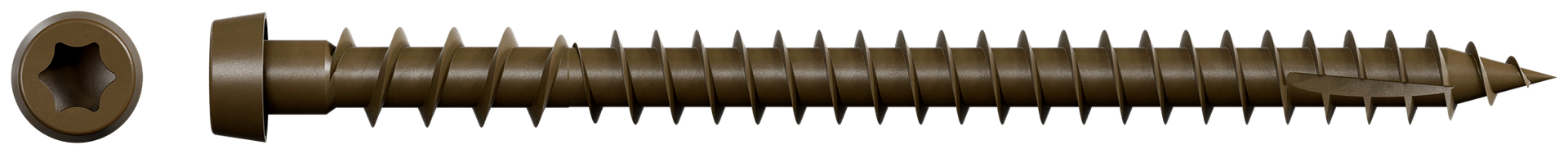

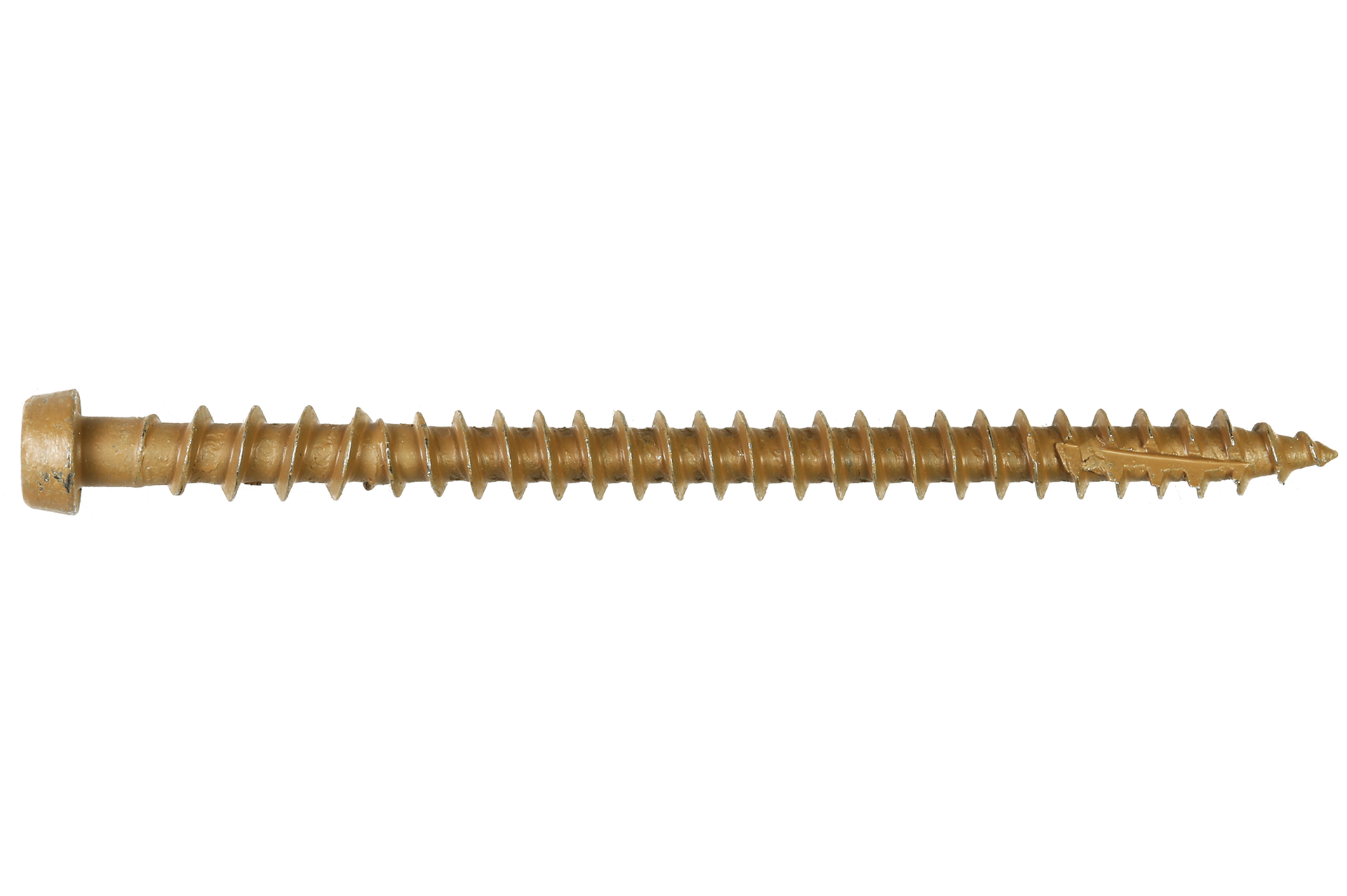

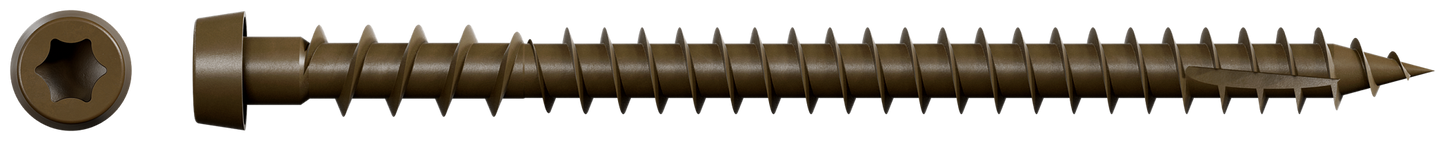

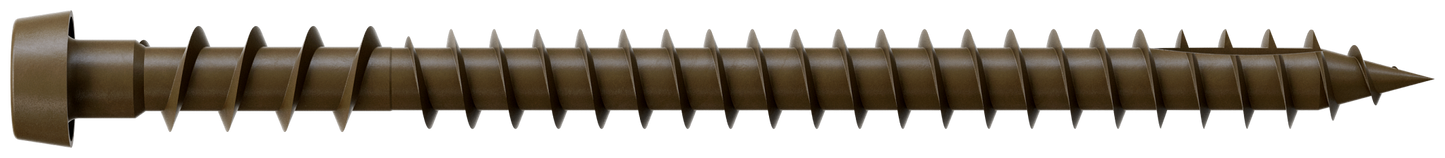

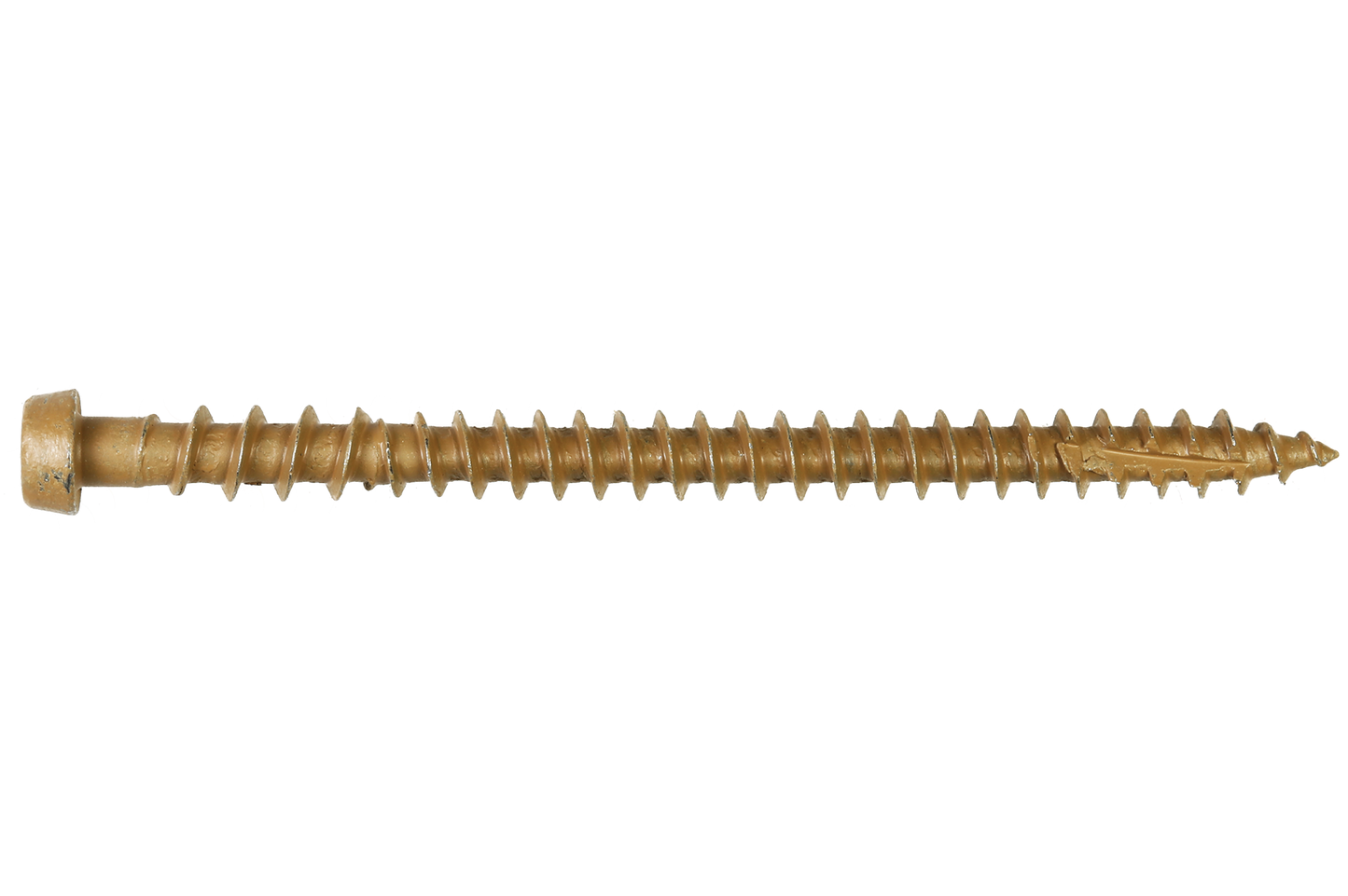

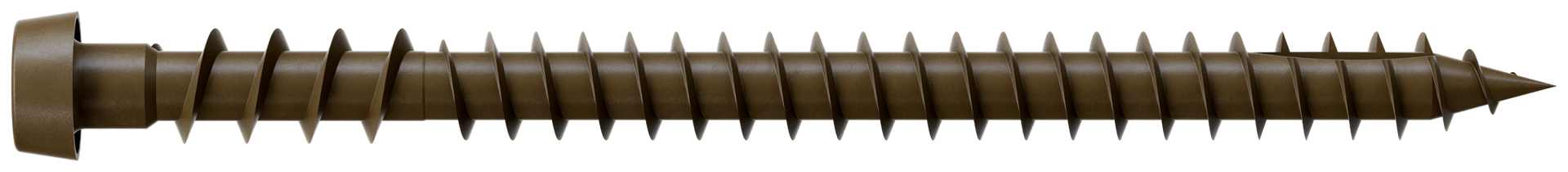

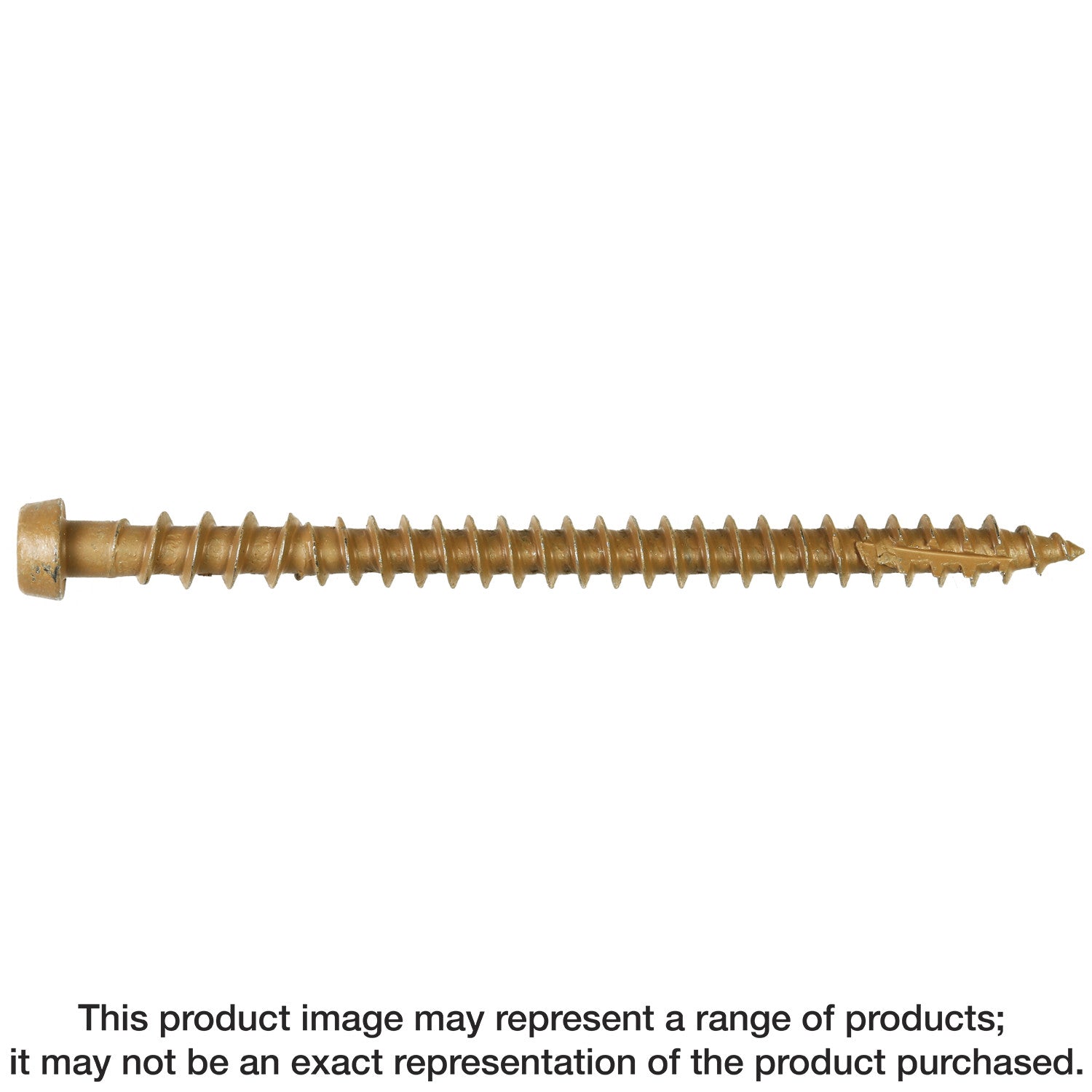

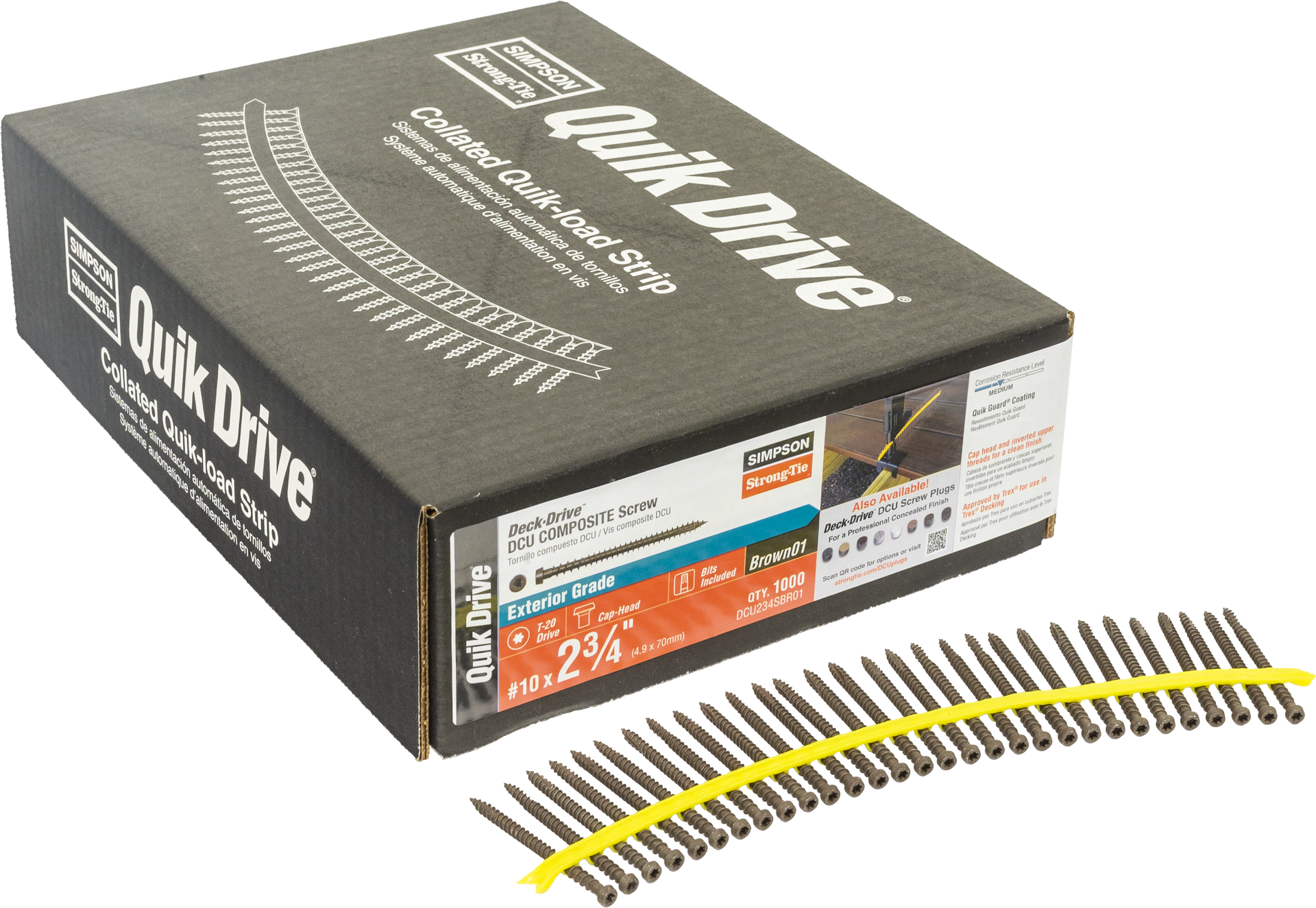

Simpson Strong-Tie DCU234SBR01 Deck-Drive™ DCU COMPOSITE Screw (Collated) — #10 x 2-3/4 in. Quik Guard® Brown 01 (1000-Qty)

Simpson Strong-Tie DCU234SBR01 Deck-Drive™ DCU COMPOSITE Screw (Collated) — #10 x 2-3/4 in. Quik Guard® Brown 01 (1000-Qty)

For composite or PVC decking. The Deck-Drive DCU Composite screw is engineered to provide beautiful fastening results for all types of composite decking while also offering greater ease of installation, a clean finish and superb corrosion resistance. The Deck-Drive DCU is the go-to-screw for all your composite decking applications, eliminating the need to mix and match screws to the decking they are suited for. Available with color-matching painted heads to blend with popular decking manufacturers and to provide a more concealed finish.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Tri-lobe thread design reduces damage to the composite board while driving
• Inverted upper threads clear excess material to ensure the screw is seated properly and consistently
• Type-17 point penetrates composite decking with ease for faster starts
• Cap head prevents mushrooming and material from rising up above the deck for a smoother, clean-looking installation
• Approved fastener (by Trex®) for Trex composite decking
• Drive type: T20 6-lobe (driver bit included)
• Dimensions: #10 x 2-3/4 in.
• Quik Guard coating for use in pressure-treated lumber and provides a level of corrosion resistance that is equivalent to hot-dip galvanization (ASTM A153, Class D) in some exposures
• Head color: Brown 01
• Quantity: 1,000 per package

Application

• Decks — Deck Boards Composite

Specifications

• ERP Part Number: DCU234SBR01
• UPC: 707392201083
• GTIN: 707392201083
• Feature 01: Tri-lobe thread design reduces damage to the composite board while driving
• Feature 02: Inverted upper threads clear excess material to ensure the screw is seated properly and consistently
• Feature 03: Type-17 point penetrates composite decking with ease for faster starts
• Feature 04: Cap head prevents mushrooming and material from rising up above the deck for a smoother, clean-looking installation
• Feature 05: Approved fastener (by Trex®) for Trex composite decking
• Feature 06: Drive type: T20 6-lobe (driver bit included)
• Feature 07: Dimensions: #10 x 2-3/4 in.
• Feature 08: Quik Guard coating for use in pressure-treated lumber and provides a level of corrosion resistance that is equivalent to hot-dip galvanization (ASTM A153, Class D) in some exposures
• Feature 09: Head color: Brown 01
• Feature 10: Quantity: 1,000 per package

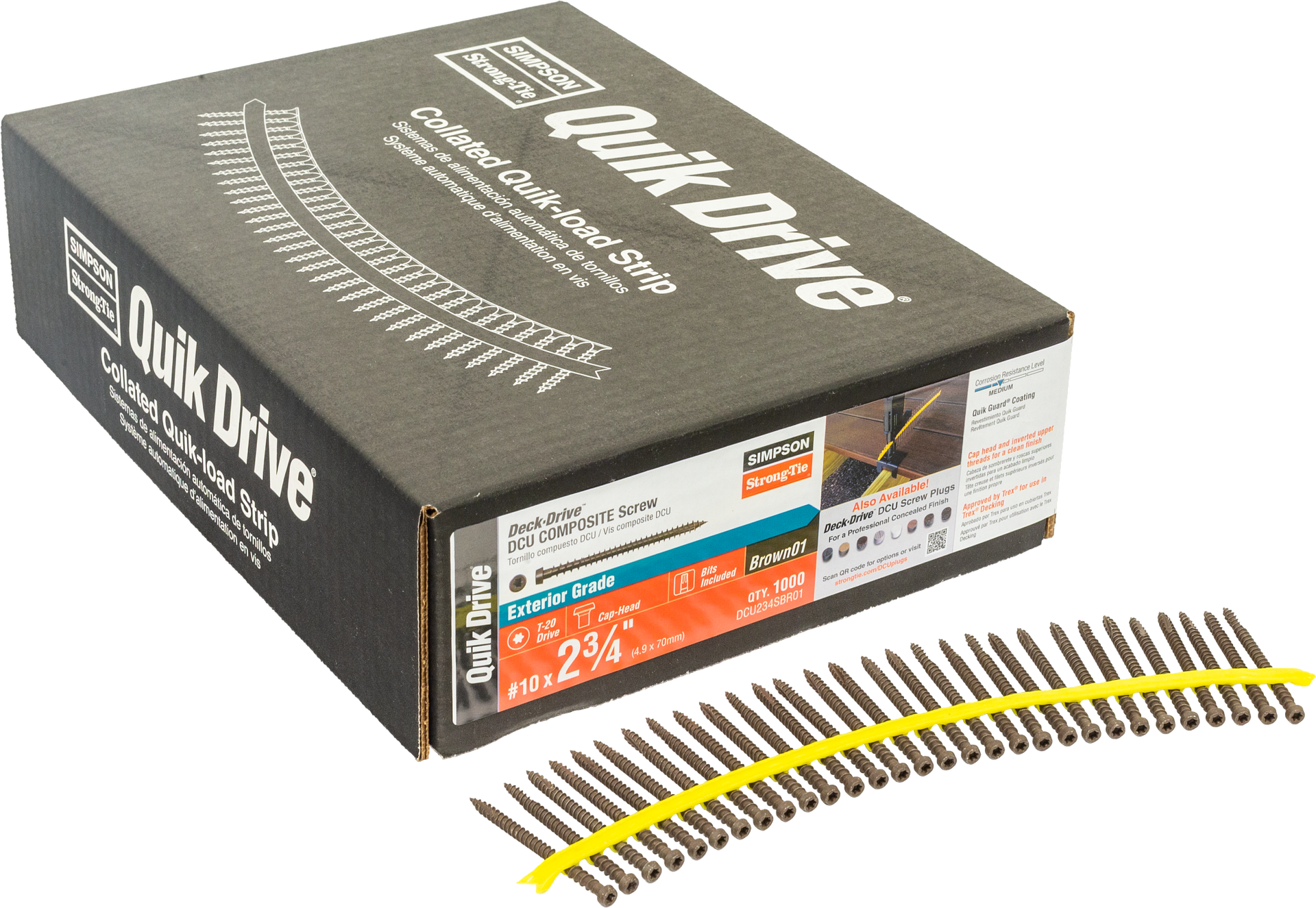

• Install With: Installs with the Simpson Strong-Tie® Quik Drive® PRO300SG2 auto-feed screw driving system or attachment
• Applications List: Decks — Deck Boards Composite
• Assembled Depth - Imperial: 0.230
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.75
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.230
• Assembled Width UOM - Imperial: in.
• Base Product ID: DCU_CScrew
• Base Product Name: Deck-Drive™ DCU COMPOSITE Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Composite-Decking Screws > Collated Screw
• Coating: Quik Guard® Coating

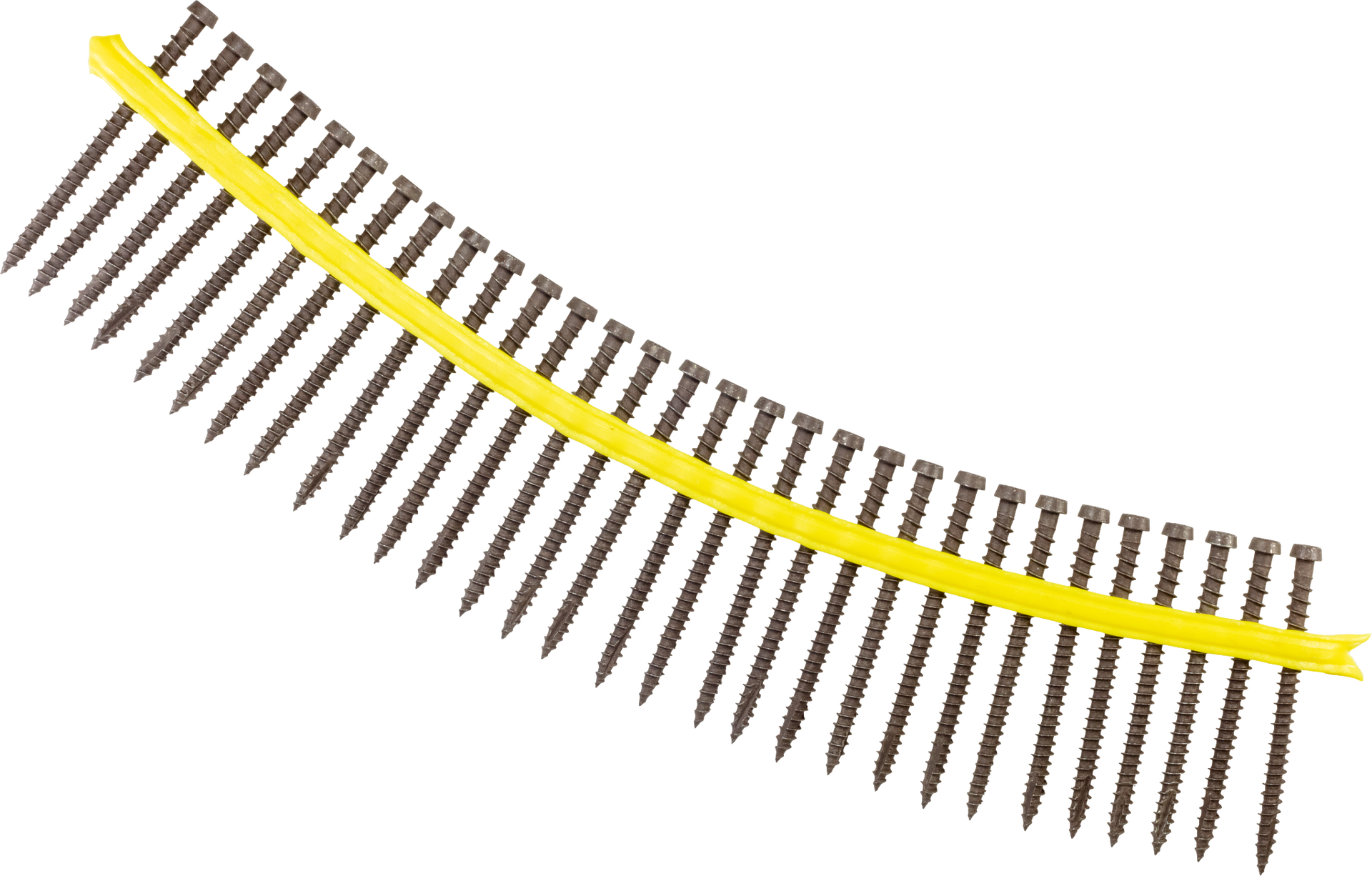

• Collation Type: Curved
• Color: Brown 01
• Country of Origin: ZZ
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: T20 6-Lobe
• EAN category: UC
• Finish: Quik Guard® Coating
• GUID: 296239386933964694132300938872554547979
• Head Diameter (in.): 0.230
• Head Type: Cap Head
• Length (in.): 2 3/4
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 14
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 4.75
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 10.00
• Package Width UOM - Imperial: in.
• Packaging Quantity: 1000
• Point Type: Type-17 Point
• Product Class: Collated Screw
• Product Includes: T20 6-lobe driver bit included (replacement bit model BITTX20-PL-RC3)
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Screw Size: #10
• Shipping Weight: 13.2
• Short Product Name: QD 10 X 2-3/4 DCU T20 BROWN01 1000CT
• Strongtie.com URL: https://www.strongtie.com/deckdrive_collatedcompositedeckingscrews/dcu_cscrew/p/deck-drive-dcu-composite-screw
• Subcategory: Fasteners
• Subcategory 2: Composite-Decking Screws
• Thread Type: Tri-Lobe Threads
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392201088
