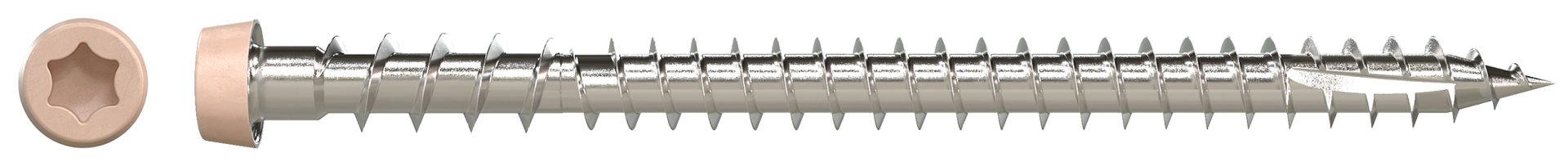

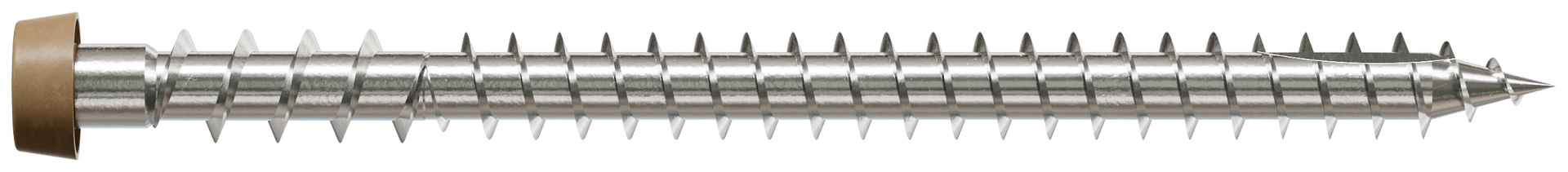

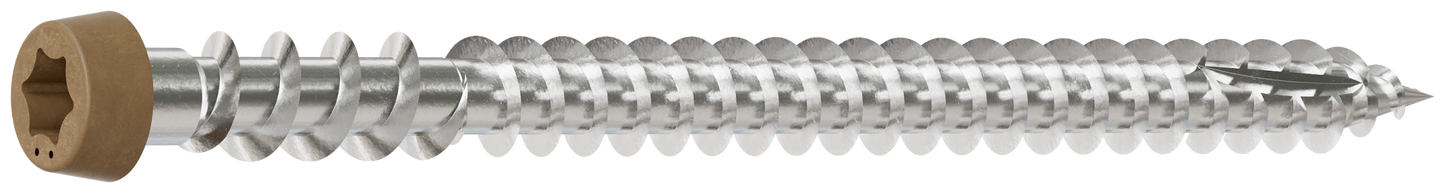

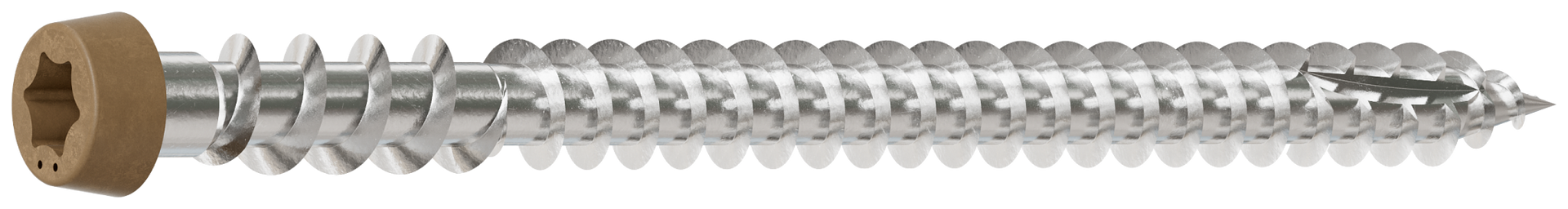

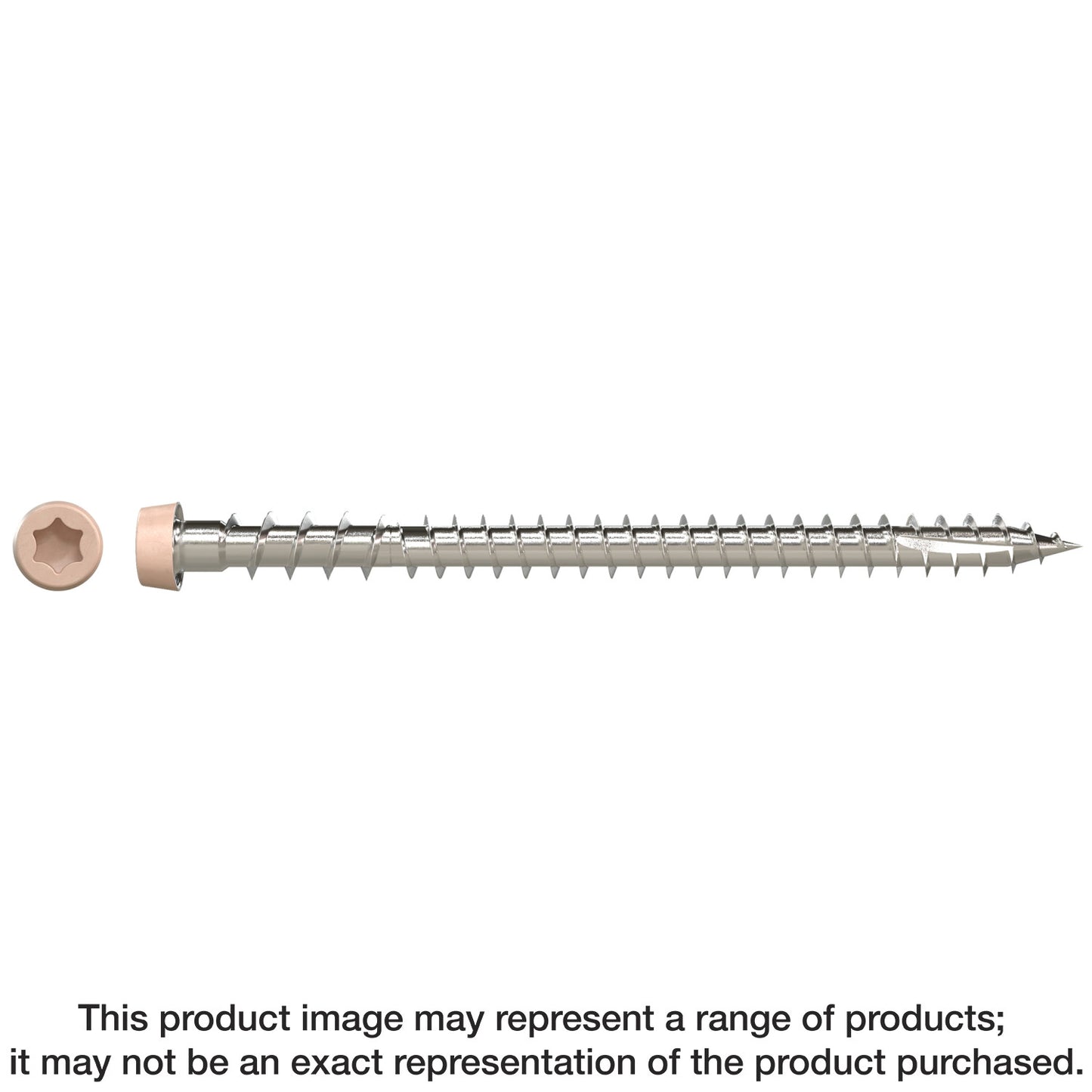

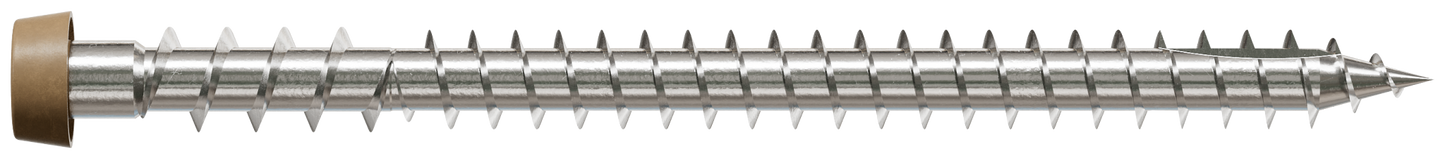

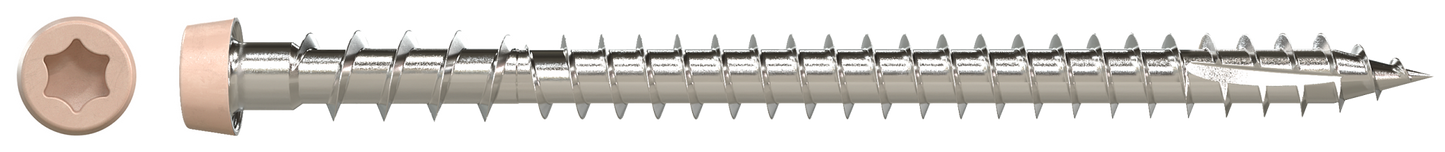

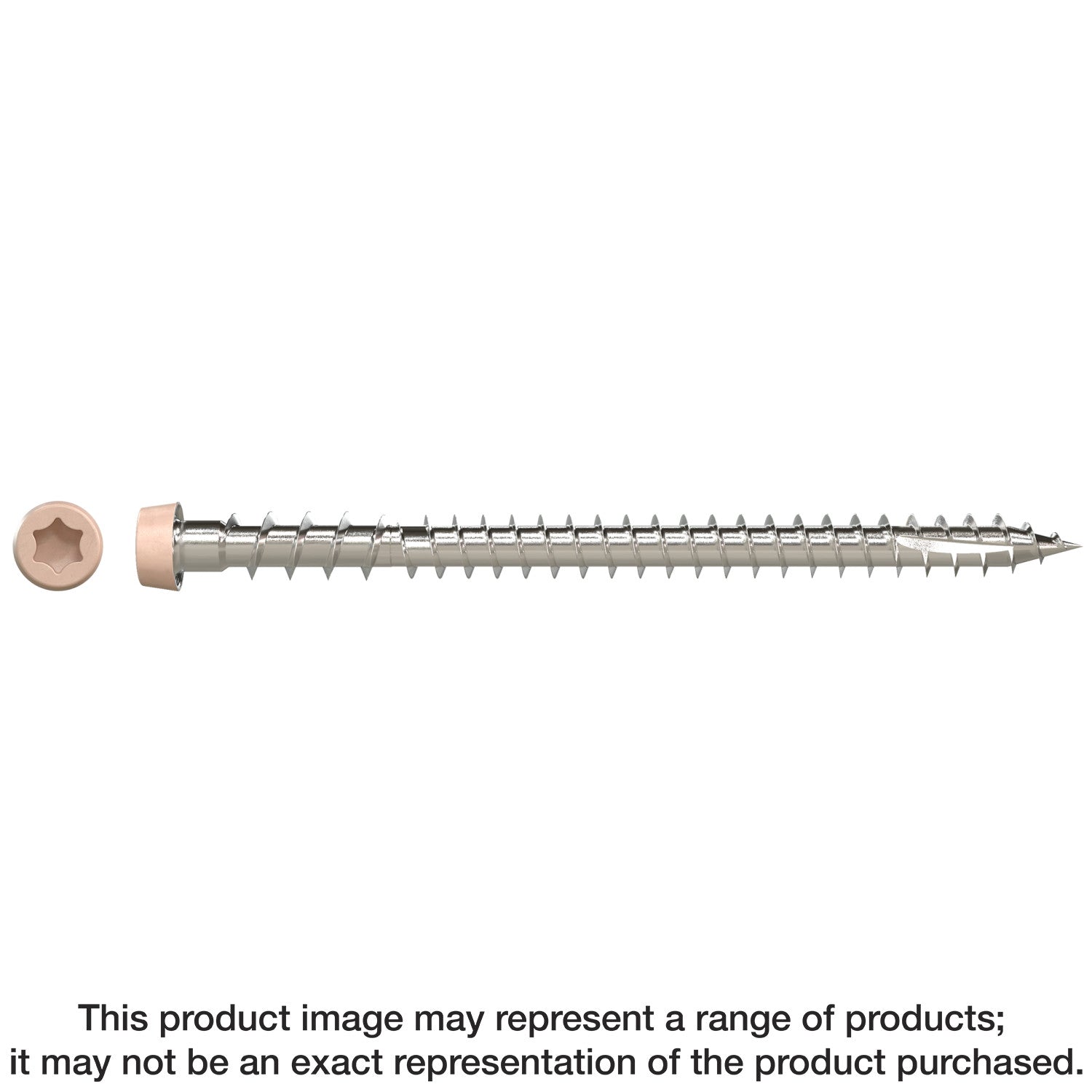

Simpson Strong-Tie DCU234P305TN05 Deck-Drive™ DCU COMPOSITE Screw — #10 x 2-3/4 in. T20, Type 305, Tan 05 (350-Qty)

Simpson Strong-Tie DCU234P305TN05 Deck-Drive™ DCU COMPOSITE Screw — #10 x 2-3/4 in. T20, Type 305, Tan 05 (350-Qty)

The Type 305 stainless-steel Deck-Drive DCU Composite screw provides corrosion resistance for all types of composite and PVC decking, and is especially suited for applications in environments with chlorides. The DCU penetrates composite decking with a Type-17 point and is engineered with inverted upper threads that clear excess material to ensure a clean, secure installation. The color-matching painted heads blend with popular manufacturers’ decking for a more concealed, professional finish.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Available in color-matching painted-head stainless steel
• Tri-lobe thread design reduces damage to the board while driving
• Cap head prevents mushrooming and material from rising up above the deck for a smoother, clean-looking installation
• Drive type: T20 6-lobe
• Driver bit included (replacement bit part number BIT20T-2-R2)
• Dimensions: #10 x 2-3/4 in.
• Color: Tan 05
• Quantity: 350

Application

• Decks — Deck Boards Composite

Specifications

• ERP Part Number: DCU234P305TN05
• UPC: 707392023272
• GTIN: 707392023272
• Feature 01: Available in color-matching painted-head stainless steel
• Feature 02: Tri-lobe thread design reduces damage to the board while driving
• Feature 03: Cap head prevents mushrooming and material from rising up above the deck for a smoother, clean-looking installation
• Feature 04: Drive type: T20 6-lobe
• Feature 05: Driver bit included (replacement bit part number BIT20T-2-R2)
• Feature 06: Dimensions: #10 x 2-3/4 in.
• Feature 07: Color: Tan 05
• Feature 08: Quantity: 350
• Applications List: Decks — Deck Boards Composite
• Assembled Depth - Imperial: 0.230
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.75
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.230
• Assembled Width UOM - Imperial: in.
• Base Product ID: DCU_Screw
• Base Product Name: Deck-Drive™ DCU COMPOSITE Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Composite-Decking Screws > Hand-Drive Screw
• Color: Tan 05
• Country of Origin: VN
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: T20 6-Lobe
• Finish: Type 305 Stainless Steel
• GUID: 283045833759626496022477369787073153408
• Head Diameter (in.): 0.230
• Head Type: Cap Head
• Length (in.): 2 3/4
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Type 305 Stainless Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 6.00
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 6.00
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.88
• Package Width UOM - Imperial: in.
• Packaging Quantity: 350
• Packaging Type: Tub
• Point Type: Type-17 Point
• Product Class: Hand-Drive Screw
• Product Includes: 1 driver bit included
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Screw Size: #10
• Shipping Weight: 4.2
• Short Product Name: #10 X 2-3/4 DCU T20 SS305 350ct TN05
• Strongtie.com URL: https://www.strongtie.com/deckdrive_compositedeckingscrews/dcu_screw/p/deck-drive-dcu-composite-screw
• Subcategory: Fasteners
• Subcategory 2: Composite-Decking Screws
• Thread Type: Tri-Lobe Threads
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392023279
• PAL Reference: 50707392023277
