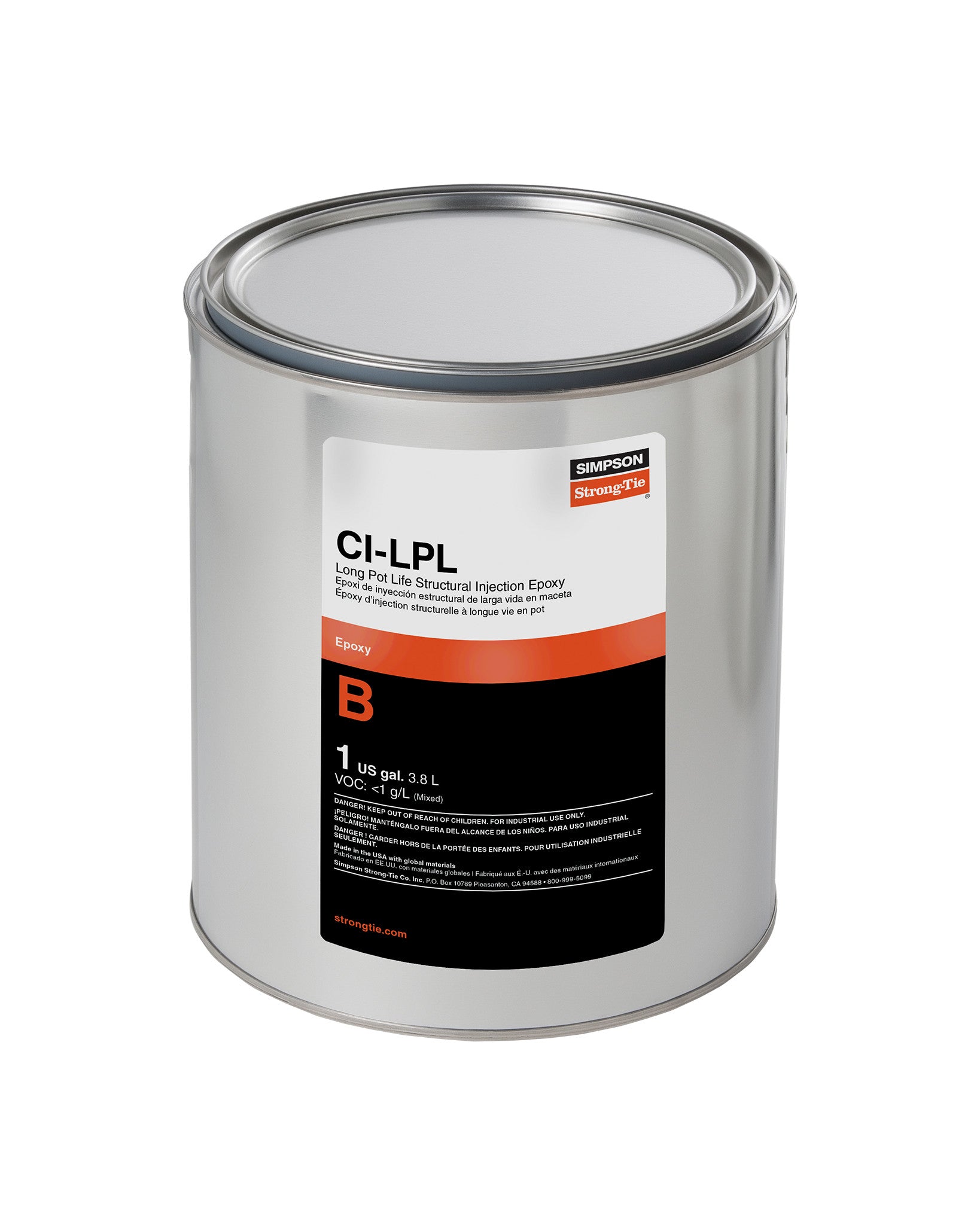

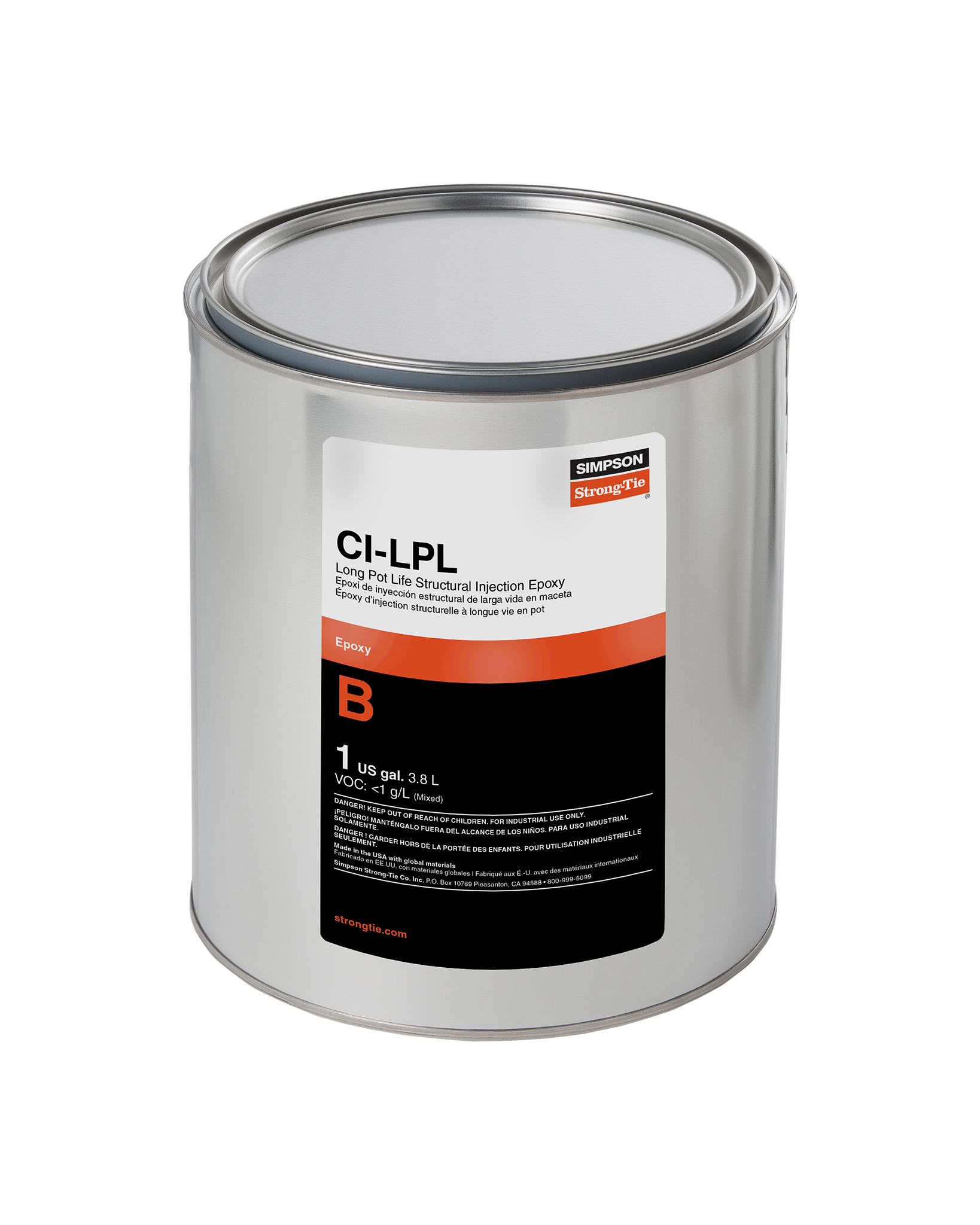

Simpson Strong-Tie CILPL1B CI-LPL™ Long Pot Life Structural Injection Epoxy Hardener (1 gal.)

Simpson Strong-Tie CILPL1B CI-LPL™ Long Pot Life Structural Injection Epoxy Hardener (1 gal.)

CI-LPL Long Pot Life Structural Injection Epoxy is a two-component, high-modulus, high-solids, moisture-tolerant epoxy specially designed for pressure injection, gravity feeding and flood coat filling of concrete cracks when substrate temperatures are between 60°F (16°C)–110°F (43°C). Available in 3-gallon bulk kits or convenient side-by-side cartridges dispensed through a static mixing nozzle using either a manual or pneumatic dispensing tool.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Meets the requirements of ASTM C881 & AASHTO M235, Type I/IV, Grade 1, Class C
• Chemically bonds with the concrete to provide a structural repair; CI-LPL seals the crack from moisture, protecting rebar in the concrete from corrosion
• Moisture-tolerant, can be used on dry and damp surfaces
• Low surface tension at elevated temperatures allows the material to effectively penetrate narrow cracks
• Formulated for maximum penetration under pressure
• Suitable for pressure injection or gravity-feed applications
• Can be used with metered pressure-injection equipment
• Formulated for use in hot environments to 110°F
• Non-shrink, resistant to oils, salts and mild chemicals, and freeze-thaw resistant
• 1 gal. Component B hardener

Specifications

• ERP Part Number: CILPL1B
• UPC: 707392009009
• GTIN: 707392009009
• Feature 01: Meets the requirements of ASTM C881 & AASHTO M235, Type I/IV, Grade 1, Class C
• Feature 02: Chemically bonds with the concrete to provide a structural repair; CI-LPL seals the crack from moisture, protecting rebar in the concrete from corrosion
• Feature 03: Moisture-tolerant, can be used on dry and damp surfaces
• Feature 04: Low surface tension at elevated temperatures allows the material to effectively penetrate narrow cracks
• Feature 05: Formulated for maximum penetration under pressure
• Feature 06: Suitable for pressure injection or gravity-feed applications
• Feature 07: Can be used with metered pressure-injection equipment
• Feature 08: Formulated for use in hot environments to 110°F
• Feature 09: Non-shrink, resistant to oils, salts and mild chemicals, and freeze-thaw resistant
• Feature 10: 1 gal. Component B hardener
• Assembled Depth - Imperial: 6.9375
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 7.75
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 6.9375
• Assembled Width UOM - Imperial: in.
• Base Product ID: CILVLPL_Epoxy
• Base Product Name: CI-LPL™
• Brand Name: Simpson Strong-Tie®
• Capacity: 1 gal.
• Category Tree (Computed): Restoration Solutions > Crack Repair > Injection Epoxy
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• GUID: 176352440314168665796675000974293609303
• Hazardous Material Classification: 8
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 6.9375
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 7.75
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 6.9375
• Package Width UOM - Imperial: in.
• Packaging Quantity: 1
• Packaging Type: Pail
• Product Class: Injection Epoxy
• Quantity: 1
• Shipping Weight: 9
• Short Product Name: LONG POT LIFE INJ EPOXY 1GAL HRDNR
• Strongtie.com URL: https://www.strongtie.com/epoxyinjection_crackrepairrps/cilvlpl_epoxy/p/ci-lv-lpl
• Subcategory: Restoration Solutions
• Subcategory 2: Crack Repair
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
