Simpson Strong-Tie CBH2.37X9.75C-KT CBH™ 2-3/8 in. x 9-3/4 in. Joist-to-Column Concealed Hanger w/ Screws

Simpson Strong-Tie CBH2.37X9.75C-KT CBH™ 2-3/8 in. x 9-3/4 in. Joist-to-Column Concealed Hanger w/ Screws

Computer modeling and CNC manufacturing enables glulam to be delivered to the jobsite in precise lengths and with preinstalled concealed hangers. The Simpson Strong-Tie® CBH™ concealed beam hanger is specifically designed for such applications, and is installed with readily available Strong-Drive® SDS Heavy-Duty Connector screws. The CBH has been tested for inter-story drift and has achieved 1-hr and 2-hr fire resistance ratings according to ASTM E119.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Concealed for architectural aesthetics and fire-rated performance
• Multiple router options to suit jobsite needs
• The +/- 1/32-in. beam length tolerance on each end enables easier installation
• 1-hr and 2-hr fire resistance ratings per ASTM E119
• Inter-story drift performance tested to over 2%
• Code-listed per ICC-ESR-2552
• 2-3/8 in. width x 9-3/4 in. height
• Made from 3-gauge steel; electro-galvanized finish

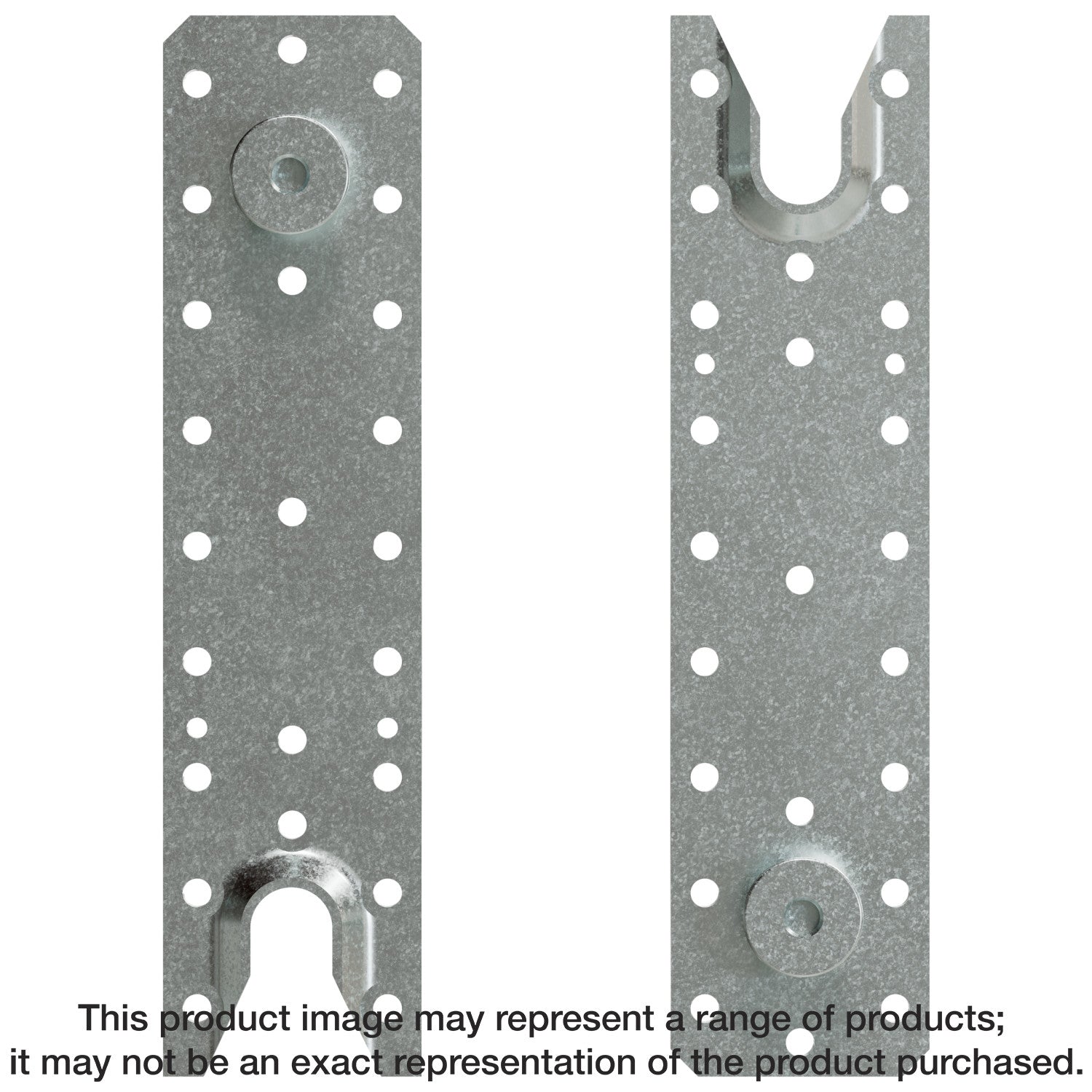

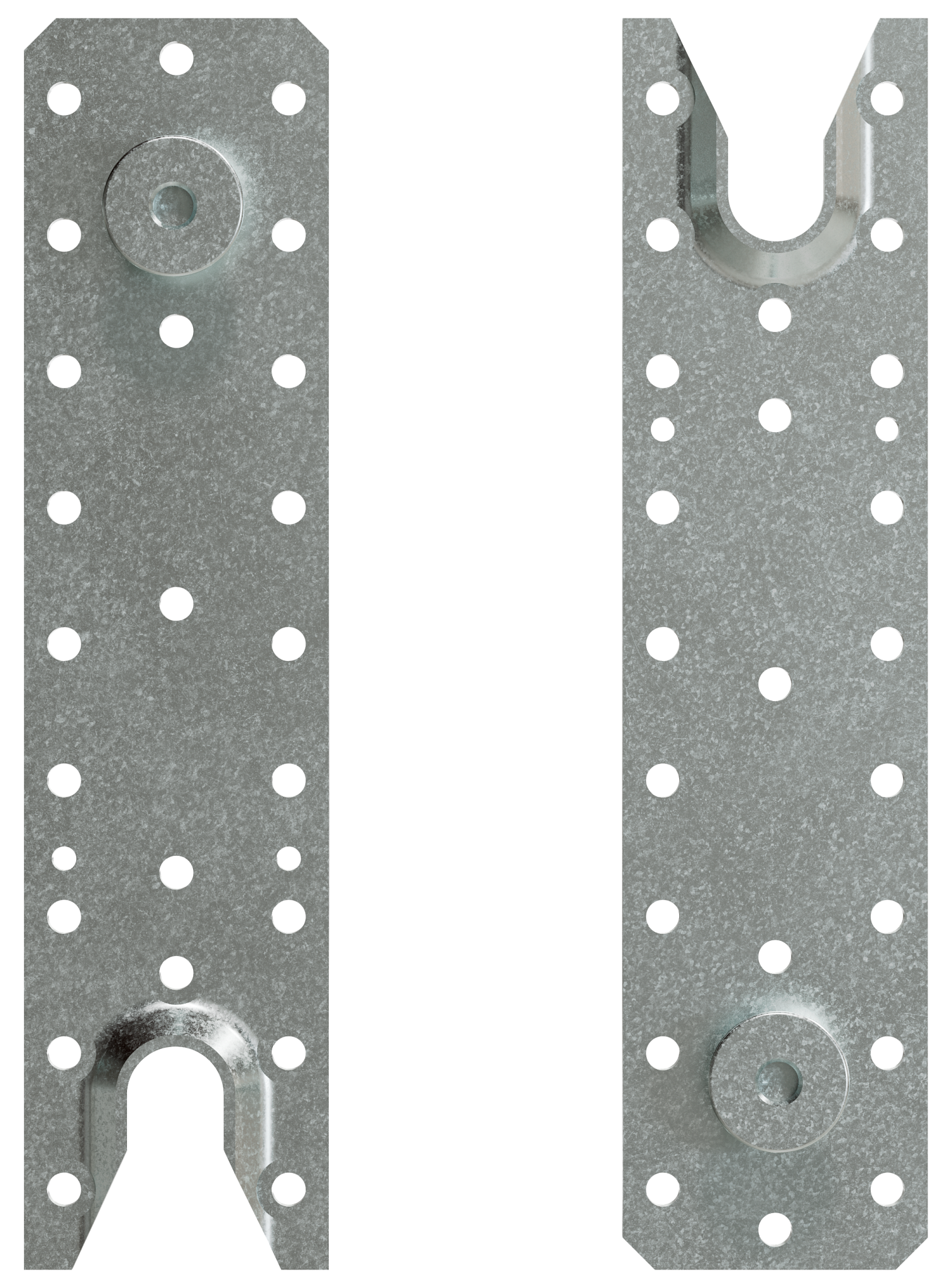

• Two backplates make up one connection

Specifications

• ERP Part Number: CBH2.37X9.75C-KT
• UPC: 707392010791
• GTIN: 707392010791
• Feature 01: Concealed for architectural aesthetics and fire-rated performance
• Feature 02: Multiple router options to suit jobsite needs
• Feature 03: The +/- 1/32-in. beam length tolerance on each end enables easier installation
• Feature 04: 1-hr and 2-hr fire resistance ratings per ASTM E119
• Feature 05: Inter-story drift performance tested to over 2%
• Feature 06: Code-listed per ICC-ESR-2552
• Feature 07: 2-3/8 in. width x 9-3/4 in. height
• Feature 08: Made from 3-gauge steel; electro-galvanized finish
• Feature 09: Two backplates make up one connection
• Install With: (46) Strong-Drive SDS25600 screws (screws included)
• Assembled Depth - Imperial: 1
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 9.75
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.375
• Assembled Width UOM - Imperial: in.
• Base Product ID: CBH_Hanger
• Base Product Name: CBH™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
• Coating: Electrogalvanized
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Electrogalvanized
• Gauge: 3
• GUID: 194553614453802932949866541333039141491
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 10.31
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 7.81
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 4.38
• Package Width UOM - Imperial: in.
• Packaging Quantity: 1
• Packaging Type: Box
• Product Class: Hanger
• Product Includes: (2) backplates and (46) SDS25600 screws
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 6.9
• Short Product Name: 2.37x9.75 BM HGR W/SDS SCREWS-COL APP
• Strongtie.com URL: https://www.strongtie.com/miscconnectorsforengineeredwood_engineeredwood/cbh_hanger/p/cbh
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers for Engineered Wood
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
