Simpson Strong-Tie CBH2.37X9.75-R10 CBH™ 2-3/8 in. x 9-3/4 in. Joist to Beam or Column Concealed Hanger (10-Qty)

Simpson Strong-Tie CBH2.37X9.75-R10 CBH™ 2-3/8 in. x 9-3/4 in. Joist to Beam or Column Concealed Hanger (10-Qty)

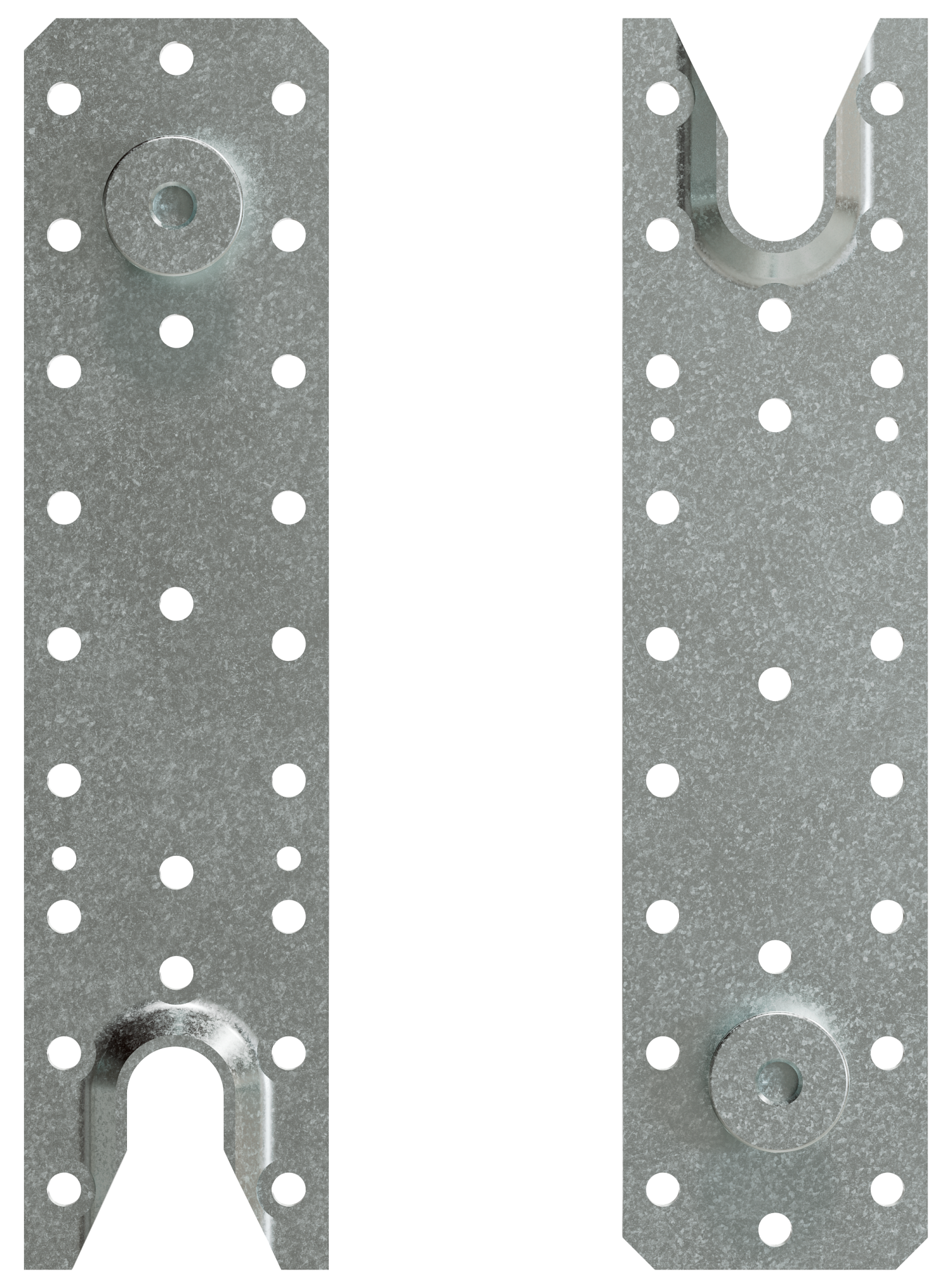

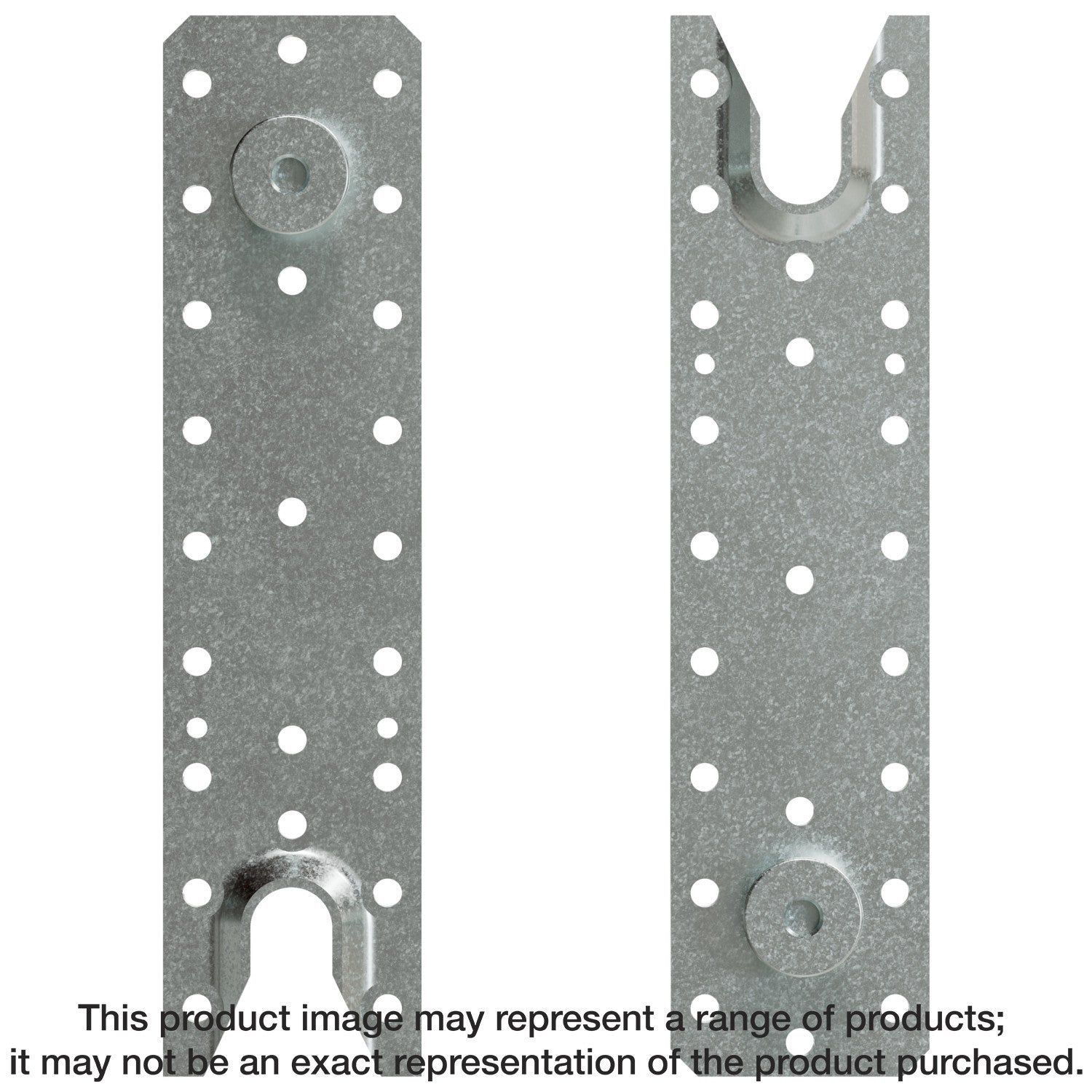

Computer modeling and CNC manufacturing enables glulam to be delivered to the jobsite in precise lengths and with preinstalled concealed hangers. The Simpson Strong-Tie® CBH™ concealed beam hanger is specifically designed for such applications, and is installed with readily available Strong-Drive® SDS Heavy-Duty Connector screws. The CBH has been tested for inter-story drift and has achieved 1-hr and 2-hr fire resistance ratings according to ASTM E119.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Concealed for architectural aesthetics and fire-rated performance
• Multiple router options to suit jobsite needs
• The +/- 1/32-in. beam length tolerance on each end enables easier installation
• 1-hr and 2-hr fire resistance ratings per ASTM E119
• Inter-story drift performance tested to over 2%
• Code-listed per ICC-ESR-2552
• 2-3/8 in. width x 9-3/4 in. height
• Made from 3-gauge steel; electro-galvanized finish
• (20) backplates make (10) connections (screws not included)

Specifications

• ERP Part Number: CBH2.37X9.75-R10
• UPC: 707392019619
• GTIN: 707392019619
• Feature 01: Concealed for architectural aesthetics and fire-rated performance
• Feature 02: Multiple router options to suit jobsite needs
• Feature 03: The +/- 1/32-in. beam length tolerance on each end enables easier installation
• Feature 04: 1-hr and 2-hr fire resistance ratings per ASTM E119
• Feature 05: Inter-story drift performance tested to over 2%
• Feature 06: Code-listed per ICC-ESR-2552
• Feature 07: 2-3/8 in. width x 9-3/4 in. height
• Feature 08: Made from 3-gauge steel; electro-galvanized finish
• Feature 09: (20) backplates make (10) connections (screws not included)
• Install With: Each of the (10) connections requires (23) Strong-Drive SDS25300 screws and (23) Strong-Drive SDS25600 screws for joist-to-beam application OR (46) Strong-Drive SDS25600 screws for joist-to-column application
• Assembled Depth - Imperial: 1
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 9.75
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.375
• Assembled Width UOM - Imperial: in.
• Base Product ID: CBH_Hanger
• Base Product Name: CBH™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
• Coating: Electrogalvanized
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Electrogalvanized
• Gauge: 3
• GUID: 194553614453802932949866541333039141491
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 10.125
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 4
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 7.625
• Package Width UOM - Imperial: in.
• Packaging Quantity: 10
• Packaging Type: Box
• Product Class: Hanger
• Product Includes: (20) backplates (screws not included)
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 33
• Short Product Name: CBH2.37X9.75 - 20 BACKPLATES / 10 PAIRS
