Simpson Strong-Tie CBH2.37X5.5H-KT CBH™ 2-3/8 in. x 5-1/2 in. HDG Joist to Beam or Column Concealed Hanger

Simpson Strong-Tie CBH2.37X5.5H-KT CBH™ 2-3/8 in. x 5-1/2 in. HDG Joist to Beam or Column Concealed Hanger

Computer modeling and CNC manufacturing enables glulam to be delivered to the jobsite in precise lengths and with preinstalled concealed hangers. The Simpson Strong-Tie® CBH™ concealed beam hanger is specifically designed for such applications, and is installed with readily available Strong-Drive® SDS Heavy-Duty Connector screws. The CBH has been tested for inter-story drift and has achieved 1-hr and 2-hr fire resistance ratings according to ASTM E119.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Concealed for architectural aesthetics and fire-rated performance
• Multiple router options to suit jobsite needs
• The +/- 1/32-in. beam length tolerance on each end enables easier installation
• 1-hr and 2-hr fire resistance ratings per ASTM E119
• Inter-story drift performance tested to over 2%
• Code-listed per ICC-ESR-2552
• 2-3/8 in. width x 5-1/2 in. height
• 3-gauge steel; hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications

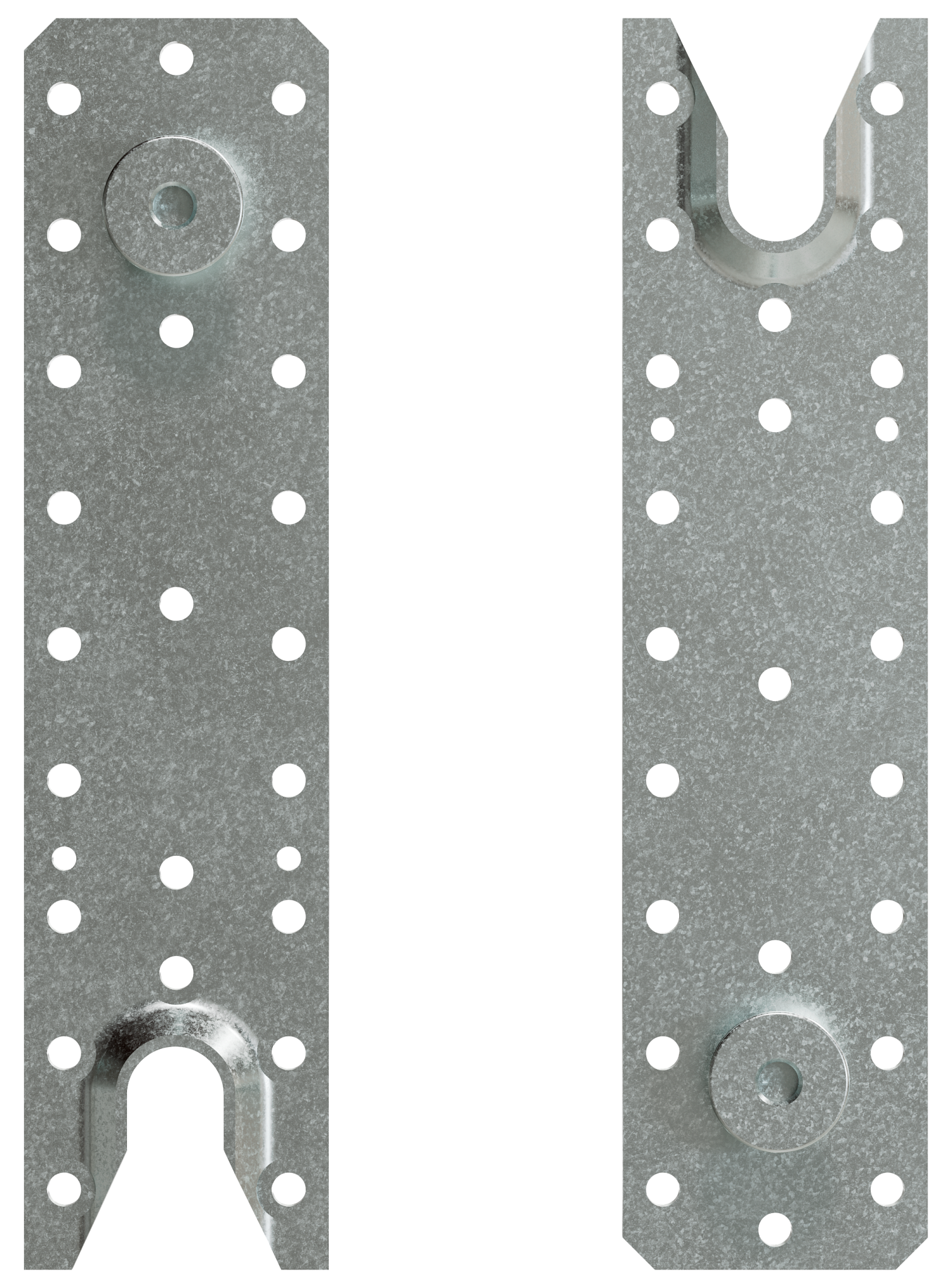

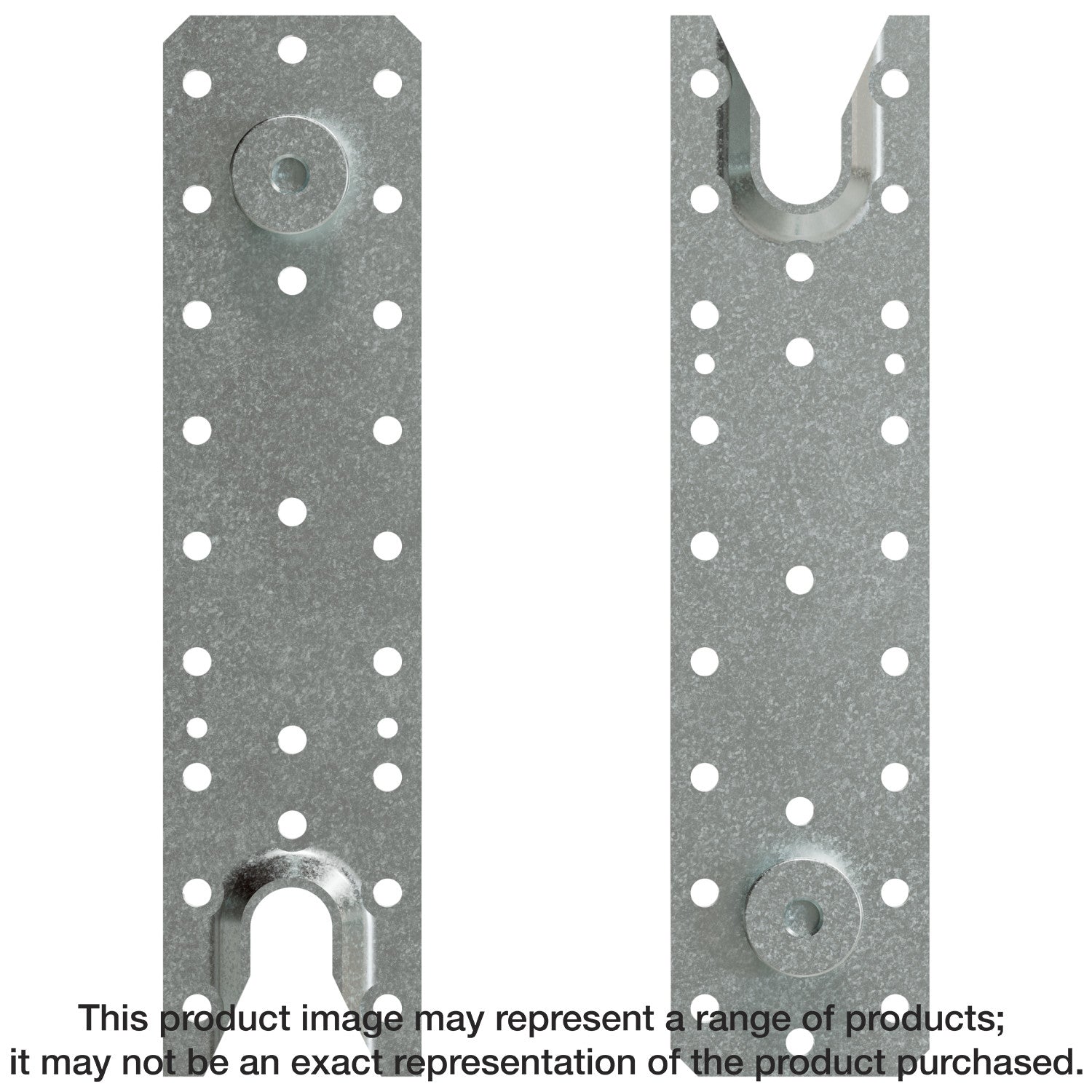

• Two backplates make up one connection

Specifications

• ERP Part Number: CBH2.37X5.5H-KT
• UPC: 707392014331
• GTIN: 707392014331
• Feature 01: Concealed for architectural aesthetics and fire-rated performance
• Feature 02: Multiple router options to suit jobsite needs
• Feature 03: The +/- 1/32-in. beam length tolerance on each end enables easier installation
• Feature 04: 1-hr and 2-hr fire resistance ratings per ASTM E119
• Feature 05: Inter-story drift performance tested to over 2%
• Feature 06: Code-listed per ICC-ESR-2552
• Feature 07: 2-3/8 in. width x 5-1/2 in. height
• Feature 08: 3-gauge steel; hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
• Feature 09: Two backplates make up one connection
• Install With: (13) Strong-Drive SDS25300 screws and (13) Strong-Drive SDS25600 screws for joist-to-beam application OR (26) Strong-Drive SDS25600 screws for joist-to-column application
• Assembled Depth - Imperial: 1
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 5.5
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.375
• Assembled Width UOM - Imperial: in.
• Base Product ID: CBH_Hanger
• Base Product Name: CBH™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
• Coating: Hot-Dip Galvanized
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Hot-Dip Galvanized
• Gauge: 3
• GUID: 21765885094397154822372362569606661160
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 10.31
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 7.81
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 4.38
• Package Width UOM - Imperial: in.
• Packaging Quantity: 1
• Packaging Type: Box
• Product Class: Hanger
• Product Includes: (2) backplates (screws not included)
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 2.04
• Short Product Name: HDG 2.37x5.5 BM HGR (WITHOUT SCREWS)
• Strongtie.com URL: https://www.strongtie.com/miscconnectorsforengineeredwood_engineeredwood/cbh_hanger/p/cbh
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers for Engineered Wood
