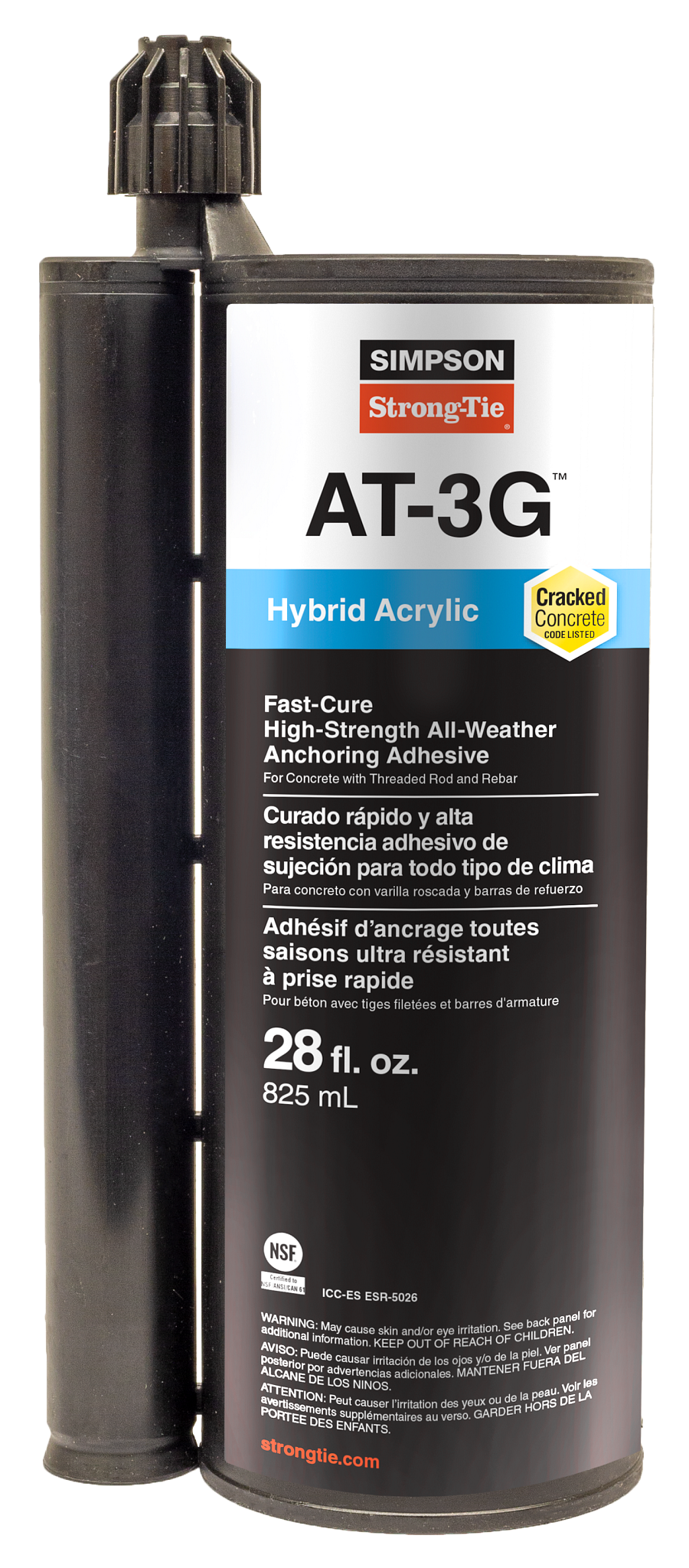

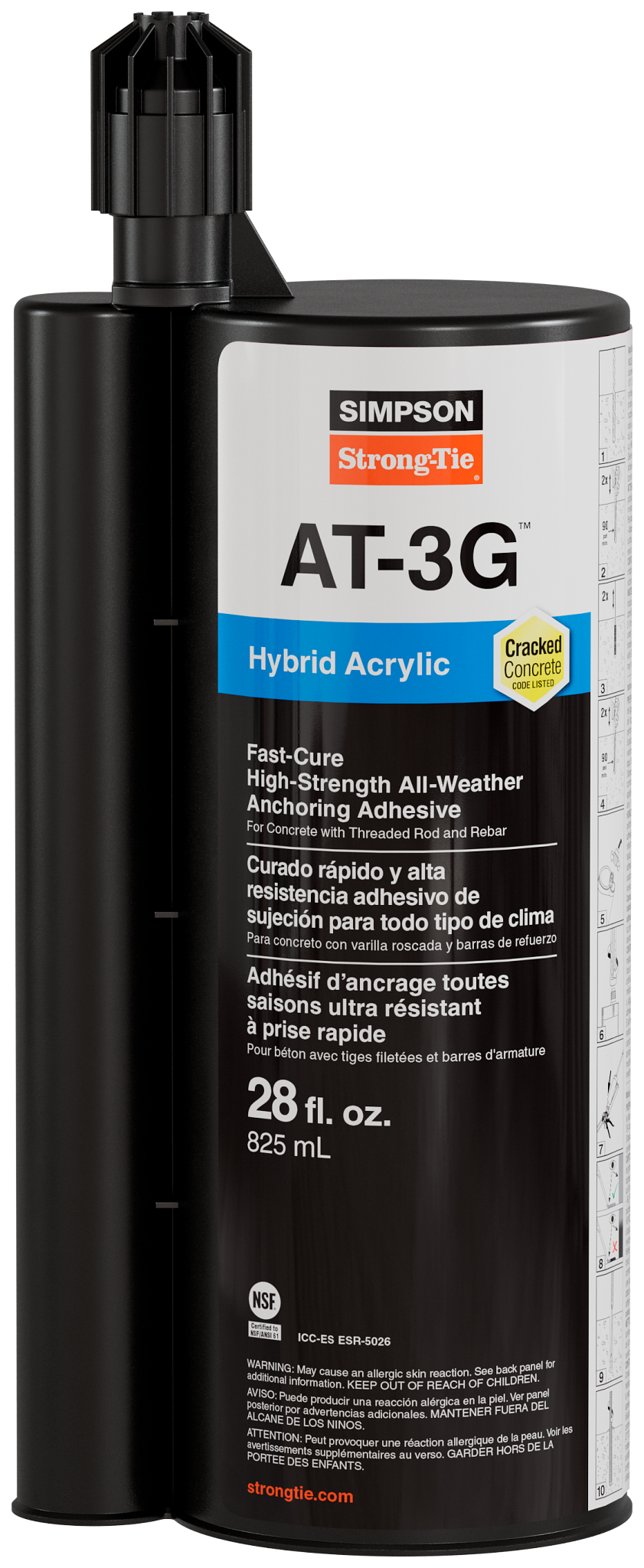

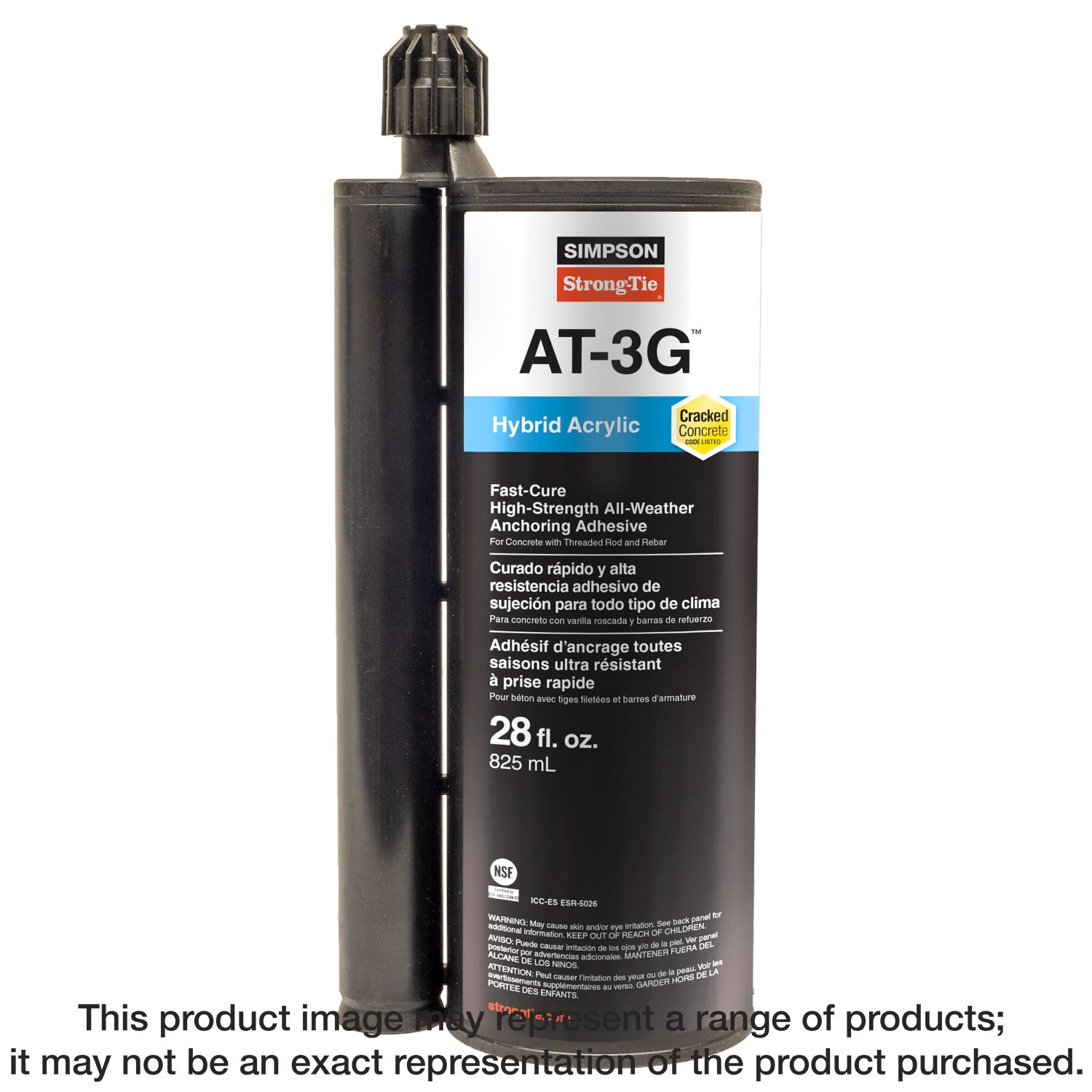

Simpson Strong-Tie AT3G30 AT-3G™ 28-oz. High-Strength Acrylic Anchoring Adhesive Cartridge w/ Nozzle

Simpson Strong-Tie AT3G30 AT-3G™ 28-oz. High-Strength Acrylic Anchoring Adhesive Cartridge w/ Nozzle

Simpson Strong-Tie® AT-3G™ is a hybrid, acrylic-based adhesive for anchoring threaded rod and rebar into cracked and uncracked concrete. Ideal for cold weather and wet concrete applications, AT-3G dispenses easily and offers a fast curing time for same-day bolt up. It can be specified for a wide range of in-service temperatures, and maintains its strong bond strength in extreme environments for ultimate design and jobsite flexibility. Tested and code compliant with the IBC and IRC, AT-3G hybrid adhesive is easy to install with the conventional blow-brush-blow hole cleaning method.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Excellent for use in cold weather conditions or applications where fast cure is required
• Recognized per ICC-ES AC308 for threaded rod and rebar anchoring, along with post-installed rebar development and splice length design provisions
• Conventional blow-brush-blow hole cleaning technique using a wire brush — no power brushing required
• Base material installation temperatures down to 0°F (-18°C)
• Use in grout-filled CMU construction
• Use of a vacuum in lieu of compressed air for hole cleaning
• Installation into oversized holes
• Installation in holes drilled with diamond core bits
• 28-oz. side-by-side cartridge
• Tested in accordance with ICC-ES 308, ACI 355.4 and applicable ASTM test methods

Specifications

• ERP Part Number: AT3G30
• UPC: 707392019572
• GTIN: 707392019572
• Feature 01: Excellent for use in cold weather conditions or applications where fast cure is required
• Feature 02: Recognized per ICC-ES AC308 for threaded rod and rebar anchoring, along with post-installed rebar development and splice length design provisions
• Feature 03: Conventional blow-brush-blow hole cleaning technique using a wire brush — no power brushing required
• Feature 04: Base material installation temperatures down to 0°F (-18°C)
• Feature 05: Use in grout-filled CMU construction
• Feature 06: Use of a vacuum in lieu of compressed air for hole cleaning
• Feature 07: Installation into oversized holes
• Feature 08: Installation in holes drilled with diamond core bits
• Feature 09: 28-oz. side-by-side cartridge
• Feature 10: Tested in accordance with ICC-ES 308, ACI 355.4 and applicable ASTM test methods
• Install With: Install using the Simpson Strong-Tie® ADT30S, ADTA30P or ADTA30CKT dispensing tools; use only Simpson Strong-Tie mixing nozzles in accordance with Simpson Strong-Tie instructions; modification or improper use of mixing nozzle may impair AT-3G adhesive performance
• Assembled Depth - Imperial: 3.1875
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 24.5
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.1875
• Assembled Width UOM - Imperial: in.
• Base Product ID: AT-3G_Adhesive
• Base Product Name: AT-3G™
• Brand Name: Simpson Strong-Tie®
• Capacity: 28 oz. (50.5 cubic in.)
• Category Tree (Computed): Concrete Connectors and Anchors > Acrylic Anchoring Adhesives > Adhesive
• Color: Gray
• Country of Origin: DE
• Customer Unit: Yes
• Display Unit/Measure: EA
• GUID: 326082694805676287975187654862317220870
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 3.1875
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 10.25
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 4.25
• Package Width UOM - Imperial: in.
• Packaging Quantity: 1
• Packaging Type: Cartridge
• Product Class: Adhesive
• Product Includes: <p>Includes AMN19Q mixing nozzle</p>
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 3.63
• Short Product Name: 28 OZ AT3G W/NOZZLE
• Strongtie.com URL: https://www.strongtie.com/acrylicanchoringadhesives_adhesives/at-3g_adhesive/p/at-3g
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Acrylic Anchoring Adhesives
