Bosch Self-Leveling Rotary Laser Kit Level 360 - GRL4000-80CHK

BOSCH GRL4000-80CHK Self-Leveling Rotary Laser Kit Level 360 - GRL4000-80CHK

$10.476.000,00

Hurry Up! Only 0 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Sep 01 - Sep 05

Return within 45 days of purchase. Taxes are non-refundable.

Availability: In Stock Unavailable

SKU: GRL4000-80CHK

Type: Laser Levels

Vendor: Bosch

Categories:

BOSCH, Laser Levels

Guarantee safe & Secure checkout

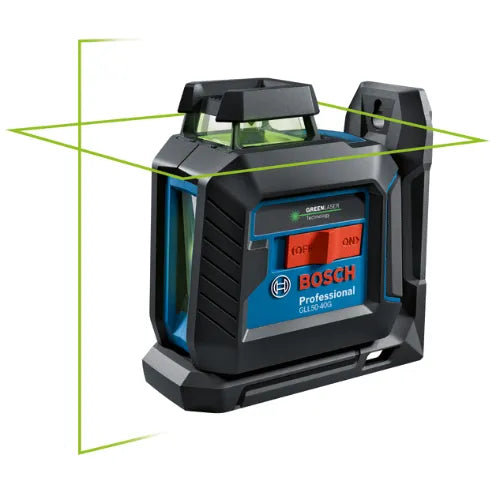

BOSCH GLL50-40G Green Beam Self-Leveling 360 Degree Cross-Line Laser $1.214.000,00

BOSCH GTC400C 12V Max Connected Thermal Camera - GTC400C $6.333.000,00

Bosch - 12V Max Connected Thermal Camera - GTC400C

Description
Reviews

Bosch Self-Leveling Rotary Laser Kit Level 360 - GRL4000-80CHK

BOSCH GLR4000CHV Laser Kit INCLUDES
GRL4000-80CHV 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser
LR40 Laser Receiver with Bracket
1 each GBA18V40 18V CORE18V Lithium-Ion 4.0 Ah Compact Battery
18V Battery Charger
BA1 Alkaline Battery Adapter
4 each D Cell Alkaline Batteries
4 each AA Batteries
WM6 Wall Mount
RC5 Remote Control
Small Protective Carrying Case

BOSCH GRL4000CHV Laser Package BENEFITS

Fully featured rotary laser – has Dual Dial-In Slope, CORE18V power, Bluetooth® connectivity, uCAL user-calibration and more.
Dual Dial-In Slope – allows slope angle adjustment on both the X and Y axes
Dual Power Source – for extended runtime and option of a 4.0 Ah CORE18V battery or a battery adapter with four (D) cell batteries
Durable design – engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards
Bluetooth® connectivity – connects to a mobile device, linking to the free Bosch Leveling Remote App, to control sleep mode, Dual Dial-In Slope, and more
uCAL – user-calibration guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the jobsite
Long working range – range of up to 4,000 Ft. with laser receiver, the laser accuracy of up to ±1/16 In. at 100 Ft. in horizontal mode and ±1/8 In. at 100 Ft. in vertical mode
Vertical-beam functionality – provides a vertical beam at 90° point for layout, squaring and plumb applications
Electronic self-leveling – allows for easy setup and use on the job
Disturbance monitor – indicates if tool position changes, ensuring consistent leveling accuracy
Variable-speed and scan-angle selection – allows for maximum visibility at different lighting conditions
Comprehensive kit – includes a remote control, 18V 4.0 Ah battery and charger, alkaline battery adapter, wall mount, laser receiver, aluminum tripod, sturdy grade rod and durable hard carrying case

BOSCH GRL4000-80CHV TECHNICAL DATA

BOSCH GRL4000CHVK Laser Package SPECIFICATIONS
Accuracy	± 1/16 in. @ 100 ft. Horizontal Mode ± 1/8 in. @ 100 ft. Vertical Mode
Battery	Lithium-Ion Battery
Battery Voltage	18 Volt
Height	11 inches
IP Rating	IP68
Laser Diode	635 nm, <1mW
Length	12.8 inches
Leveling Type	Self-Leveling, Up to 5°
Material	Plastic Composite
Mounting Thread	5/8-11
Operating Temperature	14° F ~ 122° F
Range	Up to 4,000 feet (diameter)
Weight	8.2 lbs
Width	7.4 inches
Warranty	1 Year on laser, Extended to 2 Years on laser with online product registration.

DELUXE BOSCH LR40 Rotary Laser Receiver INCLUDED IN GLR4000-80CH PACKAGE
	2,000 Ft. Rotary Laser Receiver The Bosch LR40 Rotary Laser Receiver is designed to increase the GRL4000-80CH and GRL4000-80CHV rotary laser detection up to 2,000 Ft., with a dual-sided backlit LCD display for use in darker areas or outdoors on both sides of the receiver. It has built-in X and Y-axes buttons that allows for elevation and cut-and-fill calculations in both axes up to ±8.5°. The display illuminated large, easy-to-see indicators, including up/down arrows, center line, accuracy level, battery levels and audio signal. It also has LED indicators, to provide easy visual readout and simple operation. The oversized laser detection area helps find the laser beam faster, making it easier to start setting level. The receiver provides convenience features such as built-in magnets for secure attachment to metal surfaces, an adjustable audio indicator, intuitive six-button keypad, receiver vial, attachment hook and ergonomic soft grip. BOSCH LR40 Rotary Laser Receiver INCLUDES LR40 2,000 Foot Rotary Laser Receiver Mounting Bracket (2) AA Batteries BOSCH LR40 Rotary Laser Receiver BENEFITS Receiver to extend working range – increases rotary detection up to 2,000 Ft., with easy-to-see LED indicators, adjustable audio Dual-sided backlit LCD display – illuminates easy-to-see up/down arrows, center line, accuracy level, battery levels and more Dual-sided indicators – provide easy visual readout on both sides of the receiver Oversized detection area – enables fast laser reception Built-in magnets – allow for secure attachment to metal surfaces Adjustable audio indicator – provides clear signal of on-grade position and facilitates precise plus/minus control Intuitive six-button keypad – enables simple operation and center line function in both X and Y axes Receiver vial – helps ensure accurate leveling results Ergonomic soft grip – provides secure handling and comfort



	Bosch GRL4000-80CHV 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser The Bosch 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser has it all, with Dual Dial-In Slope, CORE18V Li-ion power, Bluetooth connectivity, user-calibration and more. The Dual Dial-In Slope feature allows the user to adjust the slope angle on the laser on both the X and Y-axes. Powered by a Bosch CORE18V battery, providing extended runtime, the rotary laser has a cage overmold, an innovative handle design and is built to IP68 standards. The GRL4000-80CHV has Bluetooth connectivity, uCAL user-calibration, an accuracy of up to ±1/16 In. at 100 Ft. in horizontal applications, and a range of up to 4,000 Ft. with the LR40 laser receiver.
GRL4000-80CHV KEY FEATURES


Dual Dial-In Slope	uCAL & Bluetooth	CORE18V Batteries	Ultimate Jobsite Durability
Allows slope angle adjustment on both X and Y aces up to 8.5%	User-calibration guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the jobsite	For extended runtime and option of a 4.0 Ah CORE18V battery or a battery adapter with four (D) cell batteries	Engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites
