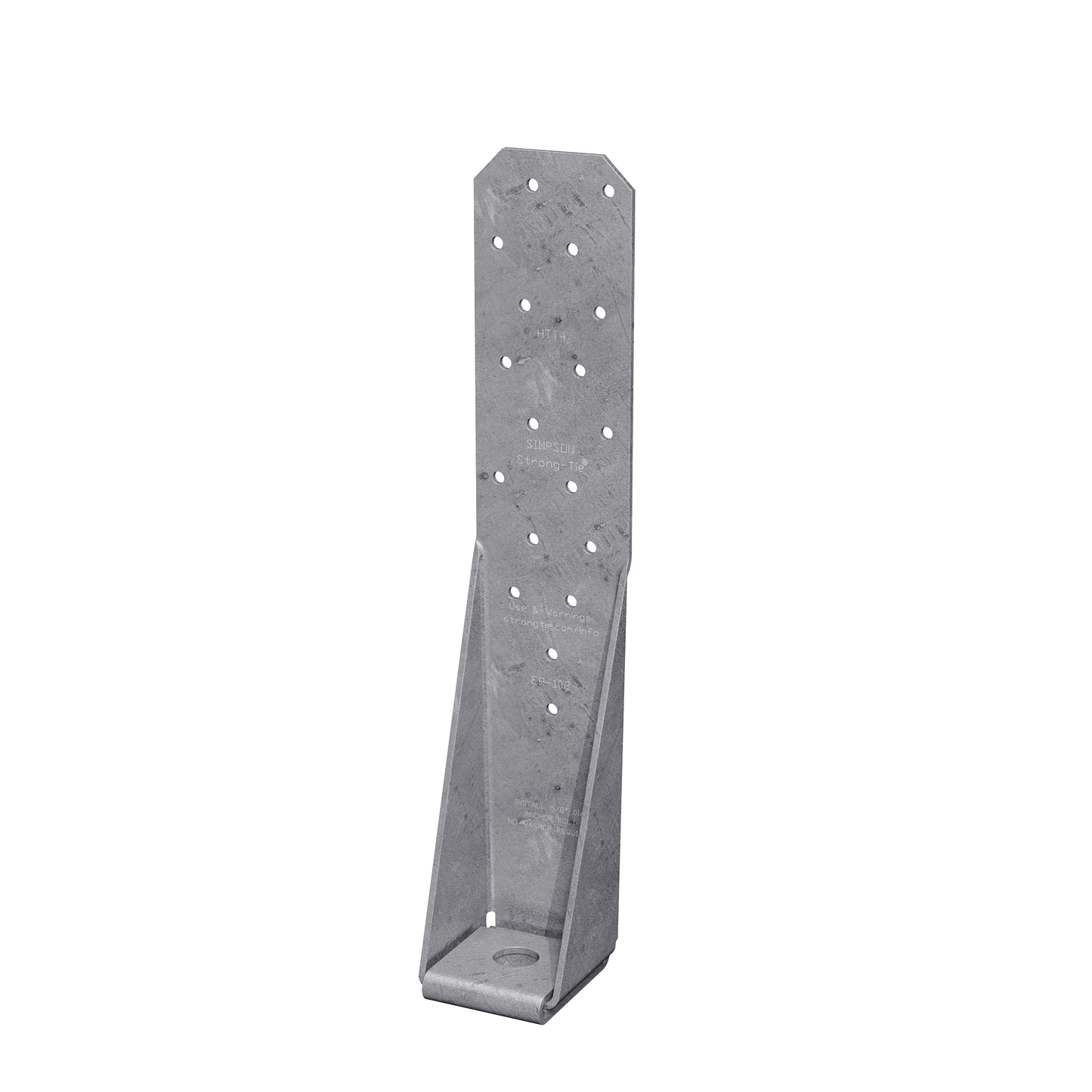

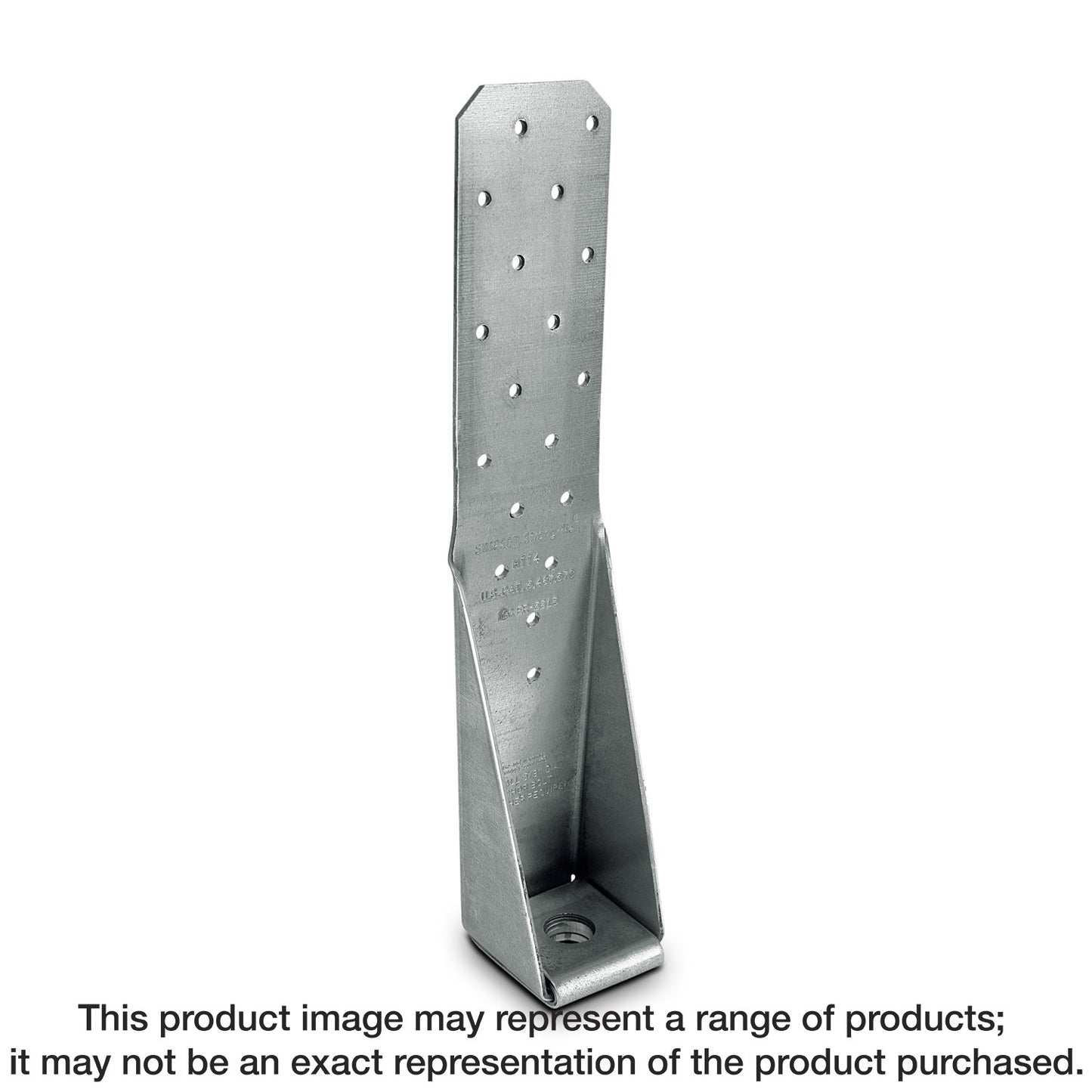

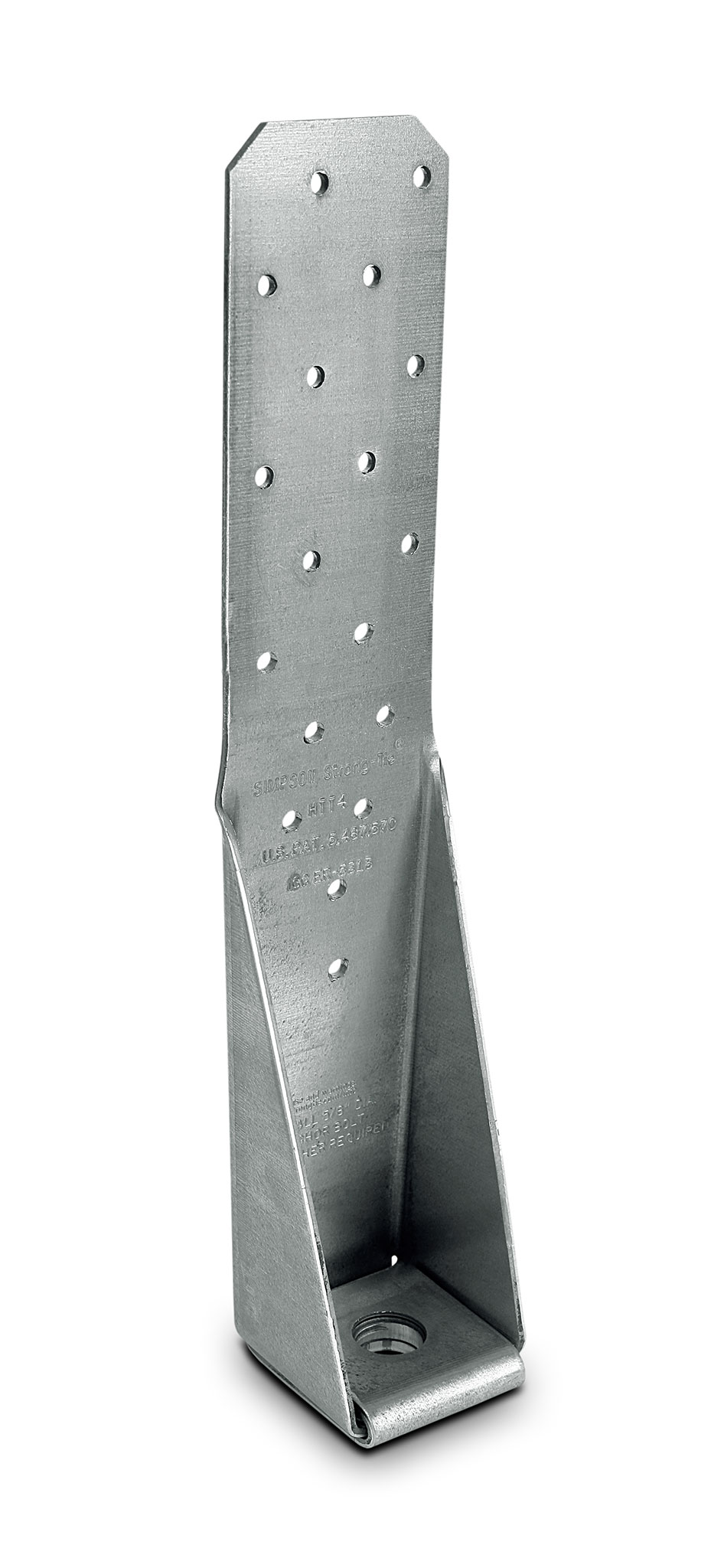

Simpson HTT4 HTT 12-3/8" 11-Gauge Galvanized Heavy Tension Tie

Simpson HTT4 HTT 12-3/8" 11-Gauge Galvanized Heavy Tension Tie

The Simpson Strong-Tie® HTT is designed to resist medium tension loads that are fastened with #10 screws. This single-piece formed heavy tension tie has a four-ply formed seat, is designed without rivets and does not require washers. This tension tie provides high-strength, post-pour, concrete-to-steel connections.

This Simpson Strong-Tie product is designed for demanding construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation are important. It belongs to the Wood Construction Connectors product family. It includes a Zinc Galvanized, G90 finish for added durability. Use the information below to confirm the correct SKU, UPC, dimensions, finish, material, packaging, application, fastening details, code references, and other available Simpson product specifications before ordering.

Features

• Ideal for retrofit or new construction projects
• Can be installed with cast-in-place or post-installed anchor bolts
• Four-ply formed steel provides increased tension capacity
• Anchor bolt washers not required
• 2-1/2-in. width x 12-3/8-in. length
• Anchor rod diameter: 5/8 inch
• Made from 11-gauge steel
• Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: HTT4
• UPC: 707392894605
• GTIN: 707392894605
• Feature 01: Ideal for retrofit or new construction projects
• Feature 02: Can be installed with cast-in-place or post-installed anchor bolts
• Feature 03: Four-ply formed steel provides increased tension capacity
• Feature 04: Anchor bolt washers not required
• Feature 05: 2-1/2-in. width x 12-3/8-in. length
• Feature 06: Anchor rod diameter: 5/8 inch
• Feature 07: Made from 11-gauge steel
• Feature 08: Galvanized (G90) for corrosion resistance
• Install With: (1) 5/8-in. anchor bolt AND (18) 0.148 x 1-1/2-in. nails, 0.162 x 2-1/2-in. nails or #10 x 1-1/2-in. Strong-Drive® SD Connector screws
• Assembled Depth - Imperial: 2.474
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 12.375
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.5
• Assembled Width UOM - Imperial: in.
• Base Product ID: HTT_Tie
• Base Product Name: HTT/HTTH™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Holdowns and Tension Ties > Tie
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 11
• GUID: 158303502725396388985584833390350003811
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Tie
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 1.85
• Short Product Name: 12-3/8IN TENSION TIE
• Strongtie.com URL: https://www.strongtie.com/tensionties_holdownsandtensionties/htt_tie/p/htt
• Subcategory: Wood Construction Connectors
• Subcategory 2: Holdowns and Tension Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 20707392894609
• PAL Reference: 60707392894607
